Marine Navigation & Instruments - Transducers

XM 9 HW MSI T MEGA Side Imaging+™ Transom Mount TransducerMEGA Side Imaging+ Transom Mount Transducer supports MEGA Imaging+/800kHz/455kHz and Dual Spectrum CHIRP 2D Sonar with a CHIRP range of 150-220kHz. Includes built-in temperature sensor, all metal bracket and 20’ cable. Features: This accessory is compatible with the following Humminbird products: HELIX 8 CHIRP MEGA SI+ GPS G3N, HELIX 9 CHIRP MEGA SI+ GPS G3N, HELIX 10 CHIRP MEGA SI+ GPS G3N, HELIX 12 CHIRP MEGA SI+ GPS G3N Dual Spectrum CHIRP Frequencies: Full: 150-220 kHz, Narrow: 180-240 kHz, Wide: 140-200 kHz Dual Spectrum CHIRP Max Depth: 1200ft (365m) MEGA Side Imaging+ Frequencies - Max Range (side-to-side): 455kHz: 440-500 kHz - 800ft (244m), 800kHz: 790-850 kHz - 250ft (76m), MEGA SI+: 1075-1150 kHz - 400ft (122m) MEGA Down Imaging+ Frequencies - Max Depth: 455kHz: 440-500 kHz - 400ft (122m), 800kHz: 790-850 kHz - 125ft (38m), MEGA DI+: 1075-1150 kHz - 200ft (61m) 1-Year Limited Warranty WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Temperature: Yes Imagining: Standard/Down/Side Pins: 7 Mounting Style: Transom Chirp: High Wide Cable Length (Feet): 20' Speed Included: No Box Dimensions: 4"H x 9"W x 15"L WT: 2.75 lbs UPC: 082324053269 Owner's Manual (pdf)

Read more less

B265LH Bronze Thru-Hull Mount Transducer w/Depth & Temp - 12-PinGarmin's best performing 1 kW thru-hull transducer, this mount performs well in deep water and has exceptional bottom and water column detail.This transducer has a depth of 3,000 feet; an operating frequency of 42 to 65 kHz and 130 to 210 kHz; a beamwidth of 16 to 25 degrees and 6 to 10 degrees; and a 0 to 20 degree deadrise.Transducer kit comes with installation instructions. Follow the instructions carefully to avoid damaging your boat.Compatible Devices: GPSMAP® 7607xsv, 7608xsv, 7610xsv, 7612xsv, 7616xsv GSD™ 25 Premium Sonar Module WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Mounting Style: Thru-Hull Temperature: Yes Speed Included: No Imagining: Standard Chirp: Low/High Cable Length (Feet): 39' Pins: 12 Box Dimensions: 7"H x 19"W x 26"L WT: 24.2 lbs UPC: 753759142414

Read more less

ST300 Thru-hull Shorty™The S300/ST300 speed sensors are our lowest cost and shortest thru-hull speed sensors. As part of our Shorty™ Series, they are designed for boats with low headroom. The plastic P371 low profile outer housing option is nearly flush and minimizes drag with only 5 mm (3/16") extending outside of the hull. The plastic P398 countersunk outer housing option mounts flush, eliminating turbulence for more accurate speed readings. Specifications: Cable Length (Feet): 30' Mounting Style: Thru-Hull Chirp: No Temperature: Yes Speed Included: Yes Box Dimensions: 4"H x 6"W x 6"L WT: 1.25 lbs UPC: 723193260081

Read more less

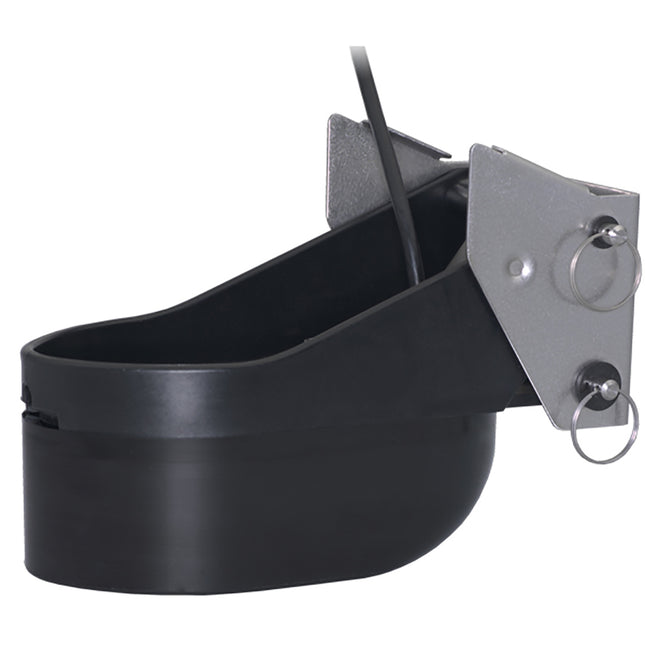

TM185M Medium-Frequency CHIRP Transducer with Temperature - Urethane Transom Mount with Stainless BracketFeatures: Frequency: Chirp 85 - 135 kHz Power Rating: 1KW Connector: 10 Pin This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

B175HW Bronze Thru Hull 0° Tilt - 1kWGet more coverage under the boat with Airmar's new wide beam Chirp product line. Offering a high frequency range of 150-250 kHz and a constant 25° beam width, these transducers are truly broadband at its best. In addition to improving the performance of Chirp-ready echosounders, anglers using the new wide beam transducers will achieve twice the coverage under the boat compared to our current high frequency Chirp transducersA unique property of the new high frequency transducers is that the beam width is a constant 25° angle across the entire frequency band. Now, in addition to providing vast bottom coverage and precise fish detection in the upper water column that can sometimes go unseen with our narrow beam transducers, Airmar's new wide beam format also creates crisper and larger return images on the display. We've got you covered.Features: Depth & fast-response water-temperature sensor 0 degree tilted version, 1KW High—CHIRPS from 150 kHz to 250 kHz 25° constant beamwidth 100 kHz of total bandwidth from one transducer Covers popular fishing frequency of 200 kHz plus everything else in the bandwidth Boat Size: 8 m (25’) and above Hull Type: Fiberglass or wood Exclusive Xducer ID® technology This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

P79 NMEA 2000 In-Hull 235 kHzThe P79 in-hull transducer easily adjusts to hull deadrise angles up to 22 °. This ensures that the beam is vertically oriented to receive echos, resulting in accurate depth readings. Unlike traditional "puck" type transducers, our P79 consists of a base that is bonded to the hull and filled with liquid. The separate transducer then attaches to the base with a twist lock. The sound waves travel more efficiently though the liquid, giving the best possible performance. The unique adjustable-angle design ensures the beam is vertically oriented for maximum echo returns and the best possible performance. Because the transducer is mounted inside the hull, it is the perfect solution for rigid inflatable boats (RIBS) and racing sailboats. Features: Adjusts to hull deadrise angles up to 22° No holes to drill Depth Only Frequency: 235 kHz Cone: 11° Recommended for solid fiberglass hulls Epoxies to aluminum hulls under 0.38 mm (0.150”) thick Recommended for planing-hull power boats, trailered boats, rigid inflatable boats No hull protrusions 6M (20’) NMEA 2000® cable & connector This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Mounting Style: In-Hull Box Dimensions: 4"H x 8"W x 10"L WT: 2 lbs UPC: 801769002515

Read more less

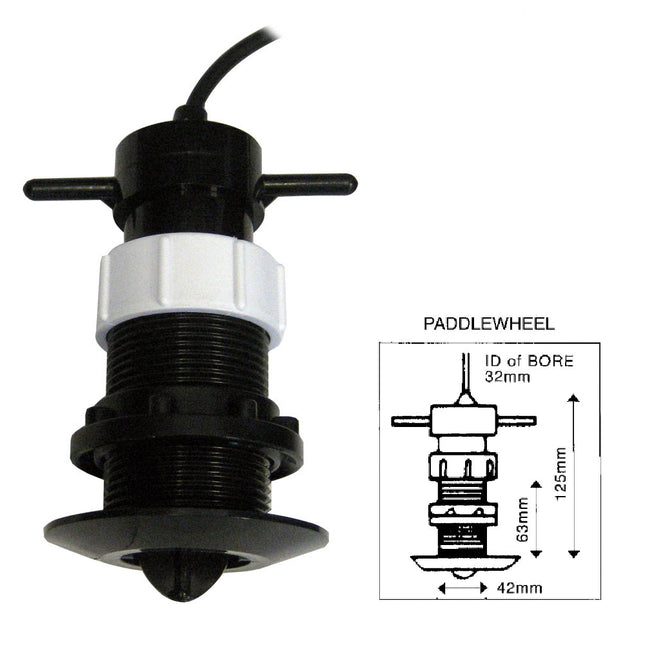

Complete Paddle Wheel Unit Spare complete log impellor unit with skin fitting and 7 meter cable.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

Thru-Hull Multibeam Transducer f/DDF3DThe 165T-B54 is a multi-beam transducer for the DFF3D that affords a 120° port-starboard view of the underwater world. Its compact design allows for easy installation. A built-in motion sensor stabilizes the display to give clear and stable images, even under rough sea conditions.WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

Plastic Thru-Hull, Low Profile, Transducer, 600w (10-Pin) 600 Watts 50/200 kHz 45/15 degree Beam Angles Low Profile Plastic Thru-hull 30 Foot Cable with 10-Pin Connector WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Speed Included: No Mounting Style: Thru-Hull Temperature: No Box Dimensions: 4"H x 6"W x 8"L WT: 1.8 lbs UPC: 6116791010990 Quick Guide (pdf)Brochure (pdf)

Read more less

Plastic Thru-Hull Transducer, 600w (10-Pin) 600 Watts 50/200 kHz 46/10 degree Beam Angles Plastic Thru-Hull 8-Meter Cable with 10-Pin Connector WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Temperature: No Speed Included: No Mounting Style: Thru-Hull Box Dimensions: 4"H x 5"W x 10"L WT: 1.6 lbs UPC: 611679101020 Quick Guide (pdf)

Read more less

Airmar B75Hw/20° Tilt600WFlush-mounted bronze housing,tilted element inside the transducer accommodates all hull deadrises and eliminates the need for a fairing block. Low, medium, and high frequency versions provide maximum flexibility for the choice of frequencies. Excellent for fiberglass and wood hulls.Max Depth - 800'Suppoarted Deadrise/Transom Angles - 16-24° DeadriseWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Temperature: Yes Speed Included: No Pins: 8 Mounting Style: Thru-Hull Chirp: High Cable Length (Feet): 39' Imagining: Standard Box Dimensions: 5"H x 8"W x 12"L WT: 6.1 lbs UPC: 753759971984 Owner's Manual (pdf)Brochure (pdf)

Read more less

Airmar P319 200/50kHz Plastic Thru-hull Transducer (8-pin)010-10194-21This plastic thru-hull mount transducer performs well at high speeds.An excellent choice for fiberglass and metal hulls, this 8-pin 600 W transducer has a depth of 800 to 1,200 ft; an operating frequency of 50 to 200 kHz; a beamwidth of 45 to 12 degrees; and a 0 to 7 degree deadrise.Transducer kit comes with installation instructions. Follow the instructions carefully to avoid damaging your boat.Do not use on wood hulls.When using with a 6-pin Garmin sounder, transducer adapter cable part number 010-11612-00 is required.WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Temperature: Yes Speed Included: No Pins: 8 Mounting Style: Thru-Hull Imagining: Standard Chirp: No Cable Length (Feet): 39' Box Dimensions: 4"H x 8"W x 10"L WT: 2.7 lbs UPC: 753759971809 Owner's Manual (pdf)Brochure (pdf)

Read more less
