Marine Navigation & Instruments

NMEA 2000 Liquid Level Sensor - 200 to 600mmThe NMEA 2000® Liquid Level Sensor overcomes a laundry list of issues that plague traditional fluid level monitoring solutions, including being certified for drinking water—an industry first.  Powered by an NMEA 2000 network, three models are available to accommodate a wide range of tank depths from 200 mm to 1500 mm.The capacitive sensor is easily selectable between fresh and waste water, and is micro-adjustable for tank size. Unlike reed technology that only reports tank level in graduated steps, the Veratron NMEA 2000 Liquid Level Sensor, thanks to capacity measuring technology, offers level linearity on the full range. This provides precise data to make informed decisions on refilling and pumping out or discharging, for up to 4 tanks.Completely plug-and-play, the Veratron sensor simply connects directly into the NMEA backbone with its integrated Micro-C M12 5-pin NMEA 2000 connector. This provides the nominal 12V power and the ability to view tank level from any networked display.UL94, CE, REACH and RoHS compliant, the NMEA 2000 Liquid Level Sensor is IPX9K rated as an exposed device. Features: Includes Flange Installation Kit 300mm NMEA Pigtail Connection Technical Specifications: Connector - NMEA 2000 Micro-C 5 pin M12 Male IP Protection Class - IPX9K In the Box: Sensor Sealing Kit Rubber Gasket Mounting Bracket Mounting Screws and Allen Wrench  *Sold as an IndividualThis product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Color: Silver Box Dimensions: 4"H x 4"W x 30"L WT: 1.45 lbs UPC: 7640178729384

Read more less

52mm ViewLine Bezel - Triangular - BlackThe VDO ViewLine modular bezel concept offers true design flexibility in the layout of instrument panels.  The three attractive designs in Black, White or Chrome are suitable for every machinery instrument panel or special vehicle cockpit.  The range also includes bezels with flat, round and triangular profiles.  Each of the bezel designs is compatible with every ViewLine product.Features: Color - Black Bezel Profile - Triangular Size - 52mm Interchangeable Clip System *Sold as an IndividualThis product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Color: Black Box Dimensions: 1"H x 2"W x 2"L WT: 0.1 lbs UPC: 7640178724273

Read more less

52MM (2-1/16") OceanLink Temperature 120°C/250°F - Black Dial & BezelOceanLink 52 mm Vessel Status Gauges are connected directly to any OceanLink Master unit using the patented EasyLink serial bus connection.  Up to 16 EasyLink gauges for each Tachometer or GPS Speedometer can be daisy-chained together.  Interchangeable bezel option. Features: AMP Superseal Easylink 270° pointer deflection angle Reverse polarity protection Anti-fog double lens Front & rear protection rating IPX5 Operating temperature range -20 °C / +70 °C Nominal voltage - 12/24V Hole diameter - 52MM In the Box: Gauge Bezel Rubber Seal Spinlock Installation Instructions Safety Instructions *Sold as an IndividualWARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Voltage - Input Range (Volts): 12/24 V Gauge Size: 2-1/16" Box Set: No Gauge Type: Water Temperature Series: OceanLink Box Dimensions: 4"H x 6"W x 6"L WT: 0.35 lbs UPC: 7640178721067

Read more less

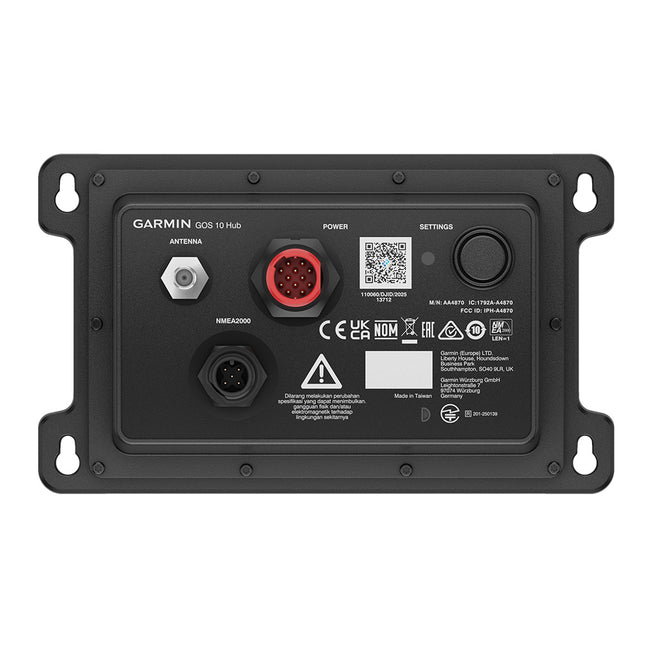

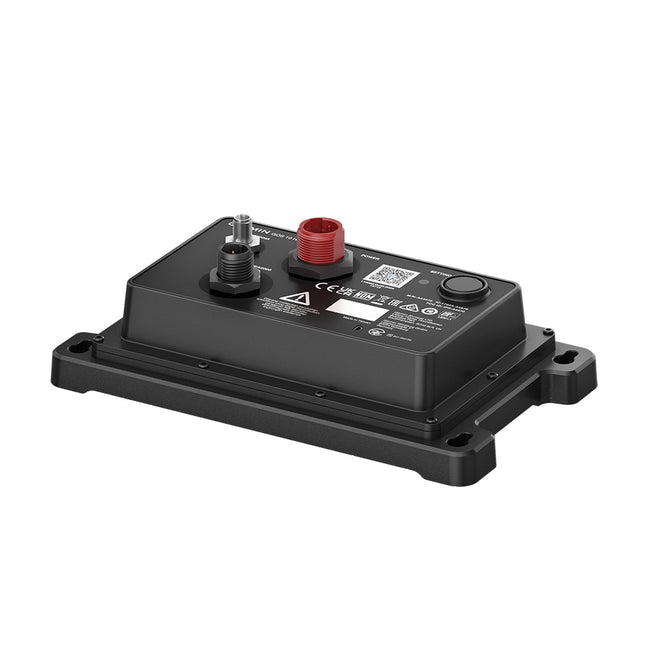

GOS™ 10 Hub for Garmin OnBoard™ SystemProtect your passengers and loved ones with the GOS 10 Hub for the Garmin OnBoard system. One of the main components of your Garmin OnBoard system, the GOS 10 Hub communicates wirelessly with the MOB tags and connects to your vessel’s engine harness to provide Engine Cut Off System (ECOS) functionality.What's In The Box? GOS™ 10 Hub for the Garmin OnBoard System 12-pin fused power and engine cut-off harness with external buzzer External antenna for wireless connection to MOB tags NMEA 2000® T-connector NMEA 2000 drop cable Installation hardware Documentation Specifications: Dimensions (HxWxD): 91.55 mm x 155.12 mm x 48.47 mm Weight: 171.7 g Wireless range: 66 ft (up to 20 m) Supply voltage range: 10-32V Operating temperature range: -15 °C to 70 °C Typical power consumption: 50mA @ 12V or 0.6W NMEA 2000 LEN®: 1 Engine compatibility: Inboard, outboard, sterndrive from all major manufacturers Engine interface: Hardwired, in-line connection to ignition harness Number of engines supported: Up to 4 close-to-stop or 2 open-to-stop engines Water rating: IPX6 and IPX7 Compass-safe distance: 5 cm

Read more less

AS EC 30E Ethernet Cable - 30'The Ethernet Cable is a 30' cable that allows the connection of two Ethernet capable units to be connected. WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Cable Length (Feet): 30' Box Dimensions: 4"H x 7"W x 9"L WT: 1.35 lbs UPC: 082324509186 Owner's Manual (pdf)

Read more less

NMEA 2000 Drop Cable - 3 MeterThis NMEA 2000 5-pin drop cable is built for seamless integration between your network backbone and connected marine electronics. Designed with durable, waterproof connectors, it ensures a secure and interference-free connection to displays, GPS units, sensors, and more. Built to NMEA 2000 standards, this drop line supports dependable communication across all major marine brands.Whether you’re expanding your system or replacing a worn connection, this marine network cable is an essential component for clean, efficient, and reliable wiring.Made from rugged materials, it resists saltwater corrosion, UV exposure, and mechanical wear, ensuring long-lasting performance in demanding marine environments. Specifications: Connection Gender: Male-Female Data Interface: NMEA 2000 Cable Length (Meters): 3m NMEA 2000 Connectors: Backbone/Drop Cables Box Dimensions: 1"H x 6"W x 11"L WT: 0.5 lbs UPC: 810196330283 Brochure (pdf)

Read more less

Platinum 2" Voltmeter (10-16 VDC)Faria Beede’s Platinum Series Instruments feature spun aluminum gauge dials with custom graphics and a polished stainless steel bezel providing a rugged, elegant look.  All Platinum Series gauges feature Faria's revolutionary domed glass Fog-Resistant lens. These lenses shed condensation and resists scratching and other types of fouling common in the marine environment.  A voltmeter indicates the battery voltage and the general condition of the battery charging system. The meter requires no warm-up and indicates voltage changes instantly.2" - Hole Size: 2.0625" (53mm)Specifications: Domed Glass Anti-fog, Scratch Resistant Lens Stainless Steel Bezel Blue LED Illuminating around the Perimeter of the Dial Illuminated Backlit Fire-Orange Tip Pointer Factory P/N VP7179*Sold as an Individual*Gauge Cover not IncludedThis product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Voltage - Input Range (Volts): 12/24 V Box Set: No Series: Platinum Gauge Type: Voltmeter/Ammeter Gauge Size: 2" Box Dimensions: 4"H x 4"W x 5"L WT: 0.3 lbs UPC: 759266220225 Brochure (pdf)

Read more less

Euro Black 2" Voltmeter (20-32 V) Perimeter-lighted Black dial with bold White graphics, Black aluminum bezel, contoured White pointer and flat glass lens. A voltmeter indicates the battery voltage and the general condition of the battery charging system. The meter requires no warm-up and indicates voltage changes instantly.2" - Hole Size: 2.0625" (53mm)Specifications: Anti-scratch glass lens Plastic Cases for corrosion resistance and long life Perimeter-lighted Black dial Can be adapted for 24 VDC systems Factory P/N VP9191*Sold as an Individual**Gauge Cover not IncludedThis product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Gauge Type: Voltmeter/Ammeter Voltage - Input Range (Volts): 12/24 V Gauge Size: 2" Box Set: No Series: Euro Black Box Dimensions: 4"H x 5"W x 5"L WT: 0.25 lbs UPC: 759266128606

Read more less

Chesapeake Black 2" Hourmeter (Digital)Perimeter-lighted Black dial with stylish Blue and White graphics, polished stainless steel bezel, contoured White pointer and domed glass lens.Hourmeter operates by applying battery voltage across the gauge's register motor to ground.  The register increments increase when the key switch in on.  Route power through a normally open Oil Pressure switch to count "engine running" hours. 2" - Hole Size: 2.0625" (53mm) Specifications: Anti-scratch glass lens Perimeter lighted back light 12 VDC negative ground Can be adapted for 24 VDC systems Operating Range  - 0 to 10,000 Hours Factory P/N MH0239*Sold as an Individual**Gauge Cover not IncludedThis product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Gauge Type: Hourmeter Box Set: No Voltage - Input Range (Volts): 12/24 V Gauge Size: 2" Series: Chesapeake Black Box Dimensions: 4"H x 4"W x 5"L WT: 0.25 lbs UPC: 759266137158

Read more less

Temperature Sender - 1/8" (American Single Standard)Features: 1/8” NPTF American Single Standard Catalog P/N 90401∗Sold as a SingleThis product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

Kronos 2" Oil Pressure Gauge - 80 PSIPolished Stainless Steel bezel, flat glass lens, perimeter lighted spun aluminum dial with Gold and Black graphics. Gold increments and Logo on dial are Embossed.  All instruments include two piece Newport pointer with White hub. A pressure gauge operates by sending a low amperage current through the gauge's meter to ground via a sending unit with variable resistance. The resistance of the sending units increase or decrease with the changes in pressure, temperature, etc...As the sender's resistance varies, the amount of current allowed to flow through it to ground changes and the meter deflects, showing the change in pressure.2" - Hole Size: 2.0625" (53mm)Specifications: Flat Scratch Resistant Lens Polished Stainless Steel bezel LED Illuminating around the Perimeter of the Dial Newport style White Pointer Dual Scale - Imperial and Metric Factory P/N GP7684*Sold as an Individual**Gauge Cover not IncludedThis product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Gauge Type: Oil Pressure Series: Kronos Voltage - Input Range (Volts): 12/24 V Gauge Size: 2" Box Set: No Box Dimensions: 4"H x 4"W x 5"L WT: 0.3 lbs UPC: 759266190023 Quick Guide (pdf)

Read more less

Euro White 2" Voltmeter (10-16 VDC)Perimeter-lighted White dial with bold Black graphics, Black aluminum bezel, contoured White pointer and flat glass lens.A voltmeter indicates the battery voltage and the general condition of the battery charging system. The meter requires no warm-up and indicates voltage changes instantly.2" - Hole size: 2.0625" (53mm)Specifications: Anti-scratch glass lens Perimeter-lighted White dial 12 VDC negative ground Can be adapted for 24 VDC systems Factory P/N VP9136*Sold as an Individual**Gauge Cover not IncludedThis product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Gauge Type: Voltmeter/Ammeter Series: Euro White Voltage - Input Range (Volts): 12/24 V Gauge Size: 2" Box Set: No Box Dimensions: 4"H x 4"W x 5"L WT: 0.3 lbs UPC: 759266129115 Quick Guide (pdf)

Read more less
