Marine Navigation & Instruments

Protective Cover for GPSMAP® 8x17Keep your compatible GPSMAP device safe from the harsh marine environment, when not in use, with this protective cover. WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Type: Covers Box Dimensions: 0"H x 12"W x 17"L WT: 1.3 lbs UPC: 753759153335

Read more less

GMS 10 Network Port ExpanderThe GMS 10 network port expander allows you to connect multiple chartplotters and sensors over the Garmin Marine Network. With this robust 100 MB switch, you can connect multiple multi-functional displays (MFDs) and sensors to the marine network and gain the benefit of Ethernet-like data transfer speeds up to 10 times faster than some competitive systems.Just Plug-and-PlayThe GMS 10 and the Garmin Marine Network are completely plug-and-play, which means all peripherals are automatically detected and readily accessible once they’re connected to the network. Likewise, you easily can expand your system using the same standard data cable to plug additional units and displays into the GMS 10 network ports.Seal Your ConnectionsThe rugged GMS 10 is specifically designed to withstand the corrosive marine environment. All connections are totally water resistant, and sealed covers keep harmful moisture away from unused data ports.WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Owner's Manual (pdf)

Read more less

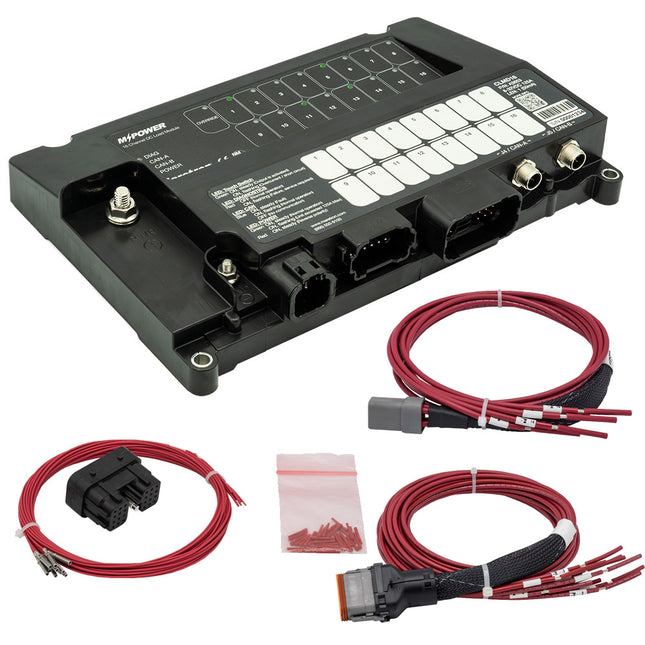

MPower® 16-Channel DC Load Controller Module with NMEA 2K with J1 & J2 ConnectorsFor larger breakers and more circuits, the MPower® CLMD16 is a 16-Channel DC Load Controller Module. Four of the 16 breakers handle a maximum of 25 amps, and twelve breakers handle a maximum of 12 amps, with a total current capacity of 125 Amps. Additionally, circuits can be paralleled.The CLMD16 also supports two H-Bridge reversing polarity circuits that can be used for loads such as engine hatches, passerelles, trim tabs, etc. The CLMD16 has 8 inputs for hard-wired switches that can be used to switch breaker states, or as inputs for other data, such as bilge alarms or hatch positions, etc. There are 3 inputs capable of monitoring tank levels.The CLMD16 handles many DC load types such as lights, pumps, motors, and electronics. An added benefit of the CLMD16 is that it reports the current through each of the 16 breakers. This allows you to determine if loads are drawing too much or too little electrical current. This information can be used to report overcurrent faults and undercurrent conditions, such as burnt-out bulbs.Features: NMEA 2000® Interface IP67 Rated Ignition Protected Opto-isolated from NMEA 2000®, eliminating potential ground loops Sixteen (16) dimmable Electronic Circuit Breakers (ECBs) for On/Off Control over NMEA 2000® network 4 breakers capable of carrying up to 25 Amps 12 breakers capable of carrying up to 12 Amps Individual breaker electrical current monitoring Breakers can have Power-Up states defined (ON, OFF, or previous states) Breakers can be locked against inadvertent actuation. Capacitive touch switches for local control of all loads All inputs and outputs are protected against short to Power and short to Ground Automatic ECB overcurrent shutdown Automatic ECB thermal shutdown (Overtemperature Protection) Eight (8) discrete digital input channels capable of sensing +ve or ground signals Two (2) resistive analog input channels One (1) 4-20mA current loop input channel Applications: Remote control of navigation lights Remote control of boarding lights Burnt-out bulb alerts Control of area lights with dimming This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: AC/DC: DC Box Dimensions: 4"H x 10"W x 14"L WT: 5.5 lbs UPC: 873804004365

Read more less

GT8HW-IH In-Hull Transducer - 8-PinGT8HW-IH transducer is ideal for bass boats that want to install the transducer inside a fiberglass hull and not on the transom where cavitation could cause issues. It requires a flat section in the hull to be mounted and is excellent for boats traveling at high speeds that want to maintain accurate depth readings.The 8-pin transducer features high-wide CHIRP traditional sonar (150-240 kHz) and has a power rating of 250 W. It can be used in conjunction with a GT30-TM transducer and an adapter cable so you can maintain depth at high speeds and scanning capabilities at trolling speeds.For installation, follow the included instructions carefully to avoid damaging your boat.WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Temperature: No Speed Included: No Mounting Style: In-Hull Imaging: Standard Chirp: High Wide Cable Length (Feet): 20' Pins: 8 Box Dimensions: 3"H x 6"W x 6"L WT: 0.9 lbs UPC: 753759174477 Owner's Manual (pdf)

Read more less

B785C-M CHIRP Bronze Thru-Hull w/Fairing Block - 600WFeatures: Thru-hull bronze model with fairing Same physical size as a B744V  600W power rating Depth and fast-response water temperature sensor Available only in the Medium frequency band (M : 80-130kHz) with bare wire cable This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Mounting Style: Thru-Hull Chirp: Medium Box Dimensions: 4"H x 12"W x 16"L WT: 7.2 lbs UPC: 801769002027 Owner's Manual (pdf)

Read more less

B164 Bronze Thru-Hull - 50/200 kHz - 1 kW - 12° Tilted Element - Requires Mix & Match Cable20° tilted version for 16 to 24° hull deadrise angles. Step up to a 1 kW—without a fairing! The 1 kW, flush-mount, Tilted Element™ transducer is perfect for fast, trailered vessels that cannot accommodate a High-performance Fairing. The flush-mounted, bronze housing extends less than 6.35 mm (1/4") below the hull so that it can sit on trailer rollers and bunks. The ceramic arrays are tilted within the housing, providing a perfectly vertical beam with maximum energy at the point directly below the boat.Features: Depth and fast-response water-temperature sensing 1 kW of power Dual-frequency elements: 50 kHz with a wide 22° beamwidth for depth performance to 549 m (1800') 200 kHz with a 6° beamwidth for depth performance to 244 m (800') Interfaces to any 600 W or 1 kW echo sounder Engineered for center-console and trailered boats Low-profile bronze housing extends less than 6.35 mm (0.25") below the hull No effect on the boat’s running performance Available in a stainless steel housing (SS164) for use in all hull materials Patented Xducer ID® technology Specifications: Acoustic Window: Urethane Cable-Length: 2 M (6.5') Common Use: Leisure/Yachting, Fishing Connector: Airmar 9-Pin (MM1) Conventional Beam: 22°x20°/6° Country of Origin: USA Deadrise Range: 16° to 24° Frequency Band: 50/200 kHz Material: Bronze Max Deadrise: Up to 24° Max Depth: Low frequency- 549 m (1800'), High frequency- 244 m (800') Mix and Match Series: 9-Pin 1000 Watt Mounting Style: Tilted Element Thru-Hull Retractable housing: No Sensor Connector: MM1 Single or Dual Frequency: Conventional Dual Frequency Tilt Angle: 20° Tilted Element: Yes Weight: 2.7 kg (6 lbs) Power Rating: 1 kW Functions: Depth, Temperature Hull Material: Fiberglass or wood Max Vessel LOA: Up to 11 m (36') Hole Size: 95 mm (3-3/4") Usable Shaft Length: 71 mm (2.80") Display Connector: Cable Required Specifications: Cable Length (Feet): 6.5' Chirp: No Imaging: Standard Mounting Style: Thru-Hull Speed Included: No Temperature: Yes Box Dimensions: 8"H x 11"W x 12"L WT: 9.6 lbs UPC: 801769005110 Brochure (pdf)

Read more less

TM275C-LHW 1kW Chirp Transom Mount TransducerGet more coverage under your boat with Airmar’s unique wide beam, high frequency Chirp-ready transducers. The high band operates across a frequency range of 150 to 250 kHz and has a fixed 25° beam for all frequencies. The high frequency band results in superior resolution. The constant wide beamwidth provides twice the coverage under the boat and excellent fish arches on the display compared to most high frequency narrow beam transducer options.The high wide is the ideal choice for both inshore and pelagic fishing, where resolution and maximum coverage under the boat are essential down to 500'.The low frequency band and 1 kW of power also provides great deeper water performance. Get the best of both worlds with Airmar’s dual frequency Chirp-ready transducers with wide beam coverage.Features: Depth and fast-response water-temperature sensor 1 kW for great deep water performance from the low frequency Low Frequency: 42 kHz to 65 kHz with maximum depth of 914 m (3000') 25° to 16° beamwidth High Frequency: 150 kHz to 250 kHz with maximum depth of 152 m (500') 25° constant beamwidth 123 kHz of total bandwidth from one transducer Covers popular fishing frequencies of 50 and 200 kHz plus everything else in the bandwidth High frequency provides superior shallow water performance, bottom detail and fish target separation High wide beamwidth provides more coverage under the boat for detecting fish in the upper water column Transom-mount transducer with stainless steel mounting bracket Recommended boat size: up to 10 m (32') Hull Type: Fiberglass, wood, aluminum or steel Exclusive Xducer ID® technology Mix and Match Cable Required Specifications: Weight: 4 kg (8.9 lb) Transom Angles: 3° to 21° Acoustic Window: Urethane Urethane transducer housing with stainless steel bracket Eight internal broadband ceramic assemblies This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

117WR-1 Crows Foot Transducer WrenchTransducer wrenches are available for all bronze low profile transducers. They are used to facilitate holding of the transducer and tightening of the hull nut. Wrenches are constructed of 3/16" thick mild steel. They can easily be bent or modified to accommodate challenging installation locations. For use with: B117 B150 B744V B744VL B765C SS555 Specifications: Type: Tools Box Dimensions: 1"H x 4"W x 5"L WT: 0.45 lbs

Read more less

117WR-4 Transducer Housing WrenchA single-handed wrench that holds the main thru-hull housing via the 'wrench flats' on the side of the housing to facilitate tightening of the hull nut. For 2" bronze and stainless steel housings (P617V, B617V, SS617V).Use wrench 117WR-2 or 117WR-3 for the hull nut.*Note that this wrench will not fit on the CA500 camera housing. Specifications: Type: Tools Box Dimensions: 1"H x 3"W x 8"L WT: 0.45 lbs

Read more less

Nitron XD Pro Full Color Marine Night Vision Camera with Standard MountThe Nitron XD PRO Marine Night Vision Camera displays the highest resolution possible, giving you crystal clear imagery in pitch black darkness. Without relying on thermal temperatures, you will have the perfect HD image in any nighttime condition.With the ability to connect right into your Garmin, Simrad, Raymarine, or many other monitors, installing our marine video camera is practically plug-and-play. With your included cable, plug right into your video input port.Features: Ultra Sensitive .0000025 Camera Offers up to 4k Resolution 60 Frames Per Second  Connect Directly to Your MFD - Analog, HDMI, or Digital POE Marine Grade IP69 Waterproof Housing Flexible Installation (Top or Bottom Mount) 12V DC Power Manual Vertical Tilt Adjustment 50° Field of View Automatic Day & Night Filter Specifications: Operating Voltage: 12V DC Frame Rate: 60 FPS Resolution: Up to 4K Filter: Auto Day to Night Field of View: 50° FOV Horizontal Image: Full Color What's In The Box? Nitron XD Pro Marine Camera  25' Quick Connect Wiring Harness 5 Amp In-line Fuse Anodized Aluminum Mount Stainless Screws Single Use Dielectric Grease Packet

Read more less

NMEA2000 GNSS SAT Compass with Pole Mount (No Cable Included)Experience superior navigation from the accurate heading and positioning performance available with the V200 SAT Compass. The multi-GNSS V200 supports GPS, GLONASS, BeiDou, Galileo, and QZSS and offers an amazing world-wide 30cm (11.8") RMS accuracy via the optional Atlas GNSS global correction service. The Vector V200 offers an incredible combination of simple installation, small form factor, and amazing performance. The compass - measuring only 35cm (13.7") in length - mounts easily to a flat surface or pole. The stability and maintenance-free design of the Vector V200 provides simple integration into autopilots, chart plotters, and AIS systems.Features: Uses all known Satellite Systems GPS, GLONASS, Galileo, BeiDou, QZSS 30cm (11.8") RMS world-wide positioning accuracy with Atlas correction subscription  0.75 degree heading accuracy in an amazingly small form factor Excellent in-band and out-of-band interference rejection Integrated gyro and tilt sensors help deliver fast start-up times and provide heading updates during temporary loss of satellites Provides heading, positioning, heave, roll and pitch Specifications: Output Type: NMEA 2000 Mounting Style: Surface Lubber Lines: No Backlight: No Box Dimensions: 9"H x 9"W x 15"L WT: 5.1 lbs UPC: 010407520575 Brochure (pdf)

Read more less

B265LH Bronze Chirp Thru Hull 1kW with Fairing BlockRequires Mix and Match CableImagine knowing what exact frequencies work the best at detecting specific fish species: Bluefin Tuna—60 kHz, Squid—133 kHz, and Cod—175 kHz. Now imagine tuning your fish finder to these frequencies, marking the fish precisely on the screen, then catching them! With the B265 transducer connected to a tunable fish finder, you too can have a log book like a commercial fisherman. This powerhouse transducer delivers extreme target detail, bottom discrimination, and bait and game fish separation at all depths. The B265LH is packed with a seven-element, low-frequency array that operates at anywhere between 42 kHz and 65 kHz. It has a wide, 25° beam that will adjust by several degrees as the frequency is tuned up or down the band. The single, high-frequency ceramic operates at any frequency between 130 kHz and 210 kHz and has a narrow, 6° beam that is adjustable by several degrees. The included High-Performance Fairing will give you broadband performance at speeds over 30 knots (34 MPH). We will leave it up to you to discover the rest of the secrets that can be unlocked with tunable, Chirp Broadband Transducer Technology.Features: Depth & fast-response water-temperature sensor Low—CHIRPS from 42 kHz to 65 kHz 25° to 16° port-starboard beamwidth High—CHIRPS from 130 kHz to 210 kHz 10° to 6° beamwidth 103 kHz of total bandwidth from one transducer Covers popular fishing frequencies of 50 and 200 kHz plus everything else in the bandwidth Fishing Profile: Commercial and recreational inshore and offshore fishing (deep-water canyon and sea-mount tracking) Bronze transducer housing with High-Performance Fairing Boat Size: 8 m (25’) and above Hull Type: Fiberglass or wood Exclusive Xducer ID® technology This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Mounting Style: Thru-Hull Chirp: Low/High Box Dimensions: 7"H x 18"W x 26"L WT: 23.2 lbs UPC: 801769001419

Read more less
