Autopilot Pump Type 1 Adjustable Reversing 12V Up To 15 CI CylinderTWICE THE POWERThe unique Octopus piston pump delivers over twice the hydraulic output per watt of input than a standard hydraulic gear pump.HALF THE POWER CONSUMPTIONGear pumps leak oil between the gears, while a piston (such as used in car engines) does not.  This means the piston pump will place the cylinder ram exactly where it is required, positioning the rudder accurately.  This gives far sharper steering, reducingunnecessary course corrections meaning battery consumption on Octopus pumps is up to half that of other pumps.PINPOINT ACCURACYLeading autopilot manufacturers choose Octopus pumps for their non RFB pilot systems which do not have a Rudder Feedback unit. Previously, slop in the system caused by gear leakage meant that a Rudder Feedback unit was necessary to tell the pilot the exact rudder position. As Octopus pumps will always bring the ram back to the required position the Rudder Feedback unit is not required, which also greatly simplifies installation.SAVE ON INSTALLATION COSTSA professional installation should always have a method of isolating the pump from the steering system - Octopus pumps feature inbuilt shut off valves in the pump manifold.ADJUSTABLE FLOW RATEA pump that does not have variable flow (unless dedicated to a range of cylinders such as our fixed 0.8L pump) will be operating too fast or too slow in 90% of cases.  Autopilot manufacturers get around this problem by adjusting the output to the pump to compensate, which either forces the pump to operate for longer periods of time which increases power consumption and wear on the parts, or it will operate at high pressure for short periods of time - also putting unnecessary strain and wear on the system.Octopus Variable Flow Reversing Pumps precisely control the speed of the ram, reducing unnecessary battery consumption, pressure, strain and wear on the hydraulic system.Getting the best steering performance for the boat. The flow rate of the pump can be set to get the best hard over time (cylinder ram speed) for the particular boat. Features: Reliable - Piston pump technology with only three moving parts Twice the Power - Delivers over twice the hydraulic output per watt of input Half the Power Consumption - Accurate ram positioning means fewer course corrections Adjustable Flow Rate - Configure performance to suit your vessel Easy Servicing - Shut off valves allow removal without draining steering system Specifications: Type: Pumps/Drives Box Dimensions: 5"H x 6"W x 12"L WT: 8.3 lbs UPC: 628309272753

Read more less

NavPilot 711C f/OutboardsIncludes: NavPilot 711C Control Unit FAP7002 Processor Unit PG700 Heading Sensor, NMEA 2000 Kick back, relax and let NavPilot steer you to your destination!FURUNO's NavPilot is a revolutionary autopilot with a sunlight viewable display designed for a variety of vessels. It utilizes a self-learning and adaptive software algorithm, and plays the ultimate role in course-keeping capability. NavPilot dynamically adjusts essential parameters during navigation, such as vessel speed, trim, draught, tide and wind effects, dead band, weather and more. These parameters are stored in system memory and continuously optimized to make the NavPilot more versatile.The new NavPilot 711C features a color day/night graphic display, offering much better sunlight viewability during the day while not affecting your night vision when the sun goes down.Self-learning and adaptive softwareFrom the first dock-side setup through the last voyage you made, NavPilot continues to learn your vessel's steering characteristics, allowing for real-time, dynamic adjustments to make the boat's steering more accurate.SAFE HELM and POWER ASSIST features provide Efficient and Effective Helm Steering ControlThe optional SAFE HELM and POWER ASSIST features provide a unique interface to the vessel's hydraulic hand steering system, providing unrivaled comfort and control of steering directly from any manual helm on the vessel. These two modes greatly reduce steering effort and enhance the safety of your autopilot.The POWER ASSIST mode incorporates the SAFE HELM concept and provides speed-based, power assisted steering, which greatly reduces manual helm effort in maneuvering situations. POWER ASSIST is a unique helm-activated assisted steering feature that can augment or replace separate electric and power-robbing, engine-driven power steering systems on many vessels. POWER ASSIST reduces steering system complexity and costs while increasing economy.SAFE HELM and POWER ASSIST modes will require the optional FPS8 Power Steering Module and an appropriate HRP Pumpset.If you are interested in utilizing the SAFE HELM and POWER ASSIST features, it is highly recommend that, when installing the NavPilot 700 Series Autopilot, the optional FPS8 Power Steering Module is purchased and installed at the same time. This will eliminate the need to re-plumb the hydraulic system and run additional connection cables in the future.FishHunter modeFishHunter mode is a unique feature of FURUNO's NavPilot series. Find a fish target with your FURUNO sonar/sounder or bird target with your FURUNO radar and feed it to the NavPilot The NavPilot will activate the FishHunter mode to perform square, zigzag, circle, orbit, spiral or figure-eight maneuvers around the specified target at a user selected distance. This feature can also be used for Man Overboard (MOB).Furuno's new NavPilot series is designed to match the NavNet 3D, FI-50 Instrument series and other navigation equipment. The Plug and Play CAN bus interface allows for easy installation and exceptional interface ability.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Steering Type: Hydraulic Box Dimensions: 7"H x 8"W x 9"L WT: 31.15 lbs UPC: 611679355126 Owner's Manual (pdf)Brochure (pdf)

Read more less

B265LH Bronze Thru-Hull CHIRP Transducer - 12-PinBronze, Thru-Hull CHIRP Transducer with 12-Pin Connector, Low-Freq: 42-65 kHz, High-Freq: 130-210 kHz.The B265LH is a bronze thru-hull CHIRP transducer for use with Furuno's CHIRP broadband Fish Finders. The B265LH comes complete with high-speed fairing blockTraditional marine Fish Finders operate at discrete frequencies such as 50 kHz and 200 kHz, use relatively short-duration transmit pulses, and use narrowband sonar transducers. In contrast, CHIRP (Compressed High-Intensity Radar Pulse) uses a precise sweep pattern of many frequencies within a long-duration transmit pulse from a broadband transducer. The equivalent sound energy transmitted into the water is 10 to 1,000 times greater than a conventional marine Fish Finder. The echo energy returning to the transducer is likewise superior to that generated by a conventional transducer. The combination of CHIRP, a broadband transducer, and Furuno’s superior Digital Signal Processing, results in dramatically increased fish and bottom detection.The B265LH CHIRPS across the following bandwidths:  Low-Frequency: 42-65 kHz High-Frequency: 130-210 kHz This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

Extension Cable with XID - 12-Pin - 30'Extend the cable length of your compatible 12-pin transducer with this 30 foot (9 meter) cable. Supports 12-pin Airmar transducer with XID.WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Type: Extension Box Dimensions: 2"H x 6"W x 8"L WT: 1.4 lbs UPC: 753759142834

Read more less

NMEA 2000 Four Way Tee ConnectorAncor's NMEA 2000 Approved Tee Connectors offer connection between NMEA 2000 drop cables and backbone cables. The yellow couplers connect to the corresponding Ancor tees and backbone cables, creating a simplified, color coded network installation. The connectors are offered in four configurations for maximum installation flexibility. The two way and four way tee connectors allow for multiple drop cables to be connected without additional backbone cable.Features: Color coded for easy installation and component identification NMEA 2000 Approved, 100 percent universal and compatible with other manufacturers' products WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Data Interface: NMEA 2000 NMEA 2000 Connectors: Tee Connectors Box Dimensions: 2"H x 4"W x 7"L WT: 0.2 lbs UPC: 091887982299 Brochure (pdf)

Read more less

NMEA 2000 Female TerminatorAncor's NMEA 2000 Approved Terminators allow for proper termination of an NMEA 2000 network. The yellow couplers connect to the corresponding Ancor tees, creating a simplified, color coded network installation. One male and one female terminator is required for each NMEA 2000 network.Features: Color coded for easy installation and component identification NMEA 2000 Approved, 100 percent universal and compatible with other manufacturers' products WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Connection Gender: Female Data Interface: NMEA 2000 NMEA 2000 Connectors: Terminators Box Dimensions: 1"H x 3"W x 5"L WT: 0.5 lbs UPC: 091887982305 Brochure (pdf)

Read more less

NMEA 2000 Male TerminatorAncor's NMEA 2000 Approved Terminators allow for proper termination of an NMEA 2000 network. The yellow couplers connect to the corresponding Ancor tees, creating a simplified, color coded network installation. One male and one female terminator is required for each NMEA 2000 network.Features: Color coded for easy installation and component identification NMEA 2000 Approved, 100 percent universal and compatible with other manufacturers' products WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Connection Gender: Male Data Interface: NMEA 2000 NMEA 2000 Connectors: Terminators Box Dimensions: 2"H x 3"W x 5"L WT: 0.2 lbs UPC: 091887982312 Brochure (pdf)

Read more less

Axiom 2 RV 12" Chartplotter/Fishfinder with RealVision 3D Sonar & Lighthouse North America Chart - No TransducerAxiom 2 is the next generation of the award-winning Raymarine Axiom chartplotter product line. Featuring a powerful 6-core processor, rugged HydroTough™ displays, and expanded app and engine integration, Axiom 2 delivers a faster, more intuitive, and more responsive navigation experience for leisure boaters of all kinds. Designed for sailors, anglers, cruisers, and motor-yacht owners, Axiom 2 combines next-level performance with Raymarine’s signature durability and ease of use.See More Below the Surface with RealVision Fish FinderScan wider, see deeper and understand the bottom instantly with SideVision™, DownVision™, RealVision™ 3D, and 600W CHIRP sonar - all built in. With an all-in-one GPS chartplotter with fish finder, you can spot fish faster, view underwater structure clearly, and fish confidently from every angle.Features: Rugged all-weather, marine-ready design backed by a 3-year warranty. 6-core processor delivers faster chart rendering, quicker startups, and smoother networking and video performance. 7, 9, and 12-inch HydroTough™ IPS touchscreen displays, with high brightness (up to 1,800 nits) for all-day visibility. Powered by LightHouse OS with an intuitive interface and access to over 30 LightHouse apps. RayNet Gigabit Ethernet for high-speed integration of radar, cameras, sonar, and accessory devices. 64 GByte of onboard storage for apps, charts, video, and user data. Broad chart compatibility, including LightHouse Charts Gen 2, Navionics, C-MAP, and more. Built-in high-performance GPS / GNSS with fast 10 Hz position updates. Smart vessel monitoring and control, including engine integration, NMEA 2000, and digital switching support. Technical Specifications: Dimensions (Trunnion mounted) - 12.36" (W) x 8.93 (H) x 7.01" (D) Dimensions (Surface / Flush mounted) - 12.36" (W) x 8.54" (H) x 7.01" (D) Voltage - Nominal: 12 V DC / Operating range: 8 to 16 V DC Power Consumption (max) - 18.96W Inline fuse / thermal breaker rating - 7A Size & Type - 12.1" (diagonal), IPS Resolution - WXGA 1280 x 800 Brightness/luminance - 1800 bits / 1800 cd/m² Protective Coating - HydroTough™ (Oleophobic) Transducer - 1x 25-pin RealVision connector NMEA 2000 / DeviceNet - 1x DeviceNet male connector (on power cable) (LEN rating: 1) Network - Wired: 1x RayNet (10 / 100 / 1000 Mbit/sec Ethernet), WiFi: 1x 802.11 b / g / n, Bluetooth: v4.0 GNSS - Internal GNSS receiver: GPS / GLONASS / BeiDou (incl. SBAS) (Cold start: <2 minutes) (10 Hz refresh rate) Internal Storage - 64 GByte (Solid State) External MicroSD storage - 1x MicroSDXC card slot Sonar Channels (Output power / Responsive Frequency Range) - RealVision 3D: (70 W / 350 kHz ± 5%), SideVision: (70 W / 350 kHz ± 5%), DownVision: (35 W / 350 kHz ± 5%), CHIRP High: (100 W / 200 kHz ± 5%) Specifications: Cartography Brand: Navionics/C-Map Screen Size: 12" Touchscreen: Yes Transducer Included: No Box Dimensions: 1"H x 4"W x 5"L WT: 11.95 lbs Brochure (pdf)

Read more less

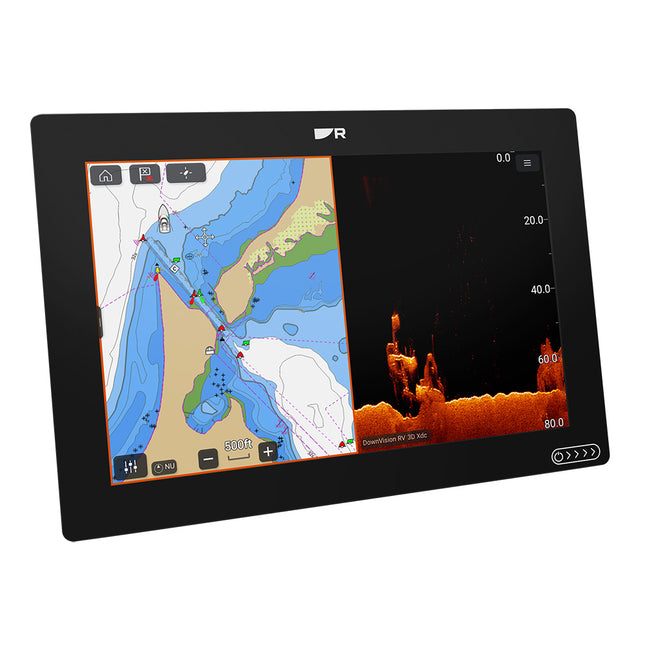

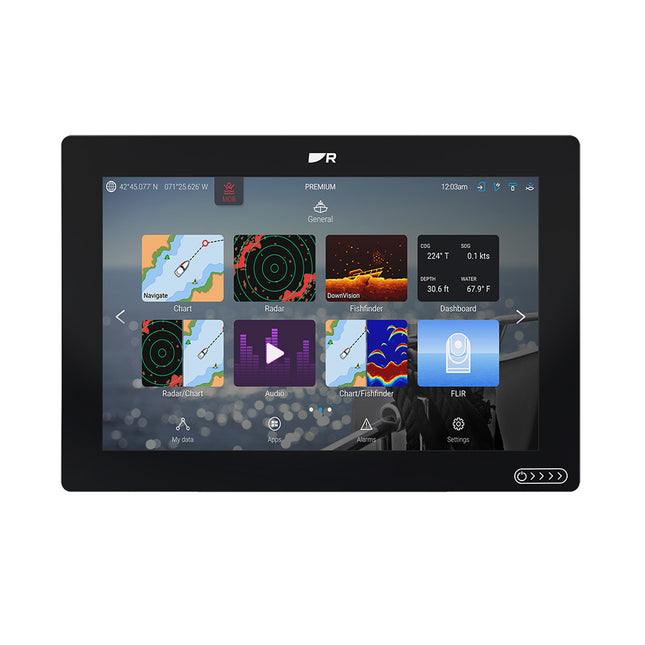

Axiom 2 RV 12" Chartplotter/Fishfinder with RealVision 3D Sonar - No TransducerAxiom 2 is the next generation of the award-winning Raymarine Axiom chartplotter product line. Featuring a powerful 6-core processor, rugged HydroTough™ displays, and expanded app and engine integration, Axiom 2 delivers a faster, more intuitive, and more responsive navigation experience for leisure boaters of all kinds. Designed for sailors, anglers, cruisers, and motor-yacht owners, Axiom 2 combines next-level performance with Raymarine’s signature durability and ease of use.See More Below the Surface with RealVision Fish FinderScan wider, see deeper and understand the bottom instantly with SideVision™, DownVision™, RealVision™ 3D, and 600W CHIRP sonar - all built in. With an all-in-one GPS chartplotter with fish finder, you can spot fish faster, view underwater structure clearly, and fish confidently from every angle.Features: Rugged all-weather, marine-ready design backed by a 3-year warranty. 6-core processor delivers faster chart rendering, quicker startups, and smoother networking and video performance. 7, 9, and 12-inch HydroTough™ IPS touchscreen displays, with high brightness (up to 1,800 nits) for all-day visibility. Powered by LightHouse OS with an intuitive interface and access to over 30 LightHouse apps. RayNet Gigabit Ethernet for high-speed integration of radar, cameras, sonar, and accessory devices. 64 GByte of onboard storage for apps, charts, video, and user data. Broad chart compatibility, including LightHouse Charts Gen 2, Navionics, C-MAP, and more. Built-in high-performance GPS / GNSS with fast 10 Hz position updates. Smart vessel monitoring and control, including engine integration, NMEA 2000, and digital switching support. Technical Specifications: Dimensions (Trunnion mounted) - 12.36" (W) x 8.93 (H) x 7.01" (D) Dimensions (Surface / Flush mounted) - 12.36" (W) x 8.54" (H) x 7.01" (D) Voltage - Nominal: 12 V DC / Operating range: 8 to 16 V DC Power Consumption (max) - 18.96W Inline fuse / thermal breaker rating - 7A Size & Type - 12.1" (diagonal), IPS Resolution - WXGA 1280 x 800 Brightness/luminance - 1800 bits / 1800 cd/m² Protective Coating - HydroTough™ (Oleophobic) Transducer - 1x 25-pin RealVision connector NMEA 2000 / DeviceNet - 1x DeviceNet male connector (on power cable) (LEN rating: 1) Network - Wired: 1x RayNet (10 / 100 / 1000 Mbit/sec Ethernet), WiFi: 1x 802.11 b / g / n, Bluetooth: v4.0 GNSS - Internal GNSS receiver: GPS / GLONASS / BeiDou (incl. SBAS) (Cold start: <2 minutes) (10 Hz refresh rate) Internal Storage - 64 GByte (Solid State) External MicroSD storage - 1x MicroSDXC card slot Sonar Channels (Output power / Responsive Frequency Range) - RealVision 3D: (70 W / 350 kHz ± 5%), SideVision: (70 W / 350 kHz ± 5%), DownVision: (35 W / 350 kHz ± 5%), CHIRP High: (100 W / 200 kHz ± 5%) Specifications: Cartography Brand: Navionics/C-Map Screen Size: 12" Touchscreen: Yes Transducer Included: No Box Dimensions: 8"H x 13"W x 16"L WT: 11.9 lbs UPC: 723193867365 Brochure (pdf)

Read more less

5M LAN Waterproof Cable RJ45 x RJ45 for TZtouchXL Furuno's TZtouchXL LAN Cable ASSYSpecifications: Length: 5M Waterproof RJ45 x RJ45 This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

DRS25ANXT/4 Radar Pedestal 4' Array - 15M CableThe high-power NXT solid-state Radar options for NavNet TZtouch2 and TZtouch3. These radar options pack serious power and include several Furuno exclusive features: Target Analyzer™ highlights targets in red or green to indicate potential danger, Fast Target Tracking™ displays target vectors in mere seconds, ARPA displays and tracks up to 100 targets in a single sweep, Bird Mode automatically adjusts gain and sea settings to help you find those feathered friends, and Rain Mode turns storm cells blue so you can easily navigate around the weather. Works with NavNet TZtouch2/Tztouch3 MFDs. The high-power DRS12A-NXT and DRS25A-NXT are 100W and 200W respectively.Features: High-power 100W (DRS12A-NXT) or 200W (DRS25A-NXT) Solid State Radars for NavNet Tztouch2 and Tztouch3 Utilize 3.5-foot, 4-foot, or 6-foot Open Array antennas Target Analyzer™ shows dangerous targets approaching your boat by automatically changing their color to red Fast Target Tracking™ displays a targets speed and course vector in only seconds after acquiring Bird mode works automatically adjusting the gain & sea settings for optimal visibility Rain Mode isolates rain cells, so that you can clearly see your targets Exceptional short-range detection Furuno DRS Radars are available in bundled kits that include the DRS Radar, Antenna, and signal cable. Models ending in /3 include the XN10A/3 antenna. Models ending in /4 include the XN12A/4 antenna. Models ending in /6 include the XN13A/6 antenna.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Array Size (Inches): 48" Box Dimensions: 8"H x 17"W x 17"L WT: 65.6 lbs

Read more less

DRS25ANXT/3 Radar Pedestal 3' Array - 15M CableThe high-power NXT solid-state Radar options for NavNet TZtouch2 and TZtouch3. These radar options pack serious power and include several Furuno exclusive features: Target Analyzer™ highlights targets in red or green to indicate potential danger, Fast Target Tracking™ displays target vectors in mere seconds, ARPA displays and tracks up to 100 targets in a single sweep, Bird Mode automatically adjusts gain and sea settings to help you find those feathered friends, and Rain Mode turns storm cells blue so you can easily navigate around the weather. Works with NavNet TZtouch2/Tztouch3 MFDs. The high-power DRS12A-NXT and DRS25A-NXT are 100W and 200W respectively.Features: High-power 100W (DRS12A-NXT) or 200W (DRS25A-NXT) Solid State Radars for NavNet Tztouch2 and Tztouch3 Utilize 3.5-foot, 4-foot, or 6-foot Open Array antennas Target Analyzer™ shows dangerous targets approaching your boat by automatically changing their color to red Fast Target Tracking™ displays a targets speed and course vector in only seconds after acquiring Bird mode works automatically adjusting the gain & sea settings for optimal visibility Rain Mode isolates rain cells, so that you can clearly see your targets Exceptional short-range detection Furuno DRS Radars are available in bundled kits that include the DRS Radar, Antenna, and signal cable. Models ending in /3 include the XN10A/3 antenna. Models ending in /4 include the XN12A/4 antenna. Models ending in /6 include the XN13A/6 antenna.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Array Size (Inches): 36" Box Dimensions: 8"H x 17"W x 17"L WT: 64.6 lbs
