Marine Plumbing & Ventilation - Hose

1-1/2" x 50' Box VAC XHD Sanitation Hose - Hard PVC Helix - WhiteTrident Ply Extra heavy-duty sanitation hose of smooth white vinyl. Specially compounded to provide excellent resistance to odor permeation and (FDA) potable water fill. Also for the critical bilge, drain scuppers, live wells, etc. Self-draining installations are recommended for the longest odor-free service.Features: A hard PVC helix gives good flexibility and bend radius No cuffs are required Application: Specially compounded to provide resistance to odor permeation and (FDA) potable water fill Also for critical bilge, drain scupper, live well, etc Specifications: Tube & Cover: Hard PVC helix Color: White Reinforcement: PVC Helix Temperature Range: 10°F-120°F (-12°C-48°C)  Boxed: 50ft. / (15.2m) Inner Diameter: (inch) 1-1/2" / (mm) 38.1 Outer Diameter: (inch) 1.788" / (mm) 45.4 Working Pressure: (Psi Vac In./Hg) 28 Weight: (Lb./ 50 ft.) 22 / (Kg/m) 0.76  Bend Radius: (inch) 4" / (mm) 102 *Don't use with alcohol, anti-freeze, petrochemicals, or solvents*Burst Pressure is 4 x Working Pressure Specifications: Length (Feet): 50' ID Diameter (inches): 1-1/2" Box Dimensions: 10"H x 22"W x 22"L WT: 23.1 lbs UPC: 704917006352 Quick Guide (pdf)

Read more less

4" x 50' Blue Polyduct Blower HoseTrident Polyduct is the most flexible, crush-proof, and rugged blower duct hose for heat, ventilation, and air conditioning* (HVAC)—heavy-duty polypropylene hose, reinforced with a flexible polypropylene rod helix.Features: Excellent flexibility & compressibility Excellent resistance to crushing, flex fatigue, tearing, and moisture  Stomp on it and it returns to shape without damage  Shove it through tight openings and overheads, and it delivers full airflow Application:Rugged blower duct hose for heat, ventilation, and air conditioningSpecifications: Temperature Range: -40°F to +225°F (-40°C to 107°C) (when insulated) Length (feet): 50' Boxed Inner Diameter (inch): 4" *Meets FMVSS 302 flame resistance Specifications: ID Diameter (inches): 4" Length (Feet): 50 Box Dimensions: 20"H x 20"W x 20"L WT: 9.5 lbs

Read more less

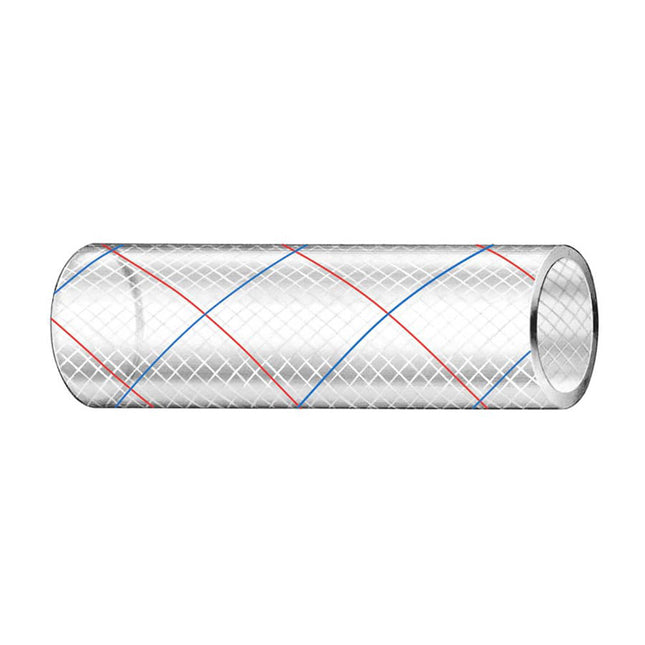

3/4" x 50' Clear Reinforced PVC Hose Tubing Red & Blue TracerNylon reinforced. FDA compounded PVC for pressurized drinking water systems, etc. No taste or odor. #162=175 PSI (1.21Mpa). Operating temperatures +20° to +150° F (-7° to +66°C). NOT RECOMMENDED FOR BELOW-WATERLINE THRU-HULL CONNECTIONS. CA Prop 65 Compliant.Specifications: Sizes: 3/8" to 1", 9.5 mm & 25.4 mm Colors: #164 - White with Blue Tracer, #162 - Clear with Blue & Red Tracer Packing: 250’ (76m) Coil, 50’ (15m) Boxed, 25’ (7.6m) Boxed Specifications: ID Diameter (inches): 3/4" Length (Feet): 50 Box Dimensions: 6"H x 18"W x 19"L WT: 11.5 lbs UPC: 704917006901

Read more less

1/2" x 50' Clear Reinforced PVC Hose Tubing Red & Blue TracerNylon reinforced. FDA compounded PVC for pressurized drinking water systems, etc. No taste or odor. #162=175 PSI (1.21Mpa). Operating temperatures +20° to +150° F (-7° to +66°C). NOT RECOMMENDED FOR BELOW-WATERLINE THRU-HULL CONNECTIONS. CA Prop 65 Compliant.Specifications: Sizes: 3/8" to 1", 9.5 mm & 25.4 mm Colors: #164 - White with Blue Tracer, #162 - Clear with Blue & Red Tracer Packing: 250’ (76m) Coil, 50’ (15m) Boxed, 25’ (7.6m) Boxed Specifications: ID Diameter (inches): 1/2" Length (Feet): 50 Box Dimensions: 3"H x 18"W x 19"L WT: 7 lbs UPC: 704917006840

Read more less

5/8" x 50' Box Black HD Water Hose 200 PSICost-effective, Hi Temp, EPDM rubber, polyester reinforced, and exceeds SAE J20R3. Both are resistant to coolants, ozone, cold & heat, and serve a variety of boat and plant pressurized applications (water & air delivery) #132 is 2 spiral, 200PSI (1.38MPa) W.P. Operating Temp. -40°F to 212°F (-40°C to 100°C).Specifications: Sizes: 1/4" to 1-1/2", 6.3mm to 25mm Colors: Black Packaging: Reels 750’-250’ (230-75m), Boxed 50’ (15m) Specifications: ID Diameter (inches): 5/8" Length (Feet): 50 Box Dimensions: 5"H x 18"W x 18"L WT: 14.3 lbs UPC: 704917005720

Read more less

1/2" x 50' Boxed Reinforced PVC (FDA) Cold Water Feed Line Hose - Drinking Water Safe - Translucent BlueTrident 165 Series Blue - polyester reinforced PVC hose for "Cold Water" feed lines. The FDA-grade tube is non-toxic, odorless, and tasteless. Suitable for use in harsh operating conditions with temperatures as low as -18.4ºF (- 28ºC) and can handle pressures up to 250 psi (varies based on i.d size).Features:  The Blue cover allows for easy identification of "Cold Water" lines on your boat   Made of 3-ply polyester for excellent abrasion resistance and sustained flexibility This hose is safe for use with drinking water Application:Perfect for cold pressurized applications, water feed, drains, and vent linesConstruction: Tube & Cover: Clear FDA tube  Color: Blue Transparent  Reinforcement: Polyester Temperature Range: -18°F to 149°F (-28°C to 65°C) Length: 50’ (15.24m) Specifications: Inner Diameter: (inch) 1/2" / (mm) 12.7 Outer Diameter: (inch) .777 / (mm) 19.6 Working Pressure: (PSI Vac In./Hg) 250 / (bar) 17 Bend Radius: (inch) 0.98" / (mm) 25 *Burst Pressure is 4 x Working Pressure Specifications: Length (Feet): 50' ID Diameter (inches): 1/2" Box Dimensions: 3"H x 18"W x 18"L WT: 7.1 lbs UPC: 704917023946 Quick Guide (pdf)

Read more less

1-1/2" Premium Marine Sanitation Hose - White with Green Stripe - Sold by the FootTrident Premium Sanitation Hose resistant to odor permeation. Simply the BEST solution for marine environments, built with EPDM rubber to ensure the overall performance and resistance to odor permeation that you would expect in a sanitation hose. Features: Sold by the foot Resistance to Odor Permeation and winterizing with antifreeze  With wire helix between 2-ply reinforcement, this hose has excellent bend radius, flexibility, and fitting acceptance and retention This makes for easy installations with no heat gun or lubricant necessary 10 Year Warranty Application: Premium Sanitation Hose for all head & holding tank connections NOT for potable water Construction: Tube & Cover: EDPM/SBR Rubber Color: White with Green Stripe Reinforcement: Polyester reinforcement + spring steel wire helix Temperature Range: -20F-220°F (-29°C-104°C) Specifications: Inner Diameter: (inch) 1-1/2" / (mm) 38.1 Outer Diameter: (inch) 2 / (mm) 50.8 Working Pressure: (Psi) 60 / (bar) 4.1 Weight: (Lb./50ft.) 44 / (Kg/m) 19.9 Bend Radius: (inch) 3" / (mm) 76.2 *Burst Pressure is 4 x Working PressureThis product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: ID Diameter (inches): 1-1/2" Length (Feet): Sold By The Foot Box Dimensions: 1"H x 1"W x 6"L WT: 0.75 lbs Quick Guide (pdf)

Read more less

1-1/2" VAC XHD Bilge & Live Well Hose - Hard PVC Helix - Black - Sold by the FootTrident VAC XHD Bilge and Live Well Hose. Helical PVC reinforcement provides excellent flexibility and bend radius for live well and heavy-duty bilge applications. It has a smooth outer surface to allow for easy clamping. The excellent bend radius of this product gives you the flexibility of a rubber hose making installations a breeze.Features: Sold by the foot 149 series of hoses is extra flexible  Application:Bilge and live well hoseSpecifications: Tube & Cover: Hard PVC helix Color: Black Reinforcement: PVC Helix Temperature Range: 10°F-120°F (-12°C-48°C)  Inner Diameter: (inch) 1-1/2" / (mm) 38.1 Outer Diameter: (inch) 1.792" / (mm) 45.5 Working Pressure: (Psi Vac In./Hg) 28 / (Bar) 1.93 Weight: (Lb./ 50 ft.) 22 / (Kg/m) 9.98 Bend Radius: (inch) 4" / (mm) 101.6 *Burst Pressure is 4 x Working PressureThis product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: ID Diameter (inches): 1-1/2" Length (Feet): Sold By The Foot Box Dimensions: 3"H x 3"W x 12"L WT: 0.46 lbs Quick Guide (pdf)

Read more less

1-1/4" Flex Marine Wet Exhaust & Water Hose - Black - Sold by the FootTrident Flex wet exhaust hose for longer bent connections. In smaller i.d.s for engine intake, critical water, drain, scupper bilge & sanitation uses. Resists heat, ozone, exhaust, panting, and collapse. Black High Temp EDPM Rubber 250°F (121°C) Max.Features:  Sold by the foot Extra heavy tube and cover with wire helix between 2-ply reinforcement provides excellent flexibility and bend radius  Resists heat, ozone, exhaust, sani chemicals, panting, and collapse Exceeds SAE J2006-R2, ABYC & NMMA P-1 exhaust standards, and Lloyd’s Registry Type Approved Application: Trident Flex wet exhaust hose for longer bent connections In smaller I.D.s for engine intake, critical water, drain, scupper bilge & sanitation uses Construction: Tube & Cover: High temp EDPM rubber Color: Black with blue stripe Reinforcement: Multi-ply, high-tenacity polyester, steel helix Temperature Range: 250°F (121°C) Specifications: Inner Diameter: (inch) 1-1/4" / (mm) 31.8 Outer Diameter: (inch) 1.40" / (mm) 32 Working Pressure: (Psi) 70 / (bar) 4.8 Bend Radius: (inch) 1.5" / (mm) 38 Weight: (Lb./50 ft.) 35 / (Kg/m) 15.7 *Burst Pressure is 4 x Working PressureThis product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: ID Diameter (inches): 1-1/4" Length (Feet): Sold By The Foot Box Dimensions: 1"H x 1"W x 1"L WT: 0.64 lbs Quick Guide (pdf)

Read more less

SANI/FLEX 1.5" Odor Shield Hose - Sold by the FootHighest quality marine sanitation hose. Butyl rubber construction has the lowest odor permeation level of any rubber or PVC material hoses. Extremely flexible for easy installation with a low bend radius of up to two times its diameter.Features: Impermeability - Special butyl white rubber compound tube odor-free Flexibility - Allows tight bending radius making any installation easy Reinforcement - Double steel wire Helix with high-strength synthetic textile yarn Cover - White – abrasion, ozone, seawater resistant rubber Surface - Smooth fabric finished – antibacterial vanilla scented Interior - Smooth walled – no ridges – easily fits over fittings Warranty - 10-year guarantee against odor permeation Specifications: ID: 1-1/2" OD: 1-7/8" Weight: 0.6lbs/ft. MAX Pressure: 105 PSI Burst Pressure: 315 PSI MAX Vacuum: 13.5 PSI Bend Radius: 3.15" This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Quick Guide (pdf)Brochure (pdf)

Read more less

1-1/8" VAC XHD Bilge & Live Well Hose - Hard PVC Helix - Black - Sold by the footTrident VAC XHD Bilge and Live Well Hose. Helical PVC reinforcement provides excellent flexibility and bend radius for live well and heavy-duty bilge applications. It has a smooth outer surface to allow for easy clamping. The excellent bend radius of this product gives you the flexibility of a rubber hose making installations a breeze.Features: Sold by the foot 149 series of hoses is extra flexible  Application:Bilge and live well hoseSpecifications: Tube & Cover: Hard PVC helix Color: Black Reinforcement: PVC Helix Temperature Range: 10°F-120°F (-12°C-48°C)  Inner Diameter: (inch) 1-1/8" / (mm) 28.6 Outer Diameter: (inch) 1.433" / (mm) 36.4 Working Pressure: (Psi Vac In./Hg) 28 / (Bar) 1.93 Weight: (Lb./ 50 ft.) 15 / (Kg/m) 6.80  Bend Radius: (inch) 3" / (mm) 76.2 *Burst Pressure is 4 x Working PressureThis product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: ID Diameter (inches): 1-1/8" Length (Feet): Sold By The Foot Box Dimensions: 2"H x 2"W x 12"L WT: 0.3 lbs Quick Guide (pdf)

Read more less

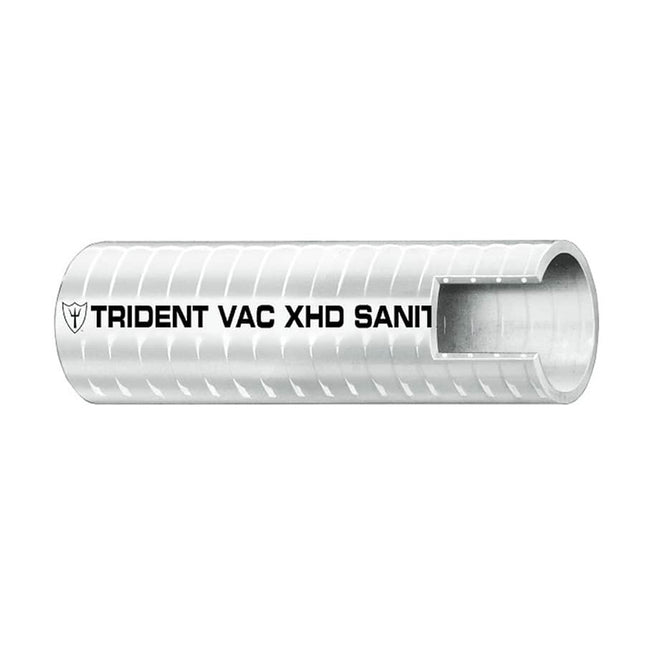

1-1/2" VAC XHD Sanitation Hose - Hard PVC Helix - White - Sold by the FootTrident Ply Extra heavy-duty sanitation hose of smooth white vinyl. Specially compounded to provide excellent resistance to odor permeation and (FDA) potable water fill. Also for the critical bilge, drain scuppers, live wells, etc. Self-draining installations are recommended for the longest odor-free service.Features: Sold by the foot A hard PVC helix gives good flexibility and bend radius No cuffs are required Applications: Specially compounded to provide resistance to odor permeation and (FDA) potable water fill Also for critical bilge, drain scupper, live well, etc Specifications: Tube & Cover: Hard PVC helix Color: White Reinforcement: PVC Helix Temperature Range: 10°F-120°F (-12°C-48°C)  Inner Diameter: (inch) 1-1/2" / (mm) 38.1 Outer Diameter: (inch) 1.788" / (mm) 45.4 Working Pressure: (Psi Vac In./Hg) 28 Weight: (Lb./ 50 ft.) 22 / (Kg/m) 0.76  Bend Radius: (inch) 4" / (mm) 102 *Don't use with alcohol, anti-freeze, petrochemicals, or solvents*Burst Pressure is 4 x Working PressureThis product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: ID Diameter (inches): 1-1/2" Length (Feet): Sold By The Foot Box Dimensions: 2"H x 2"W x 2"L WT: 0.46 lbs Quick Guide (pdf)

Read more less
