Marine Plumbing & Ventilation - Impellers

Impeller KitMaterial:NeopreneDrive Type:Spline DriveNumber of Blades:12Dimensions: Diameter:2-1/4" Shaft Width:1-1/4" Shaft Diameter:5/8"Insert Material:BrassJabsco flexible impellers can be fitted to most makes and models of bronze flexible impeller engine cooling, bilge, transfer and general purpose pumps.Jabsco flexible impellers are subjected to rigorous quality processes to ensure reliable, efficient and long lasting performance.Replace all impellers at least once every year, or sooner, depending on the engine duty. When the installation is correct an impeller may last for several years, but it is always advisable to stick to a schedule of preventative, rather than corrective, maintenance.Replacing impellers is easy. By removing the end cover screws, it is possible to remove the impeller by using either a Jabsco Impeller Removal Tool, or channel lock pliers, to grip the hub of the impeller. Don?t use screwdrivers as they may damage the face of the pump body, causing leaks, and they can be dangerous in confined spaces.Always carry spare impellers on board in case of emergency. The impeller is one of the most vital components of the engine cooling system and should always be treated as such. Always grease new impellers. Firstly, it makes it easier to install the impeller into the pump bore, and secondly it gives added protection to the impeller during initial prime. After replacing the gasket and end cover the pump is ready to use.WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Read more less

Impeller Kit - 8 Blade - Nitrile - 2-9/16" Diameter - Ding DriveMaterial: NitrileDrive Type: Ding Drive - KeywayNumber of Blades: 8Dimensions:Diameter: 2-9/16"Shaft Width: 5/8"Shaft Diameter: 2"Insert Material: BrassJabsco flexible impellers can be fitted to most makes and models of bronze flexible impeller engine cooling, bilge, transfer and general purpose pumps.Jabsco flexible impellers are subjected to rigorous quality processes to ensure reliable, efficient and long lasting performance.Replace all impellers at least once every year, or sooner, depending on the engine duty. When the installation is correct an impeller may last for several years, but it is always advisable to stick to a schedule of preventative, rather than corrective, maintenance.Replacing impellers is easy. By removing the end cover screws, it is possible to remove the impeller by using either a Jabsco Impeller Removal Tool, or channel lock pliers, to grip the hub of the impeller. Don?t use screwdrivers as they may damage the face of the pump body, causing leaks, and they can be dangerous in confined spaces.Always carry spare impellers on board in case of emergency. The impeller is one of the most vital components of the engine cooling system and should always be treated as such. Always grease new impellers. Firstly, it makes it easier to install the impeller into the pump bore, and secondly it gives added protection to the impeller during initial prime. After replacing the gasket and end cover the pump is ready to use.WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Read more less

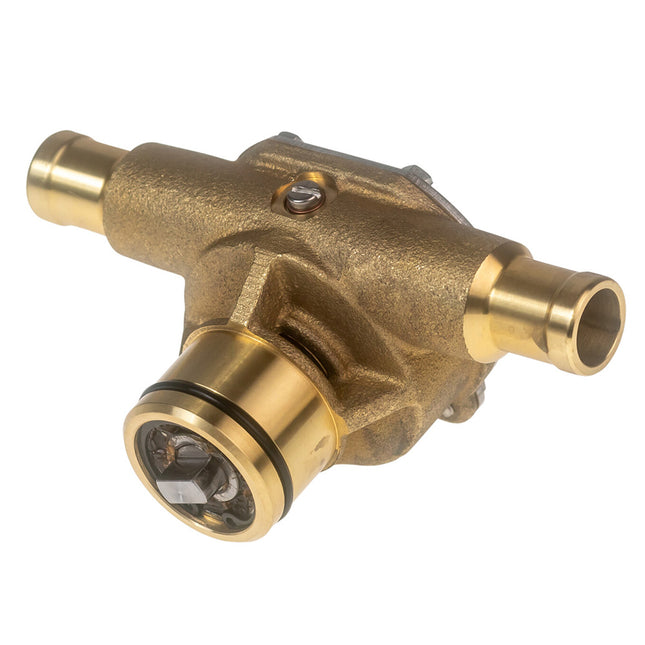

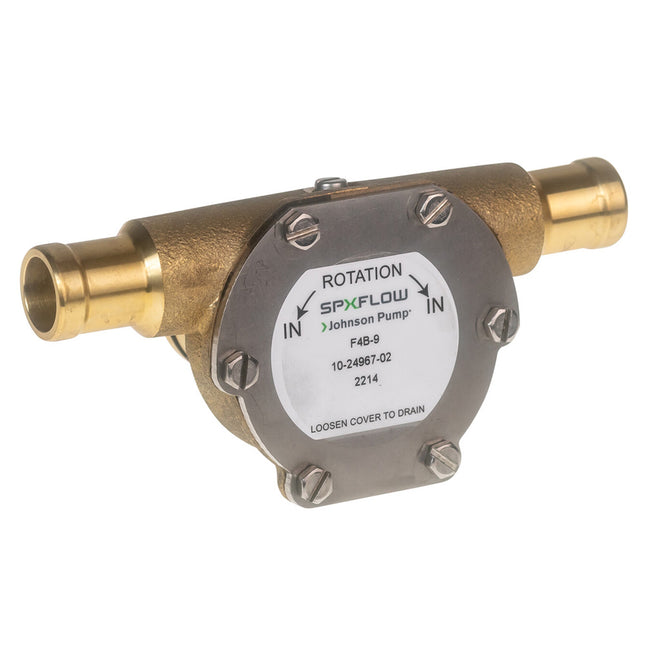

F4B-9 Impeller Pump OEM - Flange MountFlexible impeller pumps, F-series, provide an efficient solution to most raw water pumping needs. The primary advantage of a flexible impeller pump is its self-priming ability. As the vanes of the impeller are depressed and rebound, they create their own vacuum drawing fluid into the pump. A dry pump can lift the water up to as much as 3 meters. Thus a flexible impeller pump being used for engine cooling needs not to be located below the water line or manually primed. An added feature of flexible impeller pumps is that they can pass fairly large solids without clogging or damaging the pump. This reduces the need for filtering the incoming fluid. For general raw or freshwater applications, the standard long-lasting neoprene rubber impeller is used. Both the impeller and the seals depend upon the water for lubrication and will soon burn out if run dry. Features:  Flange mount for engines such as: Panda 12000 NE PMS Kubota, Panda 6000 ND PMS Kubota, Panda 8000 NE PMS Kubota, Panda 9000 ND PMS Kubota A general feature of all flexible impeller pumps is that they cannot be permitted to run dry for more than 30 seconds Wearing parts are easily replaceable for all standard models Applications: Engine cooling – raw water handling Freshwater handling Specifications:  Port size: (inch) 3/4" hose Mount Type: Flange CAM: Full 1/1 Lip seal Material: Bronze Cooling Capacity: The required output of the cooling pump – raw water as well as fresh water handling – is related to: Engine type: (gasoline or diesel) Type of cooling system (size of heat exchanger) Water cooled engine oil, reverse gear, exhaust system *Sold as an Individual

Read more less

Impeller KitMaterial:NeopreneDrive Type:Key DriveNumber of Blades:12Dimensions: Diameter:2-9/16" Shaft Width:5/8" Shaft Diameter:1-5/8" Insert Material:BrassJabsco flexible impellers can be fitted to most makes and models of bronze flexible impeller engine cooling, bilge, transfer and general purpose pumps.Jabsco flexible impellers are subjected to rigorous quality processes to ensure reliable, efficient and long lasting performance.Replace all impellers at least once every year, or sooner, depending on the engine duty. When the installation is correct an impeller may last for several years, but it is always advisable to stick to a schedule of preventative, rather than corrective, maintenance.Replacing impellers is easy. By removing the end cover screws, it is possible to remove the impeller by using either a Jabsco Impeller Removal Tool, or channel lock pliers, to grip the hub of the impeller. Don?t use screwdrivers as they may damage the face of the pump body, causing leaks, and they can be dangerous in confined spaces.Always carry spare impellers on board in case of emergency. The impeller is one of the most vital components of the engine cooling system and should always be treated as such. Always grease new impellers. Firstly, it makes it easier to install the impeller into the pump bore, and secondly it gives added protection to the impeller during initial prime. After replacing the gasket and end cover the pump is ready to use.WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Read more less

Talulah Ballast Pump Impeller Kit A worn or damaged impeller can cause system failure or engine breakdown. SPX's Johnson Pump brand impellers are developed and manufactured for maximum flow and long life. With a genuine spare impeller you can also be sure that you are getting the quality required by engine manufacturers and professionals.

Read more less

 Talulah High Flow Ballast Pump Impeller KitFor the well-being of your boat engine your water cooling pump must be able to supply a minimum specified continuous flow of cooling water. The flexible impeller in your pump, which provides this pumping action, is a wear part. Over time the impeller will lose its ability to maintain the pressure needed for the flow of cooling water and must be replaced. A good quality impeller will provide you with many months of problem-free operation. For an impeller of lesser quality the performance can degrade so rapidly that you, at best, must replace the impeller more often; at worst, you could be left adrift with engine damage.

Read more less

F6B-9 Impeller Pump OEM HS CrankshaftCrank driven raw water pump. Replaces: Marine Power 524505, Pleasure Craft RA057023, Indmar 665011, Volvo 841640. Johnson Pump 10-24228-1.

Read more less

Impeller KitMaterial:NeopreneDrive Type:Spline DriveNumber of Blades:9Dimensions: Diameter:3-3/4" Shaft Width:1" Shaft Diameter:2-1/2" Insert Material:BrassJabsco flexible impellers can be fitted to most makes and models of bronze flexible impeller engine cooling, bilge, transfer and general purpose pumps.Jabsco flexible impellers are subjected to rigorous quality processes to ensure reliable, efficient and long lasting performance.Replace all impellers at least once every year, or sooner, depending on the engine duty. When the installation is correct an impeller may last for several years, but it is always advisable to stick to a schedule of preventative, rather than corrective, maintenance.Replacing impellers is easy. By removing the end cover screws, it is possible to remove the impeller by using either a Jabsco Impeller Removal Tool, or channel lock pliers, to grip the hub of the impeller. Don?t use screwdrivers as they may damage the face of the pump body, causing leaks, and they can be dangerous in confined spaces.Always carry spare impellers on board in case of emergency. The impeller is one of the most vital components of the engine cooling system and should always be treated as such. Always grease new impellers. Firstly, it makes it easier to install the impeller into the pump bore, and secondly it gives added protection to the impeller during initial prime. After replacing the gasket and end cover the pump is ready to use.WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Read more less

Ballast King ImpellerFeatures: Replacement Impeller Fits Ballast King Jabsco is a worldwide leading manufacture of products for the leisure marine market including water system, engine cooling pumps, searchlights and marine waste systems. Jabsco also offers industrial pumps for hygienic applications, fluid transfer in chemical processing, laboratory, paint processing, plating, and construction. WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Brochure (pdf)

Read more less

G13 ImpellerIncludes: Teflon Washers Pump Gaskets Raritan manufactures equipment for pleasure boats throughout the world. Products include marine toilets, waste treatment systems, icemakers and water heaters. Committed to the environment and preserving sea life, Raritan designs products to help maintain an environmental balance and ensure the quality of marine waters.WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Blade Count: 6 Box Dimensions: 1"H x 3"W x 4"L WT: 0.1 lbs UPC: 085462007514

Read more less

Impeller Kit - 8 Blade - Nitrile - 2-9/16" Diameter - Spline DriveMaterial: NitrileDrive Type: Single Flat DriveNumber of Blades: 8Dimensions:Diameter: 2-9/16"Shaft Width: 5/8"Shaft Diameter: 2"Insert Material: BrassJabsco flexible impellers can be fitted to most makes and models of bronze flexible impeller engine cooling, bilge, transfer and general purpose pumps.Jabsco flexible impellers are subjected to rigorous quality processes to ensure reliable, efficient and long lasting performance.Replace all impellers at least once every year, or sooner, depending on the engine duty. When the installation is correct an impeller may last for several years, but it is always advisable to stick to a schedule of preventative, rather than corrective, maintenance.Replacing impellers is easy. By removing the end cover screws, it is possible to remove the impeller by using either a Jabsco Impeller Removal Tool, or channel lock pliers, to grip the hub of the impeller. Don?t use screwdrivers as they may damage the face of the pump body, causing leaks, and they can be dangerous in confined spaces.Always carry spare impellers on board in case of emergency. The impeller is one of the most vital components of the engine cooling system and should always be treated as such. Always grease new impellers. Firstly, it makes it easier to install the impeller into the pump bore, and secondly it gives added protection to the impeller during initial prime. After replacing the gasket and end cover the pump is ready to use.WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Read more less

Take good care of the cooling system - change to a new impeller every year!The impeller is a very important security device. Its task is to pump the water through the cooling system of the engine. But remember that the impeller should be replaced every year. And always make sure you get a Johnson Pump Brand original impeller. Then you'll know it matches your pump exactly.65mmWidth 50,2 mmImpeller article number 09-1028BNeoprene (for cooling)Replaces Jabsco 17937-0001 Europe & USA Quick Guide (pdf)Owner's Manual (pdf)

Read more less
