Marine Plumbing & Ventilation - Marine Sanitation

Atlantes Freedom™The Atlantes was one of the first toilets to incorporate the idea of having all components mounted within the bowl. The idea behind the Atlantes was to offer a metal handle on the side of the bowl to make the marine bathroom less intimidating for those not used to being on a boat. We offer the metal handle with many options but most people understand they simply need to push it to have the toilet flush. The head area of any boat can be very daunting for those not familiar with how the toilets work. By offering a handle on the side of the bowl your guests will feel more at ease. The other, and probably equally important, feature of the original Atlantes was to appeal to the women on the boat. The Atlantes is far more aesthetically appealing than tons of nooks and crannies which ultimately means the toilet looks much cleaner. Users in any bathroom can appreciate the smooth minimal lines to make cleaning a quick and easy chore.Today the Atlantes now incorporates the same Vortex-Vac technology as the Marine Elegance but in a bowl that offers a more substantial footprint as well as the just like home handle option. The advantage of the Vortex-Vac technology is that the waste is efficiently moved from the bowl by a vacuum action created by the pump rather than depending on remote vacuum generation. While a vacuum toilet may use slightly less water, the advantage of Vortex-Vac is that one does not need to depend on the vacuum generator pump that tends to run for about 45 seconds to generate the vacuum. The timed flush cycle brings water in then runs a discharge then water again and discharge for the least amount of water usage and effectiveness of moving waste out of the toilet. Standard Features: One piece china bowl Anti-clog "power shred" discharge system Household style Stainless handle with smart toilet control Remote intake pump Powerful bronze cutting blades designed to "shred" most objects Benefits: Vortex-Vac technology Simple flexible installation Low power consumption Three modes of operation - Fill, dry flush or fill and flush Freedom from clogged toilets and marine size bowls, excellent performance even in commercial applications Easy to clean and maintain Diaphragm intake pump can be run dry Microprocessor control and solid state circuit breaker No fuses or relays inside the unit Easily installs above or below waterline on any vessel The Raritan Programmable Smart Toilet Control:The Raritan Smart Toilet Control is a fully programmable flush control. The control allows users to flush the toilet with no water, a small amount of water or a fully timed flush. the timed flush feature can be adjusted on the panel without having to remove any components. Normal Flush - starts a timed flush, walk away and the toilet will run through a sequence of intake and discharge modes ensuring maximum bowl rinse, bowl re-fills to leave water in the bow Water Saver - starts a timed flush using half of the water of a normal flush. Bowl refills to leave water in the bowl. Water Only - adds additional water to the bowl without discharging any of the contents of the bowl. Allows the user to wet the bowl prior to use or fill the bowl to a certain level to minimize water usage. Empty Only - allows the user to evacuate the bowl while using no water. While the button is pressed the discharge pump will run, when released the pump stops. WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Color: White Gallons Per Minute: 3 GPM Inlet Size: 3/4" Operation Method: Electric Outlet Size: 1-1/2" Rinse Water: RAW Suction Lift (ft.): 4' Volts: 12v Type: Toilet Size: Household Size Box Dimensions: 19"H x 19"W x 26"L WT: 60 lbs UPC: 085462029226 Quick Guide (pdf)Owner's Manual (pdf)Brochure (pdf)

Read more less

Electric Marine Toilet - Compact Bowl - 12VThis versatile toilet brings the luxury of electric flushing aboard your vessel. Features: An integral self-priming rinse pump designed to bring sea, river or lake water into the bowl comes standard A flexible design makes it suitable for overboard or holding tank discharge A built-in backflow preventer guards against flooding and waste return Corrosion-resistant materials throughout permit fresh or salt water service Can be mounted 3' (1m) above or below the waterline with appropriate plumbing For use with sea, river or lake water only Compact Bowl size Wood - Standard Close lid Raw water Integral/Rinse Pump Specifications: Size: Compact Size Color: White Operation Method: Electric Volts: 12v Type: Toilet Box Dimensions: 17"H x 21"W x 23"L WT: 29.95 lbs UPC: 671880628303

Read more less

Drain Valve Lubricant - 24ozFeatures: Prevents sticky valves Restores operation Coats plumbing lines for smooth tank outflow Works in both grey and black water tanks Lubricating additive This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

Bronze Vented Loop - 1" Hose Features: Allows air to enter to break siphon, but does not permit air and odors to escape! Cap is threaded 1/2" NPT to accept a barb fitting if you wish to vent overboard. Overboard venting is required if PVL or HVL series is used in an exhaust system. HVL and PVL series vented loops assure clog-free anti-siphon protection for sanitation or engine exhaust systems. The oversized vent valve can easily be removed for inspection or cleaning without tools. Mount Hardware is included. Specifications: Type: Vented Loops Box Dimensions: 3"H x 7"W x 8"L WT: 2 lbs UPC: 742985003071

Read more less

Run-Dry Macerator Waste PumpWASTE EVACUATIONThe Jabsco 18590 series DC macerator pump unit is the ideal solution for emptying marine holding tanks when not in a discharge restricted area. Self priming to 5ft this pump will empty a typical 30 gallon (115 Liter) holding tank in less than 3 minutes. Duty cycle of the pump is 15 minutes continuous which means a 180 gallon (680 liter) can be emptied in a single operationIt is recommended that holding tanks be flushed with several gallons of water after each pump out. This will reduce the possibility of a continued build up of sediment in the tank which could cause a potential blockage.FISH BOX AND LIVEWELL TANK EVACUATIONThe Jabsco Macerator Pump is the ideal pump for the emptying of Fish box and livewell receptacles. Very often the livewell tank will be above the waterline of the boat, when this is the case gravity can be used to empty the livewell tank. If not installed in this format then it is beneficial to use the Jabsco macerator pump for evacuation due to its self-priming capabilities and also it's grinding properties.Fish boxes are typically mounted into the floor of the vessel and are very often below the waterline or only partially above the waterline. Again the Jabsco Macerator pump has the characteristics that lend themselves to this application. The bait residue particles of ice, fish scales and anything else that could potentially be found in the Fish-Box will be easily passed buy the Jabsco Macerator Pump, and the self priming capabilities are perfect for fish box installations common to many of today's sports fishing boats. Triple sealed motor to prevent both internal and external motor corrosion New Four-bladed chopper reduces clogging Detects the absence of fluid then shuts-off pump before impeller is damaged Sensor provides adequate run-dry period to allow initial priming of the pump Interrupting power supply to the macerator resets the Run-Dry Device Flow rate to 12 gpm Self-priming to 4ft Fitting:Inlet Port: 1-1/2" Hose Barb plus 1-1/2 NPTDischarge Port: 1" Hose BarbWARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov. Specifications: Gallons Per Minute: 12 GPM Inlet Size: 1-1/2" Suction Lift (ft.): 4' Volts: 24v Type: Waste Pumps Box Dimensions: 4"H x 5"W x 13"L WT: 5.25 lbs UPC: 671880564380 Owner's Manual (pdf)

Read more less

In-Line Non-Return Check Valve - 1"In-line non-return valve. Connections for 25mm (1”) bore hose.Features: Connections: - for 25mm (1”) bore hose Dimensions: - 108mm long, 55mm wide, 50mm high (in-line configuration) Aids pump priming, prevents backflow from pump into bilge Fits into pump suction line Robust plastic construction with nitrile rubber valve Adjustable port configuration for convenient hose angle Actual Weight: 0.11 Kg  (Approx. 0.31 Kg packed) WARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.

Read more less

Fresh Head Conversion Kit - Raw-Pressurized Fresh - Converts PHII, PH, PHC, CPII & CPFeatures: Conversion Applications: PHII, PH, PHC, CPII and CP Model Toilets Converts Toilet Water Supply from Raw Water to Pressurized Fresh Water Kit Includes Everything Required for Water Source Changeover Kit Includes: Pump Assembly (Model # 25200) Flapper Valve Assembly (Model # 1228CW) Spud Assembly (Model # 1236W) Atmospheric Breaker cover (Model # 168006) Atmospheric Breaker (Model # 221300) Breaker O-ring (Model # 221331) Pump Cover (Model # 25214) Handle Assembly (Model # 25221) Handle screw key (Model # FT001) Hose inlet 1/2" (Model # PLF-50P) 1/4" x 20 x 1" screw (Model # F099) Flapper valve washer (Model # 1226C) Nut 1/-20 Hex 18-8 SS (Model # 1226B) Nylon nut (Model # 25309) WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Type: Misc Box Dimensions: 9"H x 10"W x 12"L WT: 2.8 lbs UPC: 085462035586

Read more less

Electric ConversionsFeatures: Directly replaces manual pump assembly Easy to Install Simple to operate Dual action control allows water level to be varied Fits all Jabsco and Par 29090 and 29120 standard and large bowl toilets. Adaptors available to fit many other makes Suitable for use in above or below waterline installations Built in macerator Meets EN50081-2 for Electro Magnetic Compatibility (EMC) Meets ISO 8846 MARINE and USCG 183.410 for Ignition protection Self priming up to 0.6m(2ft) Waste pump discharges over an anti siphon loop up to 1.8m(6ft) and out of a through hull fitting down to 0.9m(3ft) below the surface Typical power consumption is less than 1.0 amp hour(12 Volt) Specifications: Type: Misc Box Dimensions: 7"H x 10"W x 13"L WT: 7.75 lbs UPC: 671880520935 Owner's Manual (pdf)

Read more less

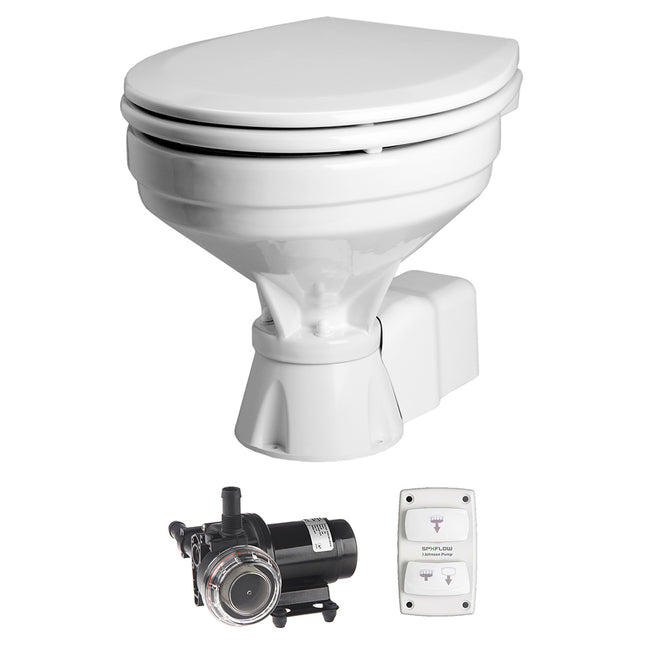

AquaT Toilet Silent Electric Compact - 12V with PumpThe fine finish and thought-through design of these toilets are remarkable. Made from white vitreous porcelain and with corrosion-resistant parts throughout, the AquaT is quiet and easy to clean. The silent electric model is shipped with a well-proven Aqua Jet diaphragm pump. The AquaT is far from ordinary. Quiet, hygienic, and reliable, the AquaT marine toilet is perfect for almost any marine toilet room. Features: Compact electric marine toilet made from white vitreous porcelain Corrosion-resistant parts throughout Proven 12V Aqua Jet diaphragm pump Quiet, hygienic, reliable Two-way switch Weight: 21 lbs. Specifications: Type: Toilet Color: White Size: Compact Size Operation Method: Electric Volts: 12v Box Dimensions: 16"H x 17"W x 19"L WT: 31.5 lbs UPC: 7330717009793

Read more less

MACERATOR Pump - 12 VDC, 13 GPMSHURFLO's MACERATOR is designed to accommodate the need for a reliable, high performance waste evacuation pump. This pump incorporates a high quality motor with a seamless shell design that is thermally protected. The unique features of the MACERATOR include a premium impeller design with run dry capability, a dual blade and housing construction for problem free operation.Features: 12 VDC Seamless Motor Shell Sealed Manual Turn Key Run Dry Capability Dual Blade Design Ignition Protected Thermally Protected 1 Year Warranty CE Listed Specifications: Volts: 12v Gallons Per Minute: 13 GPM Type: Waste Pumps Box Dimensions: 5"H x 6"W x 11"L WT: 5.1 lbs UPC: 752324004140

Read more less

Shower & Bilge Pump - 3.4GPM - 24VFeatures: Flow Rate: Nominal 13 Litres/min (3 US gallons/min) Self-priming from dry up to 2M (6') Quiet running and fully corrosion resistant Supplied with pumpgard filter Specifications: Body Materials: Plastic Port Type: 19mm (3/4") hose barb Voltage: 24 (Vdc) Motor Type: Permanent magnet Amp Draw: 4 (amp) Fuse Size: 5 (amp) WARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov. Specifications: Operation: Non-Automatic Inlet Size: 3/4" Gallons Per Minute: 3.4 GPM Gallons Per Hour: 180 GPH Suction Lift (ft.): 6' Volts: 24v Operation Method: Non-Automatic Type: Shower Drains Box Dimensions: 6"H x 7"W x 9"L WT: 4.9 lbs UPC: 671880521062 Owner's Manual (pdf)

Read more less

K Series Hand Operated Marine ToiletFeatures: House-size bowl 3" piston pump mechanism Adjustable flow up to 4 GPM All bronze pump Electric or hand operated models are available Electric models operate by touch of a button and are quickly converted to hand operation by removing one easily accessible bolt For installation above or below the waterline; foot pedal water control allows the desired amount of flush water to be used and automatically shuts the water inlet off when the foot pedal is released No valves to close or hand wheels to turn Specifications: Color: White Operation Method: Manual Gallons Per Minute: 4 GPM Size: Household Size Type: Toilet Box Dimensions: 21"H x 22"W x 25"L WT: 54.05 lbs UPC: 742985004702

Read more less
