Marine Plumbing & Ventilation - Thru-Hull Fittings

Perko 1" Thru-Hull Fitting f/ Hose Plastic Molded White Plastic Broad FlangeTechnical Information: Hose Size Inches: 1 Mounting Hole Diameter Inches: 1-1-5/16 Maximum Hull Thickness Inches: 1-1/2 O.D. Flange Inches: 2-1/4 Model Number: 0328DP6 Ship Weight: 2.0/7.3 lbs. MADE IN THE USA Specifications: Hose Size: 1" Material: Plastic Box Dimensions: 2"H x 2"W x 4"L WT: 0.15 lbs UPC: 085226768507

Read more less

Perko 5" X 3-1/4" Scoop Strainer BronzeCast bronzeMachine slotsTechnical Information: For Thru-Hull Size Inches: 3/4 & 1 Dimensions Strainer Inches: 5 X 3-1/4 Model Number: 0066DP2PLB Ship Weight: 4.4/4.3 lbs. Screw Size: #8 Specifications: Material: Bronze Box Dimensions: 1"H x 3"W x 5"L WT: 0.85 lbs UPC: 085226337390

Read more less

2-1/2" Bronze Thru-Hull Fitting with NutHigher flow rates are possible with this 2-1/2" GROCO thru-hull fitting than conventional thru-hulls.Features: NPSM / NPT combination thread C83600 Bronze UL listed 647B Includes nut  BSPP and stainless steel models are available Specifications:Thread NPS: 2-1/2" Specifications: Hose Size: 2-1/2" Material: Bronze Box Dimensions: 5"H x 5"W x 5"L WT: 3.2 lbs UPC: 742985064157

Read more less

1-1/4" Bronze High Speed Thru-Hull Fitting w/Nut Features: Designed for increased flow compared to standard Thru Hulls and with less drag NPSM / NPT combination thread C83600 Bronze Specifications: Hose Size: 1-1/4" Material: Bronze Box Dimensions: 3"H x 3"W x 4"L WT: 1.05 lbs UPC: 742985143128

Read more less

1-1/4" Slotted Hi Speed Thru-Hull with NutFeatures: 1-1/4" NPSM / NPT combination thread C83600 Bronze With Nut Slotted Specifications: Hose Size: 1-1/4" Material: Bronze Box Dimensions: 3"H x 3"W x 4"L WT: 1.1 lbs UPC: 742985193666

Read more less

2" Stainless Steel Extra Long Thru-Hull Fitting w/Nut Features: Extra long NPSM / NPT combination thread #316 Stainless Steel Specifications: Hose Size: 2" Material: Stainless Steel Box Dimensions: 5"H x 6"W x 7"L WT: 2.6 lbs UPC: 742985175198

Read more less

3/4" Bronze Combo Scoop Thru-Hull w/Nut Features: Designed for increased flow compared to standard Thru Hulls NPSM / NPT combination thread C83600 Bronze Specifications:Thread NPS: 3/4" Specifications: Hose Size: 3/4" Material: Bronze Box Dimensions: 5"H x 5"W x 5"L WT: 1.15 lbs UPC: 742985063891

Read more less

1" NPS NPT Combo Bronze Thru-Hull Fitting with NutFeatures: NPSM / NPT combination thread C83600 Bronze Sizes from 1/2" to 5" UL Listed 647B Available with (-W) or without nut (-L) BSPP and Stainless Steel models available Specifications: Hose Size: 1" Material: Bronze Box Dimensions: 3"H x 3"W x 4"L WT: 0.7 lbs UPC: 742985064119

Read more less

Stainless Steel Thru-Hull Short Straight Barbed - 1-1/2" Inner Diameter Polish your image with these beautiful, durable stainless steel fittings. Why specify plastic parts when these fittings will last the life of the boat?Rugged Stainless Construction: Cast from certified Enhanced 316 Stainless Steel alloy for strength and lifetime corrosion-resistance All visible areas are polished to a mirror finish, then passivate each part for additional protection Thick steel sidewalls withstand continual stress and hose flexing Faster, Simpler Installation: Each Thru-Hull is available with a new silicone gasket A channel under the flange holds a bead of sealant, making it easier to apply a trouble-free seal All models have wrench flats or an end notch to hold as a gripping surface; one installer can tighten all connections from inside the hull The barbed tail ends provide plenty of room to hold multiple clamps Stainless Steel Straight Thru-Hulls, BarbedShort Thread is a more compact size, which allows installation near corners and in confined areasSpecifications: Hose size: (inch) 1-1/2" inner diameter Flange Diameter: (inch) 3" Thread O.D. (outside diameter): (inch) 1-7/8"  Thread Length: (inch) 1-1/4" Barb Length: (inch) 1-1/2" Total Length: (inch) 3-1/8" Install Hole Saw Size: (inch) 2"  Thread NPSM: (inch) 1-1/2" Max Hull Thickness: (inch) 5/8" *Stainless Steel Thru-Hull Connectors are designed for installation above the water line only Specifications: Hose Size: 1-1/2" Material: Stainless Steel Box Dimensions: 3"H x 3"W x 3"L WT: 1.2 lbs UPC: 022697665454 Quick Guide (pdf)

Read more less

Stainless Steel Scupper Valve Barbed - 1-1/2" Hose SizePolish your image with these beautiful, durable stainless steel fittings. Why specify plastic parts when these fittings will last the life of the boat?Rugged Stainless Construction: Cast from certified Enhanced 316 Stainless Steel alloy for strength and lifetime corrosion-resistance All visible areas are polished to a mirror finish, then passivate each part for additional protection Thick steel sidewalls withstand continual stress and hose flexing Faster, Simpler Installation: Each Scupper Valve is available with a new silicone gasket A channel under the flange holds a bead of sealant, making it easier to apply a trouble-free seal All models have wrench flats or an end notch to hold as a gripping surface; one installer can tighten all connections from inside the hull The barbed tail ends provide plenty of room to hold multiple clamps Stainless Steel Scupper Valves, Barbed: The Scupper Flap is tough neoprene rubber with a molded V that fits into the grooved body to reduce backwash Fasteners are concealed and corrosion-proof Specifications: Hose size: (inch) 1-1/2" inner diameter Thread Diameter: (inch) 1-7/8"  Flange O.D. (outside diameter): (inch) 3" Thread Length: (inch) 3-1/2" Barb Length: (inch) 1-1/2" Total Length: (inch) 5-1/2" Install Hole Saw Size: (inch) 2"  Thread NPSM: (inch) 1-1/2" Max Hull Thickness: (inch) 3" *Stainless Steel Thru-Hull Connectors are designed for installation above the water line only Specifications: Hose Size: 1-1/4" Material: Stainless Steel Box Dimensions: 3"H x 3"W x 6"L WT: 3 lbs UPC: 022697665539 Quick Guide (pdf)

Read more less

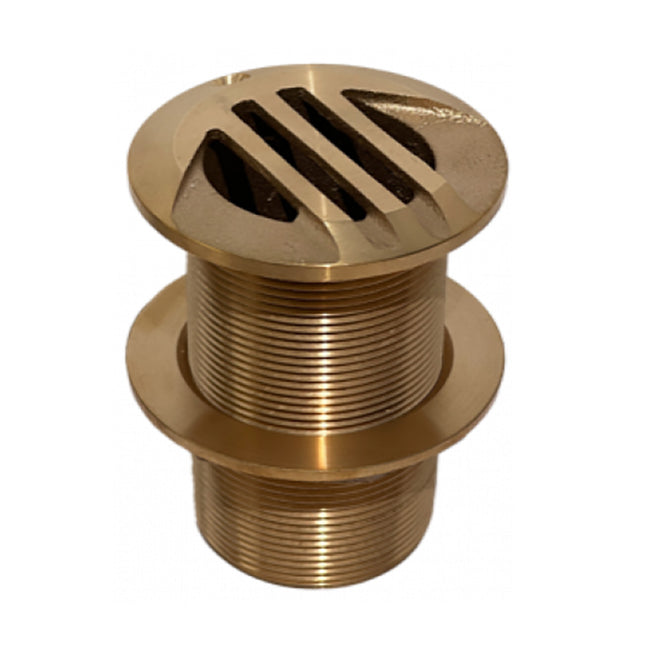

1-1/2" Slotted Hi Speed Thru-Hull with NutFeatures: 1-1/2" NPSM / NPT combination thread C83600 Bronze With Nut Slotted Specifications: Hose Size: 1-1/2" Material: Bronze Box Dimensions: 3"H x 3"W x 4"L WT: 1.2 lbs UPC: 742985193673

Read more less

Perko 3/4" Thru-Hull Fitting f/ Hose Plastic Molded White Plastic Broad FlangeTechnical Information: Hose Size Inches: 3/4 Mounting Hole Diameter Inches: 1 Maximum Hull Thickness Inches: 1-7/16 O.D. Flange Inches: 1-7/8 Model Number: 0328DP5 Ship Weight: 1.3/9.1 lbs. MADE IN THE USA Specifications: Hose Size: 3/4" Material: Plastic Box Dimensions: 2"H x 2"W x 6"L WT: 0.1 lbs UPC: 085226034138

Read more less
