Marine Plumbing & Ventilation

1700 Series Water Heater120v12 GallonW/O Engine Heat ExchangerThe "1700 Series" water heater provides hot water for galley and shower. Dense foam insulation provides better and longer heat retention than traditional fiberglass. The tank itself is protected by a 75 PSI T& P ( temperature and pressure) relief valve. The cylindrical design of the tank enables it to withstand more pressure than a cube shaped tank.Heat exchanger models can be connected to the engine cooling system. This provides the added convenience of hot water when underway or generator power is not available. The innovative heat exchanger is over seven feet in length and is evenly coiled throughout the interior of the tank, providing hot water rapidly and efficiently.Raritan's water heaters use an ignition protected thermostat. Although it is factory set to 120°F, it is adjustable from 110° to 160°F and has a safety shut down limit of 190°F. All models and sizes have the plumbing connections on the same side to simplify installation. Hot and cold water connections are 3/4" male NPT (National Pipe Thread). Heat exchanger connections are 3/4" female NPT.Benefits: Simple installation - retrofits to most on-board pressure systems Proven long-life design Withstands the rigors of the marine environment Glass-lined steel tank is more durable than stainless steel Attractive polymer jacket resists corrosion from dampness Ignition-protected, adjustable thermostat Round tanks are designed to withstand more pressure than square tanks Glass-lined steel tank for long life and high efficiency Environmentally friendly CFC-free foam insulation Replaceable magnesium anode to protect tank and neutralize acids in the water The tank is covered by a five-year Limited Warranty Each unit is assembled by hand, individually tested and backed by Raritan's two-year Limited Warranty and legendary technical support team WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Gallons: 12 Heat Exchanger: No Volts: 120v Box Dimensions: 21"H x 23"W x 23"L WT: 50 lbs UPC: 085462001536 Owner's Manual (pdf)Brochure (pdf)

Read more less

Raw Water StrainerThe Raritan Raw Water Strainer is an inexpensive way to protect your engine, generators, AC units and other equipment that requires outside water from dangerous debris. Each Raritan unit is pressure tested at the factory prior to shipping. The strong clear plastic body makes it easy to monitor debris in the strainer.Features: Clear housing Easy to install and maintain # 16 mesh removable high capacity filter Includes mounting bracket Specifications: Ports 1-1/2" PVC Female NPT threads Dimensions: 9-3/4" High, 7-1/4" overall width Maximum working pressure: 5 PSI WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Material: Plastic Box Dimensions: 7"H x 8"W x 11"L WT: 2.6 lbs UPC: 085462010682 Brochure (pdf)

Read more less

Straight Discharge AdapterRaritan's Straight Discharge Adapter is for 90° to Straight.WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Type: Parts Box Dimensions: 3"H x 4"W x 4"L WT: 0.25 lbs UPC: 085462000560

Read more less

Beckson Screw Type 1" Drain PlugScrew-type drain plug with patented self-cleaning thread design, O-ring, and super strength center retaining legs to secure the center while draining. Ideal installation for transom of personal watercraft, small boats, fish wells, coolers, ice chests, water tanks, etc. Part should be mounted in a 1" ID hole with two S/S fasteners and positioned with gap in thread at lowest point.

Read more less

974 MSD Portable Toilet with Mounting Brackets - 2.6 Gallon - GreyPowerful flushing at the touch of a button sets the new 970 portable toilet series apart from the rest.  Requires no manual pumping or batteries, yet delivers a robust bowl-clearing flush every time.  The 9.8 L tank, with a tank level indicator, contains enough water for 27 flushes.  When it is time to empty it, the extra-long discharge pipe is a sure safeguard against mess. Just as convenient as a household toilet.Due to an innovative product design, this high-quality toilet offers powerful flushing with less pumping as well as splash-free operation and discharge.  Easy to use push-button operation.Features: High-strength ABS construction withstands harsh environments; smooth, easy-to-clean finish Prismatic tank level indicator allows easy tank level monitoring Less mess due to an extra-long pivoting discharge spout Push-button flush clears bowl instantly Full-size seat for comfort Latching lid for security Includes mounting brackets Comes with Marine Sanitary Device (MSD) which allows the toilet to be plumbed for direct overboard, dockside pump-out, or remote tank discharge Technical Specifications: Color - Grey Flush Method - Manual Handle Capacity - 2.6 Gallon/9.8 L Seat Close - Standard Weight - 12 Pounds Set Height - 12.5" Size - 15.25" Depth x 12.5" Height x 13-2/16" Wide Water Supply - Freshwater (self-contained) Discharge - Spout on bottom of tank or MSD fitting kit New Item # 9108552690 WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm, and Diisononyl Phthalate (DINP) which is known to the State of California to cause cancer, and ARSENIC which is known to the State of California to cause cancer or other reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Owner's Manual (pdf)

Read more less

3/4" Flex Marine Wet Exhaust & Water Hose - Black - Sold by the FootTrident Flex wet exhaust hose for longer bent connections. In smaller I.D.s for engine intake, critical water, drain, scupper bilge & sanitation uses. Resists heat, ozone, exhaust, panting, and collapse. Black High Temp EDPM Rubber 250°F (121°C) Max.Features:  Sold by the foot Extra heavy tube and cover with wire helix between 2-ply reinforcement provides excellent flexibility and bend radius  Resists heat, ozone, exhaust, sani chemicals, panting, and collapse Exceeds SAE J2006-R2, ABYC & NMMA P-1 exhaust standards, and Lloyd’s Registry Type Approved Application: Trident Flex wet exhaust hose for longer bent connections In smaller I.D.s for engine intake, critical water, drain, scupper bilge & sanitation uses Construction: Tube & Cover: High temp EDPM rubber Color: Black with blue stripe Reinforcement: Multi-ply, high-tenacity polyester, steel helix Temperature Range: 250°F (121°C) Specifications: Inner Diameter: (inch) 3/4" / (mm) 20 Outer Diameter: (inch) 1.15" / (mm) 29 Working Pressure: (Psi) 100 / (bar) 6.9 Bend Radius: (inch) 1" / (mm) 25 Weight: (Lb./50ft.) 23 / (Kg/m) 10.3 *Burst Pressure is 4 x Working PressureThis product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: ID Diameter (inches): 3/4" Length (Feet): Sold By The Foot Box Dimensions: 2"H x 2"W x 12"L WT: 0.44 lbs Quick Guide (pdf)

Read more less

Impeller Kit - 9 Blade - Nitrile - 3-3/4" Diameter x 2-1/2" W, 1" Shaft DiamterFeatures: Material: Nitrile Drive Type: Single Flat Drive Number of Blades: 9 Dimensions: Diameter:3-3/4", Shaft Diameter:1", Shaft Width:2-1/2" Insert Material:Brass Jabsco flexible impellers can be fitted to most makes and models of bronze flexible impeller engine cooling, bilge, transfer and general purpose pumps.Jabsco flexible impellers are subjected to rigorous quality processes to ensure reliable, efficient and long lasting performance.Replace all impellers at least once every year, or sooner, depending on the engine duty. When the installation is correct an impeller may last for several years, but it is always advisable to stick to a schedule of preventative, rather than corrective, maintenance.Replacing impellers is easy. By removing the end cover screws, it is possible to remove the impeller by using either a Jabsco Impeller Removal Tool, or channel lock pliers, to grip the hub of the impeller. Don?t use screwdrivers as they may damage the face of the pump body, causing leaks, and they can be dangerous in confined spaces.Always carry spare impellers on board in case of emergency. The impeller is one of the most vital components of the engine cooling system and should always be treated as such. Always grease new impellers. Firstly, it makes it easier to install the impeller into the pump bore, and secondly it gives added protection to the impeller during initial prime. After replacing the gasket and end cover the pump is ready to use.WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Read more less

Rule 2000Engineered to commercial standards. The Rule 2000 is the best selling high capacity submersible bilge pump in the world. 1-1/8" (28.6mm) discharge outlet. 12 Volts DC unless noted.Features: Computerized operation - no float switch required Fully Submersible Easy clean triple stage snap lock strainer Silent and vibrationless operation Anti-airlock protection Compact, efficient long life motor Ignition protected No burn-out when run dry Rust and Corrosion protection Used by leading boatbuilders worldwide marine grade blocked wiring WARNING: This product can expose you to chemicals including FORMALDEHYDE (GAS) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov. Specifications: Gallons Per Hour: 2000 GPH Operation: Automatic Outlet Size: 1-1/8" Volts: 12v Type: Electric Box Dimensions: 7"H x 8"W x 12"L WT: 4 lbs UPC: 042237083159 Owner's Manual (pdf)

Read more less

Deluxe Flush 14" Straight Back 12V Raw Water Electric Marine Toilet with Remote Rinse Pump & Soft Close LidYou can experience all the comforts of home at sea with Jabsco Deluxe Flush electric marine toilet. Designed for the discerning owner looking for luxury and comfort, the Deluxe Flush portfolio features a space-saving, stylish design with minimal water usage and virtually silent operation.Features: 14" Straight back Space-saving stylish design Household size soft closing seat Virtually silent operation Sea, river, or lake water rinse model Powerful non-clogging large bore flush pump macerates waste Specifications: Bowl Size: Domestic Lid: Soft close Rinse Type: Raw water Rinse Pump/Solenoid Valve: Remote Rinse Pump Voltage DC: 12V DC Recommended fuse Size (AMP): 25 Flush control Switch: 4-Button Touch Panel Height: (inch) 14.4” / (mm) 366 Width: (inch) 14.8” / (mm) 375 Depth: (inch) 17.7" / (mm) 450 Weight: (LBS) 55.1" / (kg) 25 One-Touch Control Pad:All Deluxe Flush marine toilets come complete with a multi-function, one-touch control pad. The control pad is supplied with a standard surface mount unit with a clean white bezel. The control pad offers four options: fill, quick flush, flush, or empty. In addition, the owner can set the control at any time so that the bowl is always left either dry or wet after flushing. The recommended dry setting minimizes total water usage. If water usage is not a concern, the wet setting automatically fills the bowl after flushing, ready for the next user. Simultaneously holding down both the quick flush and flush buttons for 5 seconds switches between bowl always left dry and bowled always left wet modes.Control Pad Options: Fill may be touched when the bowl is dry add 1 quart (1 liter) of water before use, if necessary Quick Flush first rinses and then empties the bowl after light use. On the dry setting, this uses less than 1 quart (1 liter) of water Flush rinses and empties the bowl twice after heavy use. If the bowl is dry, touching the fill before use is recommended. This uses just 2.5 quarts (2.5 liters) of water Empty does exactly what it says without adding any water, whenever desired. Even when the bowl appears to be dry, there is an anti-odor water lock in the pump housing Rinse Options: Supplied with a remote-mounted, self-priming pump to bring in sea, river, or lake rinse water  Complete with a Jabsco Pumpgard strainer Specifications: Color: White Operation Method: Electric Rinse Water: RAW Volts: 12 Box Dimensions: 23"H x 23"W x 25"L WT: 26 lbs UPC: 671880638715 Owner's Manual (pdf)

Read more less

Pressure Storage Tank - 1.4 Gallon Drawdown A pneumatic pressure charge, matched to the pump cut on pressure prevents water logging by separating the air charge from system water pressure with a rubber bladder. The result is smooth pressure delivery, even temperature mix in showers, and reduced pump cycling. Tanks may be mounted in any position, and anywhere in the cold water plumbing after the pump. PST tanks may be used for fresh or salt water. Mount hardware is included. PST-6 has a pump stand for mounting PJR, WSC-60 or WSC-80 pump. Specifications: Diameter: 11" Mounting: Stand 30/50 Drawdown: 1.4 gallon Thread NPT: 3/4"

Read more less

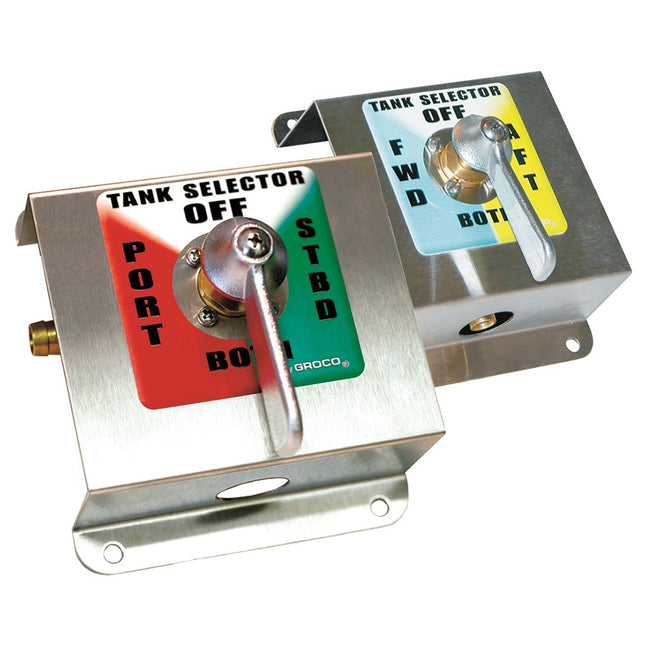

1/2" 4-Way Tank Selector Kit TS-350-T Tank Selector utilizes a single FV-450-X full flow valve mounted on an attractive stainless steel mount bracket and plumbed with (2) ½" straight hose barbs and (1) 3/8" 90-degree hose barb. Two labels are provided to match your installation (port/ starboard or fore/aft).  Handle can be relocated in 90-degree increments to align plumbing.  (Tank selector is a single valve kit, photo is intended to show both labels and not to suggest part contains two valves.)Features: For fuel or water Four Positions - Tank-1 - Tank-2 - Tanks 1 and 2 - Off Full 1/2” flow Audible “click” at each handle position For thru panel mounting C83600 bronze construction. *Sold as an Individual Specifications: Construction: Bronze Box Dimensions: 5"H x 6"W x 8"L WT: 3 lbs UPC: 742985147409 Brochure (pdf)

Read more less

Premium Utility Pump - 12 VDC, 1.5 GPMIncorporating SHURFLO's advanced motor technology that includes thermal overload protection, general utility pumps are self-priming, easy to install and are extremely versatile-perfect for a variety of uses including winterizing, oil changing and liquid transfer. 1 Year Warranty.Features: 12 VDC Ignition Protected BUNA Valves CE 7' [2.1m] Prime 8' Cable with Battery Clips Hose kit Included Uses: Winterizing, Oil Change and Liquid Transfers This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Volts: 12v Gallons Per Minute: 1.5 GPM Box Dimensions: 5"H x 6"W x 11"L WT: 4.65 lbs UPC: 752324009206
