Halyard Bag - MediumThis handy Blue Performance bag is perfect for storing your halyards at the mast.Features:
Storage for up to three mast-head halyards
Velcro mast straps
Self-draining
Waterproof, mildew, and UV-resistant Ripstop
Three hanging rope clips inside the bag to separate halyards
Heavy duty zip front with Velcro flap
The open collar at the top for halyard entry
Specifications (L x W):Medium: (inch) 6.9 x 23.6 x 5.1 / (mm) 175 x 600 x 130*Sold as an Individual Specifications:
Type: Bags
Box Dimensions: 5"H x 10"W x 24"L WT: 2 lbs
UPC: 8715738005556

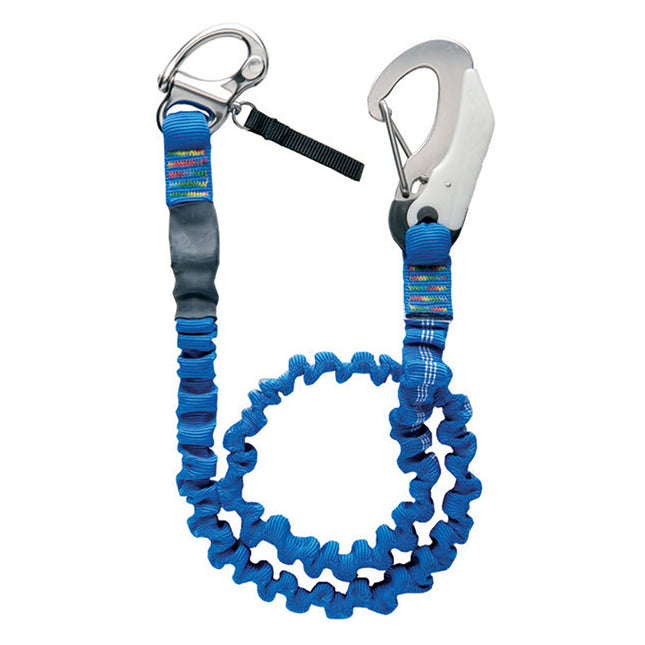

US Sailing Offshore Tether Double - 6'Features:
Tether with 2 double action safety hooks and 1 stainless steel snap hook - Elastic webbing - 2m
Automatic closing and opening mechanism
The Proline generation has been designed to offer you the highest level of safety at sea.
Double safety hook
Wide opening: 26 mm
V-Nose feature (patented): easy hooking and unhooking
High-quality elastic webbing: Retro-reflective and visible at night
Compact and light
Exclusive feature: SmartLoop
The product can adapt to suit all needs and users.
SmartLoop lets you turn a single webbing tether into a double webbing tether
Material: Anodized aluminum hook offering lightweight and mechanical and corrosion resistance
Regulations:
Compliance with ISO 12401:2009 and WORLD SAILING regulations (OSR)
Overload indicator on all models
Applications:Safety on board
Double Fairlead - 25mm Diameter Stanchion with Webbing - Velcro StipeFeatures:
Quick and easy installation and dismantling
Thanks to the velcro stripe, the double fairlead can be installed easily and quickly on 25 mm stanchion
It enables quick installation and use of the continuous line of your flying sail furler or spinnaker furler
The dismantling is easy and enables you to store the whole set (fairlead and continuous line)
In case the continuous line is already spliced, the fairlead can be opened to install the line
This double fairlead has no moving parts and thus offers a greater lifespan and minimal maintenance
Applications:Use of the continuous line of your flying sails furler or spinnaker furlerSpecifications:
Materials: 316L stainless steel grade
Weight: (lb) 0.397 / (g) 180
Diameter: (inch) 0.98" / (mm) 25
Caption:
Working Load (WL): For nautical applications
Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
*Sold as an Individual Quick Guide (pdf)

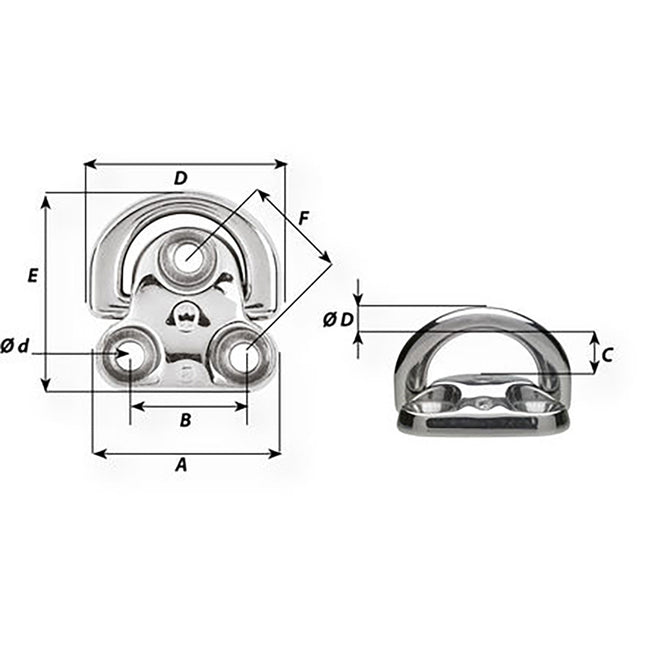

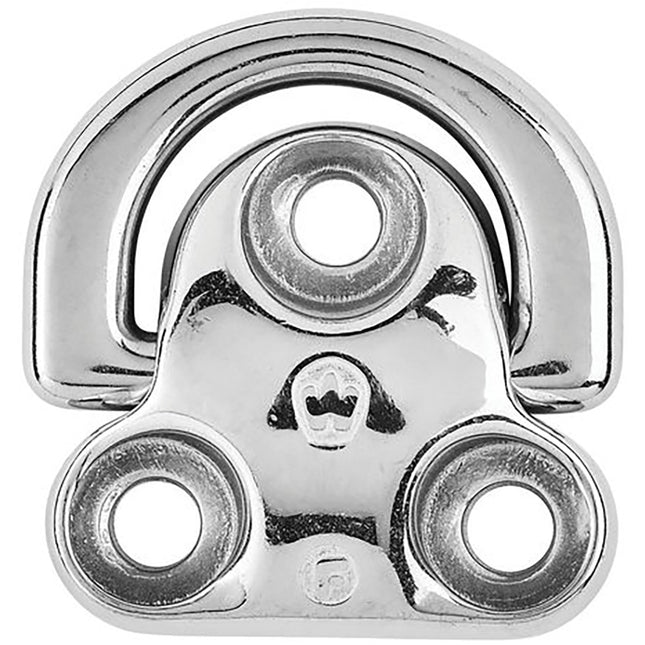

1/4" Folding Pad Eye - Diameter 1/4"Features:
Perfect solution for fastening applications (stay, blocks, jib tack point, lifeline, tether, etc...)
Fully drop-forged product with outstanding working and breaking loads regardless of the angle of the load
Modern and optimized design to suit the aesthetics of modern boats
They can be folded down to minimize the risk of injuries
The silicon pad eliminates noise and unpleasant vibrations
Modern design
Applications:For any fastening/attachment application: shroud, stay, blocks, lifeline, jib tack point, etc…)Specifications:
Materials 17.4 pH stainless steel/316L stainless steel grade
Working load (lb) 2510
Breaking load (lb) 6610
Weight (lb) 0.172
A (inch) 1 49/64"
B (inch) 1 1/16"
C (inch) 19/32"
D (inch) 1 47/64"
d diameter (inch) 15/64"
D diameter (inch) 15/64"
E (inch) 1 39/64"
F (inch) 1 1/16"
SR-2 Jib RollerThe Forespar® SR-2 Jib Roller with fit shrouds from 3/16” thru 3/8” wire diameter. Use the proper size pair of insert liners according to the table below:
3/8” wire – use no insert
5/16” wire – use #1 inserts
9/32” wire – use #2 inserts
¼” wire – use #3 inserts
7/32” wire – use #4 inserts
3/16” wire – use #5 inserts
The Jib Rollers may be placed just above or below the spreader tips; however, installation will be easier if located below the spreaders. In this instance, you can pre-assemble the parts while on deck and reduce the possibility of losing parts while hanging in a boatswain’s chair. Have a 3 inch piece of masking tape within handy reach (stick it to the shroud).Select the proper inserts, place them into the two halves of a hub and fit them around the shroud. Use the tape to loosely hold these parts together. Note that the hubs have two clearance screw holes at one end. Match these with the smaller holes at the other end of the other half. It is important that the mating faces of the inserts are parallel with the faces of the hub halves. Install the four screws supplied, tightening only to the extent that you can still slide the hub assembly up the wire shroud. Now remove the tape. Next, install the rollers. Note that one half of each roller has clearance holes for the two screws. Mate these halves that don’t have clearance holes. Run these screws tight. Now slide the Jib Roller to the desired position on the shroud and finish tightening the four hub screws until the hub interfaces are fully closed.
Round Pad Eye - 57mm Diameter (2-1/4") - FixedThis fixed rounded pad-eye completes the range of fixed pad eyes and thus it can suit any user scenario. For example, it can be used for reefing blocks and fastening points on bowsprits and blocks. Made from duplex stainless steel, it offers excellent mechanical strength for its corrosion resistance. For M6 screws.Applications:
Reefing blocks
Fastening points on the bowsprit
Blocks fastening
Specifications:
Materials: Duplex stainless steel grade
Weight: (lb) 0.331 / (g) 150
W.L 1 (90 degrees): (lb) 5070.6 / (kg) 2300
W.L 2 (45 degrees): (lb) 4519.4 / kg 2050
W.L 3 (0 degrees): (lb) 4299 / kg 1950
B.L 1 (90 degrees): (lb) 10031 / kg 4550
B.L 2 (45 degrees): (lb) 9038.9 / kg 4100
B.L 3 (0 degrees): (lb) 8598 / kg 3900
Dimensions:
A: (inch) 2 1/4" / (mm) 57
B: (inch) 1 1/16" / (mm) 27
D: (inch) 1 3/16" / (mm) 30
E: (inch) 3/4" / (mm) 19
F: (inch) 55/64" / (mm) 22
Caption:
Working Load (WL): For nautical applications
Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
*Sold as an Individual Quick Guide (pdf)
Folding Pad Eye - Diameter 25/64"Features:
Perfect solution for fastening applications (stay, blocks, jib tack point, lifeline, tether, etc...)
Fully drop-forged product with outstanding working and breaking loads regardless of the angle of the load
Modern and optimized design to suit the aesthetics of modern boats
They can be folded down to minimize the risk of injuries
The silicon pad eliminates noise and unpleasant vibrations
Modern design
Applications:For any fastening/attachment application: shroud, stay, blocks, lifeline, jib tack point, etc…)Specifications:
Materials 17.4 pH stainless steel/316L stainless steel grade
Working load (lb) 8990
Breaking load (lb) 19840
Weight (lb) 0.783
A (inch) 2 61/64"
B (inch) 1 49/64"
C (inch) 63/64"
D (inch) 3 5/32"
d diameter (inch) 25/64"
D diameter (inch) 25/64"
E (inch) 2 43/64"
F (inch) 1 49/64"
Dry Bag - 20 LiterAttwood's Dry Bag is produced with heavy duty materials to provide strong, durable, waterproof storage for your items both on the water and land. 20 liter (5.28 gallon) storage capacity. Safety yellow coloring for easy visibility on the water. Multiple D-rings allow waterproof cases, dry boxes, and other essentials to attach conveniently. Soft touch integrated carry handle for ease in handling.
Waterproof construction
Made out of heavy duty 500 denier PVC coated mesh fabric
Integrated carry handle
1-1/2" adjustable shoulder strap
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications:
Color: Yellow
Box Dimensions: 2"H x 4"W x 17"L WT: 1.1 lbs
UPC: 022697118974
Sta-Plug® Mini Emergency PlugThe Sta-Plug® Mini™, Forespar's form-fitting emergency plug. A soft cone-shaped design allows it to easily fill the irregular shapes of hull impact breaches, as well as any round hole leak from a hose or through-hull. Unique edge gripping riblets help hold the plug in a hole, keeping water out.Features:
The Emergency Plug that Grips
4" High x 2" Diameter
Convenient sized version of the popular Sta-Plug Emergency Plug
Made from strong elastomer composites
Not susceptible to mold or swelling
Bright color allows it to be quickly located
Meets US Sailing Special Equipment Requirements
Equipped with a lanyard hole
Dimensions: 4" (10cm) high, 2" (5cm) diameter at base
Made right here in the USA
NOT INTENDED FOR FUEL LEAKS
MF 765/8 Cleat (834030)Molded from high-strength Marelon®, Forespar's cleats have been thoroughly tested by independent laboratories and manufacturers of yachts and power boats all over the world. Their strength, light weight and low cost have contributed to their increased use in the marine industry. The use of Marelon® allows our cleats to take up the curve of a deck without breaking, while maintaining strength and resisting abrasion. Marelon will also prevent our cleats from softening on hot days or freezing in winter. Specifications:
Type: Cleats
Box Dimensions: 1"H x 4"W x 8"L WT: 0.4 lbs
