Sailing - Blocks

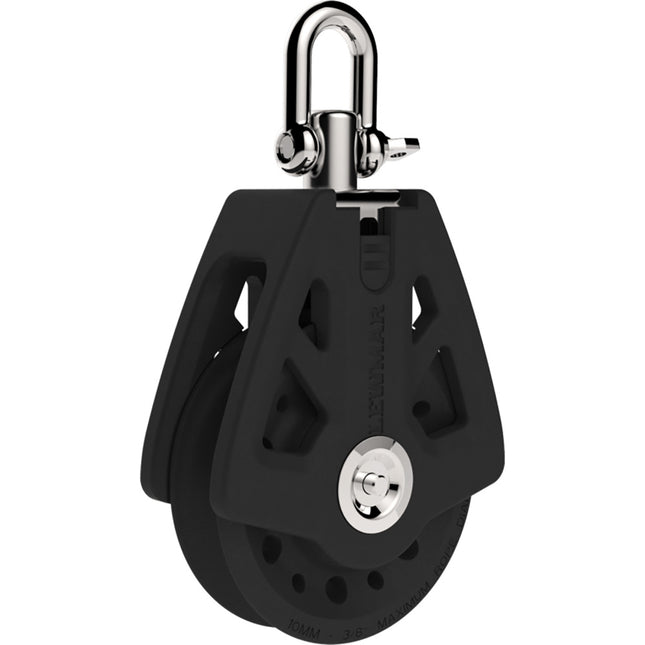

90mm Synchro Block - SingleLewmar's Synchro Blocks are engineered for speed, efficiency, and superior handling.  Using a combination of scientifically optimized block geometry, a Free-Spin bearing, and a self-aligning head to reduce friction and increase efficiency by up to 40%, over budget blocks on mainsheet systems. Each component is perfectly synchronized with the movement of the rope, providing you with an easier, smoother transfer of power from deck to sail and less wear on your rope.Features: Stainless steel strap for improved strength and longer service life Stiff glass fiber reinforced cheeks to prevent lines from wedging Innovative design with “tool-free” sliding swivel locking mechanism Technical Specifications: Working Load Limit - 4400lb Weight - 14.57oz Maximum Line Size - .55" (14mm) *Sold as an Individual

Read more less

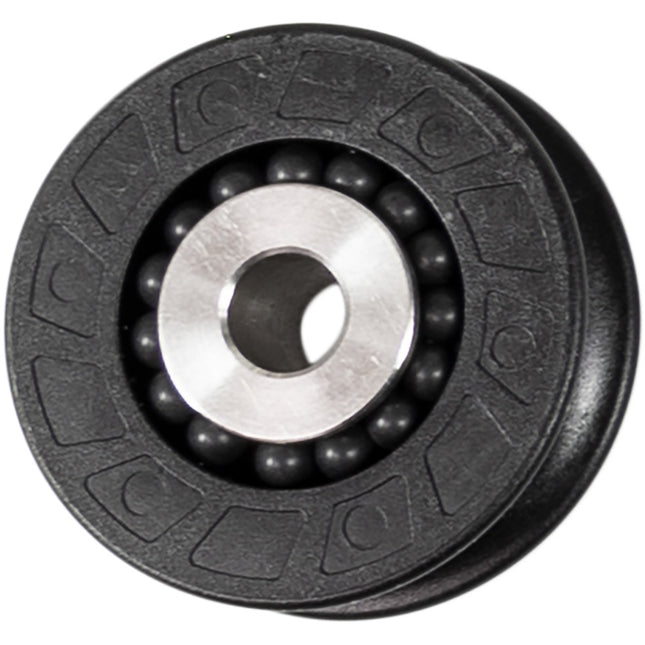

Series 40 Orbit BB SheaveBall Bearing versions incorporate the 2-stage bearing system using ball bearings to minimize friction and a secondary full-contact bearing to maintain low friction across the full working load range.Specifications: Sheave Captive BB Width: 15.5mm/5/8" Sheave Diameter: 40mm/1-9/16" Maximum Rope: 10mm/3/8" M.W.L.: 400kg/880lbs Weight: 30g/1.1oz

Read more less

75mm Carbo Air Block with SwivelLow-friction Carbo Air blocks are lightweight, strong, reliable—and affordable. Companions to the popular Harken Black Magic block line, these small, compact blocks have very high working loads for safe, easy trimming.Specifications: Sheave: 75mm / 2-15/16in Length: 137mm / 5-3/8in Weight: 195g / 6.9oz Shackle pin: 6mm / 1/4in Maximum line: 14mm / 9/16in Maximum working load: 550kg / 1213lb Breaking load: 1650kg / 3638lb

Read more less

Laser Replica 15:1 Boom Vang Assembly The Barton boom vang assembly gives all the advantages of systems costing twice the price. 15:1 purchase is achieved through clever design of the base plate, fitted with the unique Barton swivelling triple cam block. It is simple to fit and easy to use.Compatible With:Laser class sailboats In the Box: Barton base plate - Spectro anodised aluminium with three fixing bolts 00 931 Series 0 triple swivel cam block (attached to base plate by shackle) 00 110 Series 0 single fixed eye block (attached to base plate by shackle) 00 211 Series 0 double block with becket 01 091 Series 1 single tang block with becket and curved kicker key for boom 3' 11" (1.2 M) of 5/32"  (4 mm) - dyneema line for primary Red control line 9' 11"(3 M) of 5/32"  (4 mm)  line for secondary Red control line *Sold as and Individual  Brochure (pdf)

Read more less

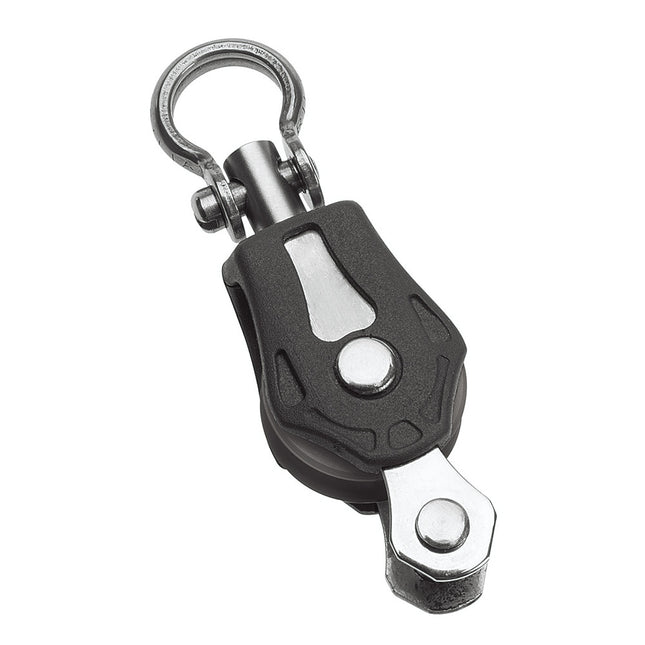

Size 0 20mm Plain Bearing Pulley Block Single Swivel & BecketThe Barton Size 0 Plain bearing block has 20mm (3/4″) sheaves and is also available in ball bearing sheaves. They are designed for high strength and performance but lightweight with the range starting at only 13gms (0.5oz).Suitable for up to 6mm (1/4″) rope Ideal for use on dinghies, day boats, and smaller craft or lead blocks, flag pennants, etc. on larger yachts. Quick Guide (pdf)

Read more less

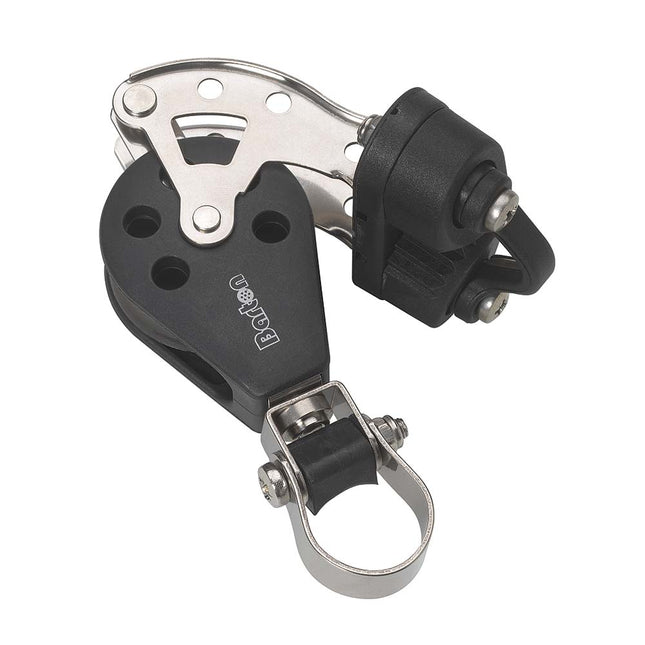

Size 3 Stanchion Lead Block - Single with Becket & Cam Cleat Barton Marine's stanchion lead blocks have proven to be popular with Cruising sailors all over the World.  Mounted onto the stanchion base, the stanchion lead block enables the Genoa furling line to be led back to the cockpit for easy adjustment. Ball bearing sheaves have a precision molded acetal sheave running on a significant diameter brass bearing, ensuring free running under the highest loads.   The unit will fully rotate about the swivel head to match your pulling angle. Cam cleat will secure the line into place.  Block attachment to stanchion is by means of screwing together the integral Stainless Steel strap.Technical Specifications Sheave - Single Sheave Size - 1-3/4" (45mm) Maximum Rope Diameter -  3/8" (10mm) Safe Working Load - 881 lb (400 kg) Maximum Stanchion (Tube) Size - 1" (25mm)  *Sold as an Individual  Quick Guide (pdf)Brochure (pdf)

Read more less

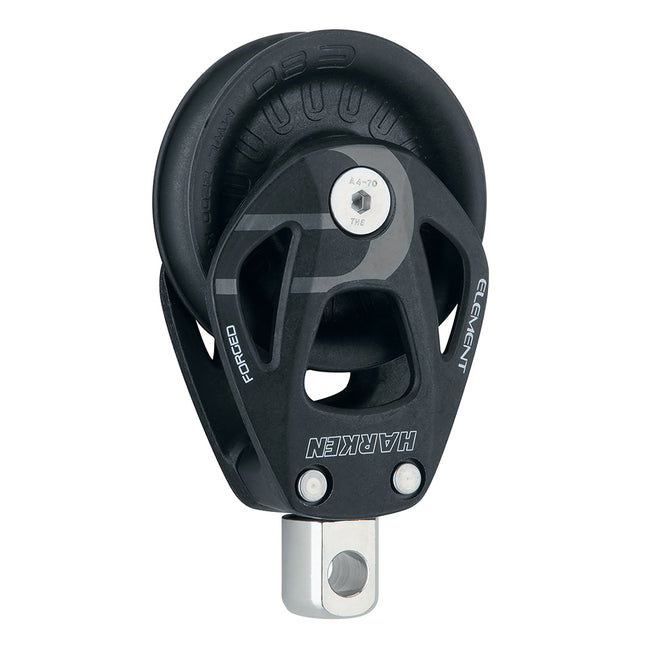

80mm Single Element Block Mastbase with SwivelElement blocks introduce sideplates that combine forged aluminum and compound curves for strength. They are simultaneously contemporary and very robust. Element’s design pairs the minimum amount of metal required to protect the sheave with a proven journal bearing. So size for size, Element is priced significantly lower, than our previously least expensive blocks.Sideplates are hardcoat-anodized to resist corrosion. A tough composite bearing sheave resists corrosion for a long service life. Specifications: Sheave: 80mm (3-1/8") Max Line: 16mm (5/8") Max Working Load: 2200kg (4850lbs)

Read more less

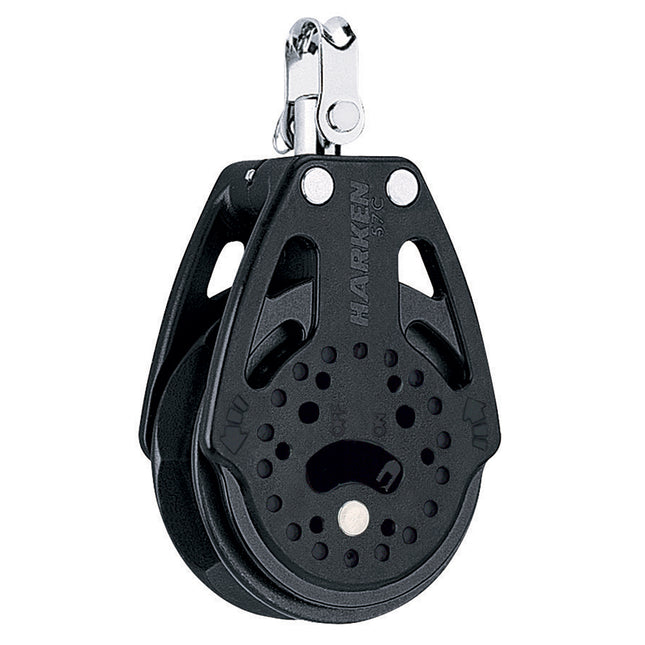

57mm Carbo Single Ratchet Block with SwivelCarbo Ratchets allow sailors to hand-hold loaded lines and offer balance between holding power and controlled easing.Features: On/off switch operates from both sides Standard grip: medium/light air; 10:1 holding power Sheave Ø (mm): 57 mm Sheave Ø (in): 2-1/4 in Maximum line Ø (mm): 10 mm Maximum line Ø (in): 3/8 in Maximum working load (kg): 227 kg Maximum working load (lb): 500 lb

Read more less

40mm/29mm Carbo Traveler BlockLow-friction Carbo Air blocks are lightweight, strong, reliable—and affordable. Companions to the popular Harken Black Magic block line, these small, compact blocks have very high working loads for safe, easy trimming. Features: Sheave Ø (mm): 40 mm Sheave Ø (in): 1-9/16 in Maximum line Ø (mm): 8 mm Maximum line Ø (in): 5/16 in Maximum working load (kg): 150 kg Maximum working load (lb): 330 lb

Read more less

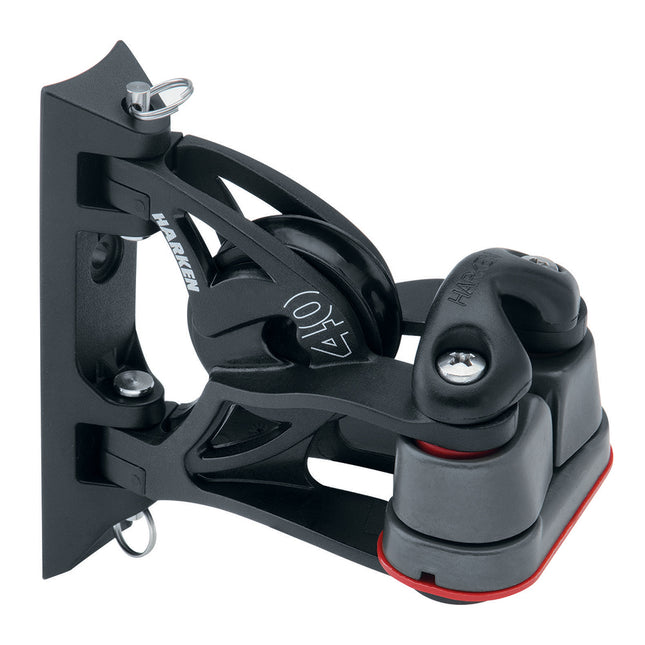

40mm Carbo Air Pivoting Lead Block with Aluminum Cam-Matic® CleatHigh-strength pivoting lead blocks with cams are used for halyard controls on larger keelboats and as “headknockers” on dinghies and beachcats for sheeting directly from the boom. Hole spacing and rivet size are the same as Classic models, making upgrades easy. Cam reverses for either up or down cleating.Can be used as becket block.Specifications: Sheave Ø (mm)40 mm Sheave Ø (in)1 9/16 in Maximum line Ø (mm)10 mm Maximum line Ø (in)3/8 in Maximum working load (kg)136 kg Maximum working load (lb)300 lb

Read more less

40mm Carbo Air Fiddle Block with Swivel & BecketLow-friction Carbo Air blocks are lightweight, strong, reliable—and affordable. Companions to the popular Harken® Black Magic® line, these small, compact blocks have very high working loads for safe, easy trimming. The 40 mm fiddle is an excellent choice for 3:1 and 4:1 tackles on dinghy vangs and mainsheets, as well as for controls such as cunninghams and internal boom outhauls on larger boats.Specifications: Sheave: 40mm / 1-9/16in Length: 131mm / 5-1/8in Weight: 54g / 1.9oz Shackle pin: 4mm / 5/32in Maximum line: 10mm / 3/8in Maximum working load: 220kg / 485lb Breaking load: 735kg / 1620lb

Read more less

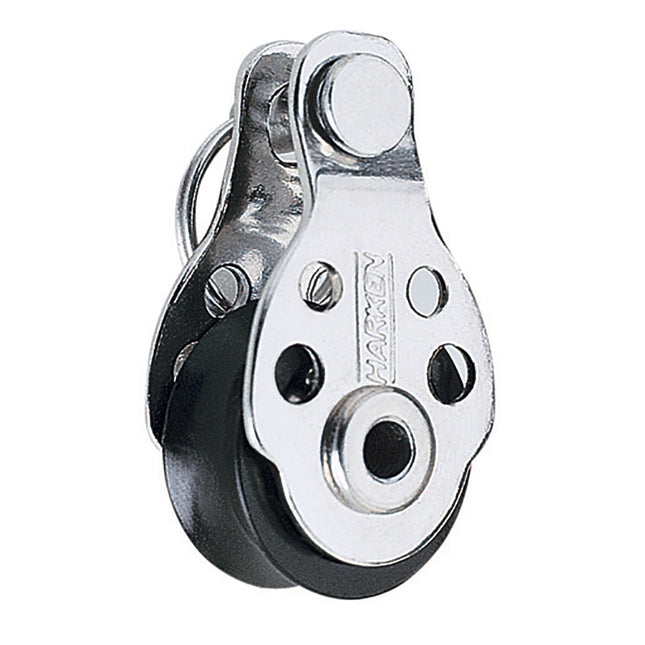

16mm Forkhead BlockThe 16 mm is Harken’s® smallest block. It is perfect for small synthetic control lines found on high-tech dinghies. The patented bearing system uses stainless steel balls in a captive grooved race and has a 250 lb (113 kg) maximum working load.Specifications: Sheave: 16mm / 5/8in. Length: 29mm / 1-1/8in. Weight: 11g / .38oz Maximum line: 5mm / 7/32in Maximum working load: 113kg/ 250lb Breaking load: 544kg / 1200lb

Read more less
