Sailing - Blocks

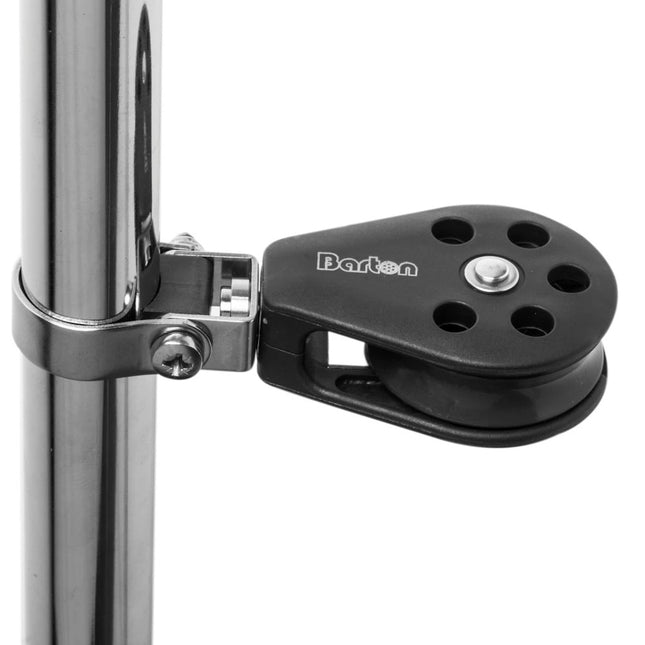

Size 3 45mm Plain Bearing Pulley Block Stanchion Lead BlockThe size 3 Barton plain bearing blocks have 45mm (1 3/4" sheave size 3 block range incorporates modern design with stainless steel frames and the latest advanced materials, using 30% fibre glass filled nylon and Acetal sheaves to maximise their strength whilst keeping weight to a minimum. Suitable for use as mainsheet, vangs, lead blocks, or wherever a powerful and compact purchase system is required on dinghies, dayboats, and lightweight cruisers.Suitable for up to 10mm (3/8") rope.

Read more less

Series 40 AP Sheave - Acetal Solid Bearing - 40mm(1-9/16")ODPrecision moulded Acetal sheaves running on Acetal or Torlon® ball bearings provide high performance & low friction.Acetal Sheaves: Choice of bearings Solid bearing - high strength and durability, utilizing the self-lubricating properties of Acetal U.V. resistant Acetal sheaves

Read more less

Kite Block - Black w/White SheaveFeatures: Lightweight durable construction Economical Maintenance free Applications: Vang, cunningham and trapeze retriever systems on dinghies Leech line tackles, bunk adjusters etc on larger yachts Materials: U.V. stabilized Acetal sheaves Nylon cheeks Specifications:Sheave Ø:16mm(5/8")Max. Rope Ø:4mm(5/32") Brochure (pdf)

Read more less

60mm Single Aluminum Element Block with SwivelElement blocks introduce sideplates that combine forged aluminum and compound curves for strength. They are simultaneously contemporary and very robust. Element’s design pairs the minimum amount of metal required to protect the sheave with a proven journal bearing. So size for size, Element is priced significantly lower, than our previously least expensive blocks.Sideplates are hardcoat-anodized to resist corrosion. A tough composite bearing sheave resists corrosion for a long service life.Features: Sheave Ø (mm): 60 mm Sheave Ø (in): 2-3/8 in Maximum line Ø (mm): 14 mm Maximum line Ø (in): 9/16 in Maximum working load (kg): 1100 kg Maximum working load (lb): 2425 lb

Read more less

45mm Single Element Block with SwivelElement blocks introduce sideplates that combine forged aluminum and compound curves for strength. They are simultaneously contemporary and very robust. Element’s design pairs the minimum amount of metal required to protect the sheave with a proven journal bearing. So size for size, Element is priced significantly lower, than our previously least expensive blocks.Sideplates are hardcoat-anodized to resist corrosion. A tough composite bearing sheave resists corrosion for a long service life.Specifications: Sheave: 45mm / 1-3/4in Length: 102mm / 4in Weight: 103g / 3.6oz Shackle pin: 6mm / 1/4in Maximum line: 12mm / 1/2in Maximum working load: 700kg / 1543lb Breaking load: 1400kg / 3086lb

Read more less

50mm Synchro Block - SingleLewmar's Synchro Blocks are engineered for speed, efficiency, and superior handling.  Using a combination of scientifically optimized block geometry, a Free-Spin bearing, and a self-aligning head to reduce friction and increase efficiency by up to 40%, over budget blocks on mainsheet systems. Each component is perfectly synchronized with the movement of the rope, providing you with an easier, smoother transfer of power from deck to sail and less wear on your rope.Features: Stainless steel strap for improved strength and longer service life Stiff glass fiber reinforced cheeks to prevent lines from wedging Innovative design with “tool-free” sliding swivel locking mechanism Technical Specifications: Working Load Limit - 990lb Weight - 2.36oz Maximum Line Size - .39" (10mm) *Sold as an Individual

Read more less

16mm Triple BlockThe 16 mm is Harken’s smallest block. It is perfect for small synthetic control lines found on high-tech dinghies. The patented bearing system uses stainless steel balls in a captive grooved race.Specifications: Sheave: 16mm / 5/8in. Length: 46mm / 1-13/16in. Weight: 41g / 1.44oz Maximum line: 5mm / 7/32in Maximum working load: 318kg/ 700lb Breaking load: 544kg / 1200lb

Read more less

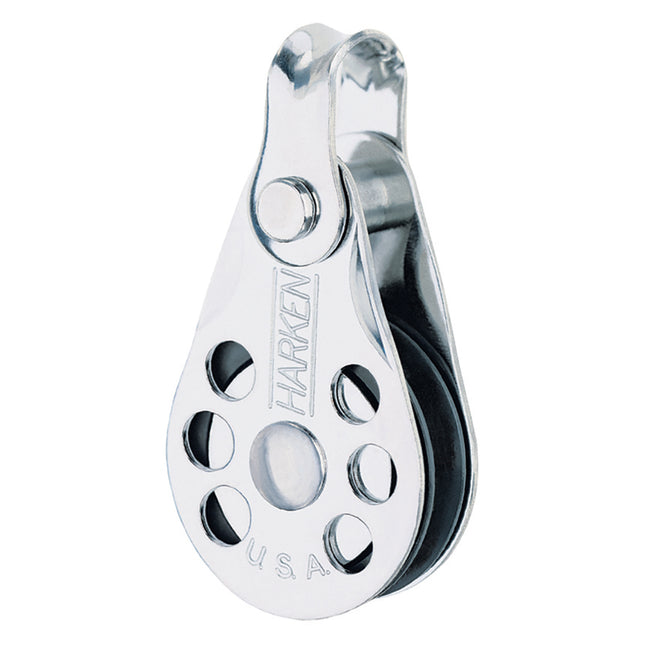

16mm BlockThe 16 mm is Harken’s® smallest block. It is perfect for small synthetic control lines found on high-tech dinghies. The patented bearing system uses stainless steel balls in a captive grooved race and has a 250 lb (113 kg) maximum working load. The 404 uses an O-ring to keep the line in the sheave during intermittent loading.Specifications: Sheave: 16mm / 5/8in. Length: 29mm / 1-1/8in. Weight: 10g / .33oz Maximum line: 5mm / 7/32in Maximum working load: 113kg/ 250lb Breaking load: 544kg / 1200lb

Read more less

Series 20 Ball Bearing Block - Single - Cheek Rivet MountFeatures: Low friction High static and dynamic load capacity Lightweight Suitable for screw or pop rivet mounting Precision molded Acetal sheaves running on stainless steel or Torlon® ball bearings provide high performance & low friction Applications: Dinghy control lines Dinghy Vangs Cunninghams Traveller controls Materials: U.V. Stabilized Acetal sheaves Stainless steel ball bearings Grade 316 stainless steel load strap and head fitting Impact and UV resistant, fiber reinforced Nylon cheeks Specifications:Sheave Ø: 20mm(3/4")Max. Rope Ø: 6mm(1/4")M.W.L.: 200kg(440lbs)B. L.: 550kg(1,210lbs)Weight: 17g(0.6oz)

Read more less

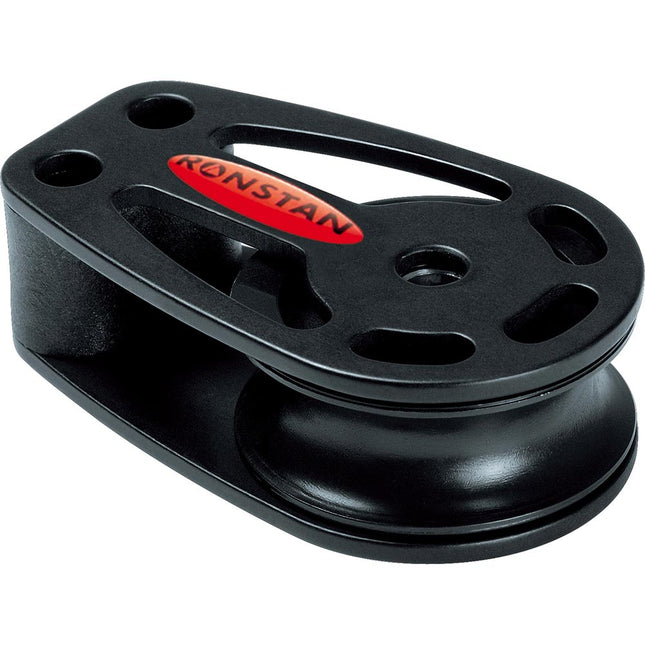

Series 40 Orbit BB Cheek BlockThe Series 40 ball-bearing Orbit Blocks™ provides the perfect balance of strength, performance, and reliability. They offer class-leading dynamic and static load ratings, the highest available in this size of performance blocks. Lightweight and strong toughened glass fiber reinforced nylon cheeks replace stainless steel straps used in traditional utility blocks - the perfect balance of performance and reliability.As well as traditional single swivel blocks, the range includes single and double sheave lashing or soft attachment options through to multiple sheave blocks including those with quad and quin sheaves. The range is highly versatile allowing a multitude of possible systems right up to a 12:1 purchase mainsheet system for off-the-beach performance catamarans.Series 40 Orbit Blocks™ are fitted with our carbon-reinforced C-Cleat™ for secure rope holding with low entry and exit efforts, and fairleads for fast action from any angle. Cleat arms are made from stainless steel and adjustable for setting your preferred cleating angle.Ball Bearing versions incorporate our 2-stage bearing system using ball bearings to minimize friction and a secondary full-contact bearing to maintain low friction across the full working load range.High Load versions are designed specifically for any application where high dynamic or static loads are expected. They feature a high-strength grade 2205 stainless steel sheave & hub together with a triple bearing race to maintain low friction at very high loads.Features: Class-leading dynamic and static load ratings Lightweight, yet strong. Toughened, glass fiber reinforced nylon replaces stainless steel straps used in our traditional utility blocks Low friction 2-stage ball bearing system for efficient and effortless trimming Soft attachment, lashing, and traditional swivel shackle head options Low profile and compact High performance cleating Applications Mainsheet systems and spinnaker sheets on dinghies, off-the-beach catamarans and sportsboats to 8m (26ft) Halyard, vang and backstay applications on boats to 9m (30ft) Control line applications on larger yachts Specifications: Sheave Ø: 1-9/16 in. Max. Rope Ø: 3/8 in. M.W.L.: 880 lb. B. L.: 1760 lb. Weight: 1.2 oz.

Read more less

Series 15 Ball Bearing Utility Block - Single Block, Loop HeadFeatures: Smallest and lightest ball bearing block available Precision molded acetal sheave running on stainless steel ball bearings provide high performance & low friction Single loop head blocks include an O-ring to separate running line from head lashing or fixing Applications: Dinghy control lines Vangs, cunninghams and tweakers Shock cord tensioning systems Materials: BB sheaves: UV stabilized acetal Ball bearings: Stainless steel Cheeks: Grade 316 stainless steel

Read more less

Series 30 Ball Bearing Block - Single - Loop TopFeatures: Low friction 2-stage ball bearing system provides consistent performance over the full working load range High static and dynamic load capacity Light weight Versatile head fittings Sheaves running on Acetal or Torlon® ball bearings provide high performance & low friction Can be fitted with a shackle in either of two planes to allow correct alignment of the block Applications: Primary lead blocks on dinghies and catamarans Control lines on larger yachts Materials: U.V. stabilized Acetal sheaves Acetal ball bearings Impact modified, fiber reinforced and U.V. stabilized Nylon cheeks Grade 316 stainless steel load straps and head fittings Specifications:Sheave Ø: 30mm(1-3/16")Max. Rope Ø: 8mm(5/16")M.W.L.: 300kg(660lbs)B. L.: 750kg(1,650lbs)Weight: 28g(1.0oz)

Read more less
