Sailing - Blocks

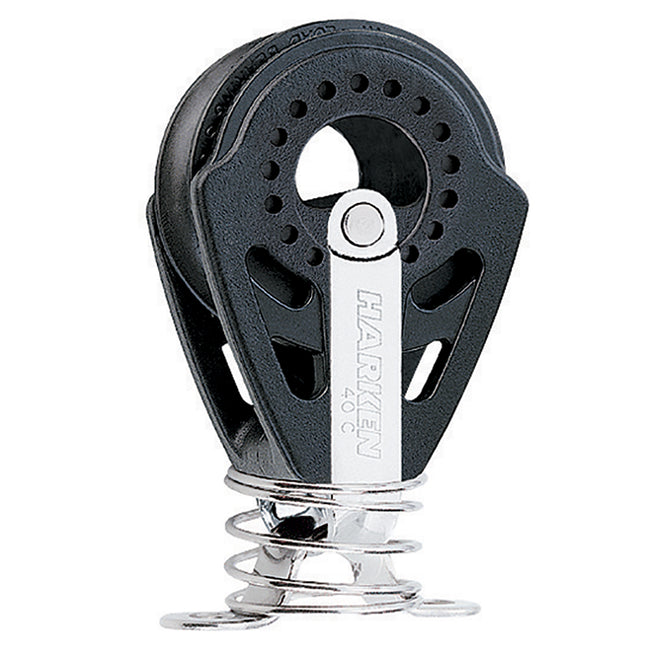

40mm Carbo Block with Spring & EyestrapLow-friction Carbo Air blocks are lightweight, strong, reliable—and affordable. Companions to the popular Harken Black Magic block line, these small, compact blocks have very high working loads for safe, easy trimming. Features: Sheave Ø (mm): 40 mm Sheave Ø (in): 1-9/16 in Maximum line Ø (mm): 10 mm Maximum line Ø (in): 3/8 in Maximum working load (kg): 220 kg Maximum working load (lb): 485 lb

Read more less

57mm Single Carbo Ratchet Cheek BlockCarbo Ratchets allow sailors to hand-hold loaded lines and offer balance between holding power and controlled easing. Features: Sheave Ø (mm): 57 mm Sheave Ø (in): 2-1/4 in Maximum line Ø (mm): 10 mm Maximum line Ø (in): 3/8 in Maximum working load (kg): 227 kg Maximum working load (lb): 500 lb

Read more less

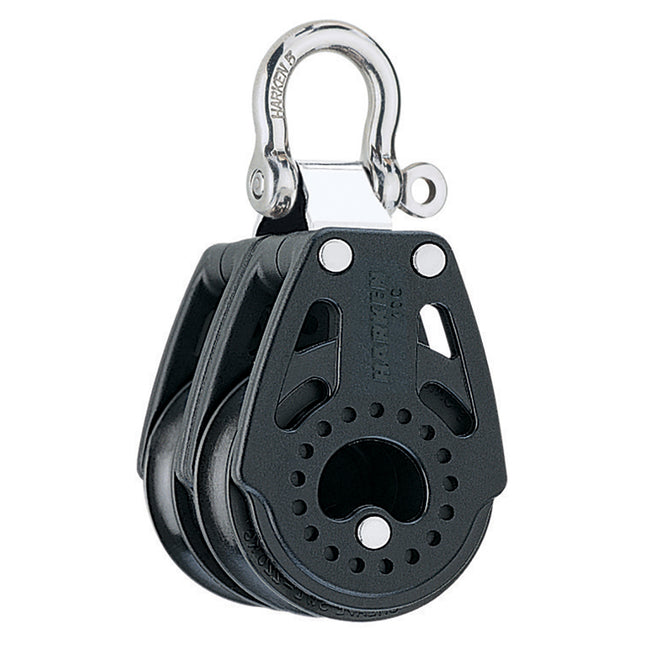

40mm Carbo Air Double Fixed BlockLow-friction Carbo Air blocks are lightweight, strong, reliable—and affordable. Companions to the popular Harken Black Magic block line, these small, compact blocks have very high working loads for safe, easy trimming. Speciications: Sheave Ø (mm)40 mm Sheave Ø (in)1 9/16 in Maximum line Ø (mm)10 mm Maximum line Ø (in)3/8 in Maximum working load (kg)440 kg Maximum working load (lb)970 lb

Read more less

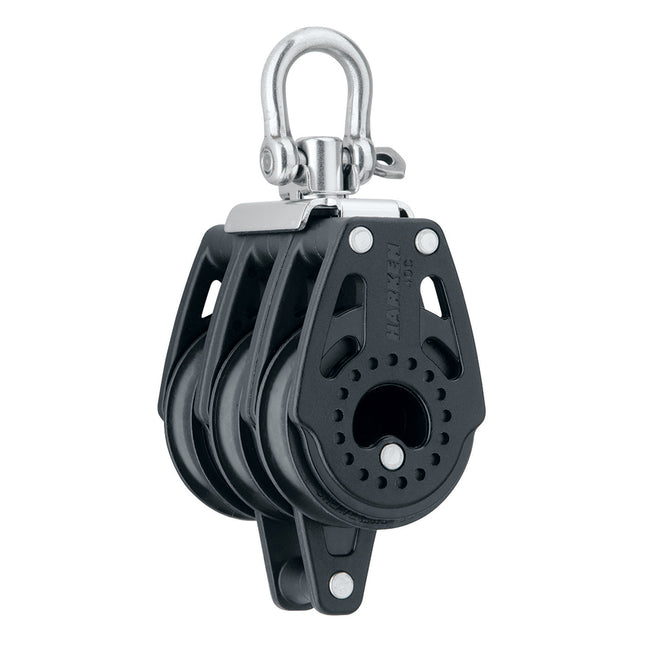

40mm Carbo Air Triple Swivel Block with BecketLow-friction Carbo Air blocks are lightweight, strong, reliable—and affordable. Companions to the popular Harken Black Magic block line, these small, compact blocks have very high working loads for safe, easy trimming. Specifications: Sheave Ø (mm)40 mm Sheave Ø (in)1 9/16 in Maximum line Ø (mm)10 mm Maximum line Ø (in)3/8 in Maximum working load (kg)660 kg Maximum working load (lb)1455 lb

Read more less

45mm Single Element Block with Swivel & BecketElement blocks introduce sideplates that combine forged aluminum and compound curves for strength. They are simultaneously contemporary and very robust. Element’s design pairs the minimum amount of metal required to protect the sheave with a proven journal bearing. So size for size, Element is priced significantly lower, than our previously least expensive blocks.Sideplates are hardcoat-anodized to resist corrosion. A tough composite bearing sheave resists corrosion for a long service life.Specifications: Sheave: 45mm / 1-3/4in Length: 121mm / 4-3/4in Weight: 115g / 4oz Shackle pin: 6mm / 1/4in Maximum line: 12mm / 1/2in Maximum working load: 700kg / 1543lb Breaking load: 1400kg / 3086lb

Read more less

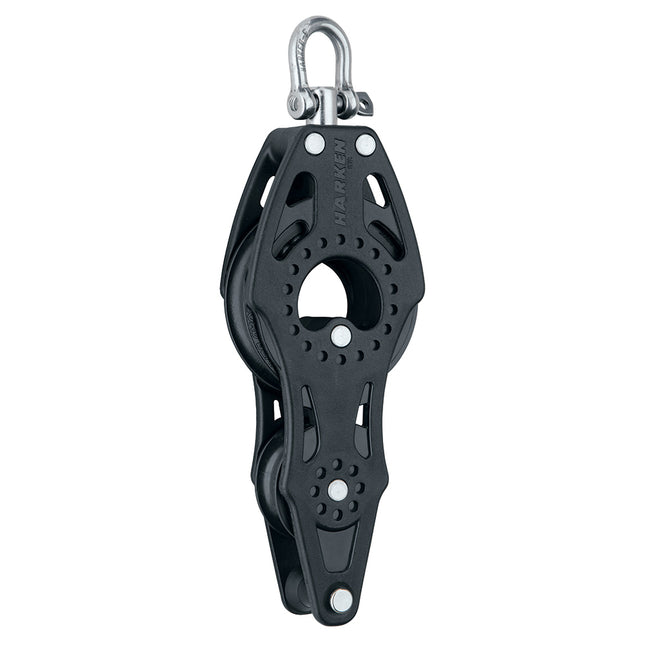

57mm Carbo Air Fiddle Block with Swivel & BecketLow-friction Carbo Air blocks are lightweight, strong, reliable—and affordable. Companions to the popular Harken Black Magic block line, these small, compact blocks have very high working loads for safe, easy trimming.Specifications: Sheave: 57mm / 2-1/4in Length: 175mm / 6-7/8in Weight: 113g / 4oz Shackle pin: 5mm / 3/16in Maximum line: 10mm / 3/8in Maximum working load: 359kg / 792lb Breaking load: 1080kg / 2380lb

Read more less

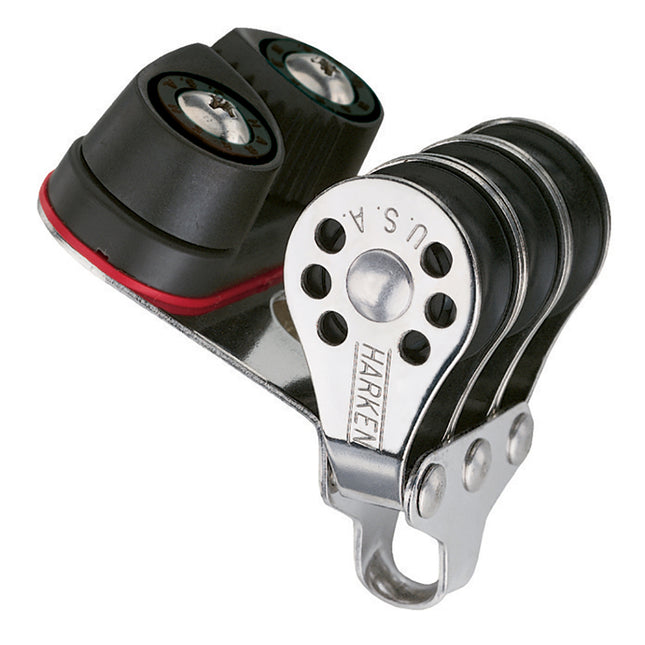

22mm Triple Micro Block with Cam CleatLow-friction Micro blocks are compact and lightweight. Specifications: Sheave: 22mm / 7/8in. Length: 51mm / 2in. Weight: 99g / 3.5oz. Maximum line: 6mm / 1/4in. Maximum working load: 227kg / 500lb Breaking load: 544kg/ 1200 lb

Read more less

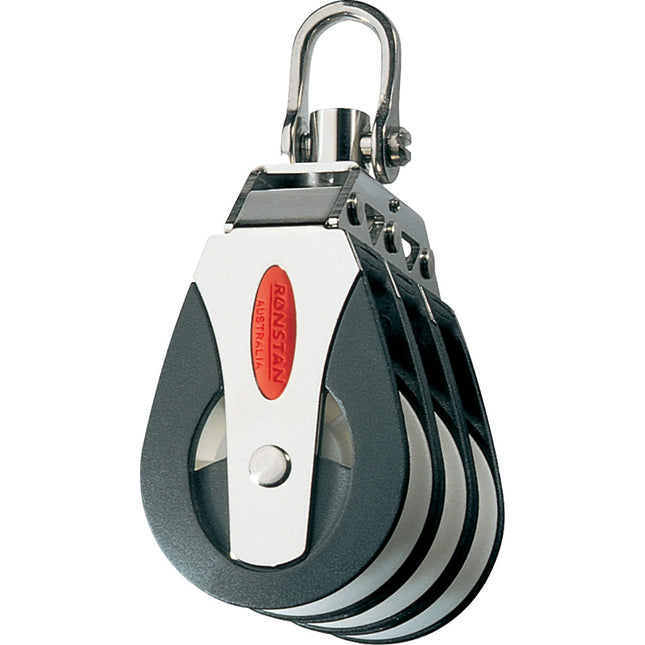

Series 50 All Purpose Block - TripleFeatures: Exceptionally high working loads Low maintenance, long service life Self-lubricating Acetal polymer sheave ensures low friction and extreme durability Slotted pin shackle eliminates fouled lines Lockable swiveling head post Snap fit removable becket pin All purpose (AP) blocks are a great all around solution. Self-lubricating Acetal polymer sheaves running on polished stainless steel races perform equally well with dynamic loads and high static loads. For durability and a long service life, these blocks are the right choice for sheets, halyards and control line applications for cruising and racing.Head can be locked at 0° or 90° by engaging the grub screw in either the 0 or 90 degree position.Applications: Mainsheet and halyard applications, vang and spinnaker control lines on boats to 10m (33ft) S60 - on boats up to 12m (40ft) Materials: Grade 316 stainless steel load strap Impact and UV resistant, fiber reinforced Nylon cheeks

Read more less

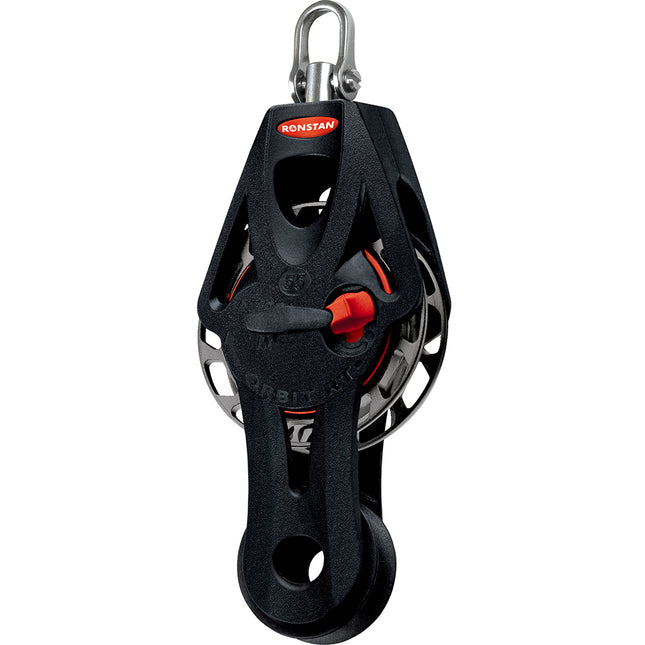

Series 55 Ratchet Mount Orbit Block - Fiddle Becket SwivelFeatures: Up to 20:1 holding power Smooth easing of sheets High performance cleating Automatic ratchet blockNow you can enjoy the flexibility of setting up your ratchet blocks to suit yourself. Ronstan is the only company that offers a ratchet block with both auto and manual engagement modes*. In the auto mode of the ratchet mechanism engages when load is applied, but switches off when it's released. This lets the sheet run out smoothly and freely-great for rapid easing of the sheet and for gybing asymmetric spinnakers. In manual mode, the ratchet mechanism can be switched on or off as required. This is the preferred mainsheet set-up for may top sailors. Try the block in both modes and see which you prefer - you really can't go wrong.* Selected Series 55 models. Awesome ratchet block holding powerQuite simply, Ronstan Ratchet Orbit Blocks™ have the highest holding power available. The sophisticated NC-machined sheave features Generation 2 of our patented sheave cross-hole geometry. Its holding power is up to 21:1, almost double that of our nearest competitor. The unique sheave design has 12 gripping faces which directly resist loaded line movement. Traditional designs have only 8 faces with an angled resistance to line movement. Our Generation 2 design has straight resistance faces which both distribute the load and minimize rope wear. These faces are offset from the radial line, to draw the rope down into the gripping area when under loadMaterials: Sheave: Anodized Aluminium Ball Bearings: High compression strength carbon black Acetal Frame/Cheeks: Toughened, glass fiber reinforced Nylon Rope Link: UV stabilized, multi-strand impregnated SK75 Dyneema®

Read more less

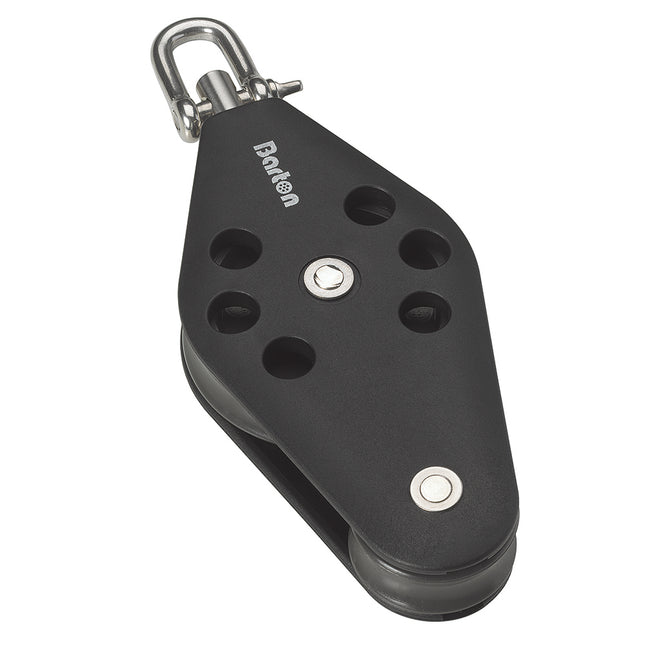

Size 3 Fiddle SwivelBarton plain bearing blocks have a precision molded acetal sheave running on a large diameter brass bearing, ensuring free running under the highest of loads.

Read more less

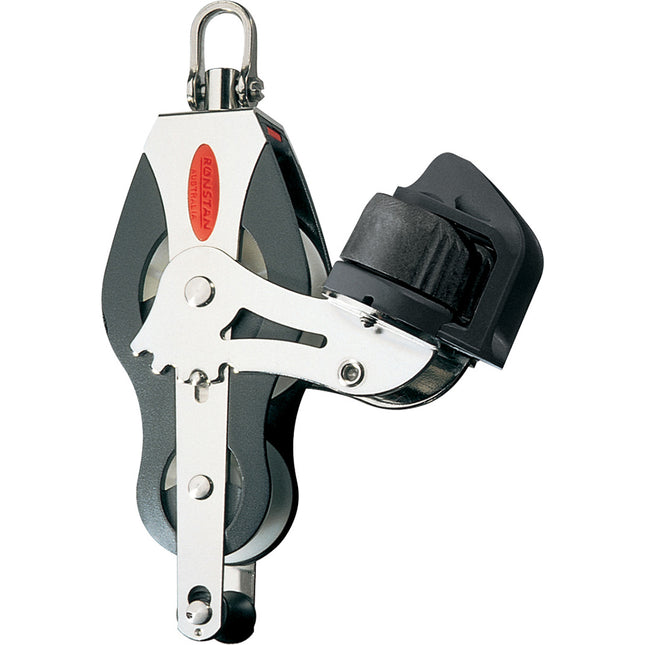

Series 50 All Purpose Block - Fiddle - Becket - CleatFeatures Exceptionally high working loads Low maintenance, long service life Self-lubricating Acetal polymer sheave ensures low friction and extreme durability Captive Lock™ universal head Slotted pin shackle eliminates fouled lines Snap fit removable becket pin Multi-position cleat arm Spare Parts - RF51010 Replacement Becket Pin, RF150 Shackle All purpose (AP) blocks are a great all around solution. Self-lubricating Acetal polymer sheaves running on polished stainless steel races perform equally well with dynamic loads and high static loads. For durability and a long service life, these blocks are the right choice for sheets, halyards and control line applications for cruising and racing.Captive Lock™ universal head can be fixed in either of two planes, or free to swivel as required. Quick adjusting cleat arms require no tools to adjust and fix securely in position. Becket pin is removable so line can be spliced prior to fitting and is iAppllications: Mainsheet and halyard applications, vang and spinnaker control lines on boats to 10m (33ft) S60 - on boats up to 12m (40ft) Ideal for fine-tune mainsheet tackles, cunninghams, backstays and other control line purchase systems. Materials: Grade 316 stainless steel load strap Impact and UV resistant, fiber reinforced Nylon cheeks

Read more less

Twin Sheet Block for 1-1/4" T-Track - BlackHardcoat anodized aluminum body and slider provide a high strength block. Aluminum sheave runs on nomex™/Teflon™ bearing for a low-friction, high strength sheave. Articulating sheave allows for a proper lead. Pin stop makes adjustment simple. Specifications: Track Size 1-1/4" x 3/16" (32 mm x 5 mm) Max. Boat Length- 38' (11.5m) Max. Boat Weight- 18000 lbs. (8182kg) Max. Sail Area- 715 sq. ft. (66 m2) Sheave Diameter- 2" (51 mm) Max Line- (2) 5/8" (16 mm) Length- 4-1/2" (114 mm) Width- 1-3/4" (44 mm) Height- 4-1/2" (114 mm) Bearing Height 2-3/4" (70 mm) SWL 3500 lbs. (1590 kg) Weight 1 lb. 7 oz. (652 g)

Read more less
