Sailing - Blocks

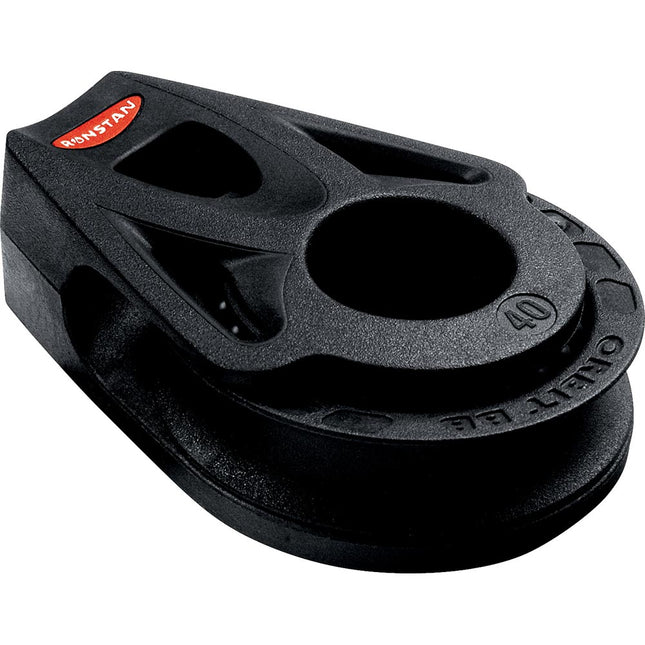

Series 40 Ball Bearing Orbit Block - CheekFeatures: Ultra Lightweight Low friction 2-stage Orbital ball bearing system Highest working load in its class Low profile and compact High performance cleating Base suits curved mounting surface Low mounting points for maximum strength LightweightKilogram for kilogram of working load, BB and RT Orbit Blocks™ are the world’s lightest. The unique orbital design allows the bearing to only be in the active areas of the floating sheave. This minimizes the mass of the inactive return race and hub.Weight and bulk are further reduced in the different block configurations. The ball bearing single and becket block has a through-sheave becket arrangement. The result? The lowest weight possible.Multi-sheave blocks have only single intermediate cheeks and an ultra-light and efficient head arrangement. This gives a 30% weight saving advantage over the nearest competitor. Other brands just link together their single blocks. This results in unnecessary double cheeks between each sheave, held together by a heavy steel channel across the top of the block.Highest Working Load In It's ClassThe orbital ball-bearing arrangement gives the largest possible bearing race diameter. This maximizes load performance. The proven Ronstan 2-stage bearing system features high compression grade acetal ball bearings and a secondary full-contact bearing. This gives minimum friction across the full working load range.The floating sheave and bearing system is supported by a fiber-reinforced load frame. The design was computer modeled to be stress optimized.Recommended fasteners - 3 x 4mm (5/32") countersunk head screwsApplications: Mainsheet systems on spinnaker sheet on dinghies to 5m (16ft) Spinnaker sheets on dinghies, sportsboats and small keel boats to 5m (16ft) Halyard, vang and backstay applications on boats to 8m (26ft) Control line applications on larger yachts Materials: Ball Bearings - High compression strength carbon black Acetal. Stage 2 Bearing - Glass fibre reinforced, MoS2 impregnated Nylon Frame/Cheeks - Toughened, glass fibre reinforced Nylon Sheave - Carbon fiber reinforced, PTFE impregnated Nylon

Read more less

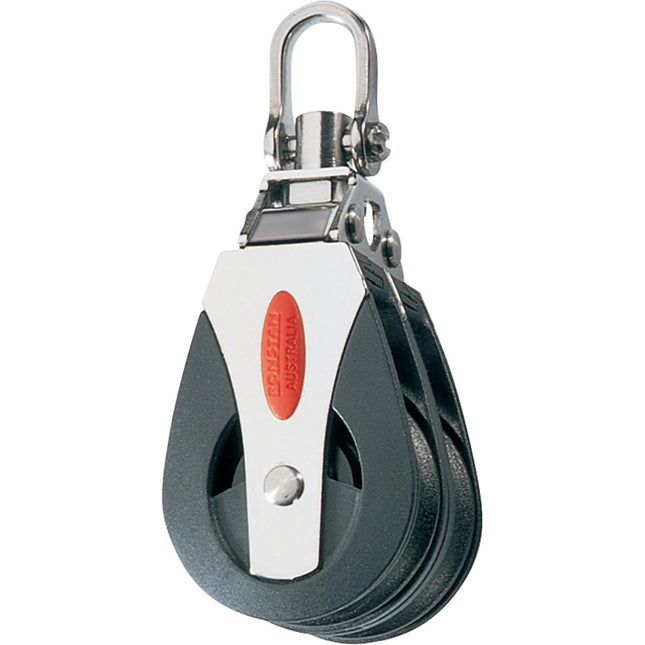

Series 40 Ball Bearing Block - Double - Swivel HeadFeatures: Low friction Acetal or Torlon® bearing system Lightweight Cheek cut-outs for easy bearing maintenance Features a swivel shackle head for full 360° rotation Sheaves running on Acetal or Torlon® ball bearings provide high performance & low friction. The 2-stage ball bearing system provides consistent performance over the full load range.Applications: Mainsheet Halyard Vang Spinnaker control lines on off-the-beach catamarans, one design classes and sportsboats up to 8m (26ft)

Read more less

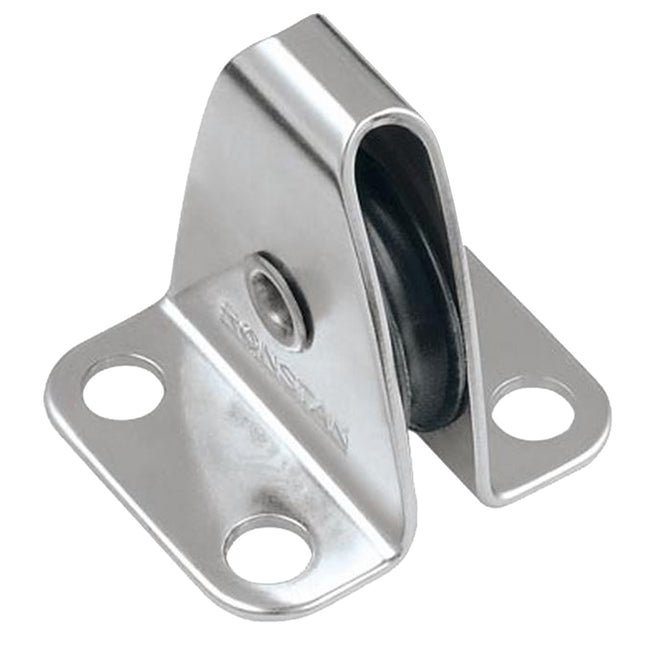

Nylatron Sheave Box - Single Upright Lead BlockLead blocks are a low profile solution for leading halyards or other rig sail controls back to cleats or jammers.When mounted in an inverted position, are frequently used as upright leads.Features:The external tabs can be formed to fit the spar profile before fasteningApplications:Typically used in dinghy spars for control lines such as outhaulsMaterials: Nylatron® sheave Grade 316 stainless steel load housing Specifications:Sheave Ø:t22mm(7/8")Max. Rope Ø:t3mm(1/8")Max. Cable Ø:t3mm(1/8")Fastener Ø:t5mm(3/16")M.W.L.:t160kg(350lbs)B. L.:t350kg(700lbs)Weight:t30g(1.1oz)

Read more less

Series 30 Utility Ball Bearing Block - Single, Swivel Shackle HeadFeatures: Low friction 2-stage ball bearing system provides consistent performance over the full working load range. High static and dynamic load capacity. Light weight Versatile head fittings Product Information:Sheaves running on Acetal or Torlon® ball bearings provide high performance & low friction. The 2-stage ball bearing system provides consistent performance over the full load range.Can be fitted with a shackle in either of two planes to allow correct alignment of the block.Applications: Primary lead blocks on dinghies and catamarans Control lines on larger yachts Materials: U.V. stabilized Acetal sheaves Acetal ball bearings Impact modified, fiber reinforced and U.V. stabilized Nylon cheeks Grade 316 stainless steel load straps and head fittings

Read more less

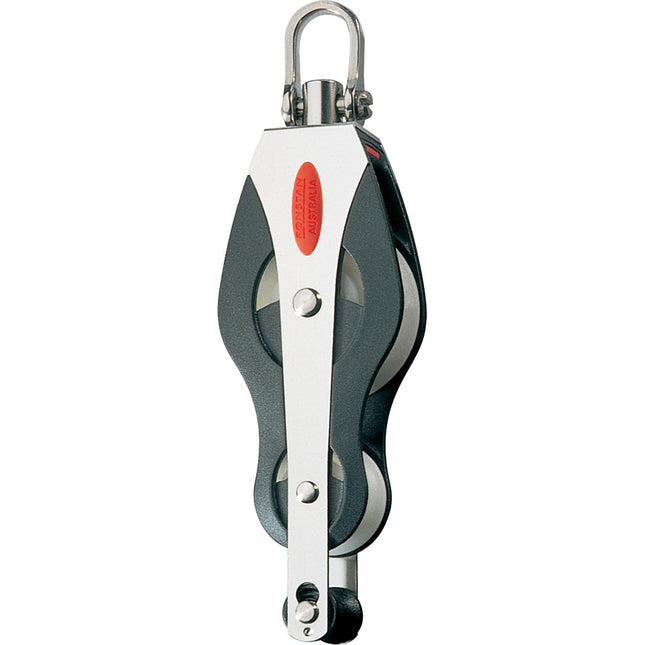

Series 50 All Purpose Block - Fiddle - BecketFeatures: Exceptionally high working loads Low maintenance, long service life Self-lubricating Acetal polymer sheave ensures low friction and extreme durability Captive Lock™ universal head Slotted pin shackle eliminates fouled lines Snap fit removable becket pin Spare Parts - RF51010 Replacement Becket Pin, RF150 Shackle All purpose (AP) blocks are a great all around solution. Self-lubricating Acetal polymer sheaves running on polished stainless steel races perform equally well with dynamic loads and high static loads. For durability and a long service life, these blocks are the right choice for sheets, halyards and control line applications for cruising and racing.Captive Lock™ universal head can be fixed in either of two planes, or free to swivel as required. Becket pin is removable so line can be spliced prior to fitting and is ingeniously locked into position without the use of a clevis pin, split ring or toolsApplications: Mainsheet and halyard applications, vang and spinnaker control lines on boats to 10m (33ft) S60 - on boats up to 12m (40ft) Ideal for fine-tune mainsheet tackles, cunninghams, backstays and other control line purchase systems. Materials: Grade 316 stainless steel load strap Impact and UV resistant, fiber reinforced Nylon cheeks

Read more less

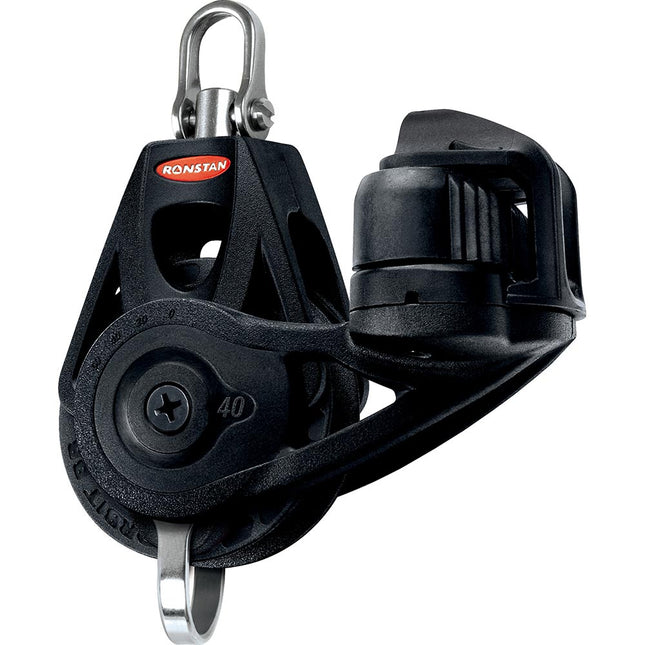

Series 40 Ball Bearing Orbit Block - Single - Becket - Cleat - Swivel HeadFeatures: Ultra Lightweight Low friction 2-stage Orbital ball bearing system Highest working load in its class Low profile and compact High performance cleating LightweightKilogram for kilogram of working load, BB and RT Orbit Blocks™ are the world’s lightest. The unique orbital design allows the bearing to only be in the active areas of the floating sheave. This minimizes the mass of the inactive return race and hub.Weight and bulk are further reduced in the different block configurations. The ball bearing single and becket block has a through-sheave becket arrangement. The result? The lowest weight possible.Multi-sheave blocks have only single intermediate cheeks and an ultra-light and efficient head arrangement. This gives a 30% weight saving advantage over the nearest competitor. Other brands just link together their single blocks. This results in unnecessary double cheeks between each sheave, held together by a heavy steel channel across the top of the block.Highest Working Load In It's ClassThe orbital ball-bearing arrangement gives the largest possible bearing race diameter. This maximizes load performance. The proven Ronstan 2-stage bearing system features high compression grade acetal ball bearings and a secondary full-contact bearing. This gives minimum friction across the full working load range.The floating sheave and bearing system is supported by a fiber-reinforced load frame. The design was computer modeled to be stress optimized.Applications: Mainsheet systems on spinnaker sheet on dinghies to 5m (16ft) Spinnaker sheets on dinghies, sportsboats and small keel boats to 5m (16ft) Halyard, vang and backstay applications on boats to 8m (26ft) Control line applications on larger yachts Materials: Ball Bearings - High compression strength carbon black Acetal. Stage 2 Bearing - Glass fibre reinforced, MoS2 impregnated Nylon Frame/Cheeks - Toughened, glass fibre reinforced Nylon Sheave - Carbon fiber reinforced, PTFE impregnated Nylon

Read more less

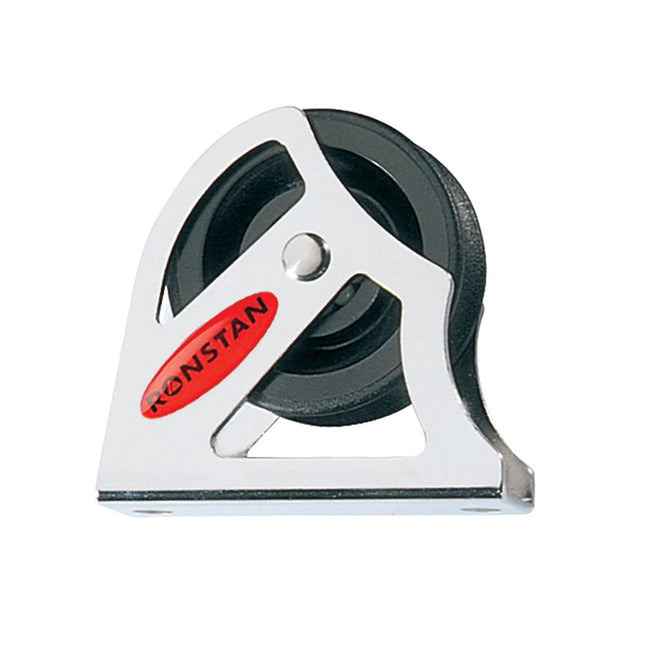

Series 40 Ball Bearing Block - Single Upright LeadLead blocks are a low profile solution for leading halyards or other rig sail controls back to cleats or jammers. Precision molded Acetal sheaves running on Acetal or Torlon® ball bearings provide high performance & low friction. The 2-stage ball bearing system provides consistent performance over the full load range.Applications:Typically used for halyards at the mast base.Materials: Acetal ball bearings UV stabilized Acetal sheave Grade 316 stainless steel load housing

Read more less

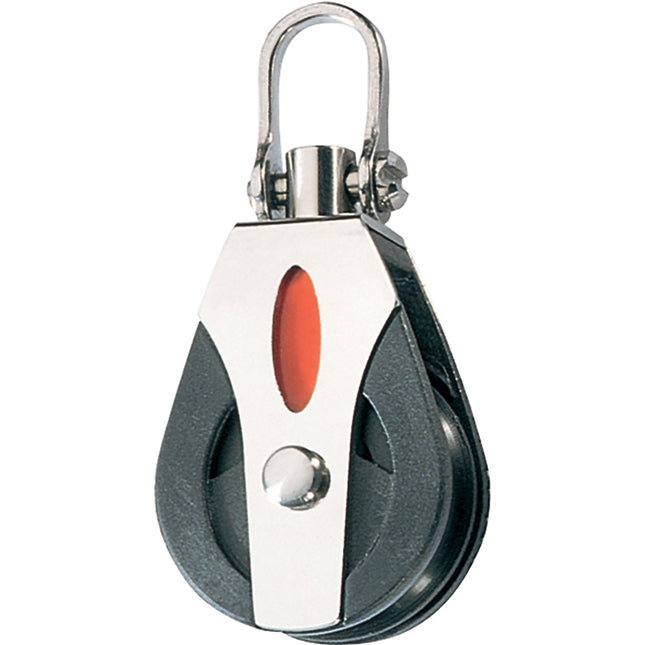

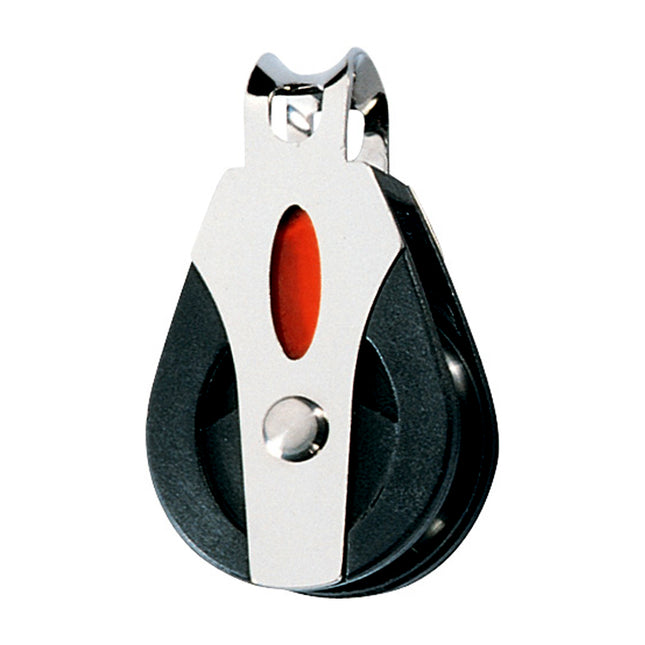

Series 30 Ball Bearing Block - Single - Loop TopFeatures: Low friction 2-stage ball bearing system provides consistent performance over the full working load range High static and dynamic load capacity Light weight Versatile head fittings Sheaves running on Acetal or Torlon® ball bearings provide high performance & low friction Can be fitted with a shackle in either of two planes to allow correct alignment of the block Applications: Primary lead blocks on dinghies and catamarans Control lines on larger yachts Materials: U.V. stabilized Acetal sheaves Acetal ball bearings Impact modified, fiber reinforced and U.V. stabilized Nylon cheeks Grade 316 stainless steel load straps and head fittings Specifications:Sheave Ø:t30mm(1-3/16")Max. Rope Ø:t8mm(5/16")M.W.L.:t300kg(660lbs)B. L.:t750kg(1,650lbs)Weight:t28g(1.0oz)

Read more less

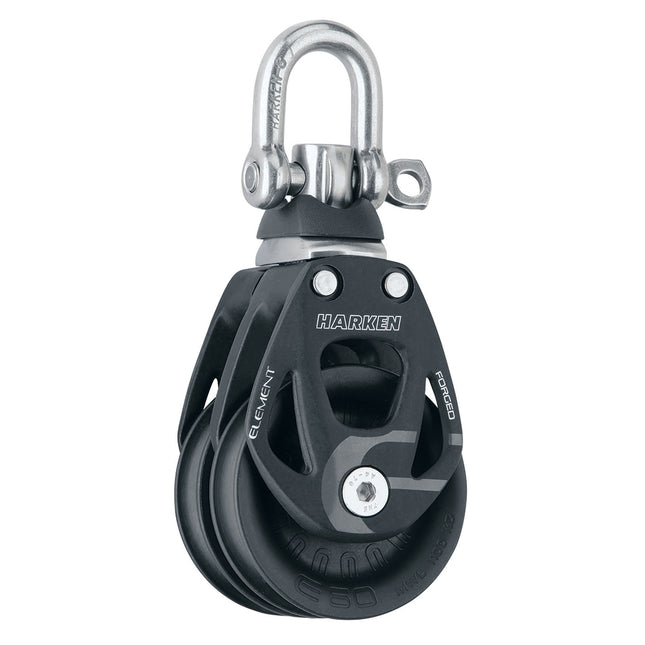

60mm Double Aluminum Element Block with SwivelElement blocks introduce sideplates that combine forged aluminum and compound curves for strength. They are simultaneously contemporary and very robust. Element’s design pairs the minimum amount of metal required to protect the sheave with a proven journal bearing. So size for size, Element is priced significantly lower, than our previously least expensive blocks.Sideplates are hardcoat-anodized to resist corrosion. A tough composite bearing sheave resists corrosion for a long service life.Features: Sheave Ø (mm): 60 mm Sheave Ø (in): 2-3/8 in Maximum line Ø (mm): 14 mm Maximum line Ø (in): 9/16 in Maximum working load (kg): 1375 kg Maximum working load (lb): 3032 lb

Read more less

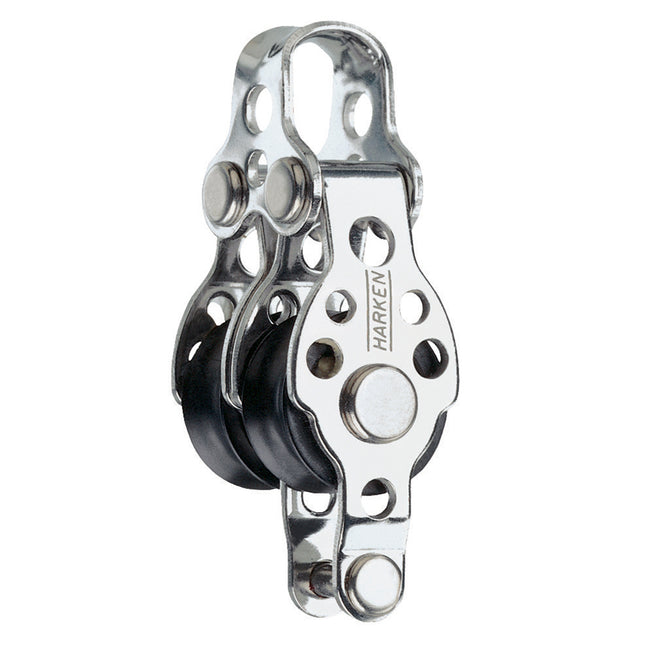

16mm Double Block with Becket The 16 mm is Harken’s® smallest block. It is perfect for small synthetic control lines found on high-tech dinghies. The patented bearing system uses stainless steel balls in a captive grooved race.Specifications: Sheave: 16mm / 5/8in Length: 54mm / 2-1/8in Weight: 28g / 1oz Maximum line: 5mm / 7/32in Maximum working load: 204kg/ 450lb Breaking load: 544kg / 1200lb

Read more less

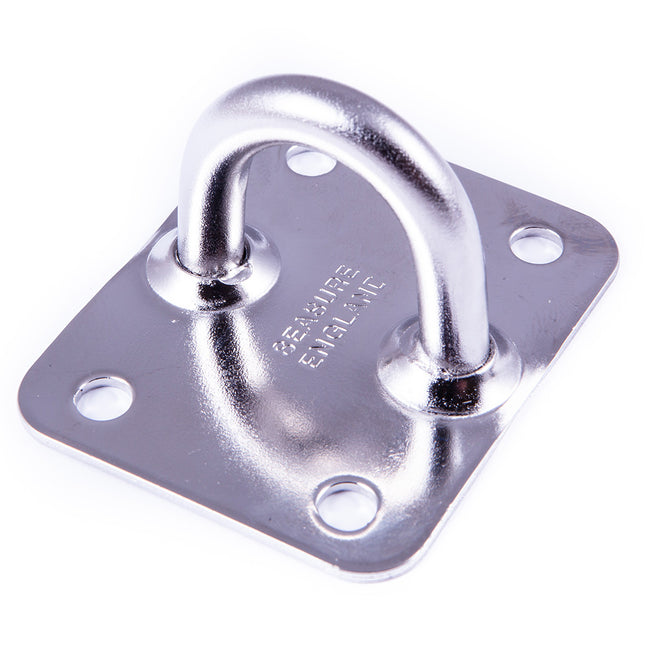

Flat Eye Plate 41mm x 51mmThis eye plate is manufactured from 316 stainless steel and underwent multiple machining and finishing operations to ensure it has a smooth finish and is free of damaging sharp corners and burs. Features:Electro-polished to give it as much resistance to the marine environment as possible.

Read more less

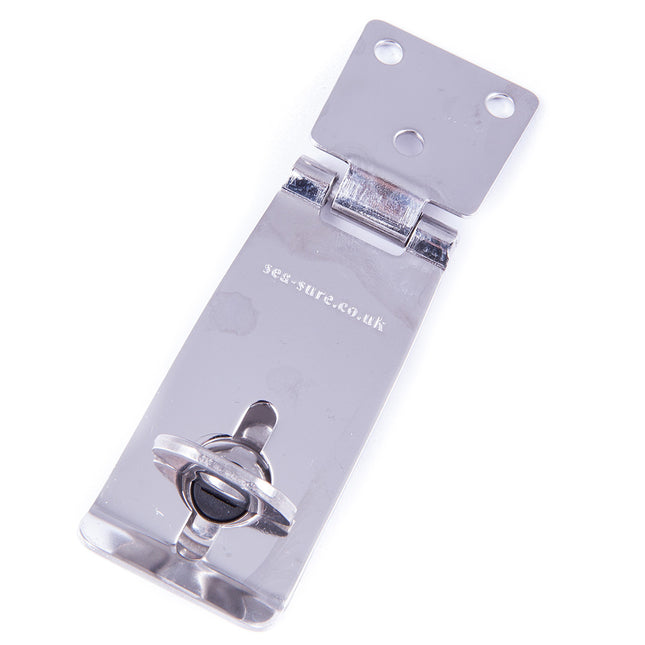

Anti-Rattle Hasp & StapleThis hinge was fabricated from marine-grade 316 stainless steel and electro-polished for a long-lasting high finish. Features: The pins of the hasps and staples are welded in place for added security Anti-rattle Specifications:Closed Length: 78mm
