Sailing - Blocks

Series 40 All Purpose Block - Triple - Swivel HeadFeatures: Exceptionally high working loads Low maintenance, long service life Self-lubricating sheave Slotted pin shackle eliminates fouled lines Two way head post Spare parts - RF41010 Replacement Becket Pin, RF150 Shackle All purpose (AP) blocks are a great all around solution. Self-lubricating Acetal polymer sheaves running on polished stainless steel races perform equally well with dynamic loads and high static loads. For durability and a long service life, these blocks are the right choice for sheets, halyards and control line applications for cruising and racing.Applications: Mainsheet Halyard Vang Spinnaker control lines on off-the-beach catamarans, one design classes and sportsboats up to 8m (26ft) Materials: U.V. stabilised Acetal sheaves Impact and U.V. resistant, fibre reinforced Nylon cheeks Grade 316 stainless steel bearing race Grade 316 stainless steel load strap and head fitting Sheave: UV stabilised acetal Cheeks: Impact modified, fiber reinforced and UV stabilized nylon

Read more less

Swivel Cleat & BaseSwivel cleat bases permit easy cleating and releasing from any angle.Sheave can be relocated to allow the control line to feed from belowComes complete with a 28mm(1-1/4") ball bearing sheave, small 'T-Cleat and the 'Fast Track' fairlead.Applications:Typically fitted to dinghy and catamaran spars for halyard, cunningham or outhaul control.Material:Fiber reinforced Nylon bodySpecifications:Rope Ø: 2 - 8mm(3/32" - 5/16")M.W.L.: 150kg(330lbs)B. L.: 300kg(660lbs)Weight: 100g(3.5oz)

Read more less

Size 2 Snatch Block with Stainless Snap Shackle - 35mm SheaveUnique to Barton, these are probably the smallest block of this type available.Important Note - Snatch BlocksWhen using small and medium snatch blocks on a toe rail, a bungee line should be attached to the becket to prevent the block from 'tumbling' and causing damage by snagging.Features: Extremely compact and strong  A multitude of uses on cruising or racing yachts where a large unit is not required Specifications: Sheave: 35mm (1.38") Sheave Width:17mm (0.67") Rope: 12mm (0.47") Break Load: 800kg (1,763.7lbs) SWL: 400kg (881.8lbs) Length: 110mm (4.33") Weight: 170g (0.37lbs)

Read more less

40mm Carbo Block Single with Swivel & BracketLow-friction Carbo Air blocks are lightweight, strong, reliable—and affordable. Companions to the popular Harken Black Magic block line, these small, compact blocks have very high working loads for safe, easy trimming. Features: Sheave Ø (mm): 40 mm Sheave Ø (in): 1-9/16 in Maximum line Ø (mm): 10 mm Maximum line Ø (in): 3/8 in Maximum working load (kg): 220 kg Maximum working load (lb): 485 lb

Read more less

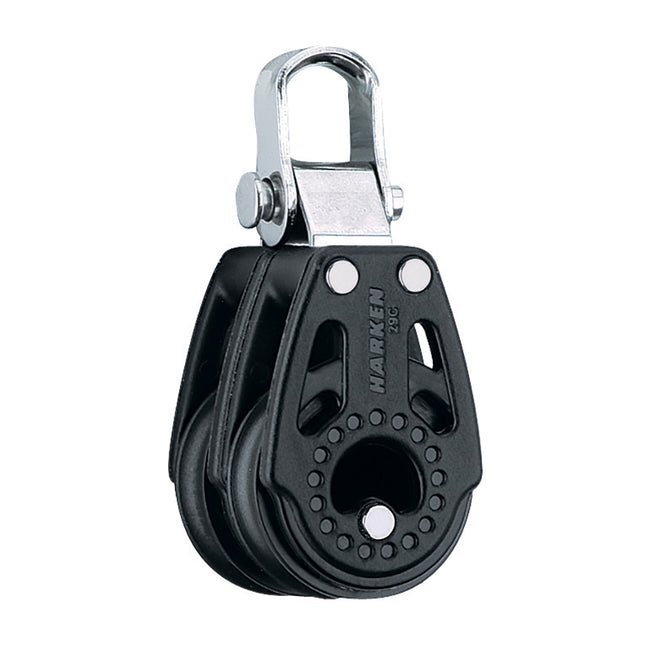

40mm Carbo Air Double Swivel BlockLow-friction Carbo Air blocks are lightweight, strong, reliable—and affordable. Companions to the popular Harken Black Magic block line, these small, compact blocks have very high working loads for safe, easy trimming. Specifications: Sheave Ø (mm)40 mm Sheave Ø (in)1 9/16 in Maximum line Ø (mm)10 mm Maximum line Ø (in)3/8 in Maximum working load (kg)440 kg Maximum working load (lb)970 lb Quick Guide (pdf)

Read more less

25mm Wire Block with ShackleLightweight, low-friction wire blocks carry wire halyards and high-strength control lines on boats of all sizes.Specifications: Sheave: 25mm / 1in. Weight: 28g / 1oz. Shackle pin: 5mm / 3/16in, Maximum wire: 2mm / 3/32in. Maximum line: 4mm / 5/32in. Maximum working load: 454kg / 1000lb Breaking load: 907kg/ 2000 lb

Read more less

22mm Double Micro Block with BecketLow-friction Micro blocks are compact and lightweight. Specifications: Sheave: 22mm / 7/8in. Length: 64mm / 2.5in. Weight: 43g / 1.5oz. Maximum line: 6mm / 1/4in. Maximum working load: 159kg / 350lb Breaking load: 544kg/ 1200 lb

Read more less

Wire Block - Tubular Rivet Head w/Removable Nylatron® Sheave - 45mm(1-3/4") Sheave DiameterWire blocks have purpose designed narrow sheaves and grooves.Removal sheave for easy fitting and without cutting the wire terminationFeatures: Flared cheeks to minimise chafing Removable sheavesApplications:Wire blocks suit halyards, vang and backstay applicationsMaterials: Grade 316 stainless steel cheeks Nylatron® sheave Specifications:Sheave Ø: 45mm(1-3/4")Max. Cable Ø: 6mm(1/4")M.W.L:850kg(1,870lbs)B.L.: 1,700kg(3,740lbs)Weight: 88kg(3.1oz)

Read more less

Wire Block - Tubular Rivet Head w/Nylatron® Sheave - 25mm Sheave DiameterWire blocks have purpose designed narrow sheaves and grooves.Applications:Wire blocks suit halyards, vang and backstay applicationsMaterials: Grade 316 stainless steel cheeks Nylatron® sheave Specifications:Sheave Ø: 25mm(1")Max. Cable Ø: 3mm(1/8")M.W.L:450kg(990lbs)B.L.: 900kg(1,980lbs)Weight: 40kg(1.4oz)

Read more less

Series 40 All Purpose Block - Single CheekFeatures: Exceptionally high working loads Low maintenance, long service life Self-lubricating sheave All purpose (AP) blocks are a great all around solution. Self-lubricating Acetal polymer sheaves running on polished stainless steel races perform equally well with dynamic loads and high static loads. For durability and a long service life, these blocks are the right choice for sheets, halyards and control line applications for cruising and racing.Can be mounted on masts and booms using the curved surface adapter. Can be stacked to create a double version, but no more than 60% of the rated working load should be applied to the upper sheave. Stackable with Ronstan Series 40 deck organizers.Applications: Mainsheet Halyard Vang Spinnaker control lines on off-the-beach catamarans, one design classes and sportsboats up to 8m (26ft) Materials: U.V. stabilised Acetal sheaves Impact and U.V. resistant, fiber reinforced Nylon cheeks Grade 316 stainless steel bearing race Alloy cheek plates

Read more less

Series 40 All Purpose Block - Single Upright LeadLead blocks are a low profile solution for leading halyards or other rig sail controls back to cleats or jammers. Ideal for high load applications. Wear resistant sheave material, in lightweight, self lubricating polymer, is suitable for use with rope or wire.Applications:Typically used for halyards at the mast base.Materials: UV stabilised acetal sheave Grade 316 stainless steel load housing

Read more less

Size 0 20mm Plain Bearing Pulley Block CheekThe Barton Size 0 Plain bearing block has 20mm (3/4″) sheaves and is also available in ball bearing sheaves. They are designed for high strength and performance but lightweight with the range starting at only 13gms (0.5oz).Suitable for up to 6mm (1/4″) rope Ideal for use on dinghies, day boats, and smaller craft or lead blocks, flag pennants, etc. on larger yachts. Quick Guide (pdf)

Read more less
