Sailing - Hardware

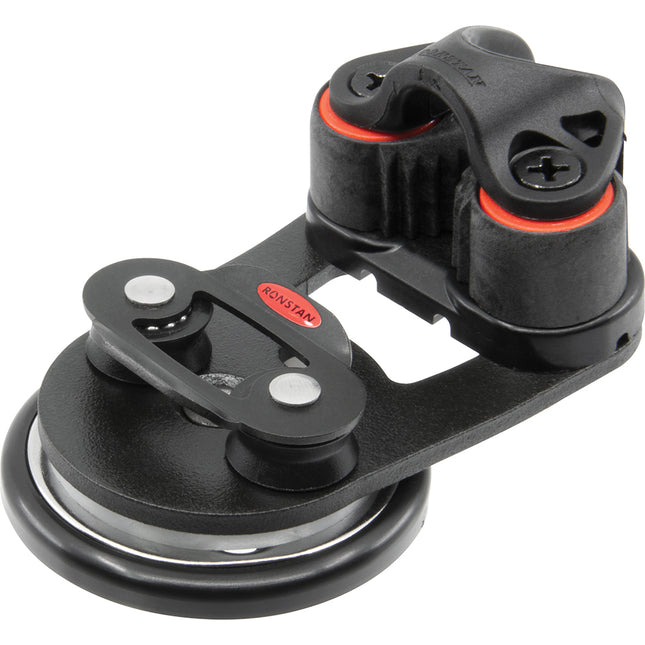

Ball Bearing Swivelling Cam Cleat BaseSwivel cleat bases permit easy cleating and releasing from any angle.Swivel cleat bases permit easy cleating and releasing from any angle. Height adjustable arm for optimum cleating angle. Twin ball bearing race minimises friction. Adjustable ratchet system prevents the arm from falling to leeward. Twin rows of ball bearings support the cleat arm, and stops are provided to limit rotation to 260°. The rotation stop on the cleat arm moulded cleat arm cradle part can be cut off to allow full 360° rotation. Fork fittings have a 5mm pin to permit direct attachment to the head post of a block (ie. not using a shackle). Suits traditional post/shackle head blocks and Dyneema® Link head Orbit Blocks™.Features: Height adjustable arm Twin ball bearing race Adjustable ratchet system Applications:Mainsheet systems on dinghies and sportboats to 8M(26')Materials: Alloy cleating arms Fiber reinforced Nylon base Grade 316 stainless steel fittings Specifications: Color: Black Box Dimensions: 4"H x 4"W x 8"L WT: 0.8 lbs UPC: 9316800145836

Read more less

Anchor Chain Claw-Hook TensionerThe "Claw Hook" design features a shorter overall length. The claw design will grab 1/4", 5/16" and 3/8" chain. The toggled claw enables you to grab the chain quickly and easily. Two 1/4" mounting holes are provided in the base of the unit and the claw has 1-1/2" of finite adjustment. The overall length closed is adjustable between 11" and 13" with a 2-1/8" throw or quick release. The handle/lever is secured when closed with a ball type QR pin attached with a lanyard.

Read more less

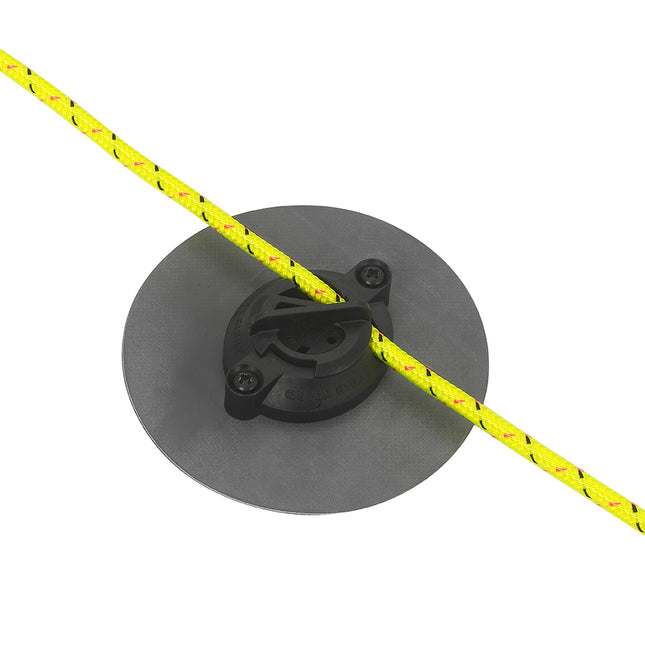

Stanchion Bullseye Stanchion Bullseye which fits the base of stanchions for smooth control of furling lines.  The contemporary sleek design features a Dyneema-effect securing strap over the metal retaining rod, through-bolted onto a fully enclosed backing plate for a clean finish.  Ideal for racers and cruisers alike.  The Stanchion Bullseye has no moving parts so weight is kept to a minimum and no new holes are required in the deck. The superior, super smooth, hard-anodized finish on the high load eye provides low friction and excellent support for slick running lines, and excellent abrasion resistance for long-term service life.  Making sailing life smoother.Compatible With: Stanchions up to 1" to 1.25" (25 to 31.75 mm) wide  Maximum Rope Diameter - 3/8" (9.56 mm) Bore - .58" (16 mm) Dimensions (L x H x W) - 3.2" x 2.1" x 2.1"  (79 x 55 x 55mm) Weight - 3.2 oz (90 g) *Sold as an Individual  Specifications: Color: Black Box Dimensions: 3"H x 3"W x 6"L WT: 0.25 lbs UPC: 5035088087143 Brochure (pdf)

Read more less

Quick Cleat - 5/16" - WhiteThe Barton Marine Quick Cleat range is perfect for novices and seasoned mariners and takes the place of tying and releasing knots. Made of nylon reinforced composite and secures braided lines up to 5/16" (10 mm) with a working load limit of 154 lb (70 kg.)  The Barton Marine Quick Cleat offers exceptional value. From securing fenders, gear, painter lines, buckets, boat gears or other gear, the Quick Cleat is designed to alter rope tension in one direction, but grips the rope firmly and securely in the other.Quick Cleats are easy to use.  Simply rotate the lever on top of the cleat, insert the line and release the lever which secures the rope.  Features: Dupont Zytel Construction Easy to install Technical Specifications: Color - White Material - Zytel nylon Working Load - 154 lb (70 kg) Maximum Rope Diameter - 5/16" (10 mm) Height - 1-1/16" (2.7 cm) Weight - 2 oz (55 g) *Sold as an Individual  Brochure (pdf)

Read more less

Fairlead Black Plastic with Stainless Steel Liner - 8.5mm(5/16") IDFairleads are a simple and economical means of containing, deflecting or correcting the lead angle of control lines. Stainless steel liners provide greater abrasion resistance.Materials: Impact resistant, U.V. stablized Nylon Stainless steel liner Specifications: Color: Black Box Dimensions: 1"H x 1"W x 1"L WT: 0.1 lbs UPC: 9316800300679

Read more less

SkyLock 800The Barton SkyLock 800 features 316 stainless steel side plates, glass-reinforced nylon cover plates, and an internal self-locking aluminum cam to lift and lock loads securely using lines of 8 12mm.The clever design and construction of the locking cams means the control line will never allow loads to drop even when accidentally released. Designed for use in conjunction with 3:1 or 4:1 purchase systems.Can be used for commercial and leisure marine operations including a davit hoist system to lift dinghies, outboards, provisions, and equipment on board, especially useful when short-handed.Specifications: SWL: 800kg/1,760lbs Break Load: 1600kg /3500lb Maximum line: 12mm Length: 152 mm Height: 38 mm Width: 110 mm Weight: 450 grams

Read more less

Series 30 High Load Exit Box for Single Rope or WirePlain bearing sheaves are ideal for halyards and other applications where high static loads are likely to be encounteredApplications:Ideal applications where lines (rope or wire) need to be led through decks, bulkheads or spars minimizing friction and chafingMaterials: Nylatron&regl sheave Grade 316 Stainless Steel cheeks Specifications:Sheave Ø: 30.0mm(1-3/16")Max. Rope Ø:8.0mm(5/16")Max. Cable Ø: 4.0mm(5/32")B.L.: 800kg(1,760lbs) Specifications: Color: Stainless Box Dimensions: 1"H x 2"W x 4"L WT: 0.1 lbs UPC: 9316800335114

Read more less

Front Mounted Cleat Fairlead - Small - BlackEasily fitted to the small 'T-Cleat' and 'C-Cleat'. Allows precise cleating and release from any lead angle. Lower entry efforts for off-centre cleating. Will not catch lines or clothing.MaterialTough, abrasion resistant composite material. Specifications: Color: Black Box Dimensions: 1"H x 2"W x 3"L WT: 0.05 lbs UPC: 9316800450886

Read more less

C-Cleat Cam Cleat - Large - Grey w/Grey Base6-16mm(1/4" - 5/8") Rope DiameterIntensive development efforts have produced this range of cleats that provide unbeatable holding power, yet are designed for easy cleating and releasing of control lines in every application and load condition. Through the use of advanced composites, these cleats achieve superior performance while overcoming the limitations of metal alloys. Ronstan cam cleats are strong, light and corrosion free. The unique tooth profile and cam geometry are designed to grip without damaging the rope. A multi-coil spring recessed in the upper part of the cam generates near constant torque. This constant torque ensures secure cleating of even the smallest lines with minimal abrasion or rope wear and low line entry and exit efforts. The lightweight ultra rigid carbon fiber composite cams of the c-cleat are corrosion free, suffer virtually no tooth wear and are non rope abrasive.Features: Design, materials selection and advanced manufacturing methods combine to deliver superior strength and holding power, light weight and corrosion resistance Cam profile and multi-coil spring minimise line entry and release effort Carbon fiber compoasite cam material provides maximum resistance to heat and abrasion Unique self-cleaning, self-lubricating slotted bearings ensure consistent high performance even when subjected to high static loads Applications:Range of cleats for all requirements including control lines, jib sheet and mainsheet cleatingMaterials: Carbon fiber composite cams Long strand glass fiber reinforced polymer base PTFE impregnated Acetal slotted bearing Stainless steel multi-coil spring Specifications: Color: Grey Box Dimensions: 2"H x 3"W x 6"L WT: 0.3 lbs UPC: 9316800207725

Read more less

SkyLock 400The Barton SkyLock is an integral part of the SkyDock lifting system. The clever design and positioning of the locking cams mean the control line will never slip even when accidentally released.Manufactured in our factory using 316 stainless steel side plates, glass-reinforced nylon cover plates, and aluminum cam plates to ensure a long service life with minimal maintenance.Can be used to lift dinghy outboards, provisions, and equipment on board, especially useful when short-handed. Around the home, SkyLock can be used for hoisting individual items such as bicycles and toys into unused roof space.Specifications: Maximum lifting load up to 400kg (880lbs) Line Diameter: 5mm Length: 110mm Height: 28mm Width: 90mm Weight: 181 grams

Read more less

Mast Base Organizer - 4 BlockThe Barton Mast Base Organiser is finished in our unique 'Spectro' grey anodizing for a long-lasting finish.It accepts up to four double tang blocks mounted on individual stainless steel swivel posts but with three deck fixing points.The unit is fitted close to the mast base to accept halyards, reefing lines, and a topping lift. It is designed to work with our range of deck organizers, rope clutches, and winches, doing away with the need to leave the cockpit when reefing, hoisting, or lowering the mainsail.Specifications & Dimensions: Length: 160mm Width: 25mm Height: 28mm Weight: 166g Safe Working Load: 1,540kg Break Load: 3,080g Fixing Hole: 6mm Specification comprises: 'Spectro' anodized aluminum base Four stainless steel swivel posts with nylon base washers Four pairs of nylon packing washers for tang blocks Used in conjunction with series 1-4 01 090 to 04 090 single blocks

Read more less

"Captain Hook" Chain Snubber Large Snubber Hook for 3/8" & 1/2" Chain with 15' of 5/8" 3 Strand NylonThe "Captain Hook" Chain Snubber can be used in a few different ways: Use the claw and attached line to relieve tension from your windlass while anchored by snubbing the chain overboard and tying off the line to a cleat or samson post on deck Use the snubber on deck for security to hold the chain in your anchor roller and tie off on a cleat while underway for peace of mind Relieve the tension on the windlass (like in 1) by attaching the snubber to the chain in the anchor roller and pulling back and tying it off securely All T-316 stainless. Version with 3-strand nylon line includes professional eye splice.Note: Always keep the bitter end of the anchor chain secure in the windlass while using the chain snubber.

Read more less
