Sailing - Hardware

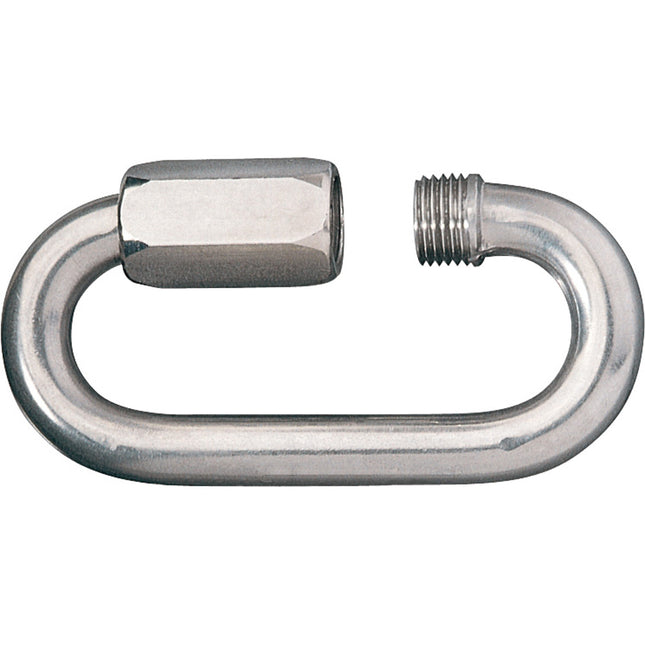

Quick Link - 8mm(5/16") DiameterQuick Links have large openings and secure threaded locking sleavesGrade 316 Stainless Steel Specifications: Color: Stainless Box Dimensions: 1"H x 2"W x 3"L WT: 0.3 lbs UPC: 9316800040797

Read more less

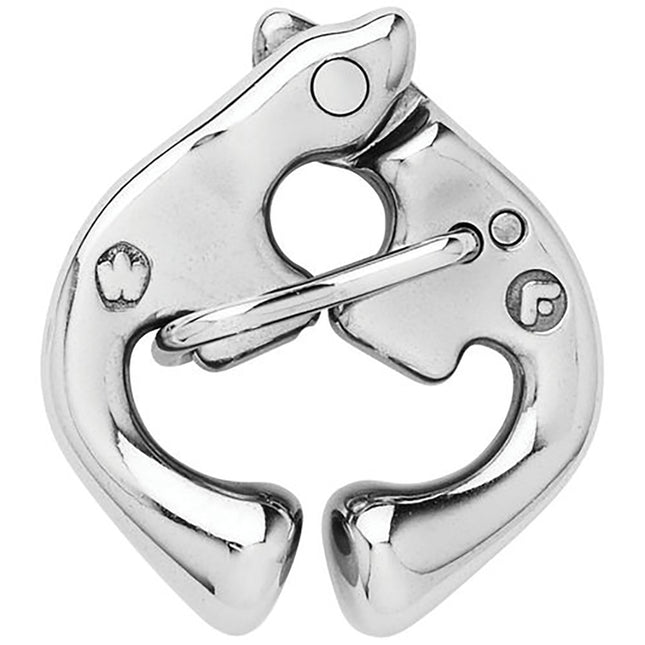

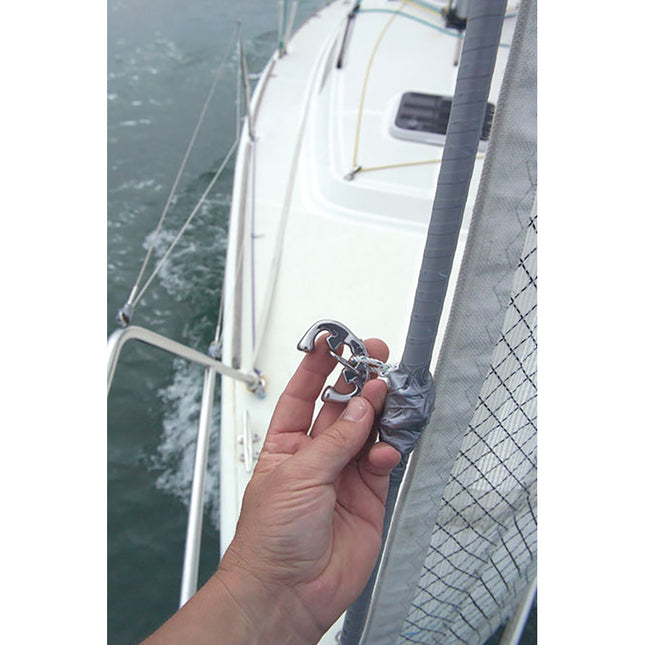

Opening Luff Rope PrefeederFeatures: Single-handed operation by pushing on the spring Easy to install with a lashing or fixed to the forestay Can be installed below any headsail foil or headsail reefing configuration Stainless steel forged part Applications: Ideal for bowman operations No need to remove the headsail from the luff grove Enables to save time during operations Smooth and easy sail hoist Specifications: Materials 316 stainless steel grade Weight (lb) 0.11

Read more less

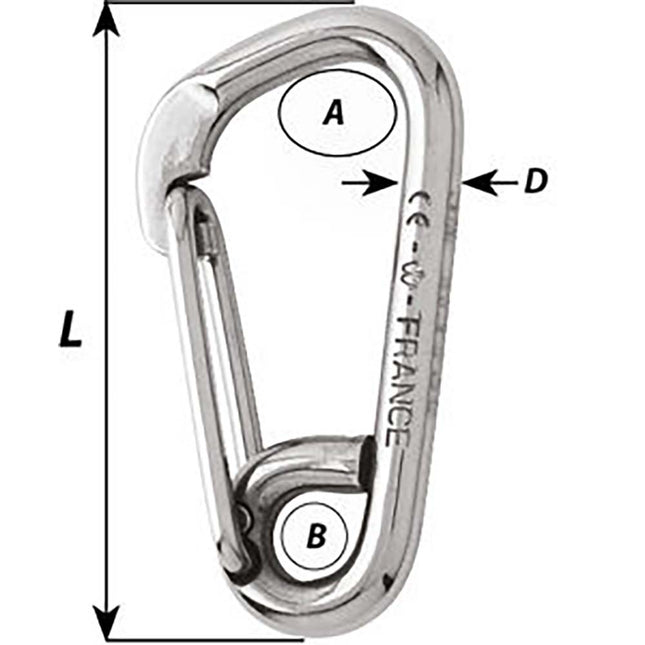

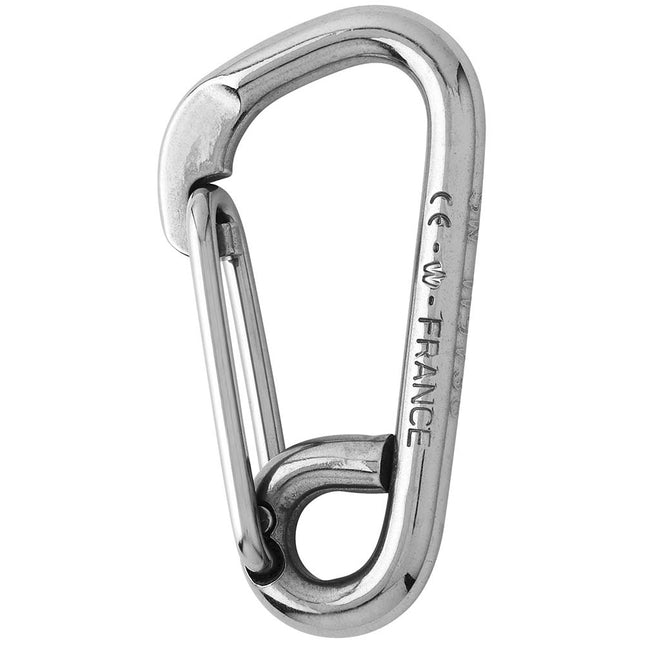

Asymmetric Carbine Hook - Length 120mm - 15/32"Features: Grade 316L stainless steel carbine hooks Asymmetrical shape to support higher loads With eye to attach a webbing Applications: For fastening applications Integrated on Wichard tethers Specifications: Materials 316L stainless steel grade Length (inch) 4-23/32" Working load (lb) 3170 WLL (lb) 1980 Breaking load (lb) 9920 Weight (lb) 0.516 Dimensions (see 2nd image): A (inch) 15/16" B (inch) 5/8" D diameter (inch) 15/32"

Read more less

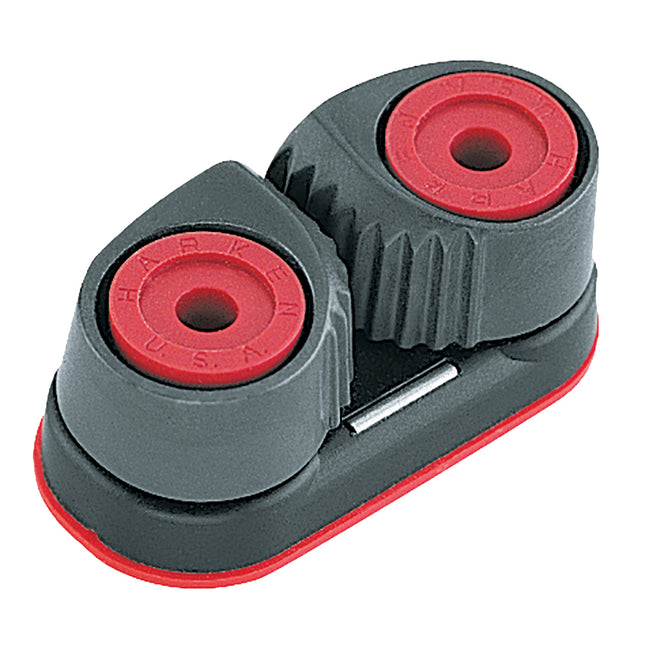

Micro Cam-Matic Aluminum CleatHarken® ball bearing cam cleats hold lines securely and release instantly for easy, precise trimming. Aluminum Cam-Matics® are hardcoat-anodized for high-load, high-wear, continuous adjustment applications.Specifications: Height: 22mm / 7/8in. Length: 48mm / 1-7/8in. Width: 24mm / 15/16in. Weight: 26g / .93oz Minimum line: 2mm / 3/32in Maximum line: 6mm / 1/4in. Fastener spacing: 27mm / 1-1/16in. Fasteners: 4 RH mm / #8 RH in. Maximum working load: 91kg/ 200lb Breaking load: 181kg / 400lb Pawls: Aluminum

Read more less

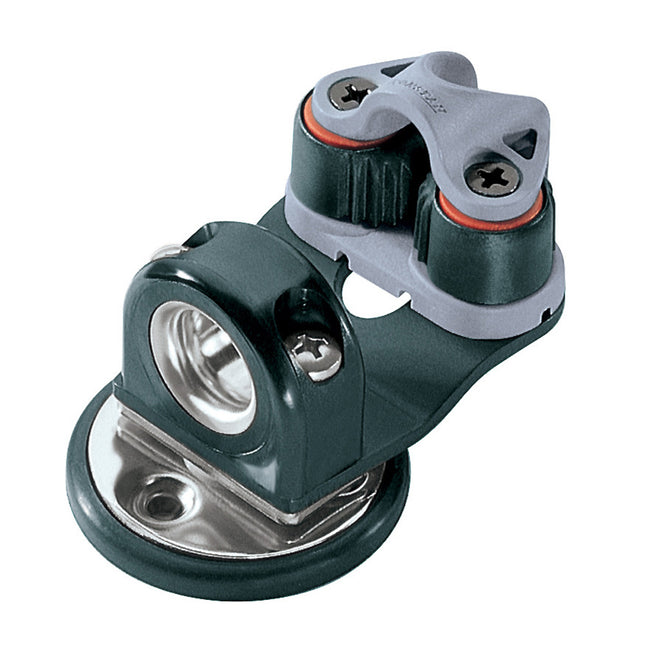

Swivel Cleat Fairlead - 2-8mm(3/32-5/16") Rope DiameterSwivel cleat bases permit easy cleating and releasing from any angle.Dead eyes contain stainless steel liners for low friction and long life. Cleating plates are heavy guage alloy for stiffness and minimum distortion under load.Features: 360° Rotation Small T-Cleat & Fairlead Applications:Sheet leads and halyards on dinghies and catamaransMaterials: Alloy cleating arms Grade 316 Stainless Steel fittings Specifications: Color: Black Box Dimensions: 2"H x 3"W x 5"L WT: 0.3 lbs UPC: 9316800203413

Read more less

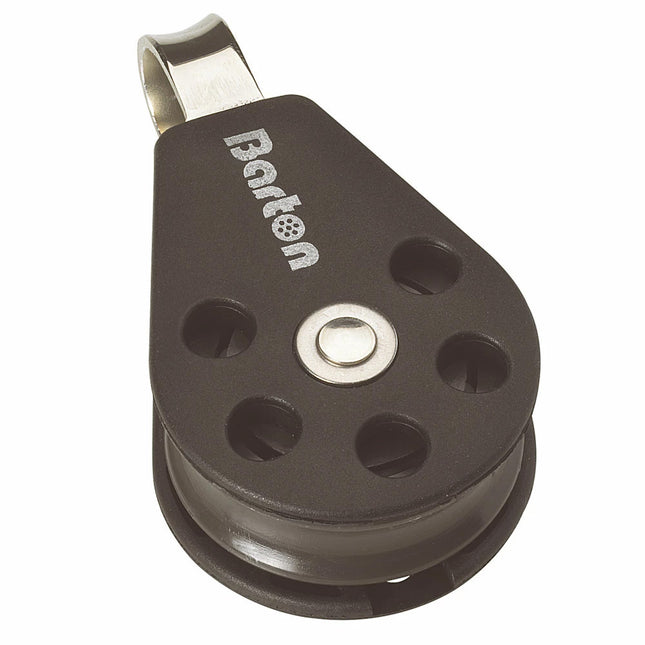

Size 1 30mm Plain Bearing Pulley Block Single Fixed EyeThe Size 1 Plain Bearing Blocks have a 30mm (1 3/16") sheave. The range is designed with an internal steel frame for added strength and durability. Also available in ball bearing sheave options, the lightweight modern design is available in variations that allow for a multitude of uses on every size craft.The 30mm sheave Size 1 block range is designed with an internal steel frame for added strength and durability. Available in plain and ball-bearing sheave options, the lightweight modern design is available in variations that allow for a multitude of uses on every size craft.Suitable for up to 8mm (5/16") rope. Quick Guide (pdf)

Read more less

Furling Top SwivelThe top head swivel is from machine-turned solid aluminum with stainless steel ball-bearing.Features: Drum Diameter: 25mm Sail Area: 100 square foot Break Load: 1,108kg Safe Working Load: 554kg Weight: 55g

Read more less

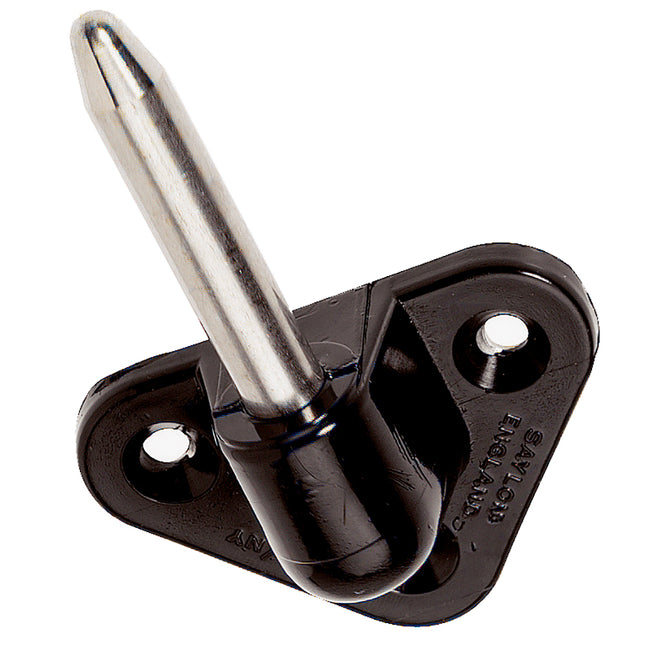

Transom PintleManufactured from stainless steel with tough nylon surrounds. A wide range of rudder fitting widths are available.Features: Pintle Diameter: 9.5mm Fastenings Diameter: 5mm Weight: 70g

Read more less

Aluminum Deck Cleat - 4"Length 4" (102 mm), Line Score 3/8" (10 mm), Fasteners (2), #10 FH (5 mm), C/C A 1" (25 mm), Weight 1.5 oz. (43 g)

Read more less

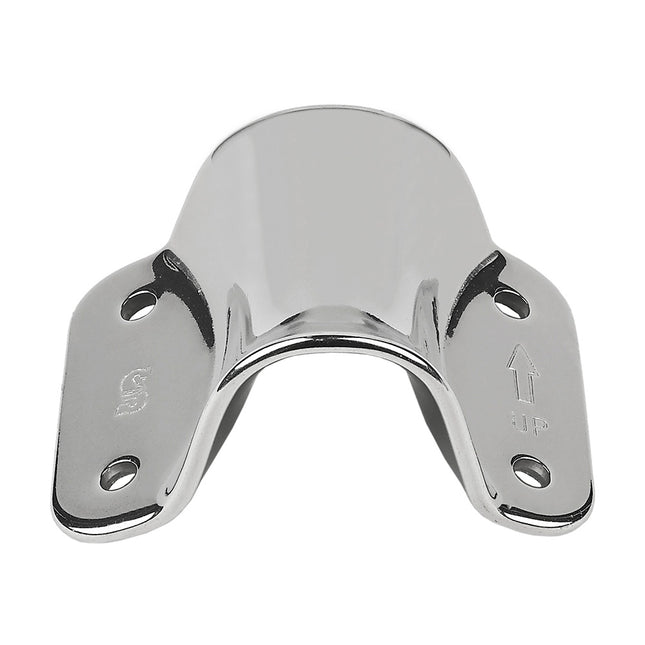

Furler Pull Back Bracket/Haylard Restrainer - LargeHalyard Restrainer mounts directly on the front of the mast below the Genoa Halyard sheave. Restrainer "deflects" halyard eliminating Halyard Wrap.Halyard Restrainer appropriate for boats from 27' - 53'. Eliminates possibility of halyard wrap with furling systems when properly installed. For halyards up to 5/8" (16mm). Uses (4) #10 RH Fasteners. L = 2" (51mm), Width = 2-3/4" (70mm), SWL = 2000 lbs (907 kg), Weight 4 oz (114 grams)

Read more less

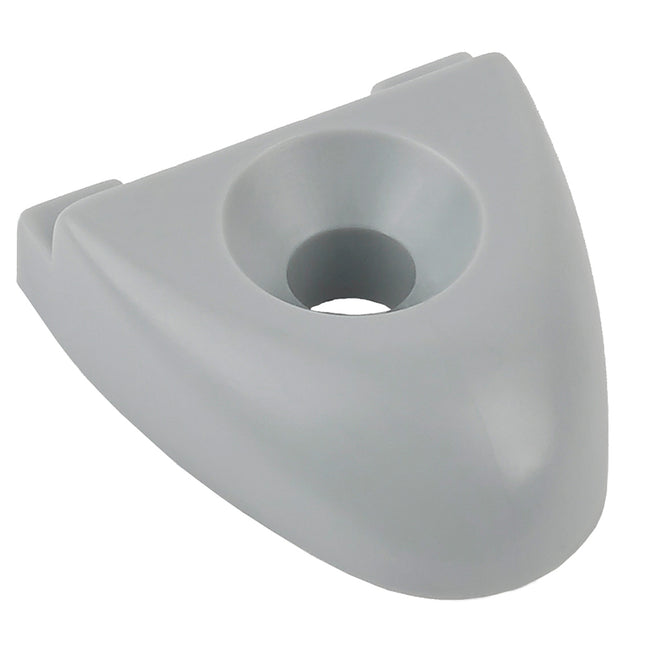

T-Track Endstop for 1-1/4" Track - Grey1 1/4" Grey Endstop   Specifications: Color: Grey Box Dimensions: 1"H x 2"W x 5"L WT: 0.05 lbs UPC: 740507007279

Read more less

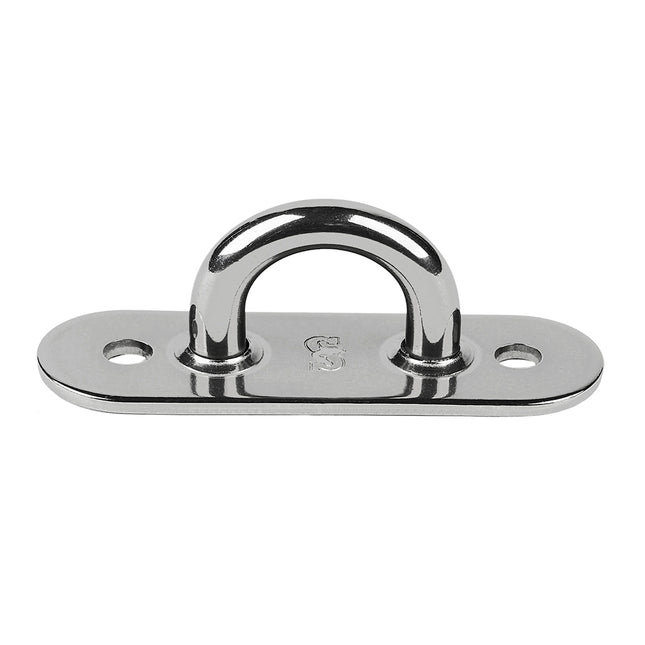

Stainless Steel Welded Pad Eye - 3"L x 1"WSpecifications: Eye Width 7/8" (22 mm) Eye Height 7/8" (22 mm) Eye Stock 1/4" (6 mm) Length 3" (76 mm) Width 1" (25 mm) Fasteners (2), 1/4" RH (6 mm) C/C 2-3/16" (55 mm) SWL 2500 lbs. (1135 kg) Weight 3.25 oz. (92 g)  Specifications: Color: Stainless Box Dimensions: 2"H x 2"W x 4"L WT: 0.1 lbs UPC: 740507007767

Read more less
