Sailing - Hardware

Size 4 58mm Plain Bearing Pulley Cheek BlockThe Size 4 Barton range of blocks has a 58mm (2 5/16″) sheave. They are of a rugged construction featuring high-grade molded side plates that are through-bolted and riveted for added strength and security. All load-bearing components and interior frame are from marine grade 316 stainless steel and both plain and ball-bearing sheaves are available. This sleek and versatile range is engineered for use on larger cruising and racing yachts and is compatible with our ball-bearing mainsheet traveler system.The 54mm sheave Size 4 range is of rugged construction, featuring high-grade molded side plates that are through-bolted and riveted for added strength and security. All load-carrying components and interior frame are from marine grade 316 stainless steel and both plain and ball bearing sheaves are available. This sleek and versatile range is engineered for use on larger cruising and racing yachts and is compatible with our ball bearing mainsheet traveller system.Suitable for up 12mm (7/16″) rope. Quick Guide (pdf)

Read more less

Size 3 45mm Plain Bearing Pulley Block Cheek BlockThe size 3 Barton plain bearing blocks have a 45mm (1 3/4" sheave size 3 block range that incorporates modern design with stainless steel frames and the latest advanced materials, using 30% fiber glass-filled nylon and Acetal sheaves to maximize their strength while keeping weight to a minimum. Suitable for use as mainsheet, vangs, lead blocks, or wherever a powerful and compact purchase system is required on dinghies, dayboats, and lightweight cruisers.Features:Suitable for up to 10mm (3/8") rope Quick Guide (pdf)

Read more less

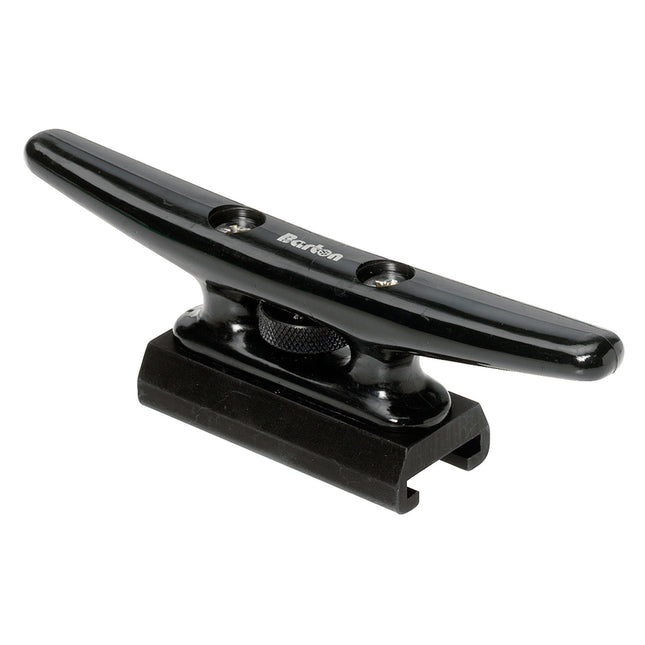

165mm Sliding Cleat - Fits 25mm T TrackA cost-effective solution to fitting a mid-ship spring cleat where access under the side deck is limited - is simply to remove a Genoa track end stop, slide on the cleat and lock it in the desired position.When not in use, slide the cleat to one end of the track, or leave off one track end permanently to enable easy removal of the cleat.  Alternatively, fit a short length of track in the desired position so that cleats can be fitted when required and removed when not in use - reducing deck clutter and rope snags.Compatible With:.98" (25 mm) wide "T' Track slider systems Technical Specifications: Material (Cleat) - Nylon Material (Base) - Aluminum  Dimensions (Cleat length) - 6.49" (165 mm) Weight - 4.73 oz (134 g) *Sold as an Individual  Specifications: Color: Black Box Dimensions: 3"H x 3"W x 8"L WT: 0.5 lbs UPC: 5035088512539

Read more less

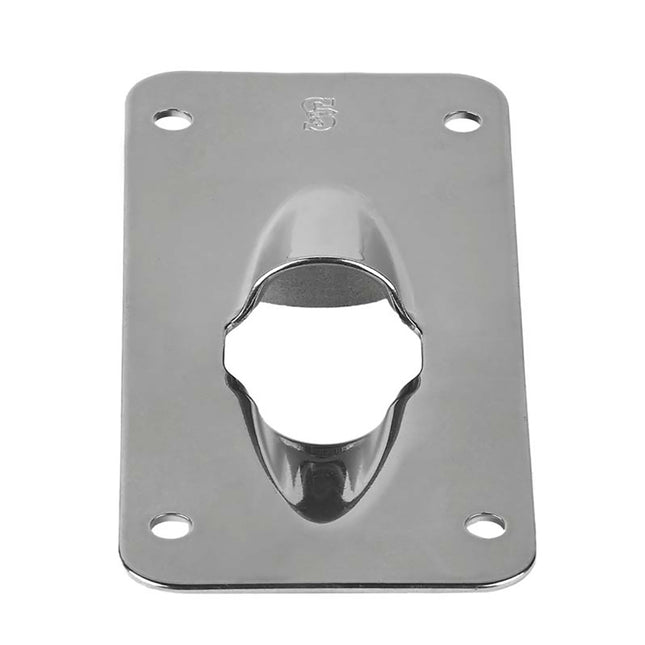

Exit Plate/Flat for up to 3/4" LineSpecifications: Halyard Size 3/4" (19 mm) Mast Stat Opening 3-1/4"x 1" (83 mm x 25 mm) Fasteners (4), #10 RH (5 mm) Weight 1 oz. (28 g)

Read more less

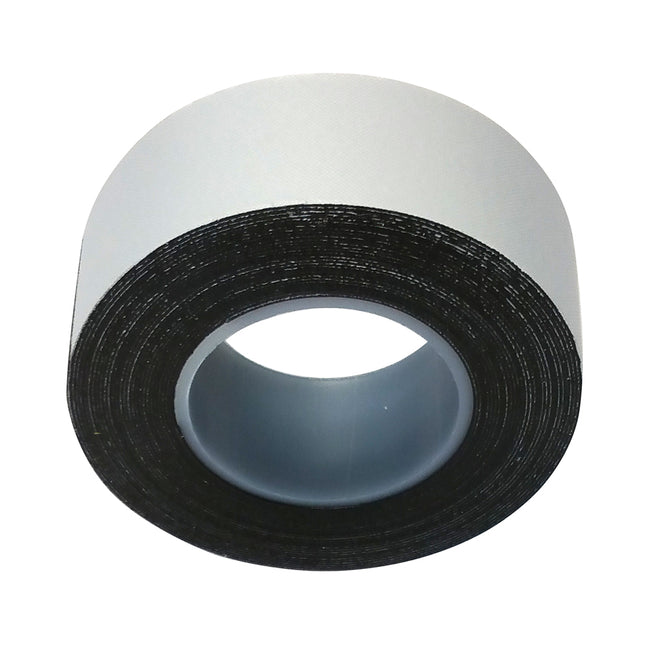

Rigging Tape - Black - 1" x 15'C. Sherman Johnson has brought back the self-amalgamating rigging tape that started the craze in the 70's. This tape works well at covering up those exposed cotter pins or any sharp objects that may harm sails, lines, or people. When used as directed, the tape actually bonds to itself and makes one solid piece. It can also be used on hot objects for an emergency repair or radiator hoses, etc. Rigging tape is sold in black or white and packaged in a reusable, retail clamshell pack with color header and instructions.  Specifications: Color: Black Box Dimensions: 2"H x 5"W x 8"L WT: 0.25 lbs UPC: 762799501167

Read more less

Round Sail Track StopsRound 0.50" dia. x 0.875" (13 x 22mm)When it's time to lower your sail you can rely on Davis' Round Sail Track Stop to hold your sail and its slides in place on the mast and boom. Large knurled wheels are released with ease. Made of heavy-duty, black anodized aluminum and marine garde nickel plated brass. Quick Guide (pdf)

Read more less

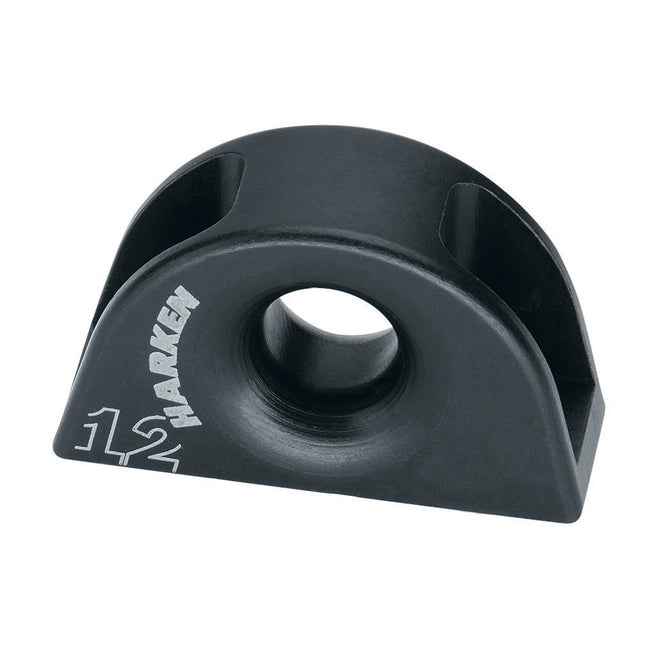

12mm Bolt-Down Fairlead - SingleHarken Bolt-Down Fairleads are used on boats 6–15 m (20–50 ft) as shallow-angle line deflectors. These weight-saving fairleads are built of 6061-T6 Hard Lube-anodized aluminum for durability. Smooth surfaces and radiused center holes minimize line wear.Specifications: Length (mm): 48 mm Length (in): 1-7/8 in Width (mm): 18 mm Width (in): 11/16 in Weight (g): 28 g Weight (oz): 0.99 oz Maximum line Ø (mm): 10 mm Maximum line Ø (in): 3/8 in Fasteners (mm): 6 SH mm Fasteners (in): 1/4 SH in Maximum working load (kg): 908 kg Maximum working load (lb): 2000 lb Breaking load (kg): 1816 kg Breaking load (lb): 4000 lb Height (mm): 28.2 mm Height (in): 1-1/8 in A (mm): 32 mm Center hole Ø (mm): 12 mm Center hole Ø (in): 15/32 in

Read more less

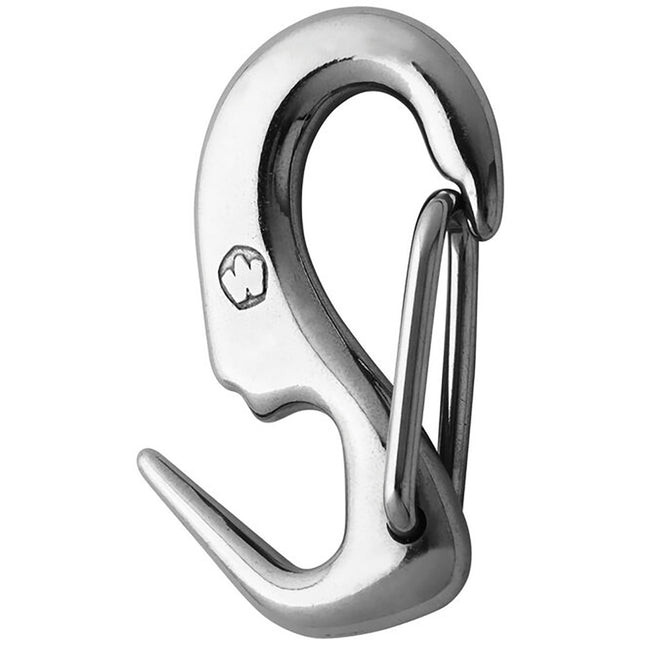

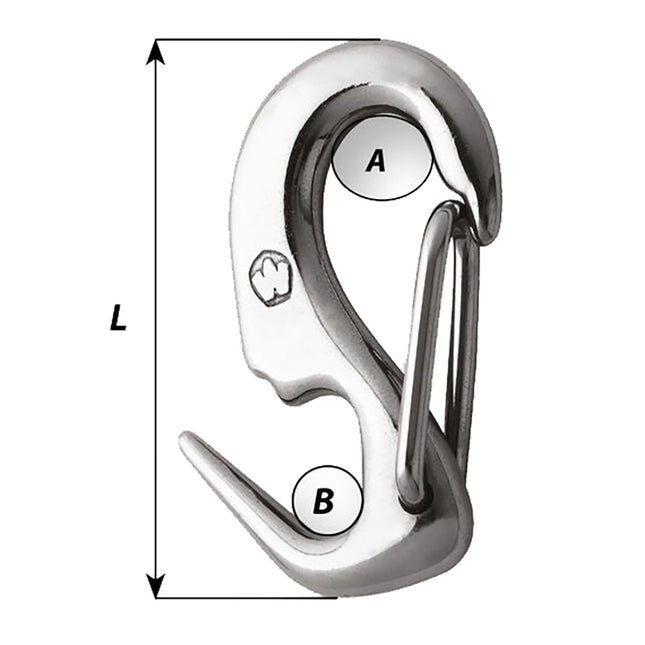

5/16 Stainless Steel Sail Snap +Features: Grade 316L stainless steel forged sail snaps Easy to install (single-handed operation) Efficient use: no jamming of the system Specifications: Materials: 316L stainless steel grade Length (mm): 110 Working load (kg): 960 Breaking load (kg): 1300 Weight (g): 244 A (mm): 24 B (mm): 15 Applications:Perfect to hoist a storm jib or a staysail

Read more less

Mini Bailer - Outside MountFlange Size: - 56 x 92mm (2-1/4 x 3-5/8")The ANDERSEN automatic bailers are available world wide and recognized by dinghy sailors as the most effective and reliable means of automatic bailing.ANDERSEN Bailers are made of Stainless Steel, guaranteeing you many years of trouble free service.Features: Effective and reliable means of automatic bailing Made of stainless steel and guaranteeing years of trouble free servicing Specifications: Color: Stainless Box Dimensions: 2"H x 3"W x 6"L WT: 0.25 lbs UPC: 9316800468058

Read more less

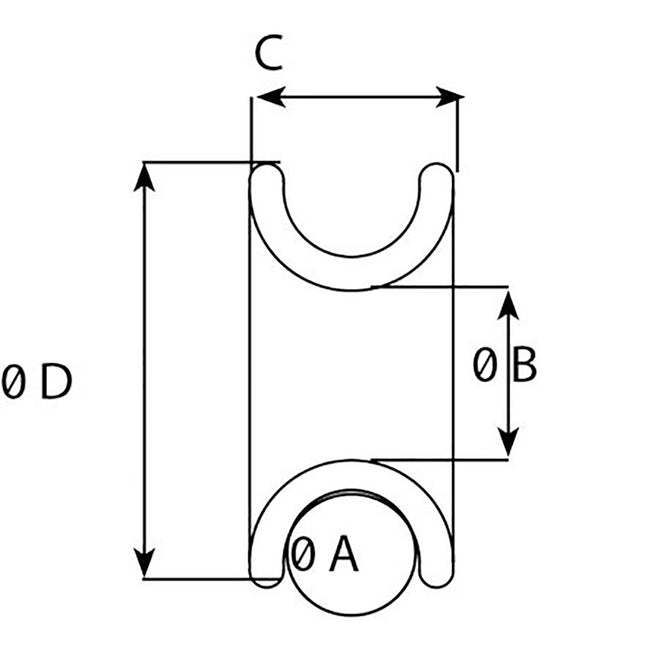

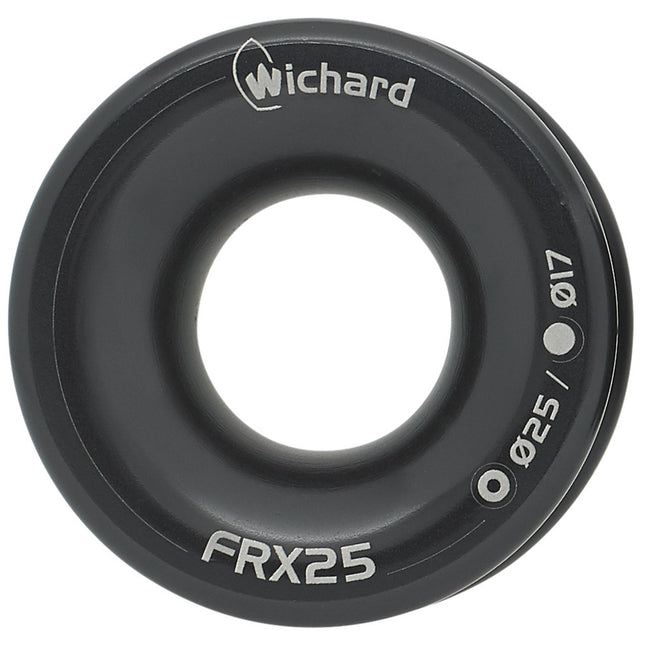

FRX25 Friction Ring - 25mm (63/64")Features: Efficient and light FRX Wichard thimbles are efficient, light, and reliable Very strong and can be used for heavy loads and semi-static lines FRX thimbles are designed to make your lines run smoothly with minimum wear They are hard anodized (50 microns) for a longer lifespan Applications:Mast-foot block, barber-hauler, inhauler, loop, thimble, lazy jack, running backstay, tackle, and moreSpecifications: Materials: Anodized aluminium Working load: (lb) 11020 / (kg) 5000 Weight: (lb) 0.126 / (g) 57 A: (inch) 43/64" / (mm) 17 B: (inch) 63/64" / (mm) 25 C: (inch) 63/64" / (mm) 25 D diameter: (inch) 2 23/64" / (mm) 60 Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5 Quick Guide (pdf)

Read more less

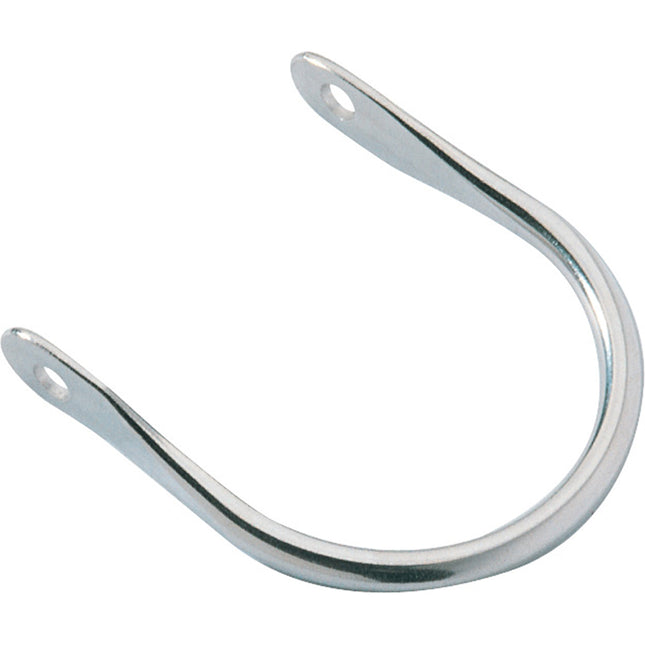

Boom Hanger - 80mm(3-1/8") Internal Width125mm(5") long x 80mm(3-1/8") wideMaterial Diameter: 7.9mm(5/16"). Fixing Holes Diameter: 2 x 8.1mm(5/16")Applications:Typically used on dinghies, catamarans and small keelboatsMaterials:Grade 316 stainless steel Specifications: Color: Stainless Box Dimensions: 1"H x 4"W x 5"L WT: 0.3 lbs UPC: 9316800104260

Read more less

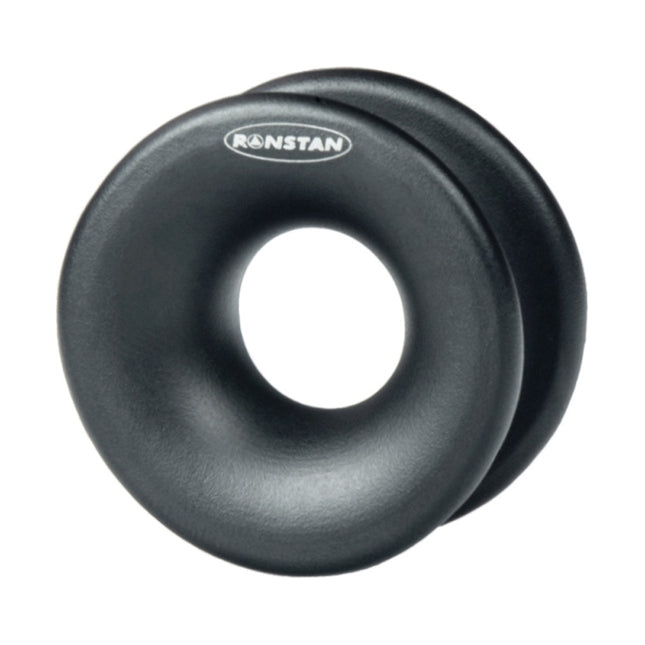

Low Friction Ring - 8mm HoleLow Friction rings can be used as a lightweight alternative to a block in some applications. They are best suited for systems requiring relatively small line deflection angles, or for high static loads. The design achieves a nicely rounded internal profile for smooth control line trim under load, and a deep external groove to retain the rope securely within the large shoulders when spliced into a loop. Features: Compact & lightweight Low friction Large shoulder secure allowing for rope lashing Durable Simple & reliable design Low maintenance Specifications: Color: Black Box Dimensions: 1"H x 2"W x 4"L WT: 0.1 lbs UPC: 9316800520381

Read more less
