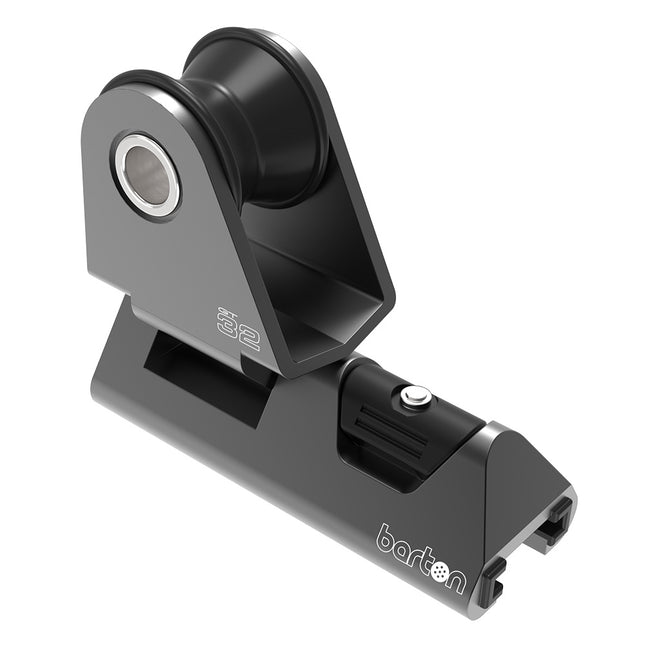

32mm End Stop & Becket Genoa Car Track - BlackBarton Marine's sleek range of Genoa is designed to run on 32mm (1 ¼”) T Track. All are manufactured from high-grade aluminum with our unique Spectro anodized finish for superior protection in marine environments. A black anodized finish is also available. Designed over 18 months to meet the requirements of OEMs, riggers, and sailing enthusiasts who want high performance and longevity captured in contemporary design. The new range is a class above the norm and features molded nylon inserts to prevent damage to the low-friction anodized finish and ensure smooth running in all marine environments. All Genoa Cars in this range are available in a heavy-duty HD version for large craft or for larger load applications.Features: Spectro or Black anodized finish The stainless steel plunger stops with positive action Moulded nylon slide inserts ensure free running Large, easy-grip plunger knobs with twist and lock facility Heavy-duty Genoa car options Brochure (pdf)

Read more less

Rigging Toggle - 3/8" PinThese stainless steel rigging toggles are essential to prevent the misalignment of rigid jaw turnbuckles. They are also used as a simple way to save rigging that was made too short. Ultimate strength exceeds the corresponding clevis pin. All sizes include pins. Please see the attached chart for the exact dimensions.

Read more less

Quick Release Lever - 1/4" PinThe Johnson Hyfield-type lever has several very practical features that have been developed after extensive testing on both high-performance multi-hulls and monohulls. The fitting is rugged, having an ultimate strength of 2500 lbs. A positive stop is provided to prevent jamming fingers between the fitting and wire when thrown open under load and the large surface area of the push pad makes it easier to close the lever under load. Lever take-up is 2-1/8″ to an over-center position and comes with a quick-release pin for positive locking. The extender arm may be had in either 1/4″ or 5/16″ pin size. This is an essential piece of hardware on Catamaran shrouds to allow the crew to right the boat after a capsize. Without it, another boat or extraordinary effort is required. Trailer-able boats up to 26 feet find that a lever on the forestay greatly facilitates stepping and unstepping the mast.Specifications: Approximate breaking strength = 2,500lbs Safe working load = 1000lbs Extender number of holes = 3

Read more less

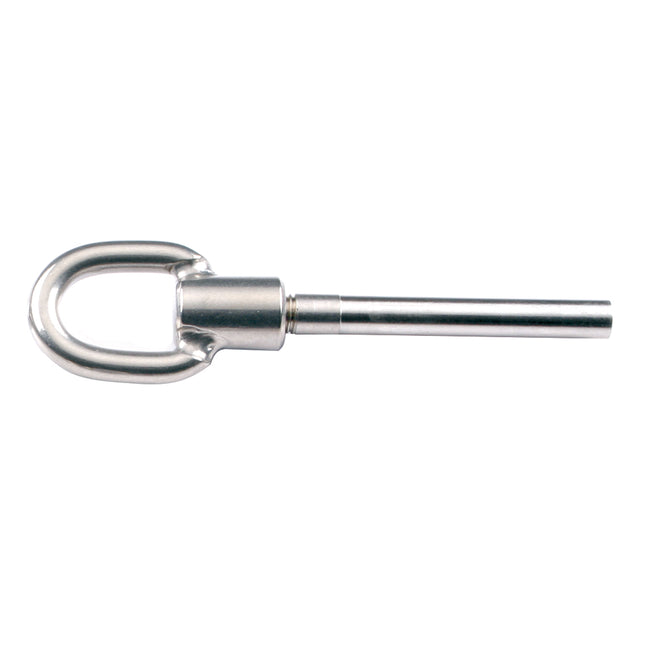

Interlocking Swivel Gate Eye for 3/16" WireAn interlocking gate eye is used at the opposite end of the gate hook as a "hinge" for the gate.

Read more less

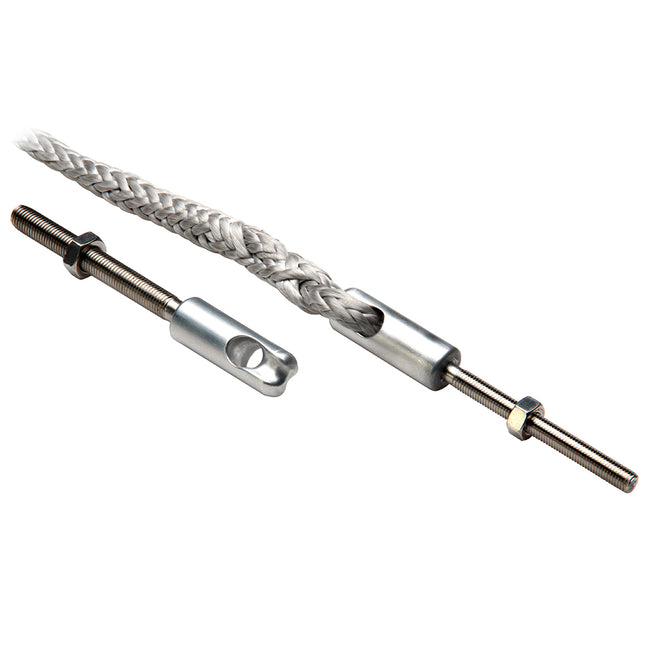

Splice Eye with Threaded Stud: 5/16"-24 x 2-1/2" LH with Splice EyeIncludes cross-hole for cotter pin*Dyneema Line not included with fittingsC. Sherman Johnson Marine's Splice Line fittings allow you to easily splice hi tech Dyneema line to standard life line fittings. The Splice Line fittings are designed to be light weight and easy on the line. Both US Sailing and ISAF now allow Dyneema/ Spectra life lines for offshore racing and Dyneema/ Spectra is also a great product for the cruising sailor that wants to replace their stainless steel life line cables. Professional splicing recommended.

Read more less

Snap Gate Hook - Body Only - 5/16" - 24 Left HandFor those that wish to replace their existing hooks- just match up the thread size. 3-1/2" long from end of body to inside bearing point of hook. Specifications:5-16"-24 LH

Read more less

Splice Line Gate Kit - Midship for One SideC. Sherman Johnson Marine's Splice Line fittings allow you to easily splice hi tech Dyneema line to standard life line fittings. The Splice Line fittings are designed to be light weight and easy on the line. Both US Sailing and ISAF now allow Dyneema/ Spectra life lines for offshore racing and Dyneema/ Spectra is also a great product for the cruising sailor that wants to replace their stainless steel life line cables. Professional splicing recommended.These kits include everything needed to install upper Dyneema life lines without gates. For double life lines, buy 2 kits. For adding a gate, use the C. Sherman Johnson Gate Kits. Specifications: 1 x LS-3100 Over Center Gate Hook w/ Splice Eye 1 x LS-3200 Splice Eye to Splice Eye Fitting 1 x LS-3300 Gate Eye to Splice Eye Fitting 1 x LS-3400 Adjuster w/ Splice Eye 6' Dyneema

Read more less

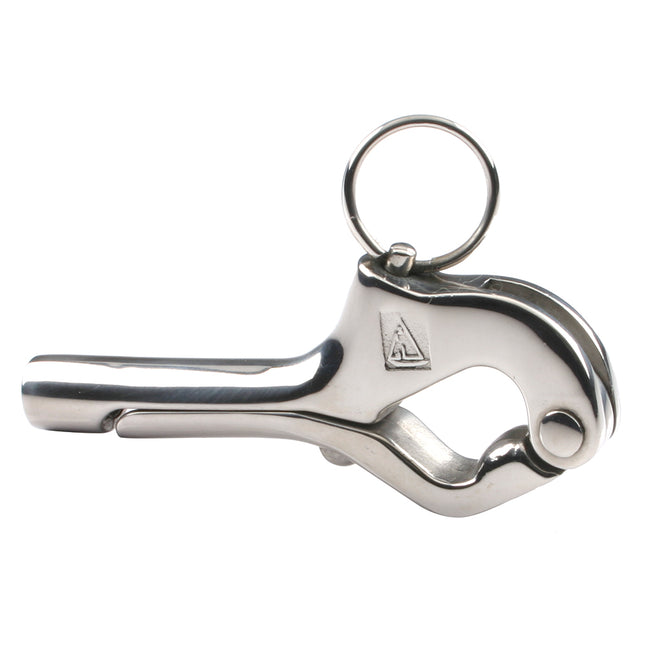

Safe Lock Gate Hook T-316Features: Stainless, safe, inexpensive design Practical Sailor called a "well-engineered hunk of metal"  Adjusts in place with knurled nut Stamped metal construction 3/4 in. long from end of body to inside bearing point of hook Specifications: 3/16" wire 1/4"-28 L.H. 1-1/4" adj.

Read more less

Continuous Line FurlerDesigned for optimum performance in the most demanding of conditions, the HBT1 hybrid-bearing technology combines high specification, solid-state, and Torlon ball bearings, which ensures the furling wheel remains balanced and spins freely, even under the highest loads.With a safe working load of 600kg at a featherweight 175g, the HBT1 offers both high strength and performance for the discerning sailor.Suitable for a 4mm - 6mm (3/16” - 1/4”) Furling line, the innovative 3D printed tri-rotor wheel and integrated fairlead offer superior rope grip and toolless rope insertion to ensure no lost parts on the deck. As with all Barton Marine products, only the best materials and finishes are used. The central shaft is constructed from high-grade 316 stainless steel and the main chassis and fork from anodized 6061 aluminum.Specifications: Length Overall: 90mm/3-9/16" Length Pin to Pin: 65mm/2-9/16" Pin Diameter: 6mm/1/4" Maximum Sail Area: 12m sq/130ft sq Break Load: 1200kg/2640lbs Working Load Limit: 600kg/1320oz Drum Diameter: 50mm/2" Overall Diameter: 68mm/2-11/16" Brochure (pdf)

Read more less

32mm Towable Genoa Car 2:1 Purchase - Heavy Duty - BlackBarton Marin's sleek range of Genoa is designed to run on a 32mm (1-1/4”) T Track. All are manufactured from high-grade aluminum with our unique Spectro anodized finish for superior protection in marine environments. A black anodized finish is also available. Designed over 18 months to meet the requirements of OEMs, riggers, and sailing enthusiasts who want high performance and longevity captured in contemporary design. The new range is a class above the norm and features molded nylon inserts to prevent damage to the low-friction anodized finish and ensure smooth running in all marine environments. All Genoa Cars in this range are available in a heavy-duty HD version for large craft or for larger load applications.Features: Spectro or Black anodized finish The stainless steel plunger stops with positive action Moulded nylon slide inserts ensure free running Large, easy-grip plunger knobs with twist and lock facility Heavy-duty Genoa car options Brochure (pdf)

Read more less

32mm Towable Genoa Car 2:1 Purchase - BlackBarton Marin's sleek range of Genoa is designed to run on a 32mm (1-1/4”) T Track. All are manufactured from high-grade aluminum with our unique Spectro anodized finish for superior protection in marine environments. A black anodized finish is also available. Designed over 18 months to meet the requirements of OEMs, riggers, and sailing enthusiasts who want high performance and longevity captured in contemporary design. The new range is a class above the norm and features molded nylon inserts to prevent damage to the low-friction anodized finish and ensure smooth running in all marine environments. All Genoa Cars in this range are available in a heavy-duty HD version for large craft or for larger load applications.Features: Spectro or Black anodized finish The stainless steel plunger stops with positive action Moulded nylon slide inserts ensure free running Large, easy-grip plunger knobs with twist and lock facility Heavy-duty Genoa car options Brochure (pdf)

Read more less

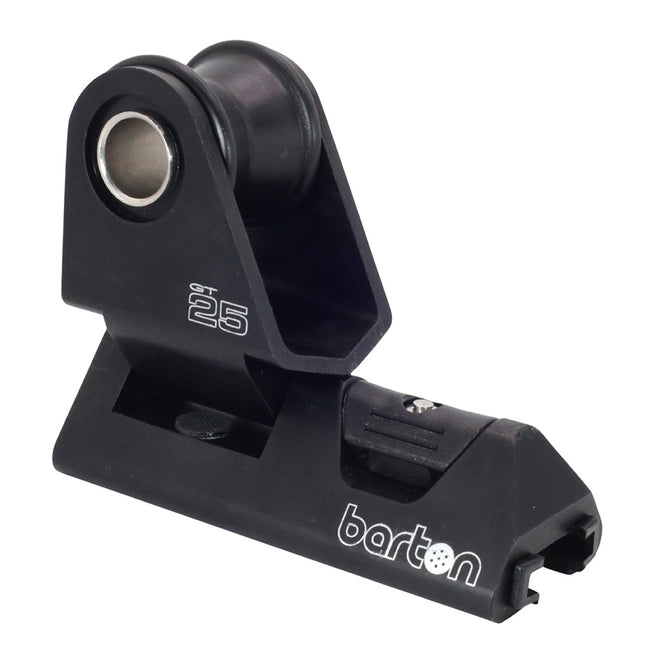

25mm Towable Genoa Car 2:1 Purchase - BlackBarton Marine introduces its sleek range of Genoa Cars designed to run on 25mm (1 ”) T-Track. All GT cars are manufactured from high-grade aluminum with our unique Spectro anodized finish for superior protection in marine environments. A black anodized finish is also available. Designed over 18 months to meet the requirements of OEMs, riggers, and sailing enthusiasts who want high performance and longevity captured in contemporary design. The range is a class above the norm and features moulded nylon inserts to fight corrosion prevent damage to the low friction anodise finish and ensure smooth running in all marine environments.Features: Spectro anodized finish or black anodized The stainless steel plunger stops with positive action Moulded nylon slide inserts ensure free running Large, easy-grip plunger knobs Twist and Lock up plunger facility Brochure (pdf)
