Sailing - Winches

Soft-Mate Equipment HoldersSafety-Soft, Flexible P.V.C. equipment holders designed to hold a variety of gear in convenient sizes for boat, RV, or Home. Designed not to hurt you or your equipment.All Soft-mates come with mounting screws.HH-2 Features: For medium winch handles, top action, standard or ratchet Height: 8.5" (21.6cm) Width: 3.0" (7.6cm) ) Diameter: 2.0" (5.1cm)

Read more less

15 Self-Tailing Radial Aluminum WinchThe Radial winch drum's gripping surface is shaped for each winch size and drum material and features diagonal ribs (rather than textured abrasive materials) to maximize gripping power and greatly reduce line wear. The self-tailing mechanism on the winch means that one crew member can quickly and easily trim or raise sails. Specifications: Material: Aluminum Configuration: Self-tailing Speed: 1 Drum: 2-7/8 in Base: 4-3/4 in Height: 5-1/2 in Weight: 4.6 lbs Line entry height: 2-1/4 in Minimum line: 1/4 in Maximum line: 3/8 in Fastener circle: 3-15/16 in Fasteners: 1/4 SH in Number of fasteners: 5 Gear ratio-1: 2.43 Power ratio-1: 16.90

Read more less

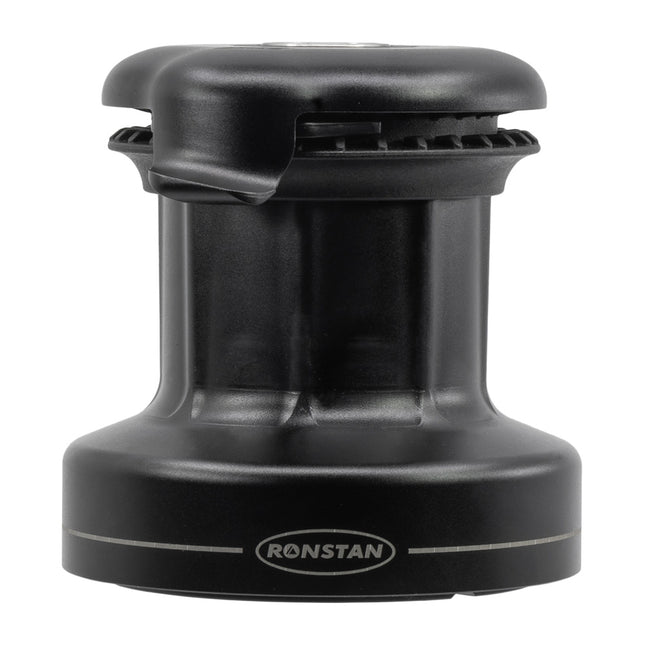

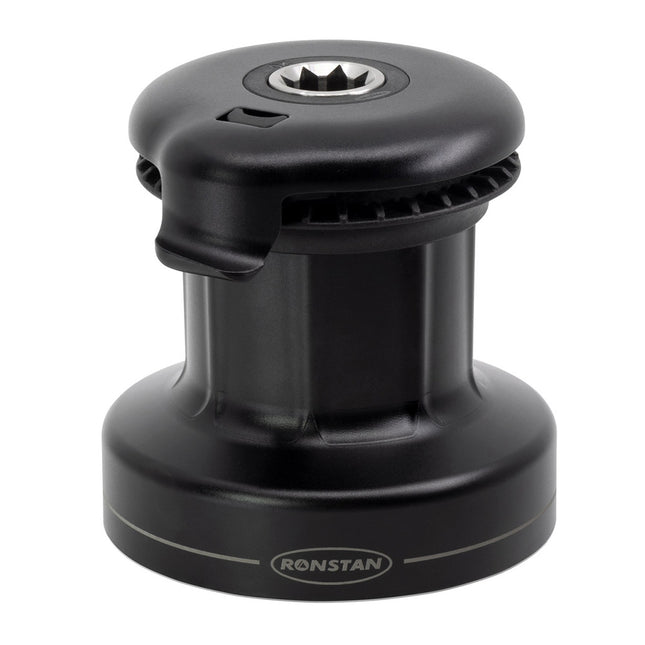

40QT Orbit Winch with Quick TrimRonstan’s Orbit Winches™ are the new benchmark in high performance alloy winches. With a combination of fresh design thinking and proven manufacturing expertise, Orbit Winches™ weigh significantly less and offer lower line entry heights than any other winch in their class. Remarkably easy to service, they require no tools for disassembly or maintenance. The machined aluminium drums feature the same Power Ribs™ that many sailors will recognize from Andersen Stainless Steel Winches®, well-known for their impressive line grip, smooth control, and minimal rope wear.Power Ribs™The exceptional grip provided by the Power Ribs™ offers a multitude of benefits: requiring fewer wraps around the drum, reducing the load held in the self-tailer, and encouraging the line to slide easily upward on the drum to avoid riding turns. The non-abrasive drum surface extends the service life of running rigging and allows smooth and controlled easing, even under high loads.No Tools RequiredFull disassembly and reassembly can conveniently be performed without the need for any tools. To remove the drum, pull back the spring-loaded release latch, and a slight anti-clockwise rotation will allow the self-tailing arm to be lifted from the winch. From there, the drum can be removed from the winch's center stem. When completing reassembly in reverse order, an audible click confirms positive engagement between the self-tailing arm and bayonet notches on the center stem. These notches allow the self-tailing arm to be locked in one of eight positions at rotational increments of 45 degrees.Orbit Winches™ sizes 30QT and 40QT are equipped with the unique, patented QuickTrim™ self-tailer. What is QuickTrim™?QuickTrim™ allows sailors to conveniently and safely ease the line without removing the winch handle or taking the line out of the self-tailer.A small anti-clockwise rotation of the self-tailing cover allows the self-tailer to turn beneath it like a sheave as the rope is eased, with confident grip and control assured by the drum’s smooth surface and Power Ribs™.Letting the top cover spring back into place locks the self-tailer again to resume normal use.Features: Lightweight machined aluminum drum Distinctive Power Ribs™ ensures a controlled grip at all times, whether tensioning or easing Proven Andersen winch gearing configuration No tools are required for configuration and servicing Sprung self-tailing jaws to accept 6-10mm line QuickTrim™ patented self-tailing feature for rapid sail trim and smooth adjustment (30QT & 40QT only) Materials: Hard anodized aluminum drum and center stem, aluminum self-tailing arm Grade 316 stainless steel shaft and pawls Grade 2205 stainless steel axle pins Aluminum bronze gears Glass-filled nylon self tailer Self-lubricating acetal bearings Specifications: Weight (kilogram): 3.1kg Power Ratio: 39.5:1 Base Diameter (millimeters): 151mm Maximum Pulling Load (kilogram): 850kg Drum Diameter (millimeters): 86mm Base Diameter (millimeters): 151mm Height (millimeters): 166mm Line Entry L (millimeters): 57mm Line Size (millimeters): 7-12mm Gear Ratio 1st Speed: 1.4:1 Gear Ratio 2nd Speed: 6.8:1 Power Ratio 1st Speed: 8.3:1 Power Ratio 2nd Speed: 39.5:1 Quick Guide (pdf)Owner's Manual (pdf)

Read more less

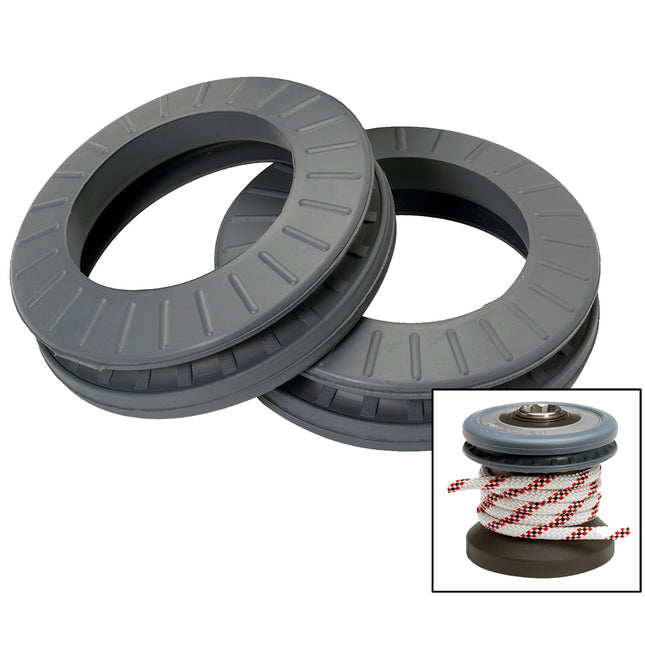

Medium Wincher PairThe Barton Wincher is a specially designed rubber molding that converts your standard winch into a self-tailing winch.  This tried and tested design has been a firm favorite with Sailors for many years.The Wincher works by gripping the rope when the drum is fully loaded and under tension, peeling off the line from the underside of the Wincher as you winch to give a true self-tailing motion.Cleating is achieved by locking the sheet into the Wincher’s ribbed central groove.Technical Specifications: Fits Drum Diameter - 2.75" to 3" (70 to 80 mm) Maximum Rope Diameter - .39" to .55" (10 to 14 mm) Weight - 7.87 oz (223 g)  *Sold as a Pair Brochure (pdf)

Read more less

20 Self-Tailing Radial Aluminum WinchThe Radial winch drum's gripping surface is shaped for each winch size and drum material and features diagonal ribs (rather than textured abrasive materials) to maximize gripping power and greatly reduce line wear. The self-tailing mechanism on the winch means that one crew member can quickly and easily trim or raise sails. Specifications: Material: Aluminum Configuration: Self-tailing Speed: 1 Drum: 2-7/8 in Base: 5-3/8 in Height: 5-13/16 in Weight: 5.3 lbs Line entry height: 2-3/8 in Minimum line: 1/4 in Maximum line: 1/2 in Fastener circle: 4-3/8 in Fasteners: 1/4 SH in Number of fasteners: 5 Gear ratio -1: 2.76 Power ratio - 1: 19.20 Available power: Manual

Read more less

40ST Compact Below Deck Electric Full Stainless Winch Variable Speed - 12VAndersen Compact Motor™ electric winches allow you to hoist and trim sails at the push of a button regardless of physical strength, so any crew member can easily and safely trim sails and control lines.Ease of installationThe Andersen Compact Motor™ electric winch is available in two formats for either Above Deck or Below Deck motor placement. Motor gearbox and controller are integrated into one compact unit with no extra control box necessary. Simplified electrical installation requires just the connection of positive and negative power cables to the motor terminals and the connection of the push button using the included output cable.Efficient, variable speedThe Andersen Compact Motor™ is a brushless DC motor carefully matched to a low profile planetary gearbox which requires less space for installation, and draws considerably less current than traditional motor/gearbox configurations. Available in 12 volt and 24 volt models, Compact Motor™ electric winches operate at variable speed in proportion to the pressure applied to the push button, for smooth and quiet operation.Illuminated "intelligent" push buttonCompact Motor™ winches are supplied with a push button with integrated LED which illuminates when power to the winch system is on. The push button incorporates a hinged safety cover to prevent inadvertent winch operation and is water resistant rated to IP67. The push button also acts with the controller to flash status codes that assist with trouble shooting in the event of overload or where other system protection intervention occurs. A cable for connection of the push button is included for convenient installation.Built-in protection- Integrated overload protection - The controller is pre-set to stop the winch if the maximum pull load is exceeded. Operation can resume within a few seconds when the load returns below the limit.- Thermal overload protection - The motor is fitted with a thermal cutout that disables the motor in case of overheating; it automatically resets after the temperature returns to normal.As with all ANDERSEN Winches™, our Compact Motor™ Electric Winch features the exclusive stainless steel Power Rib™ drum for maximum power and extended line life. This model also uses our exclusive self-tailing device that automatically accommodates a wide range of different line sizes.Specifications Drum: 2-15/16 in. (75 mm) Base: 6 in. (152 mm) Height: 7-1/16 in. (180 mm) Line Entry: 3-1/8 in. (79 mm) Line Size: 5/16-9/16 in. (8-14 mm) Weight: 40 lbs. (18 kg) Max Deck Thickness: 2-1/8 in. (54 mm) Motor Depth: 7-1/16 in. (180 mm) Motor: 7-11/16 in. (195 mm) Quick Guide (pdf)

Read more less

Winch Service CaseThis carrying case includes winch grease, pawl oil, pawls, springs, a handle repair kit, and stickers.Includes: 10 pawls 20 springs Pawl oil Winch grease Handle repair kit Stickers Specifications: Fits Radial winches: 2-speed: 15 - 70.2, Rewind, UniPower Fits Performa winches: 20 Fits Classic winches: B6 - B980 Fits custom/racing winches: 1000.3 *Custom and racing winch service kits might not include all the pawls needed. Contact Harken for more information.

Read more less

20 Self-Tailing Radial Chrome WinchThe Radial winch drum's gripping surface is shaped for each winch size and drum material and features diagonal ribs (rather than textured abrasive materials) to maximize gripping power and greatly reduce line wear. The self-tailing mechanism on the winch means that one crew member can quickly and easily trim or raise sails. Specifications: Material: Chrome Configuration: Self-tailing Speed: 1 Drum: 2-7/8 in Base: 5-3/8 in Height: 5-13/16 in Weight: 7.5 lbs Line entry height: 2-3/8 in Minimum line: 1/4 in Maximum line: 1/2 in Fastener circle: 4-3/8 in Fasteners: 1/4 SH in Number of fasteners: 5 Gear ratio-1: 2.76 Power ratio-1: 19.20 Available power: Manual

Read more less

40ST EVO® Self Tailing Winch Alloy - BlackAn evolution of the renowned Lewmar Ocean winch, the EVO® Self-Tailing Winch draws on a wealth of design and manufacturing experience to produce a state-of-the-art winch. Features: Easy Servicing – no tools required User-friendly direction arrows Convertible to electric Technical Specifications: Drum Diameter - 2.91" Base Diameter -  5.83" Height - 6.24" Line entry - 3.11" Line size: - .32" - .5" Gear Ratio 1st Gear - 1.9:1 Gear Ratio 2nd Gear - 5.8:1 Power Ratio 1st Gear  - 13.2:1 Power Ratio 2nd Gear - 40:2:1 SWL - 1753lbs Weight - 10.7lbs In the Box: Winch Instruction manual *Sold as an Individual Owner's Manual (pdf)

Read more less

45ST EVO® Self Tailing Winch Alloy - GreyAn evolution of the renowned Lewmar Ocean winch, the EVO® Self-Tailing Winch draws on a wealth of design and manufacturing experience to produce a state-of-the-art winch. Features: Easy Servicing – no tools required User-friendly direction arrows Convertible to electric Technical Specifications: Drum Diameter - 3.42" Base Diameter -  6.61" Height - 6.99" Line entry - 3.31" Line size: - .32" - .55" Gear Ratio 1st Gear - 2.4:1 Gear Ratio 2nd Gear - 7.6:1 Power Ratio 1st Gear  - 13.9:1 Power Ratio 2nd Gear - 44.8:1 SWL - 2646lbs Weight - 15.8lbs In the Box: Winch Instruction manual *Sold as an Individual Owner's Manual (pdf)

Read more less

30ST EVO® Self Tailing Winch Alloy - GreyAn evolution of the renowned Lewmar Ocean winch, the EVO® Self-Tailing Winch draws on a wealth of design and manufacturing experience to produce a state-of-the-art winch. Features: Easy Servicing – no tools required User-friendly direction arrows Technical Specifications: Drum Diameter - 2.91" Base Diameter -  5.43" Height - 5.74" Line entry - 2.72" Line size: - .25" - .5" Gear Ratio 1st Gear - 2:1 Gear Ratio 2nd Gear - 4:2:1 Power Ratio 1st Gear  - 13.8:1 Power Ratio 2nd Gear - 29:2:1 SWL - 1510lbs Weight - 9.2lbs In the Box: Winch Instruction manual *Sold as an Individual Owner's Manual (pdf)

Read more less

40ST EVO® Self Tailing Winch Alloy - GreyAn evolution of the renowned Lewmar Ocean winch, the EVO® Self-Tailing Winch draws on a wealth of design and manufacturing experience to produce a state-of-the-art winch. Features: Easy Servicing – no tools required User-friendly direction arrows Convertible to electric Technical Specifications: Drum Diameter - 2.91" Base Diameter -  5.83" Height - 6.24" Line entry - 3.11" Line size: - .32" - .5" Gear Ratio 1st Gear - 1.9:1 Gear Ratio 2nd Gear - 5.8:1 Power Ratio 1st Gear  - 13.2:1 Power Ratio 2nd Gear - 40:2:1 SWL - 1753lbs Weight - 10.7lbs In the Box: Winch Instruction manual *Sold as an Individual Owner's Manual (pdf)

Read more less
