2-3/4" Snap Shackle with Swivel Eye - 80mmFeatures: HR Forged snap shackle (Grade 17.4 PH stainless steel)  with large eye The large eye allows attaching several ropes Free rotation of the snap shackle thanks to the swivel eye The plunger pin is set captive into the hook and cannot become detached Excellent working and breaking loads Easy to open by pulling the plunger pin (possibility to attach a lanyard) Applications: Snap shackle applications Applications requiring a free rotation of the snap shackle (for a better sail orientation)

Read more less

Low Friction Ring Strap Eye - Stainless SteelFor the concerning dinghy sailor. Barton has offered stainless steel deck eyes for a long while, but as performance on boats improves, the desire to reduce friction on deck fixings and turning points of lines becomes more important. By adding the low friction ring that is pressed into the stainless steel strap, it gives a low profile and low friction rope guide for small lines.This can be used with a range of lines for sailing boats using small-diameter ropes. The HV500 anodized coating on the Low Friction Rings produced by Barton gives the ultimate performance and durability. The hard anodizing feature means there is only 15% load-bearing friction on this fitting.Specifications: Height: 13mm/1/2" Base Width: 38mm/1-1/2" Fastenings: 4.0mm/3/16" Whole Centres: 30mm/1-3/16" Maximum Rope: 4mm/3/16" Brochure (pdf)

Read more less

Stanchion Ratchet BlockControlling the Power in Furling lines! This Stanchion Ratchet Block is ideal for removing some of the loadings for the crew when furling in the jib. The ratchet means that the sheave can be locked in place in one direction offering a friction brake against the pull of the sail. It is quick and simple to fit onto a standard 25mm (1”) guard rail stanchion. Adjustment is easy with the stainless steel clamping ring which allows mounting of the block at any angle.The Barton ball-bearing Ratchet Block is designed to be used online up to 10mm (3/8”). The block is a high-performance 55mm (2 3/16”) ratchet block and features a stainless-steel lever that locks the swivel head if desired.Designed with ball bearings for low friction and longevity in harsh marine environments, the Ratchet Block body is manufactured from a composite of high-density nylon and glass fiber reinforced polymer with a high level of UV protection. Internal components are of marine grade 316 stainless steel and the 12-faced aluminum sheave is anodized in gunmetal silver.Specifications: Length: 120mm/4-3/4" Maximum Line: 10mm/3/8" Width: 55mm/2-3/16" Tube Size: 25mm/1" Brochure (pdf)

Read more less

High Load Eye 12mm BoreErgonomically designed to maximize the strength and efficiency of the eye. With HV500 hard anodizing and the profile of the curved surfaces, these have been developed to keep friction as low as possible. The range has amazing strength-to-weight ratios, making them ideal for use as kickers, tweakers, genoa barber haulers, and anywhere where weight saving and strength are important.Wear ResistanceThe hard anodizing HV500 has amazing low friction properties. After over 300 hours on an abrasion test machine, no visual signs of wear on the anodized coating could be found.Features: High load eye compared to a standard plain bearing block on average across the range Friction increased by only 15% Strength increased by 272% Weight reduced by 51% Data based on using 4mm D12 SK75 Dyneema core Available in six sizes. Manufactured in marine grade aluminium with a hard anodised finish. These lightweight high load eyes are suitable for a variety of uses on board, from lazy jacks, barber haulers, mast base tidies to stanchion lead eyes. The smallest size can be attached using a 3mm line with a bullseye diameter of 6mm. The largest size can be attached using a 16mm line with a bullseye diameter of 28mm. Quick Guide (pdf)

Read more less

Size 2 Double Stanchion Lead BlockBarton Marine's stanchion lead blocks have proven to be popular with Cruising sailors all over the World. Mounted onto the stanchion base, the stanchion lead block enables the Genoa furling line to be led back to the cockpit for easy adjustment. Ball bearing sheaves have a precision molded acetal sheave running on a large diameter brass bearing, ensuring free running under the highest of loads.   The unit will fully rotate about the swivel head to match your pulling angle. Block attachment to stanchion is by means of screwing together the integral Stainless Steel strap.Technical Specifications Sheave - Double Sheave Size - 1-3/8" (35mm) Maximum Rope Diameter -  5/16" (8mm) Safe Working Load - 815 lb (370 kg) Maximum Stanchion (Tube) Size - 1" (25mm)  *Sold as an Individual Quick Guide (pdf)Brochure (pdf)

Read more less

64mm Diameter Ball Bearing Rope SheaveA replacement all-purpose rope sheave. Used throughout the complete Barton block range. Molded from UV-resistant acetal resin, the Barton sheave is made to survive the harsh marine environment. The unique, super-low friction ball race system features Delrin balls running on a large diameter center boss, which ensures an extremely low friction performance.  Technical Specifications: Overall Diameter: 2-6/10" (64mm) Hub Width: 0.71" (18mm) Bore: 0.24" (6mm) *Sold as an Individual

Read more less

Quick Cleat - 5/16" - Black The Barton Marine Quick Cleat range is perfect for novices and seasoned mariners and takes the place of tying and releasing knots. Made of nylon reinforced composite and secures braided lines up to 5/16" (10 mm) with a working load limit of 154 lb (70 kg.)  The Barton Marine Quick Cleat offers exceptional value. From securing fenders, gear, painter lines, buckets, boat gears or other gear, the Quick Cleat is designed to alter rope tension in one direction, but grips the rope firmly and securely in the other.Quick Cleats are easy to use.  Simply rotate the lever on top of the cleat, insert the line and release the lever which secures the rope.  Features: Dupont Zytel Construction Easy to install Technical Specifications: Color - Black Material - Zytel nylon Working Load - 154 lb (70 kg) Maximum Rope Diameter - 5/16" (10 mm) Height - 1-1/16" (2.7 cm) Weight - 2 oz (55 g) *Sold as an Individual  Brochure (pdf)

Read more less

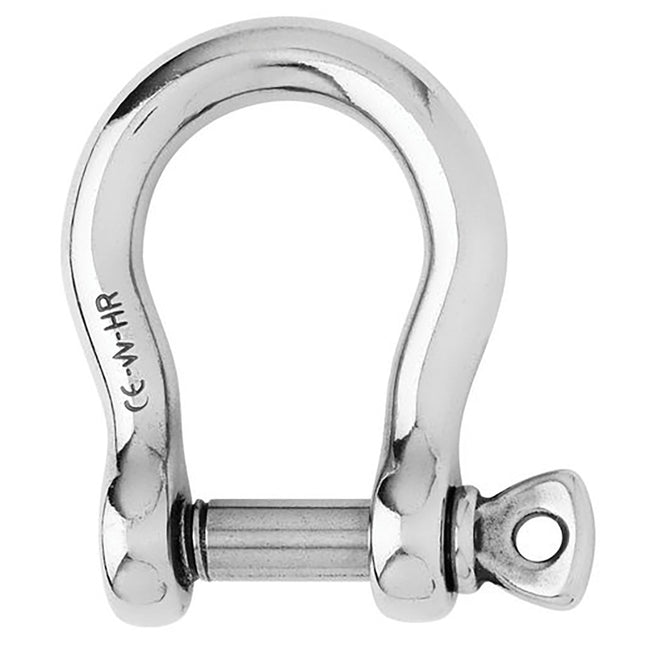

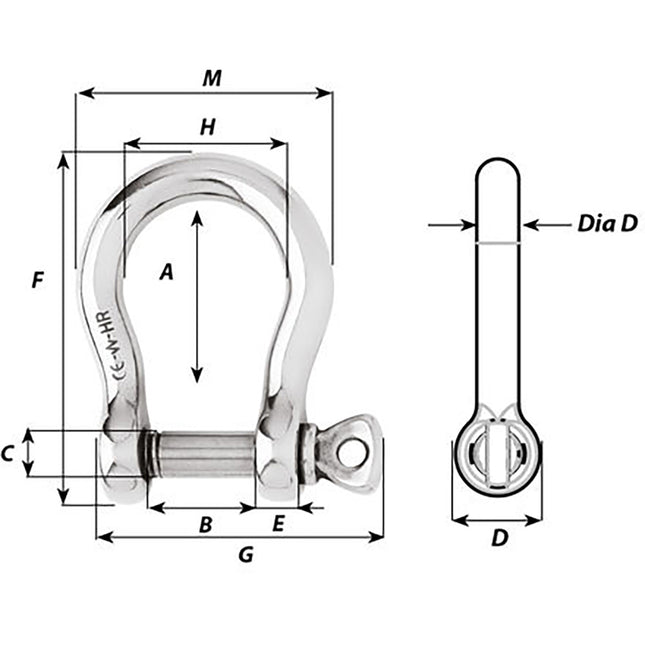

HR Bow Shackle - 14mm Diameter - 35/64"Features: Forged bow shackle in HR stainless steel grade (17,4 PH) Outstanding working and breaking load An HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel WLL: only for industrial applications (lifting i.e…) CE marking and batch number Applications: Applications requesting high loads To be used when ample room is required Possibility to attach several lines or cables Do not use it for mooring applications Specifications: Materials: HR 17.4 PH stainless steel grade Working load: (lb) 11280 / (kg) 5120  WLL: (lb) 5290 / (kg) 2400  Breaking load: (lb) 26450 / (kg) 12000  Weight: (lb) 0.802 / (g) 364  Dimensions: A: (inch) 2 31/64" / (mm) 63  B: (inch) 1 7/64" / (mm) 28  C: (inch) 35/64" / (mm) 14  D: (inch) 1 7/64" / (mm) 28  D diameter: (inch) 35/64" / (mm) 14  E: (inch) 33/64" / (mm) 13  M: (inch) 2 53/64" / (mm) 72  Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5 High Resistance (HR) *Sold as an Individual Quick Guide (pdf)

Read more less

Narrow Saddle - 11.4mm(7/16") ClearanceGrade 316 Stainless Steel 37.3mm(1-7/16") screw to screw length Specifications: Color: Stainless Box Dimensions: 1"H x 1"W x 2"L WT: 0.1 lbs UPC: 9316800013623

Read more less

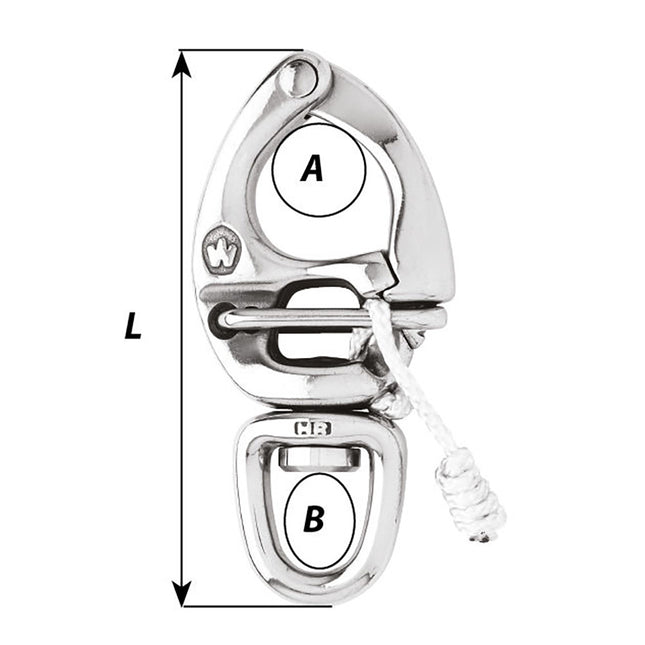

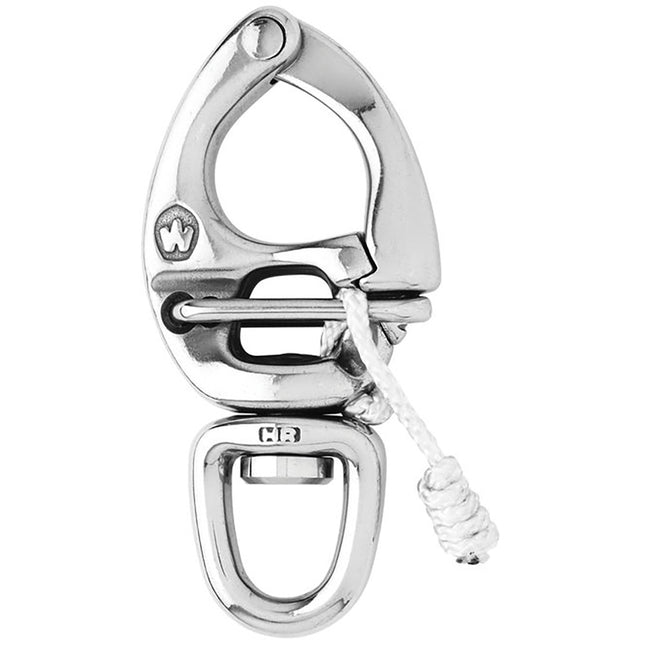

HR Quick Release Snap Shackle With Swivel Eye -110mm Length- 4-21/64"Features: HR forged (17.4 PH) quick-release snap shackle with swivel eye The opening is made by pulling the lanyard Perfect to attach one sheet or halyard Outstanding working and breaking loads Free rotation of the snap shackle thanks to the swivel Applications: For spinnaker operations Perfect for spinnaker sheets and halyards Specifications: Materials: HR 17.4 PH stainless steel grade Working load: (lb) 5290 / (kg) 2400  Breaking load: (lb) 9250 / (kg) 4200  Weight: (lb) 0.514 / (g) 233 Dimensions: A: (inch) 63/64" / (mm) 25   B: (inch) 5/8" / (mm) 16  Length: (inch) 4 21/64" / (mm) 110  Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5 High Resistance (HR) *Sold as an Individual Quick Guide (pdf)

Read more less

Webbing Eye strap - 5mm Diameter - 13/64" - 65mm Spacing - 2-9/16"Features: Drop-forged webbing eye straps with high-quality stainless steel (316L) Outstanding strength Specific use for webbing Applications:The perfect solution to attach webbingSpecifications: Materials: 316L stainless steel grade Weight: (lb) 0.029 / (lb) 0.029  Dimensions: A: (inch) 1 11/32" / (mm) 34  B: (inch) 25/64" / (mm) 10  D diameter: (inch) 13/64" / (mm) 5  E: (inch) 2 9/16" / (mm) 65  Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5 *Sold as an Individual Quick Guide (pdf)

Read more less

Investment Cast Pad Eye - 2-1/2" OD Base316 Stainless Steel includes delrin(tm) base. Order Backing Plate 97-53 separately. Specifications: Eye Width 1" (25 mm) Eye Height 13/16" (21 mm) Eye Stock 3/8" (10 mm) Length 2-1/2" (64 mm) Width 2-1/2" (64 mm) Fasteners (4), 1/4" FH (6 mm) C/C A 1" (25 mm) C/C B 1-1/2" (38 mm) SWL 4000 lbs. (1800 kg)  Specifications: Color: Stainless Box Dimensions: 2"H x 3"W x 4"L WT: 0.5 lbs UPC: 740507007828
