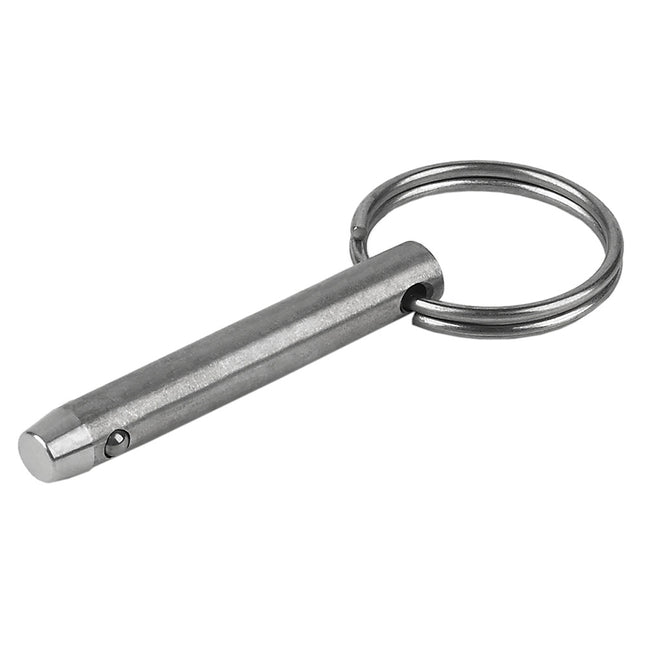

Quick Release Pin - 5/16" x 1" GripQuick Release Pin, 5/16" x 1.0" Grip. 316 Stainless Steel. Safe Working Load 3000 lbs.

Read more less

Stainless Steel Welded Pad Eye - 2-1/4"L x 5/8"WSpecifications: Eye Width 1/2" (13 mm) Eye Height 1/2" (13 mm) Eye Stock 1/4" (6 mm) Length 2-1/4" (57 mm) Width 5/8" (16 mm) Fasteners (2), #10 RH (5 mm) C/C 1-11/16" (42 mm) SWL 750 lbs. (350 kg) Weight 1.75 oz. (50 g) Specifications: Color: Stainless Box Dimensions: 1"H x 2"W x 4"L WT: 0.05 lbs UPC: 740507007804

Read more less

Size 1 Single Swivel Block with BecketWith the unique super-low friction ball race systems, featuring acetal sheaves and delrin ball bearings, running on a large diameter center boss. This allows us to fit more load-bearing balls, which ensure extremely low friction performance, even under high loads.Specifications: Sheave size: 20mm x 8mm Max rope diameter: 5mm Safe working load: 275kg / 606lbs Breaking load: 550kg / 1210lbs Length: 39.1mm Weight: 13g

Read more less

Size 1 Deck Organizer - 4 SheaveDesigned for use when diverting mast base control lines and halyards back to the cockpit.  Allowing the crew to sail from the security of the cockpit.Suitable for boats up to 32' (9.75 M) with halyard size up to 7/16"Deck organizers can be double-stacked.Technical Specifications: Material - Spectro Anodized Aluminum  Dimensions (L x W x H) - 7.87" x 1.1" x 1" (200 x 28 x 25 mm)  Weight -  7.05 oz  (200 g)   Sheave Material - Molded Acetal Sheave Diameter - 1.26" (32 mm) Sheave Width - .67" (17 mm) Maximum Line Diameter - .47" (12 mm) *Sold as an Individual  Quick Guide (pdf)Brochure (pdf)

Read more less

Pillar Fairlead for 70300 Cam CleatThis add-on enables the cam cleat to be engaged from a variety of angles. Cams can be fitted either way around to achieve a lead from in front or behind.Features: Made for Barton’s 70300 Maxi Cam Cleat Stainless steel pillars to add strength and wear resistance

Read more less

Pillar Fairlead for 70200 Cam CleatThis add-on enables the cam cleat to be engaged from a variety of angles. Cams can be fitted either way around to achieve a lead from in front or behind.Features: Made for Barton’s 70200 Midi Cam Cleat Stainless steel pillars to add strength and wear resistance

Read more less

Kevlar Cam Cleat MidiManufactured from a composite Kevlar/Zytal material, this advanced material offers performance advantages over carbon fiber and conventional glass-reinforced resins; 'K' cams are very strong, lightweight, and have excellent wear resistance. A progressive tooth design ensures maximum holding power on all types of lines while maintaining minimum wear to both cam and line.Specifications: Max Line Ø: 6 mm - 12 mm (0.4 - 0.55 inches) Fastenings Ø: 5 mm (0.20 in.) Fastenings Center: 40 mm (1.57 in.) Holding Power: 230 kg (507.1 lbs) Weight: 34 kg (74.96 lbs)

Read more less

Deck Organizer - Size 1 - 6 Sheave Designed for use when diverting mast base control lines and halyards back to the cockpit.  Allowing the crew to sail from from the security of the cockpit.Suitable for boats up to 32' (9.75 M) with halyard size up to 7/16"Deck organizers can be double stacked.Technical Specifications: Material - Spectro Anodized Aluminum  Dimensions (L x W x H) - 11.3" x 1.1" x 1" (287 x 28 x 25 mm)  Weight -  10.41 oz  (295 g)   Sheave Material - Molded Acetal Sheave Diameter - 1.26" (32 mm) Sheave Width - .67" (17 mm) Maximum Line Diameter - .47" (12 mm) *Sold as an Individual  Quick Guide (pdf)Brochure (pdf)

Read more less

Small Furling Drum - 2.99"Drums are molded from glass fiber reinforced nylon with stainless steel swivel and ball bearing assemblies. Furling drums will accept lines up to 4mm in diameter.Features:Holds up to 4.3M of LineSpecifications: Drum Diameter: 76mm Sail Area: 60 square foot Break Load: 1,108kg Safe Working Load: 554kg Weight: 218g

Read more less

Size 3 Single Plain Bearing Block with SwivelBarton plain bearing blocks have a precision molded acetal sheave running on a large diameter brass bearing, ensuring free running under the highest of loads.Features: Fully swiveling head with removable shackle For use on dinghies, day boats, and light cruising yachts Specifications & Dimensions: Length: (mm) 100 / (inch) 3-15/16" Weight (grams): 73 g. Single (mm) 45 x 13 / (inch) 1-3/4" x 1/2" Max Rope Diameter: (mm) 10 / (inch) 3/8" SWL: (kg) 400 / (lbs.) 881 Break Load: (kg) 800 / (lbs.) 1763 Note: break loads where break and safe working loads are stated, it is assumed that all sheaves are evenly loaded as in a purchase tackle

Read more less

DO 550 Rope Clutch - Base Plate Replacement base plate for any size Barton Marine DO 550 Rope Clutch.*Sold as an Individual Specifications: Color: Silver Box Dimensions: 1"H x 3"W x 7"L WT: 0.1 lbs UPC: 5035088815470 Brochure (pdf)

Read more less

DO 550 Rope Clutch - Cam Replacement cam for any size Barton Marine DO 550 Rope Clutch.*Sold as an Individual Specifications: Color: Silver Box Dimensions: 1"H x 2"W x 5"L WT: 0.1 lbs UPC: 5035088815463 Brochure (pdf)
