Series 25 Utility Block™ - Single - Swivel Shackle HeadStainless steel cheeks and Acetal sheaves ensure a long service life with virtually no maintenance. Hollow rivets in the block heads can be fitted with shackles, which can also be used to add a becket for extra purchase. Features: Lightweight durable construction Economical Maintenance free Applications: Vang, cunningham and trapeze retriever systems on dinghies Leech line tackles, bunk adjusters, etc on larger boats Materials: U.V. stabilized acetal sheaves Grade 316 Stainless Steel cheeks Specifications:Sheave Ø: 25mm(1")Max. Rope Ø: 6mm(1/4")Pin Ø: 4mm(5/32")M.W.L.: 150kg(330lbs)B. L.: 300kg(660lbs)Weight: 20g(0.7oz)

Read more less

Stainless Steel Cleat - 3"3" SS Open Base Cleat. Includes urethane washers for isolation when attaching to spars. Maximum line size 1/4" (6mm), Length 3" (76mm), Height .6" (15mm), Fastener size #8 FH, Fastener center/center .78" (20mm), Weight 1.3oz (.04kg)

Read more less

Quick Release Pin - 3/16" x 1.5" GripQuick Release Pin, 3/16" x 1.5" Grip. 316 Stainless Steel. Safe Working Load 1700 lbs.

Read more less

Double Stanchion Tube - 26"Double lifeline stanchion is 26" tall and accepts up to 5/16" (8mm) diameter coated wire. Works with Schaefer base 36-01. L 26" (660 mm), W 1" (25 mm), T 1/16" (1.5 mm), Weight 1 lb. 6 oz. (624 g)

Read more less

Cam Fairlead - RedMounts directly to our 70-17 Cam Cleat. Will require (2) #10 RH fasteners.

Read more less

Quick Release Pin - 3/16" x 1" GripQuick Release Pin, 3/16" x 1.0" Grip. 316 Stainless Steel. Safe Working Load 1700 lbs.

Read more less

Stainless Steel Welded Pad Eye - 2"L x 5/8"WSpecifications: Eye Width 1/2" (13 mm) Eye Height 1/2" (13 mm) Eye Stock 3/16" (5 mm) Length 2" (51 mm) Width 5/8" (16 mm) Fasteners (2), #10 RH (5 mm) C/C 1-7/16" (37 mm) SWL 650 lbs. (295 kg) Weight .5 oz. (14 g) Specifications: Color: Stainless Box Dimensions: 1"H x 2"W x 4"L WT: 0.05 lbs UPC: 740507007781

Read more less

Stand-Up Swivel - Aluminum BlockSpecifications: Sheave Dia. 2-2/8" (60 mm) Max Line 1/2" (13 mm) Diameter includes urethane base 3-3/8" (86 mm) Height 4-25/32" (120 mm) H2 2-15/32" (63 mm) Fastener Size (4),1/4" RH (6 mm) C/C 1-11/16" (43 mm) SWL 2250 lbs (1020 kg) Weight Alum. 11.7 oz. (332 g)

Read more less

15" Great HawkFor boats from 8m to 20mThe Great Hawk is designed for Cruising and Racing yachts up to 20m. The Great Hawk vane arm is made from the same super tough nylon and the Reference Arms are made from glassed filled nylon for ultimate rigidity and UV protection. The precision balanced vane arm and Hawks "V" Jewel bearing surface gives instant response to shifts and gusts with minimal inertia. The Reference Arms may be preset at 55, 60 or 65 degrees or any angle you prefer and can be used for either upwind or downwind angles. The 5mm Aluminum support rod is strong enough to take normal wear and tear, but can be bent straight should it be knocked while the mast is being stepped or unstopped. The Great Hawk is easily removed from its mounting bracket with one screw and the mast bracket can be mounted vertically or horizontally. Specifications: Vane Arm length 38cm (15")  Overall height 29cm (11.4")  Overall weight 70 grams. Specifications: Type: Wind Indicator Instrument Function: Wind Box Dimensions: 3"H x 5"W x 16"L WT: 0.5 lbs UPC: 652773100106

Read more less

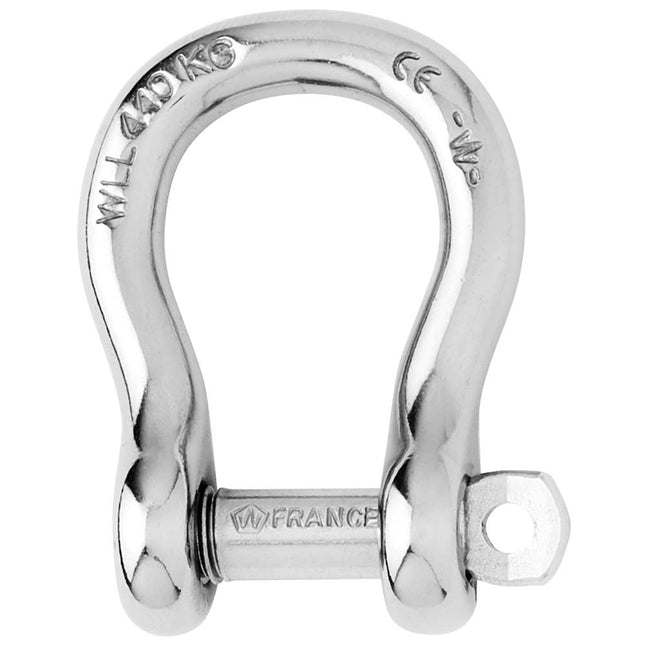

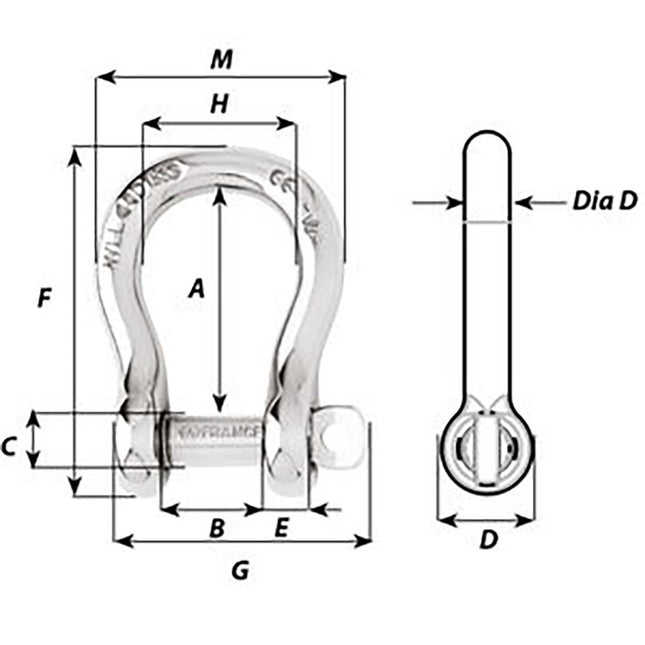

HR D Shackle - 20mm Diameter - 25/32"Features: Forged D shackle in HR stainless steel grade (17,4 PH) Outstanding working and breaking load An HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel WLL: only for industrial applications (lifting i.e…) CE marking Applications: Applications requesting high loads Standard applications of the shackle Attachment applications: blocks, head … Do not use it for mooring applications Specifications: Materials: HR 17.4 PH stainless steel grade Working load: (lb) 19400 / (kg) 8800  WLL: (lb) 12340 / (kg) 5600  Breaking load: (lb) 61720 / (kg) 28000  Weight: (lb) 1.896 / (g) 860  Dimensions: A: (inch) 2 3/4" / (mm) 70  B: (inch) 1 37/64" / (mm) 40  D diameter: (inch) 25/32" / (mm) 20  Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5 High Resistance (HR) *Sold as an Individual Quick Guide (pdf)

Read more less

1/2" Eye Nut - 13/16" Diameter Features: Imperial thread A complete range of single-piece forged products for fastenings applications Outstanding breaking loads Available in different sizes  Applications: Various fastening applications Towing application Waterskiing lines attachment Specifications:Materials: 316L stainless steel gradeDimensions: Diameter: (inch) 13/16" / (mm) 20.6 Thread UNC (Unified Coarse): 1/2" x 13" *Sold as an Individual

Read more less

45ST EVO® Self Tailing Winch Alloy - GreyAn evolution of the renowned Lewmar Ocean winch, the EVO® Self-Tailing Winch draws on a wealth of design and manufacturing experience to produce a state-of-the-art winch. Features: Easy Servicing – no tools required User-friendly direction arrows Convertible to electric Technical Specifications: Drum Diameter - 3.42" Base Diameter -  6.61" Height - 6.99" Line entry - 3.31" Line size: - .32" - .55" Gear Ratio 1st Gear - 2.4:1 Gear Ratio 2nd Gear - 7.6:1 Power Ratio 1st Gear  - 13.9:1 Power Ratio 2nd Gear - 44.8:1 SWL - 2646lbs Weight - 15.8lbs In the Box: Winch Instruction manual *Sold as an Individual Owner's Manual (pdf)

Read more less
