Sailing

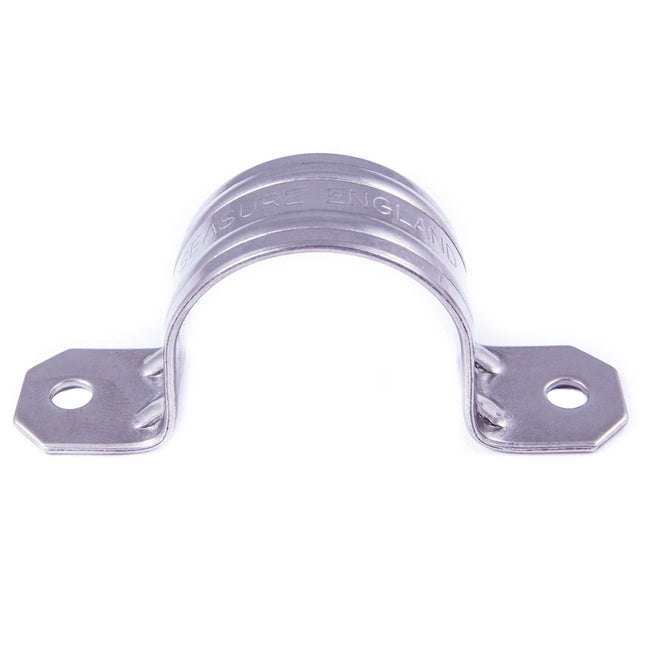

Clip for 1.25" StanchionThis stainless steel clip is for a 1.25 in. stanchion.Specifications:Weight: 0.025kg

Read more less

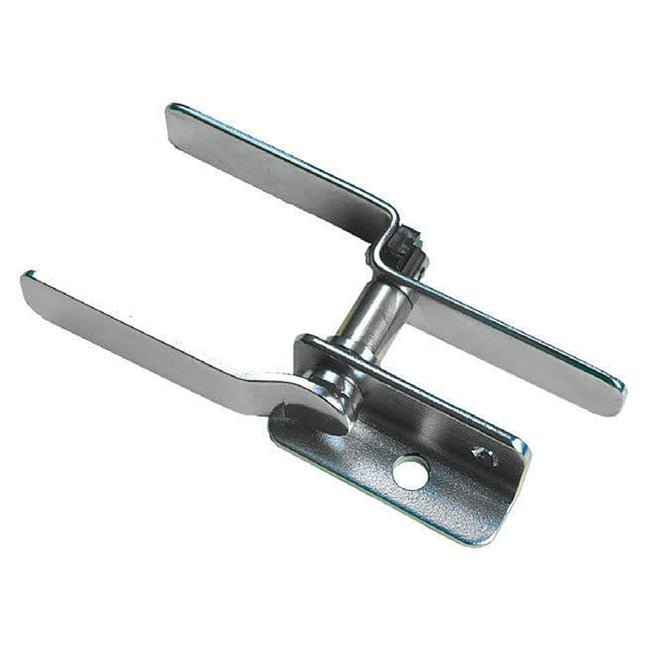

Hatch LockUsed to secure the sliding hatch to the washboards, this hatch lock can be operated from the cabin or the cockpit. Provision for a padlock.Features: Suitable for washboards up to 19mm thick The Only RORC-certified hatch lock Specifications:Weight: 0.2kg

Read more less

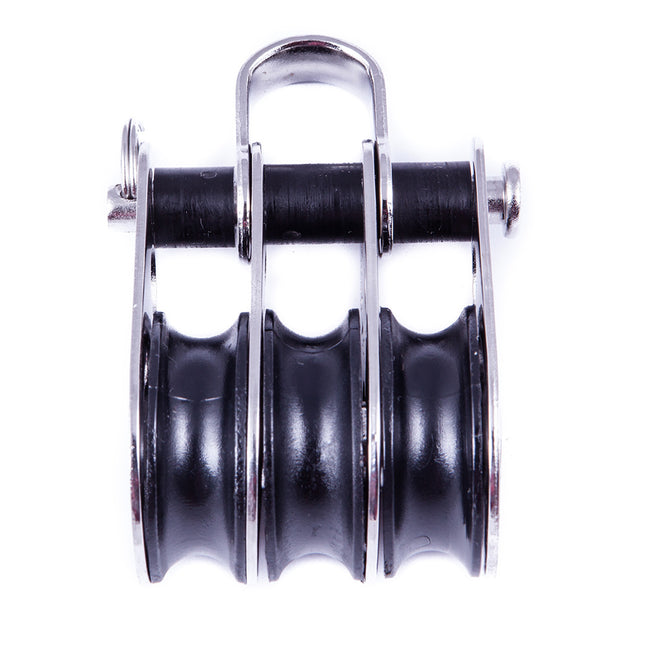

25mm Treble Block with ShackleThe 25mm plain bearing block range is one of SeaSure's oldest and best-selling ranges. The range uses marine-grade stainless steel side plates and rivets with an arnite (plastic) sheave, which is incredibly hard-wearing and light. Features: This range could be used to create purchasing systems for lifting, garage door mechanisms, storage solutions, etc. The 00.31 can be used to create a 6:1 purchase system to aid in lifting heavier objects and decrease the load on the rope Specifications: Max Rope: 8mm Breaking Load: 1250kg

Read more less

FRX20 Friction Ring - 20mm (25/32")Features: Efficient and light FRX Wichard thimbles are efficient, light, and reliable Very strong and can be used for heavy loads and semi-static lines FRX thimbles are designed to make your lines run smoothly with minimum wear They are hard anodized (50 microns) for a longer lifespan Applications:Mast-foot block, barber-hauler, inhauler, loop, thimble, lazy jack, running backstay, tackle, and moreSpecifications: Materials: Anodized aluminium Working load: (lb) 7050 / (kg) 3200 Weight: (lb) 0.068 / (g) 31 A: (inch) 35/64" / (mm) 14 B: (inch) 25/32" / (mm) 20 C: (inch) 53/64" / (mm) 21 D diameter: (inch) 1 27/32" / (mm) 47 Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5 Quick Guide (pdf)

Read more less

Snatch Block with Snap Shackle - Max Rope Size 18mm (23/32")Features: Free rotation thanks to snap shackle Very strong closing system Easy opening by simply pulling on the plunger pin Shock and scratch-resistant thanks to the elastomer molded cheeks Applications: Changing sheets Spinnaker sheet deflector blocks Materials:  HR 17.4 PH forged stainless steel arm  Elastomer molded cheeks Composite sheave Specifications: Rope size: (inch) 23/32" / (mm) 18 Length: (inch) 6 7/64" / (mm) 155 Width: (inch) 2 21/64" / (mm) 59 Thickness: (inch) 1 59/64" / (mm) 49 Working Load: (lb) 2640 / (kg) 1200 Breaking Load: (lb) 5510 / (kg) 2500 Weight: (lb) 0.913 / (g) 414 Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5 *Sold as an Individual Quick Guide (pdf)

Read more less

Snatch Block with Snap Shackle - Max Rope Size 12mm (15/32")Features: Free rotation thanks to snap shackle Very strong closing system Easy opening by simply pulling on the plunger pin Shock and scratch-resistant thanks to the elastomer molded cheeks Applications: Changing sheets Spinnaker sheet deflector blocks Materials:  HR 17.4 PH forged stainless steel arm  Elastomer molded cheeks Composite sheave Specifications: Rope size: (inch) 15/32" / (mm) 12 Length: (inch) 5 45/64" / (mm) 145 Width: (inch) 2 21/64" / (mm) 59 Thickness: (inch) 1 11/16" / (mm) 43 Working Load: (lb) 1580 / (kg) 720 Breaking Load: (lb) 2860 / (kg) 1300 Weight: (lb) 0.56 / (g) 254 Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5 *Sold as an Individual Quick Guide (pdf)

Read more less

Diamond Pad Eye - Square - 60mm Length (2-23/64") - M5 ScrewFeatures: Mechanical resistance versus corrosion resistance ratio Optimized dimensions For M5 screw Applications: Mast foot blocks  Reefing blocks Various fastenings Specifications: Materials: Duplex stainless steel grade Working Load: (lb) 2645.5 / (kg) 1200 Breaking Load: (lb) 7054.7 / (kg) 3200 Weight: (lb) 0.13 / (g) 59 W.L 1 (90 degrees): (lb) 2645.5 / (kg) 1200  W.L 2 (45 degrees): (lb) 2425 / (kg) 1100  W.L 3 (0 degrees): (lb) 2425 / (kg) 1100  B.L 1 (90 degrees): (lb) 7054.7 / (kg) 3200  B.L 2 (45 degrees): (lb) 6613.8 / (kg) 3000  B.L 3 (0 degrees): (lb) 6613.8 / (kg) 3000  Dimensions: A: (inch) 2 23/64" / (mm) 60 B: (inch) 1 13/16" / (mm) 46 C: (inch) 1 1/2" / (mm) 38 D: (inch) 15/16" / (mm) 24 E: (inch) 15/32" / (mm) 12 F: (inch) 3/4" / (mm) 19 Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5 *Sold as an Individual Quick Guide (pdf)

Read more less

Diamond Pad Eye - Square - 98mm Length (3-55/64") - M8 ScrewFeatures: Mechanical resistance versus corrosion resistance ratio Optimized dimensions For M8 screw Applications: Mast foot blocks  Reefing blocks Various fastenings Specifications: Materials: Duplex stainless steel grade Working Load: (lb) 9479.8 / (kg) 4300 Breaking Load: (lb) 25573.6 / (kg) 11600 Weight: (lb) 0.562 / (g) 255 W.L 1 (90 degrees): (lb) 9479.8 / (kg) 4300  W.L 2 (45 degrees): (lb) 9479.8 / (kg) 4300  W.L 3 (0 degrees): (lb) 9038.9 / (kg) 4100  B.L 1 (90 degrees): (lb) 25573.6 / (kg) 11600  B.L 2 (45 degrees): (lb) 25573.6 / (kg) 11600  B.L 3 (0 degrees): (lb) 24250.8 / (kg) 11000  Dimensions: A: (inch) 3 55/64" / (mm) 98 B: (inch) 2 7/8" / (mm) 73 C: (inch) 2 21/64" / (mm) 59 D: (inch) 1 3/8" / (mm) 35 E: (inch) 49/64" / (mm) 19.5 F: (inch) 1 1/16" / (mm) 27 Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5 *Sold as an Individual Quick Guide (pdf)

Read more less

Ratchet Block - 55mmThe Barton Ratchet Block is designed to be used on mainsheet systems and spinnaker sheets on dinghies and keelboats and for small yachts up to 30 feet.Combining high-performance engineering and contemporary design, the 2-3/16" (55 mm) ratchet block is the first in a planned range of sizes, it also offers a stainless steel lever that locks the swivel head if desired.The new Ratchet Block allows sailors to easily handhold loaded lines and offer a balance between holding power and controlled easing.Designed for low friction and longevity in harsh marine environments, the Ratchet Block body is manufactured from a composite of high-density nylon and glass fiber reinforced polymer with a high level of UV protection. Internal components are of marine grade 316 stainless steel and the 12 faced aluminum sheave is anodized in gunmetal silverTechnical Specifications: Safe Working Load - 661 lb (300 kg)  Breaking Load - 2,646 lb (1,200 kg)  Maximum Rope Diameter - 3/8" (10 mm) Weight - 4.8 oz (135 grams) *Sold as an Individual

Read more less

Large Wincher PairThe Barton Wincher is a specially designed rubber molding that converts your standard winch into a self-tailing winch.  This tried and tested design has been a firm favorite with Sailors for many years.The Wincher works by gripping the rope when the drum is fully loaded and under tension, peeling off the line from the underside of the Wincher as you winch to give a true self-tailing motion.Cleating is achieved by locking the sheet into the Wincher’s ribbed central groove.Technical Specifications: Fits Drum Diameter - 3" to 3.5" (76.2 to 88.9 mm) Maximum Rope Diameter - .47" to .55" (12 to 14 mm) Weight - 9.8 oz (278 g)  *Sold as a Pair Brochure (pdf)

Read more less

SkyDock Storage System 3 to 1 Reduction Up to 175 LBS 4-Point LiftSkyDock is the ultimate roof space storage solution for loads up to 175 lbs (80 KG.)  Designed for use in any space with a ceiling height of up to 13' (4 M), the SkyDock works in garages, sheds, barns, and lofts for commercial uses in yards, marinas, yacht clubs, and warehouses.Utilizing a 3:1 purchase system,  It smoothly lifts bulky and awkward objects or loads, out of the way, from the floor or roof of your car, to stow them up high until needed again.  Ideal for dinghies, kayaks, canoes, paddleboards, camping equipment, roof boxes, bicycles, garden furniture, horse saddles, pallets of assorted bits and pieces, and any kit that needs to be stored out of the way, but retrieved easily and smoothly when needed.Designed with a unique self-locking block, meaning loads can be raised by one person without stress.  If the control line is released the locking block firmly holds the load, stopping items from falling.  For ultimate security, a fixed wall cleat is supplied to tie off the line.Features: Complete garage storage solution for dinghies, kayaks, canoes, camping equipment, etc Easily raised by one person Self-locking cleating block Comprehensive fitting instructions provided Technical Specifications: Mechanical Advantage - 3:1 Maximum Lift Capacity -  175 lbs (80 KG) Maximum Lif Height - 13' (4 M), In the Box: 1 x Black control line with SkyLock block and pulley block for 3:1 mechanical advantage 5 x Eye bolts 4 x Pulley blocks with shackles 1 x Blue lifting line 2 x Blue lifting straps 1 x Rope organiser with 2 bolts 1 x Horn cleat with 2 screws 1 x Instruction manual  *Sold as an Individual Kit Brochure (pdf)

Read more less

Extra Large Wincher PairThe Barton Wincher is a specially designed rubber molding that converts your standard winch into a self-tailing winch.  This tried and tested design has been a firm favorite with Sailors for many years.The Wincher works by gripping the rope when the drum is fully loaded and under tension, peeling off the line from the underside of the Wincher as you winch to give a true self-tailing motion.Cleating is achieved by locking the sheet into the Wincher’s ribbed central groove.Technical Specifications: Fits Drum Diameter - 3.5" to 4" (90 to 100 mm) Maximum Rope Diameter - .47" to .63" (12 to 16 mm) Weight - 13.65 oz (387 g)  *Sold as a Pair Brochure (pdf)

Read more less
