Description
0183 to N2K Gateway with PC Interface, USB Connection
Intelligent Gateway technology enables PC interfacing and NMEA data conversion…
The NGX-1 is an intelligent multi-function gateway, combining the power of our two previous generation products (NGT-1 and NGW-1) into one, cost effective, flexible product.
Configure the NGX-1 to operate as an NMEA 2000 <–> PC interface, or as a bi-directional NMEA 0183 <–> NMEA 2000 conversion gateway.
Features:
View all NMEA 2000 network data on Actisense NMEA Reader. The device supports every available PGN in the NMEA 2000 standard.
View converted NMEA 0183 data on Actisense NMEA Reader. The device sports the largest conversion library of any gateway.
Easily interface with a wide range of PC applications via the NGX-1, such as TimeZero (NMEA 2000) and OpenCPN (NMEA 0183).
Configure the Actisense EMU-1, NGW-1 and NGX-1 via Actisense Toolkit using an NGX-1.
Connect legacy NMEA 0183 instruments together with new NMEA 2000 networks, greatly reducing upgrade costs.
Vital NMEA 2000 diagnostic tool
Fully isolated to prevent dangerous ground loops
Up to 230,400 baud data transfer rate
Advanced configuration using Actisense Toolkit allows Tx / Rx lists and Tx rates to be set
Supports Fast Heading at 10Hz
Multiple diagnostic LEDs
Allows all major PC Chartplotter applications to interface with the NMEA 2000 bus
Provides a rule-enforcing firewall between the PC and the NMEA 2000 bus
Powerful diagnosis of the NMEA 2000 network using the FREE NMEA Reader software provided
Configure and flash-update Actisense products on the bus
Upgrade NMEA 0183 equipment to NMEA 2000
Allow NMEA 0183 devices to receive vital NMEA 2000 data
Use the NMEA 2000 bus to multiplex several NMEA 0183 signals together
Reliable, renowned bi-directional conversion engine
Supports a wide range of conversions including AIS
Easily configurable using Actisense Toolkit
Technical Specifications
Power Supply
Supply Voltage (NMEA 2000 Port) - 9 to 30V DC
Supply Current (NMEA 2000 Port) - 62mA @ 9V DC
Load Equivalent Number (LEN) - 2
NMEA 2000 Port
Speed / Baud Rate - 250kbps
Connectivity - M12 Male (A coded)
USB Port
Compatibility - USB 1.1, 2.0 and 3.0
Speed / Baud Rate - 4800 to 230400 Baud
Connectivity - Male type A plug moulded onto cable
Cable Length - 1.8m
Isolation
NMEA 2000 Port to ISO Port - Uses IsoDriveTM, Hi-Pot tested to 1000V
NMEA 2000 Port to USB Port - Galvanic Isolation, Hi-Pot tested to 1000V
Mechanical
Housing Material Body - Flame retardant Polycarbonate
Housing Material End Caps - Flame retardant PBT
Weight - 113g
Approvals and Certifications
NMEA 2000 - NMEA 2000 Certified
NMEA 0183 - Meets IEC 61162-1 & 61162-2 Requirements
RoHS and REACH - Compliant
Module Certification - KCC / BQB / IC / Wi-Fi / NCC / MIC / FCC DSS / FCC DTS / SRRC / CE, EN 60945:2002 Edition 4 (section 9.3), EN 301 489-1 V2.2.3, EN 301 489-17 V3.2.4
EMC - EN 300 328 V2.2.2 Radiated Spurious Emissions, FCC Part 15b, ICES-003 Iss 7
Environmental Protection IP67
Operating Temperature -25°C to +70°C
Storage Temperature -30°C to +70°C
Recommended Humidity 0 to 93% RH @ 40°C
Guarantee 3 years, extended to 5 years upon registration
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications:
Cable Length (Feet): 5.9'
Data Interface: NMEA 0183
Box Dimensions: 2"H x 6"W x 6"L WT: 0.5 lbs
UPC: 5060998710560
Quick Guide (pdf) Owner's Manual (pdf) Brochure (pdf) VIDEO
VIDEO

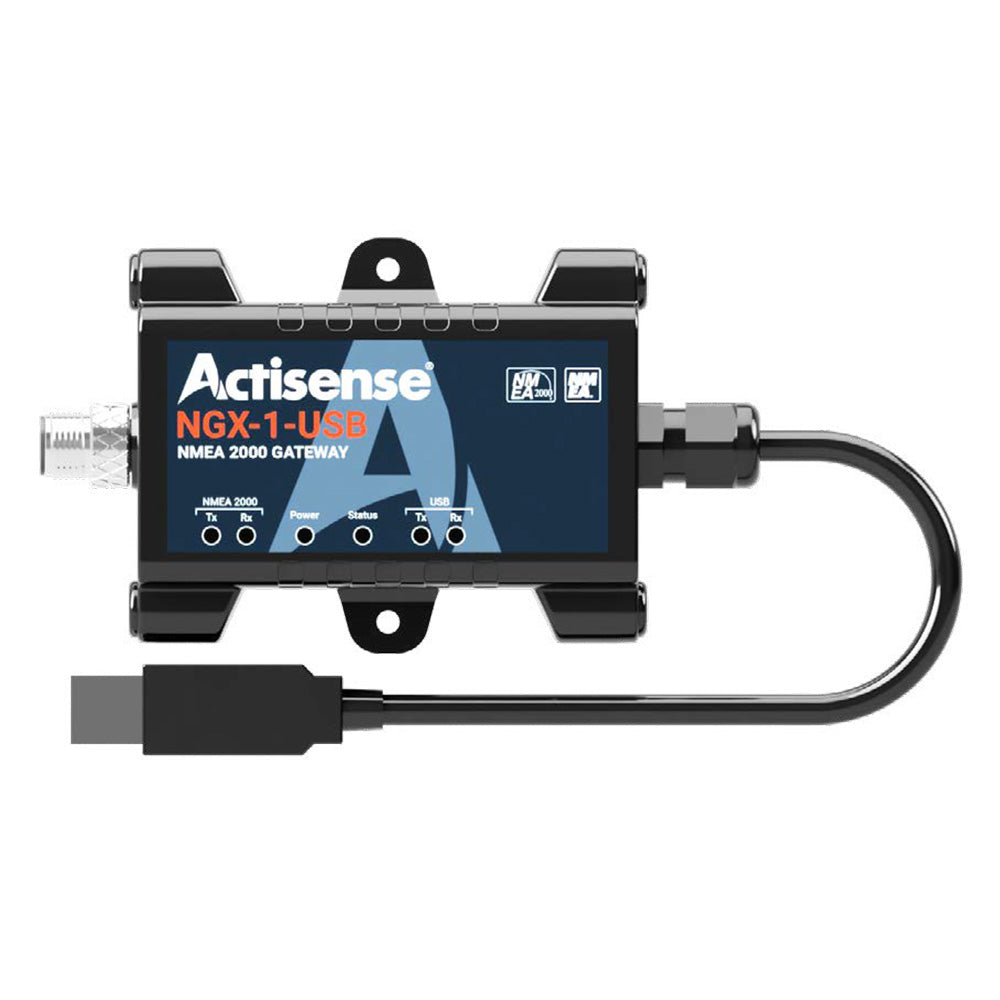

![Actisense 0183 to N2K Gateway w/PC Interface, USB Connection [NGX-1-USB]](http://safewaterstore.net/cdn/shop/files/102318XL.jpg?v=1711876599)
