PRO NMEA 0183 Multiplexer
Eight OPTO-isolated inputs and six ISO-Drive™isolated outputs. Offering device protection and excellent flexibility, all in one product.

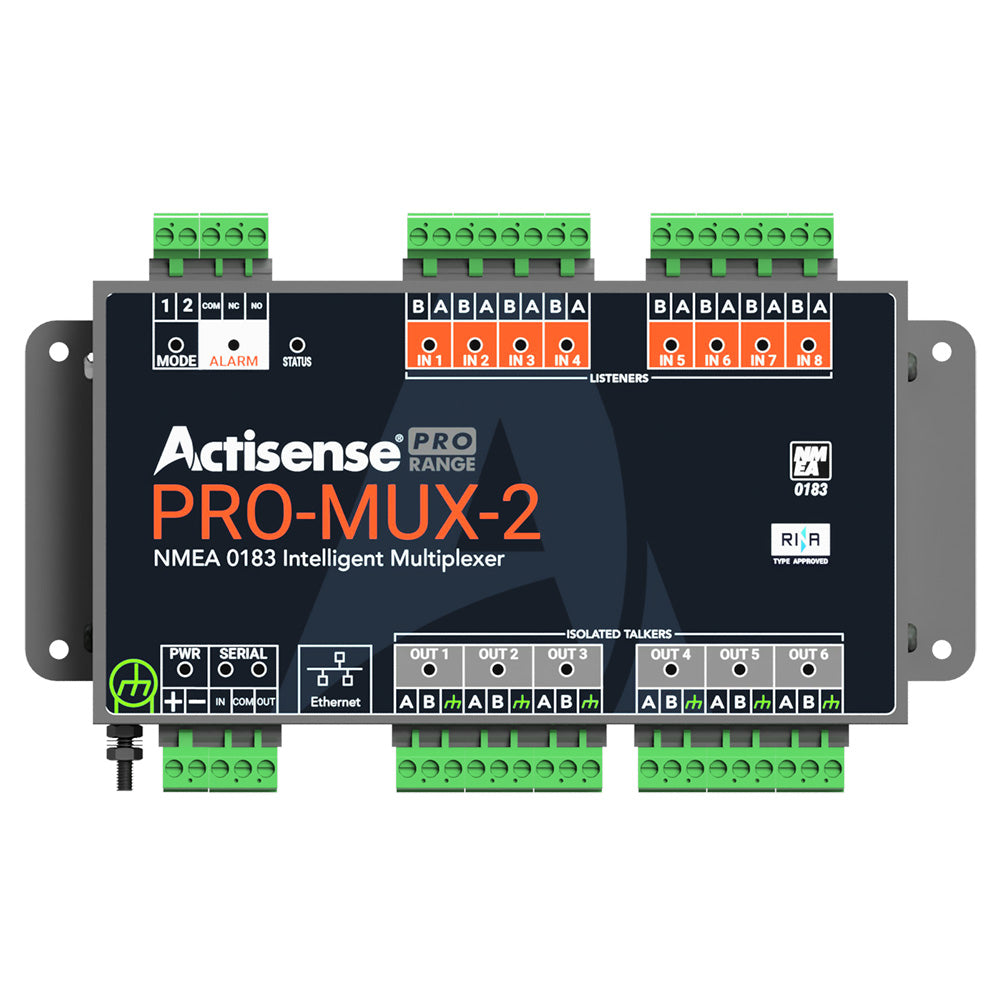

Introducing the Actisense® PRO-MUX-2, the intelligent, type-approved PRO range multiplexer.
The PRO-MUX-2 is rugged, with a stainless steel housing, and provides isolation on all inputs and outputs. With eight NMEA 0183 inputs, six NMEA 0183 outputs, a bi-directional serial port and an Ethernet port, the PRO-MUX-2 is a perfect solution for larger leisure vessels, commercial shipping and is a great addition for systems that require type-approved devices.
The PRO-MUX-2 is designed to suit the majority of NMEA 0183 systems, from leisure through to class vessels.
Features:
8 OPTO-isolated NMEA 0183 inputs
6 ISO-Drive NMEA 0183 outputs
Bi-directional isolated serial port (can be used for additional NMEA 0183 input/ output)
0183 streaming via Ethernet
Alarm output (N/O and N/C contacts)
Designed for 12- and 24-Volt supply
Isolation to battery supply
Configurable input and output baud rates for rate conversion
Data combining from any input to any output
2 independent Autoswitch virtual inputs with priority
Advanced sentence-based filtering / routing
Diagnostic LEDs on all inputs and outputs
Alarm, mode and Bi-colour Status LED’s
2-part pluggable connector system supports both screw and screwless terminals
DIN rail or Panel mountable
Advanced statistics are available via a Web Browser
Quick and easy to install
Configuration using standard web browser, no PC operating system compatibility issues
Advanced features solve NMEA 0183 data routing problems
Fully isolated with ISO-Drive technology for peace of mind
Easy firmware updates makes the device future-proof
Technical Specifications:
Power Supply
Input Supply Voltage - 9 to 35 V DC
Input Supply Current - 220mA max @ 12V DC (all outputs @ full drive into 100 ohm loads)
Input Protection - Continuous reverse polarity, transient overvoltage and ESD protection
Power Indicator - LED, Blue – indicates unit is functioning correctly
Input Supply Connector - Pluggable 2-way screw terminal, 5.08mm pitch (12 to 30 AWG)
NMEA 0183 Port – Listener & Talker
Number of Listener / Input Ports - 8 isolated NMEA 0183 Listeners
Number of Talker / Output Ports - 6 isolated NMEA 0183 Talkers
Compatibility - Fully NMEA 0183, RS422 & RS232 compatible. RS485 Listener compatible
Speed / baud rate - 4800 to 38400 bps
Talker Output Voltage Drive - >= 2.2V (differential) into 100 ohm
Talker Output Current Drive - 20 mA maximum per output
Talker Output Protection - Short circuit and ESD
Talker Data Indicator - LED, Orange (Flashes at data rate)
Listener Input Voltage Tolerance - -15 V to +15 V continuous, -35 V to +35 V short term (< 1 second)
Listener Input Protection - Current limited, overdrive protection to 40 VDC and ESD protection
Listener Data Indicator - LED, Green (Flashes to indicate valid input)
Connectors - Pluggable 2/3-way screw terminals, 5.08mm pitch (12 to 30 AWG)
Serial Port
Compatibility - RS422 & RS232 compatible. RS485 Listener compatible
Speed / baud rate - 4800 to 115200 bps
Output Voltage Drive - >= 2.1V (differential) into 100 ohm
Output Current Drive - 20 mA max.
Output Protection - Short circuit and ESD
Input Voltage Tolerance - -15 V to +15 V continuous, -35 V to +35 V short term (< 1 second)
Input Protection - Current limited, overdrive protection to 40 VDC and ESD protection
Data Indicators - LED’s: Green = Receive, Orange = Transmit
Connectors - Pluggable 3-way screw terminals, 5.08mm pitch (12 to 30 AWG)
Ethernet Port
Host Interface - 10/100BaseT, automatic polarity detection
Supported Protocols - TCP/IP for configuration and firmware updating, TCP/IP and UDP for NMEA 0183 comms
Indicators - Green = Link/Activity, Yellow = 100 Mbps
Connector - RJ45
Isolation
NMEA 0183 Listener - OPTO-Isolated, Hi-Pot tested to 1000V
NMEA 0183 Talker - Uses IsoDrive™, Hi-Pot tested to 1000V
Serial Port - Uses IsoDrive™, Hi-Pot tested to 1000V
Alarm Relay - Hi-Pot tested to 1000V
Ethernet Port - 2kV for 60s
Mode Inputs
Input Voltage Range - 0 to 35V DC
Protection - Transient overvoltage and ESD protection
Connectors - Pluggable 2-way screw terminals, 5.08mm pitch (12 to 30 AWG)
Alarm Output
Contacts - Common, Normally Open and Normally Closed
Alarm Indicator - LED, Red indicates a valid alarm condition
Contact Ratings - 35VAC / 50VDC
Connectors - Pluggable 3-way screw terminals, 5.08mm pitch (12 to 30 AWG)
Mechanical
Housing Material - 316 Stainless Steel
Dimensions - 210mm (W) x 128mm (H) x 27mm (D)
Weight - 540g
Mounting - Bulkhead mount or DIN rail mount (DIN kit 1)
Approvals and Certifications
Compass Safe Distance - 175mm
Type Approval Certificate - RINA
Operating Temperature - -25 to +70°C
Storage Temperature - -40 to +85°C
Relative Humidity (RH) - 95% @ 55°C
Environmental Protection - IP40
Guarantee - 5 Years
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications:
Data Interface: NMEA 0183
Box Dimensions: 2"H x 6"W x 10"L WT: 1.5 lbs
UPC: 5060998710584
