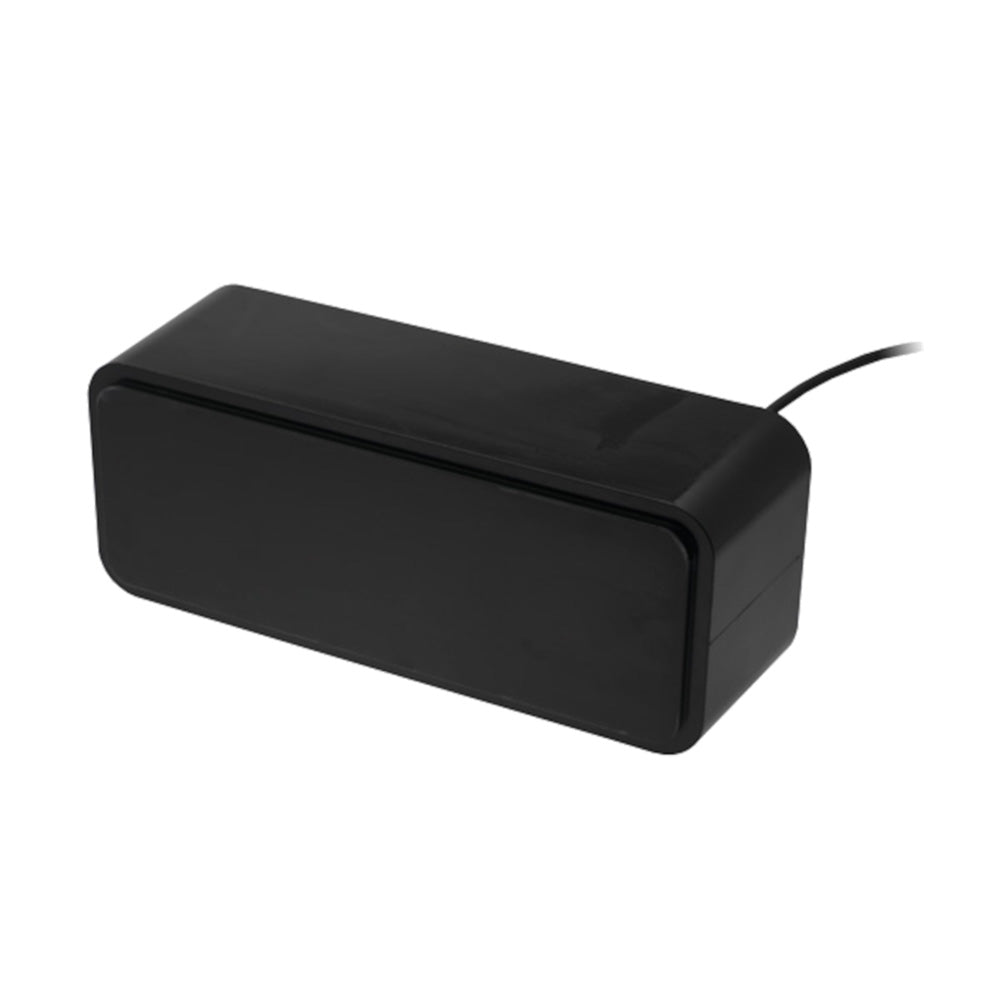

CM599LH 1-3kW Pocket Mounted Transducer - No Connector
Having the right tool for the job makes the job easier and gives better results. The right tool for covering deep-water haunts of swordfish, tuna, and other species is a 2 to 3 kW, low and high-frequency transducer. The Chirp-ready CM599LH gives the deep-water performance of the low frequency down to 3000 m (10000') plus the incredible resolution that the high-frequency band delivers.
The CM599LH is packed with a twenty-four-element, low-frequency array that operates at anywhere between 28 and 60 kHz. The single, high-frequency ceramic operates at any frequency between 130 and 210 kHz and has a narrow, 8° to 4°, beamwidth.
Features:
- Depth and fast-response water-temperature sensing
- 2 to 3 kW of power for exceptional deep-water performance
- Low frequency: 28 to 60 kHz
- 23° to 9° port-starboard beamwidth
- 11° to 5° fore-aft beamwidth
- Maximum depth to 3048 m (10000')
- High frequency: 130 to 210 kHz
- 8° to 4° beamwidth
- Maximum depth to 457 m (1500')
- 112 kHz of total bandwidth from one transducer
- Covers popular fishing frequencies of 50 and 200 kHz plus everything else in the bandwidth
- Resin housing with curved-edge design for wet-box installation
- Can be installed in a cavity or welded tank
- Also available as thru-hull external (R509LH) and in-hull (R599LH) mounts
- Patented Xducer ID® technology
Specifications:
- Frequency Band: Low-High
- Functions: Depth, Temperature
- Material: Urethane
- Mounting Style: Tank, Cavity, Pocket/Keel Mount
- Connector: Bare Wire
- Display Connector: 0
- Hull Material: Fiberglass or metal
- Max Vessel LOA: 8 m (25') and above
- High Frequency: 130-210 kHz
- Common Use: Fishing, Commercial Fishing
- Max Deadrise Angle: Any
- Tilted Element: No
- Low Frequency Beamwidth: 11°x23°-5°x9°
- Low Frequency: 28-60 kHz
- High Frequency Beamwidth: 8°-4°
- Max Deadrise: Accommodates any deadrise angle based on custom installation
- Power Rating: 2-3 kW
- Single or Dual Frequency: CHIRP-Ready Dual-Band
- Country of Origin: USA
- Cable-Length: 15 m (49')
- Weight: 14.2 kg (31.2 lb.)
- Max Depth: Low frequency- 3048 m (10000'), High frequency- 457 m (1500')
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Quick Guide (pdf)Brochure (pdf)
