Description

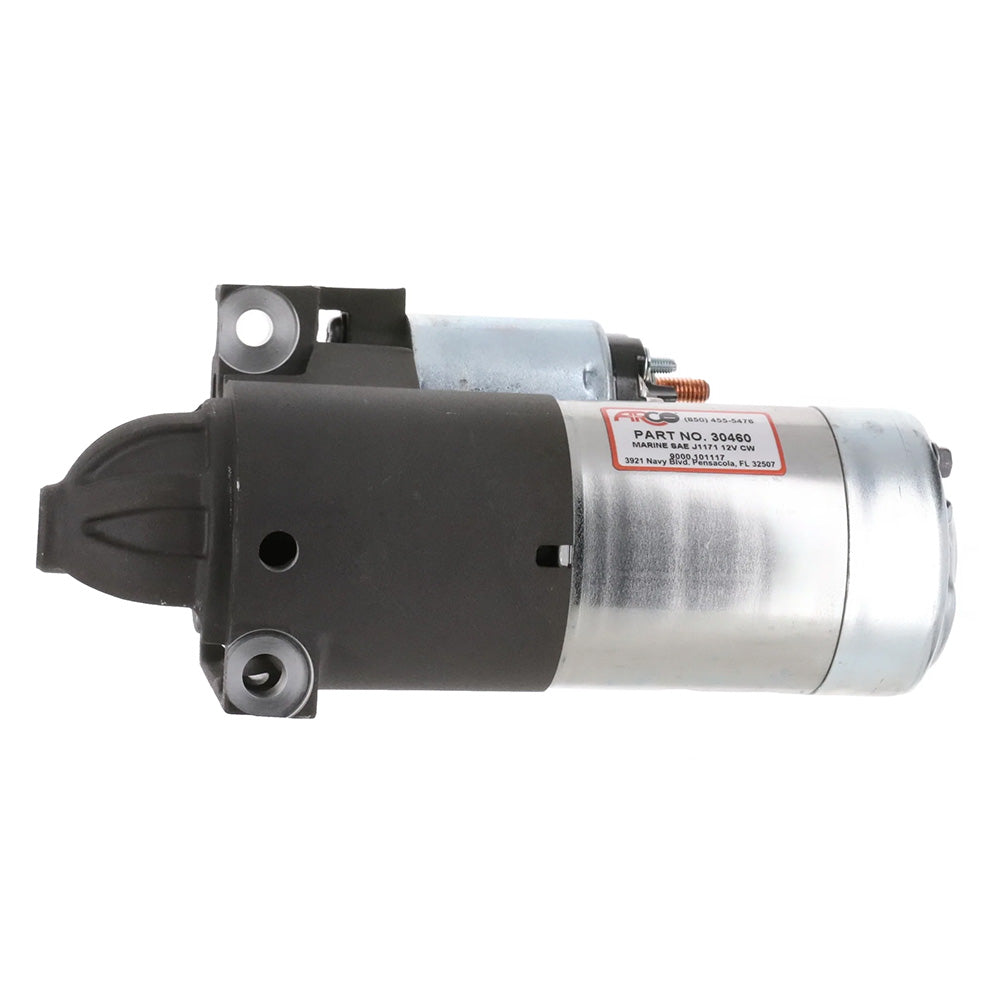

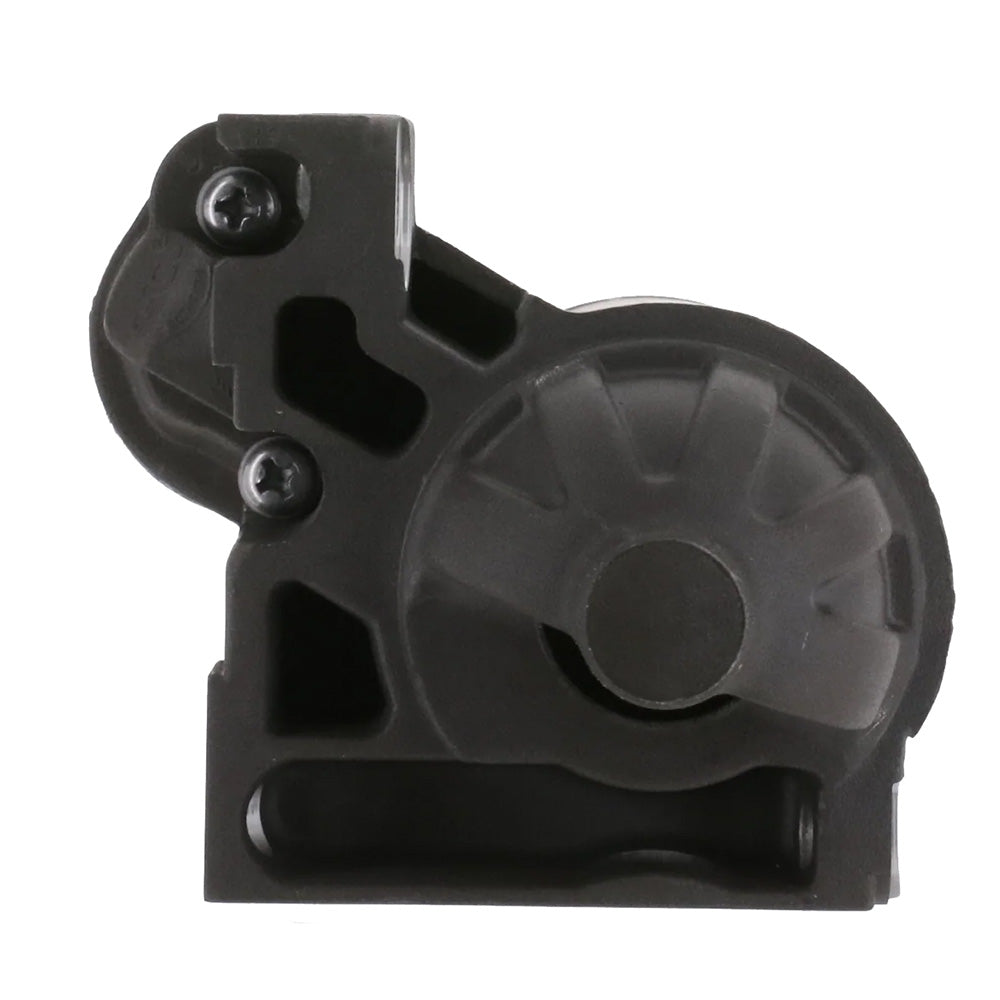

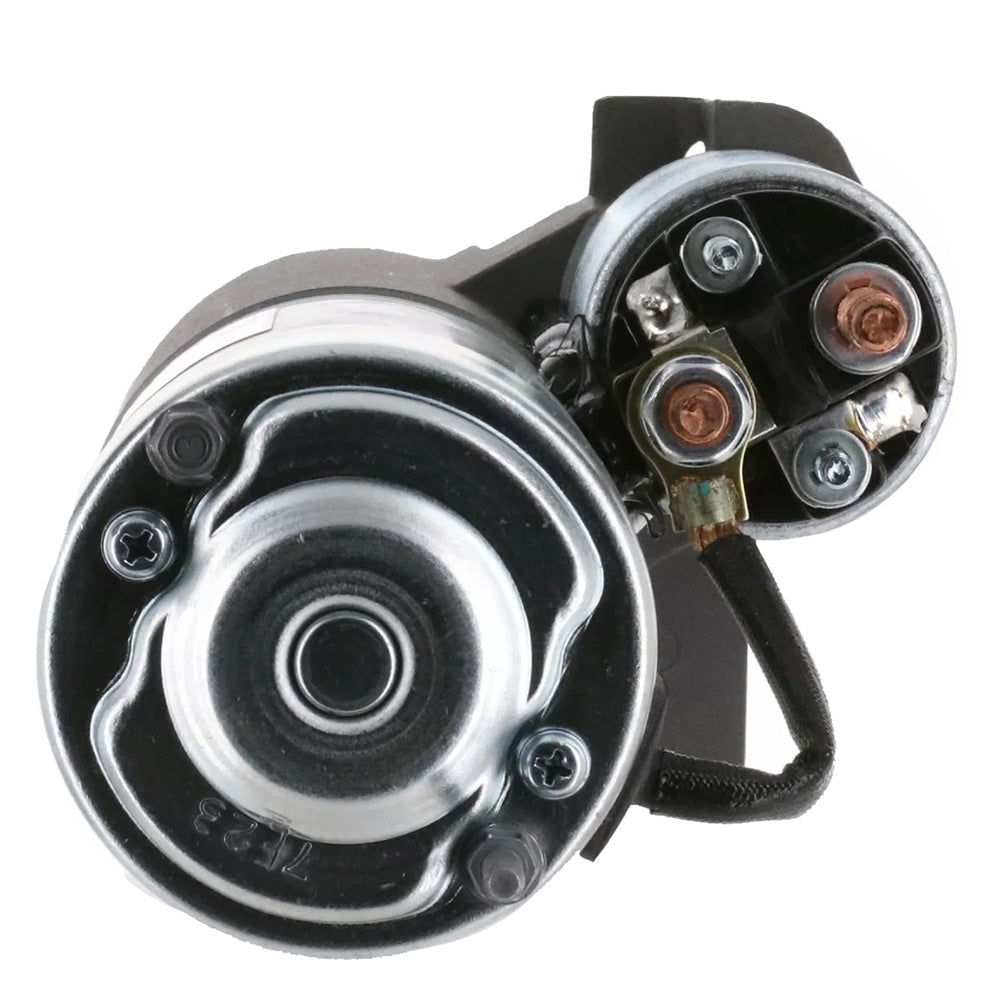

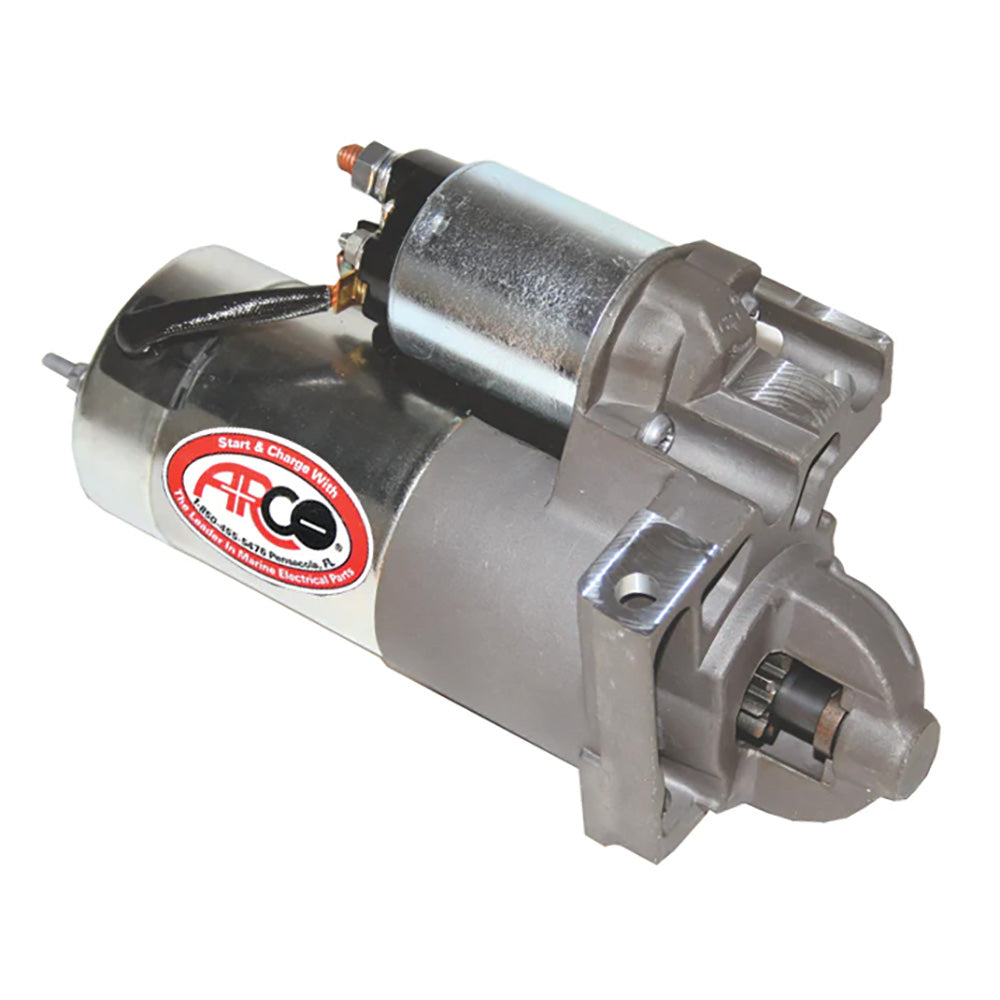

Inboard Starter with 12-3/4" Flywheel & Gear Reduction
The inboard starter that will fit Mercruiser, Volvo Penta, OMC, Yamaha, and others. 12-3/4" flywheel. Clockwise Rotation. Will replace all CW rotating 10MT starters with one long and one short bolt straight across the pattern. Includes mounting bolts and gasket. Anodized casting, nickel-plated brush holder.
ARCO advises using a fully charged battery - A weak battery can damage the starter and starter solenoid. And to also clean all connections - A corroded connection creates resistance, lowering the amperage required for an efficient starting circuit.
Features:
- Dynamically tested and packaged for out-of-the-box performance
- Nickel-coated and/or epoxy-painted to reduce corrosion
- Sealed to minimize water intrusion
- Designed for long life and optimum performance
- Armatures are tested to withstand 50 times operating voltages (12 volts)
Warranty Information:
When properly installed, all ARCO products are warrantied against defects in materials and workmanship for a period of 12 months for leisure use and 90 days for commercial or racing applications.
Add an extra year of warranty to your rotating electric ARCO product (Tilt/Trim Motors, Alternators, Outboard Starters, and Inboard Starters) when you register your product within 30 days of purchase. You can register your product by visiting arcomarine.com/product-registration
Replaces:
BRP/ OMC Inboard Starter 381781
BRP/ OMC Inboard Starter 384198
BRP/ OMC Inboard Starter 981074
BRP/ OMC Inboard Starter 981078
BRP/ OMC Inboard Starter 982107
BRP/ OMC Inboard Starter 982121
BRP/ OMC Inboard Starter 982200
BRP/ OMC Inboard Starter 983248
BRP/ OMC Inboard Starter 983444
BRP/ OMC Inboard Starter 983790
BRP/ OMC Inboard Starter 985966
BRP/ OMC Inboard Starter 988217
BRP/ OMC Inboard Starter 3850526
BRP/ OMC Inboard Starter 3854750
BRP/ OMC Inboard Starter 3855882
BRP/ OMC Inboard Starter 3858463
DELCO Inboard Starter 9000763
DELCO Inboard Starter 9000820
DELCO Inboard Starter 9000822
MARINE POWER Inboard Starter 0172-000
MERCURY Inboard Starter 50-32703
MERCURY Inboard Starter 50-45120
MERCURY Inboard Starter 50-46282
MERCURY Inboard Starter 50-59799
MERCURY Inboard Starter 50-69863A1
MERCURY Inboard Starter 50-69864A1
MERCURY Inboard Starter 50-77328A1
MERCURY Inboard Starter 50-77328A3
MERCURY Inboard Starter 50-79821A2
MERCURY Inboard Starter 50-79822A1
MERCURY Inboard Starter 50-79822A2
MERCURY Inboard Starter 50-79823A1
MERCURY Inboard Starter 50-806963A2
MERCURY Inboard Starter 50-806963A4
MERCURY Inboard Starter 50-806965A2
MERCURY Inboard Starter 50-806965A4
MERCURY Inboard Starter 50-812429A2
MERCURY Inboard Starter 50-99417A2
PLEASURECRAFT Inboard Starter RA122016
VOLVO Inboard Starter 3862308
VOLVO Inboard Starter 3854750-1
VOLVO Inboard Starter 3856003-3
VOLVO Inboard Starter 855326-5
SIERRA Inboard Starter 18-5900
SIERRA Inboard Starter 18-5911
SIERRA Inboard Starter 18-5919
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Quick Guide (pdf)
