Description

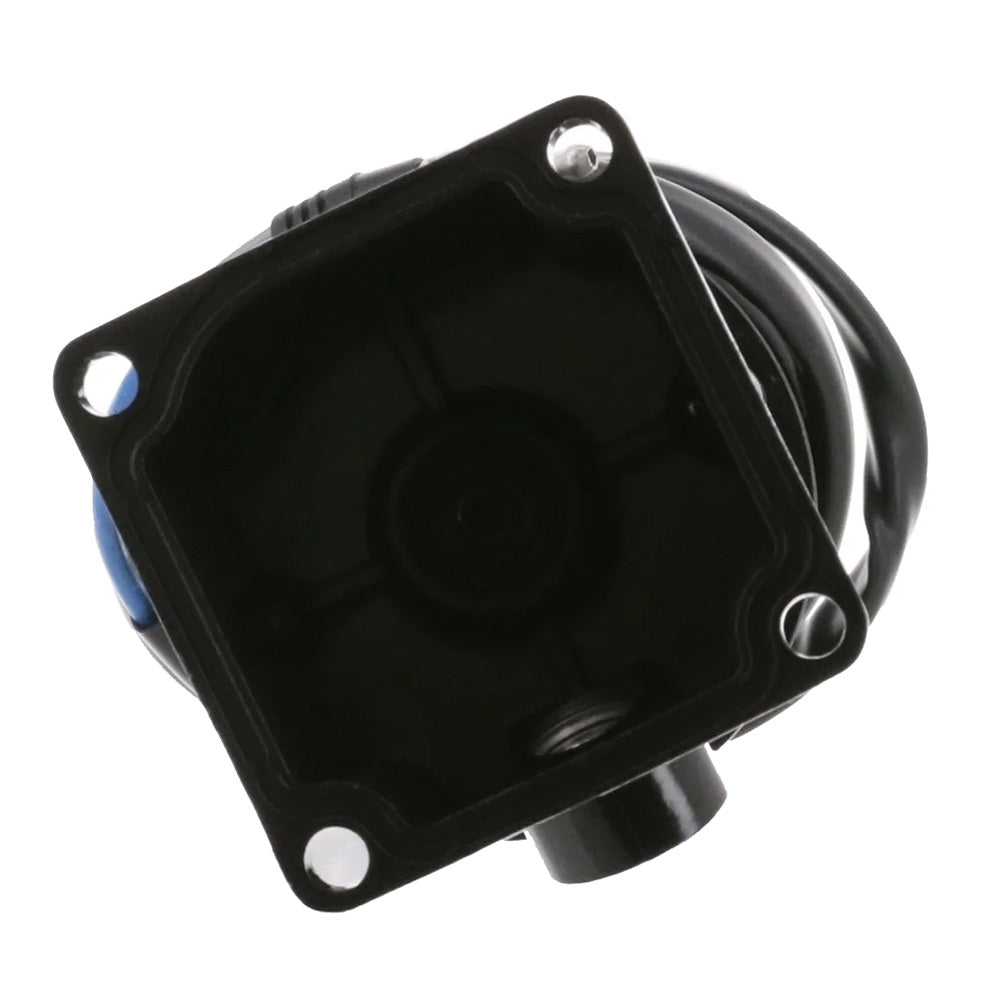

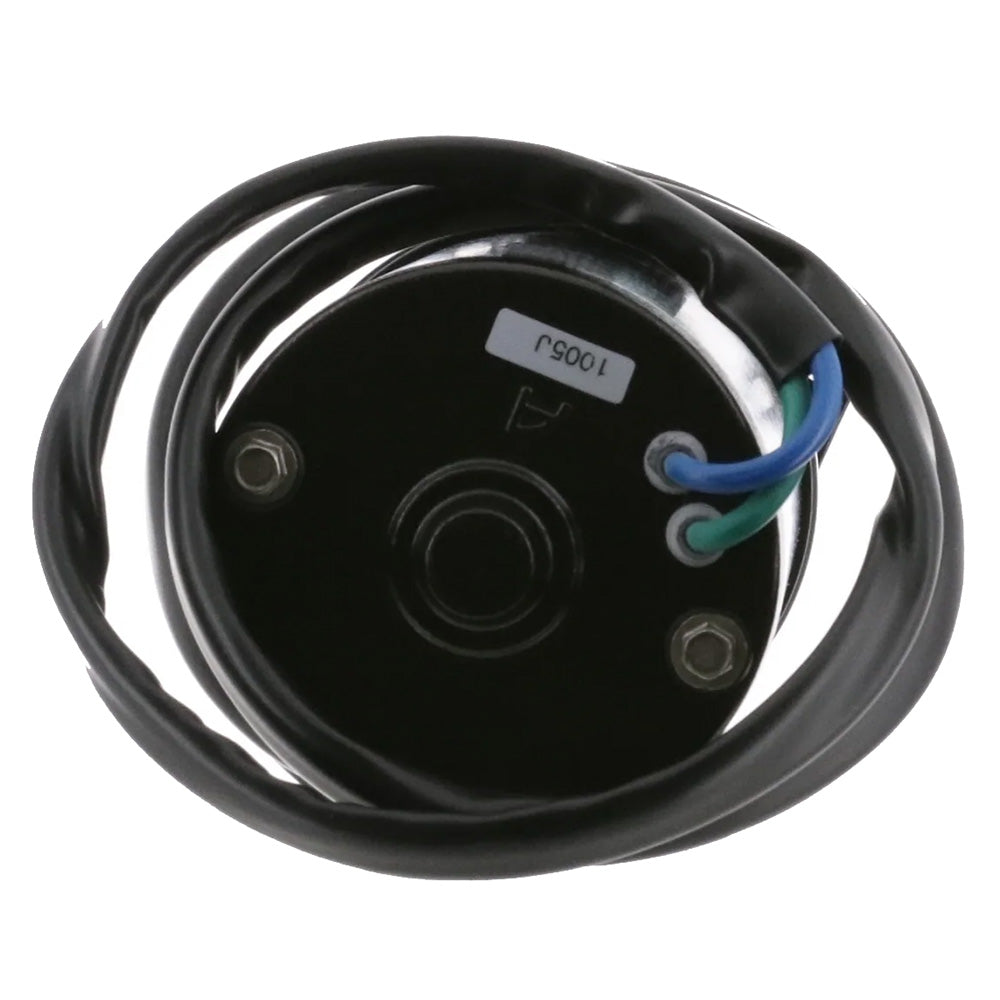

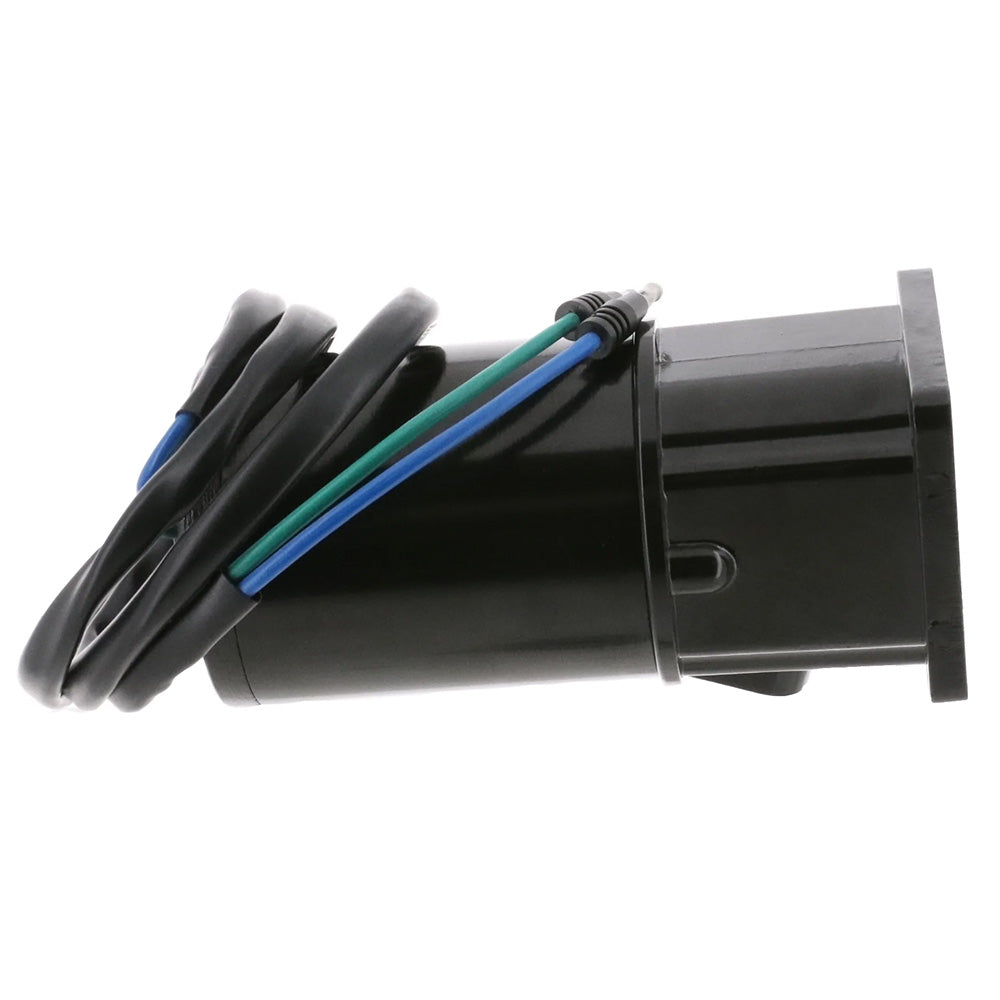

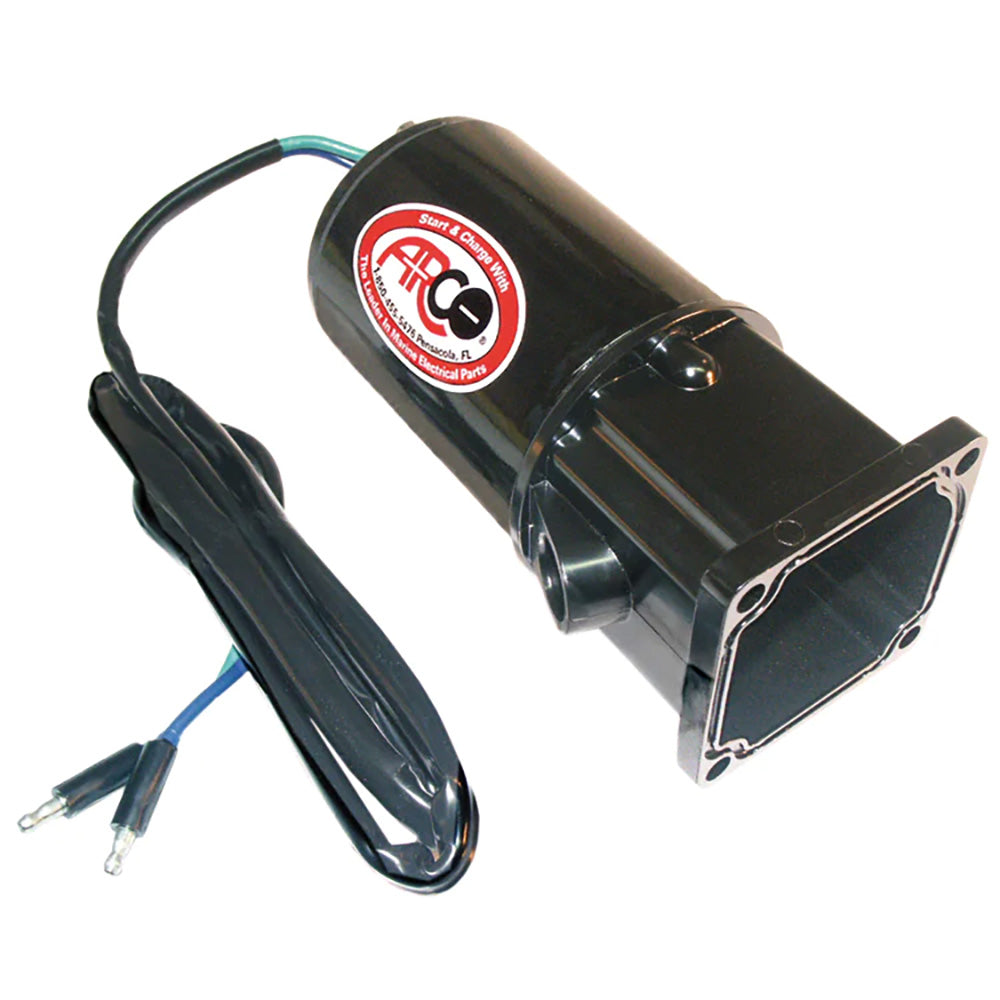

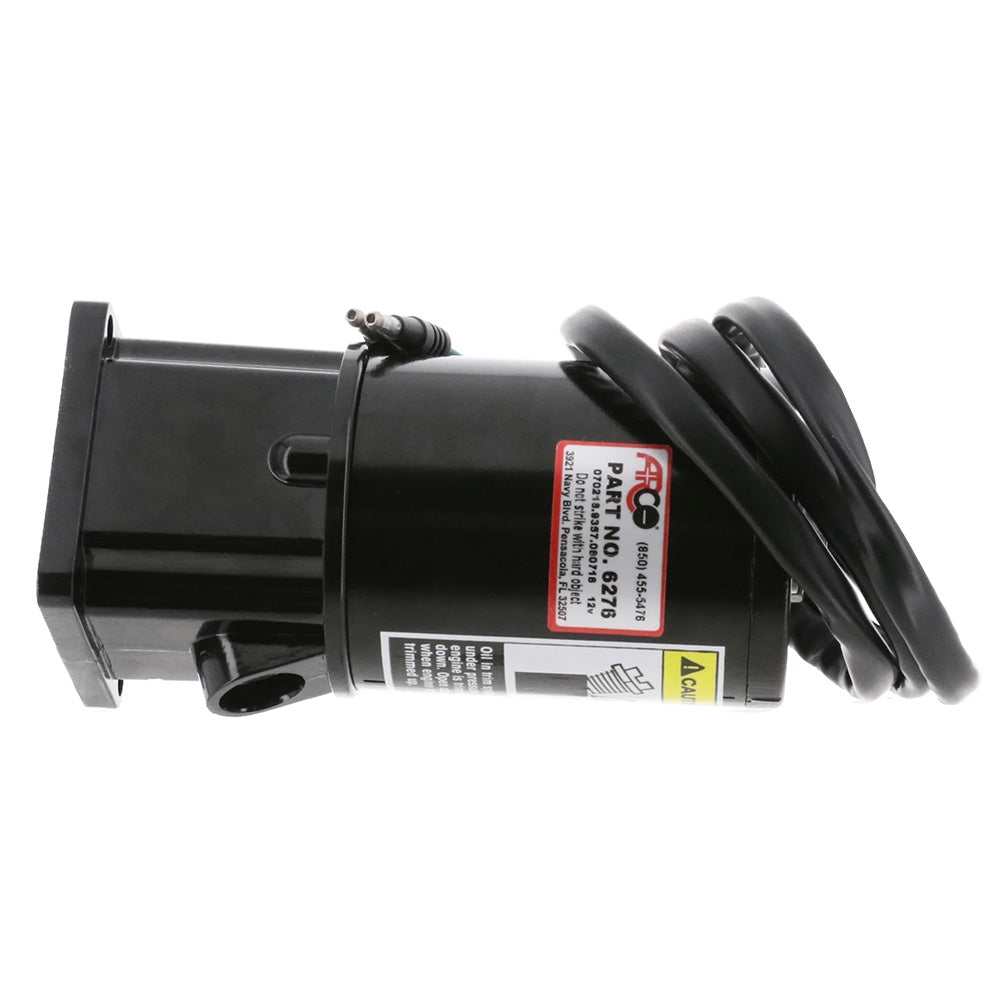

Replacement Outboard Tilt Trim Motor & Reservoir Only - Mercury/Mariner & Force Motor
Replacement outboard tilt trim motor and reservoir that will fit late model Mercury /Mariner, Force 40-125 HP outboards w/single ram, 2-wire connection, 4-bolt mount, Hollow-hex shaft, (Motor/Reservoir Only) Includes stainless steel mounting screws, shaft adaptor, O-ring and fill plug. Bullet Connector Terminal Ends.
ARCO advises cleaning all connections: A corroded connection creates resistance, lowering the amperage required to operate the motor.
Features:
Tilt trim motors are dynamically tested to ensure out-of-the-box performance
Motor shafts induction case hardened at bearing surfaces for superior wear resistance
Epoxy Powder coated for maximum insulation protection
Warranty Information:
When properly installed, all ARCO products are warrantied against defects in materials and workmanship for a period of 12 months for leisure use and 90 days for commercial or racing applications.
Add an extra year of warranty to your rotating electric ARCO product (Tilt/Trim Motors, Alternators, Outboard Starters, and Inboard Starters) when you register your product within 30 days of purchase. You can register your product by visiting arcomarine.com/product-registration
Replaces:
MERCURY Tilt Trim Motor 19217A1
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Quick Guide (pdf) VIDEO
