Description

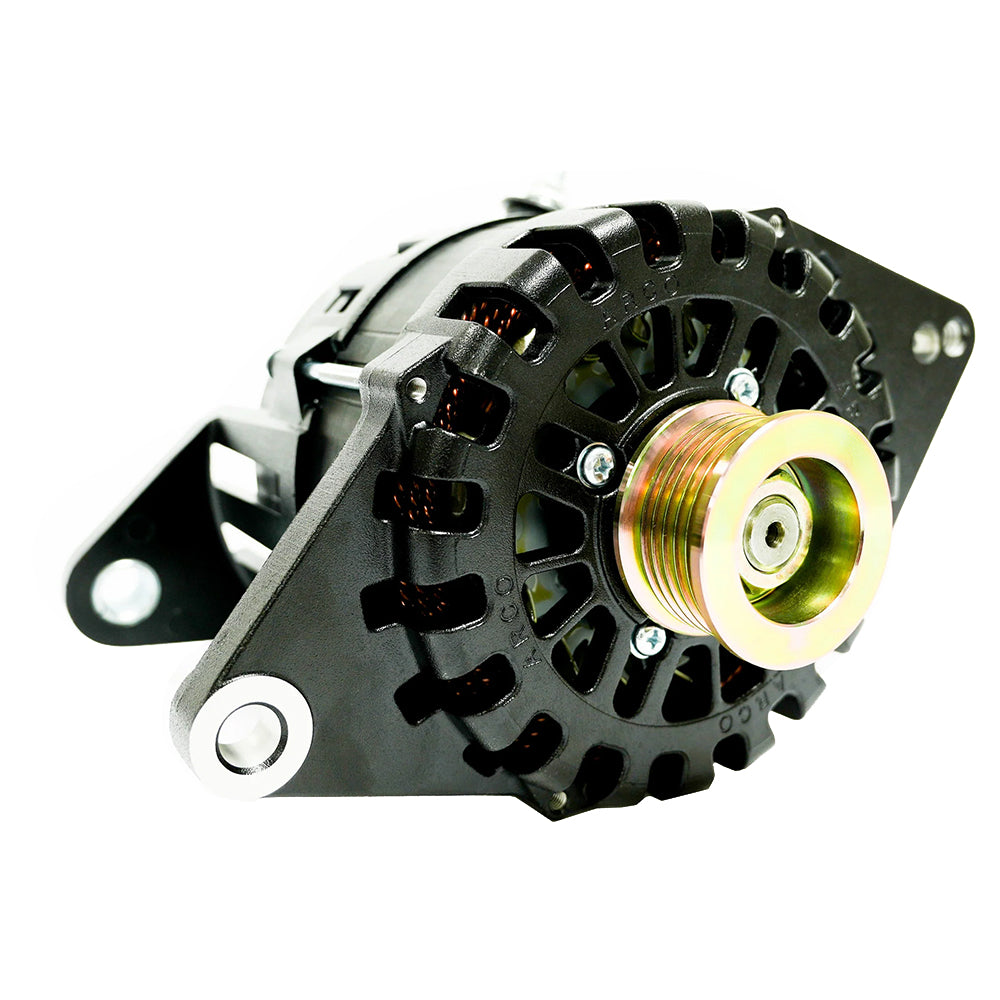

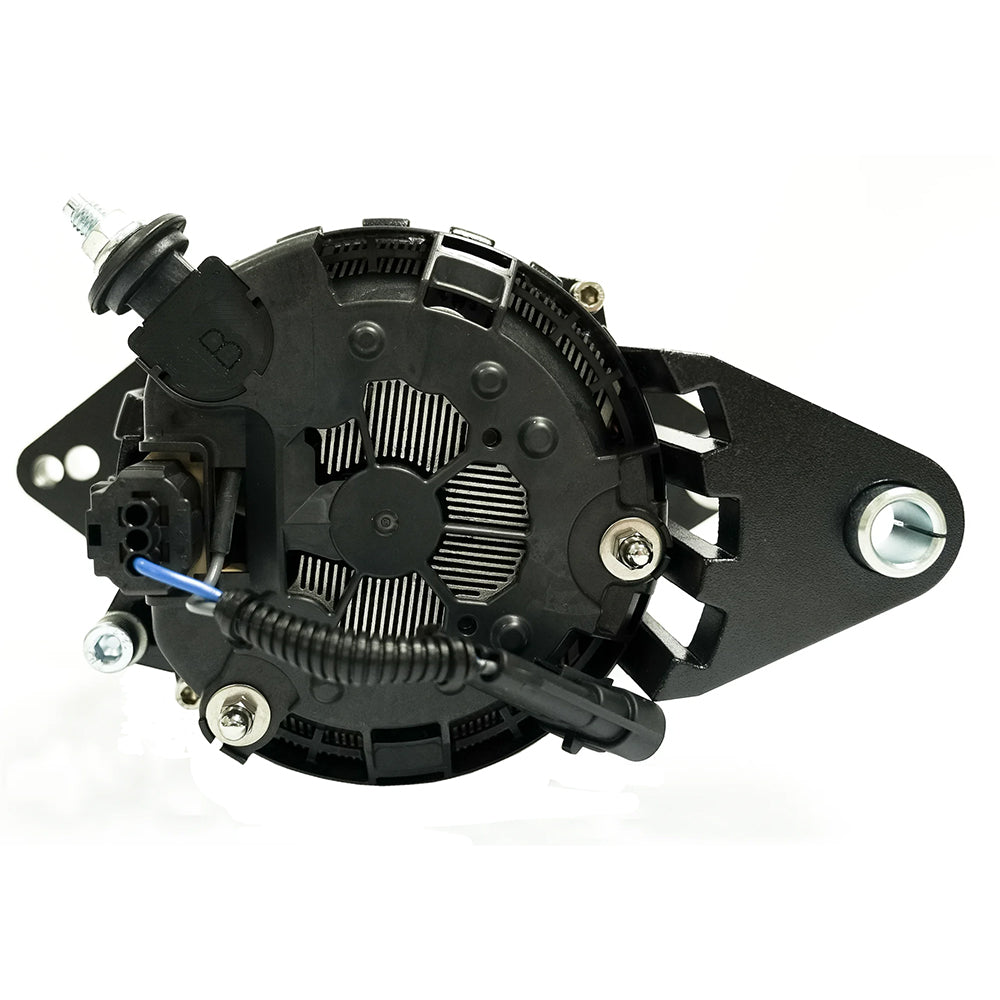

Zeus A275L J180 4" Alternator with Isolated Ground & Terminal Block
The highest power output alternator in its size/class.
Features:
- Engineered for high energy production.
- Suitable for marine, RV, military, and commercial applications.
- Rapidly charges large battery banks.
- Coolest operating temperatures for increased performance.
- Heat shedding coatings
- Rectifier located on housing exterior
- Dual cooling fans
- OEM components
- Optimized for performance at idle speeds.
- Reduces the need for a generator by creating additional power with your engine.
- Unleash peak performance with E-Coat/Cerakote, keeping the A275L cooler for sustained amperage output.
- Use the ARCO Zeus Bluetooth Alternator Regulator for maximum performance or lithium battery charging.
- SAE J1171 Certified.
- Models available with internal/external voltage regulator.
- Proudly made in the U.S.A.
Technical Specifications:
- Voltage - 12v
- Field Type - P
- Rotor Poles - 16
- Stator Size - 138mm
- Frame Size - Large
- Weight - 14.9 lbs/6.7 kg
- Regulation - Internal/External (Internally regulated with adaptor for optional external regulation.)
- Output Voltage - 14.1v (Default)
- Finish - (Black) Cerakote or E-coating
- Cut-In RPM - 1,061 Alternator RPM
- Maximum Alt RPM - 19,000
- Battery Post - M8 Thread Post, Side Mount
- Standard Pulley - 49K6 (6-groove, 49mm)
- Pulley Mount - 17mm diameter shaft, 25mm long, threaded M17 x 1.5
- Pulley Hardware - M17 x 1.5 x 24mm nut, w/ 18mm ID x 29mm OD washer (Included)
- Diodes - 6 positive, 6 negative, 50A Rated, Avalanche
- Max Output (Cold, 9,000 RPM) - 311 Amps
- Sustained Cruising Output (Hot, 6,000 RPM) - 227 Amps
- Sustained Idle Output (Hot, 3,000 RPM) - 198 Amps
- Max Continuous Operating Temperature - 110°C / 230°F
Mounting Applications:
- Replaces most Volvo Penta alternators using a 4” J180 saddle-style mount
Quick Guide (pdf)Brochure (pdf)
