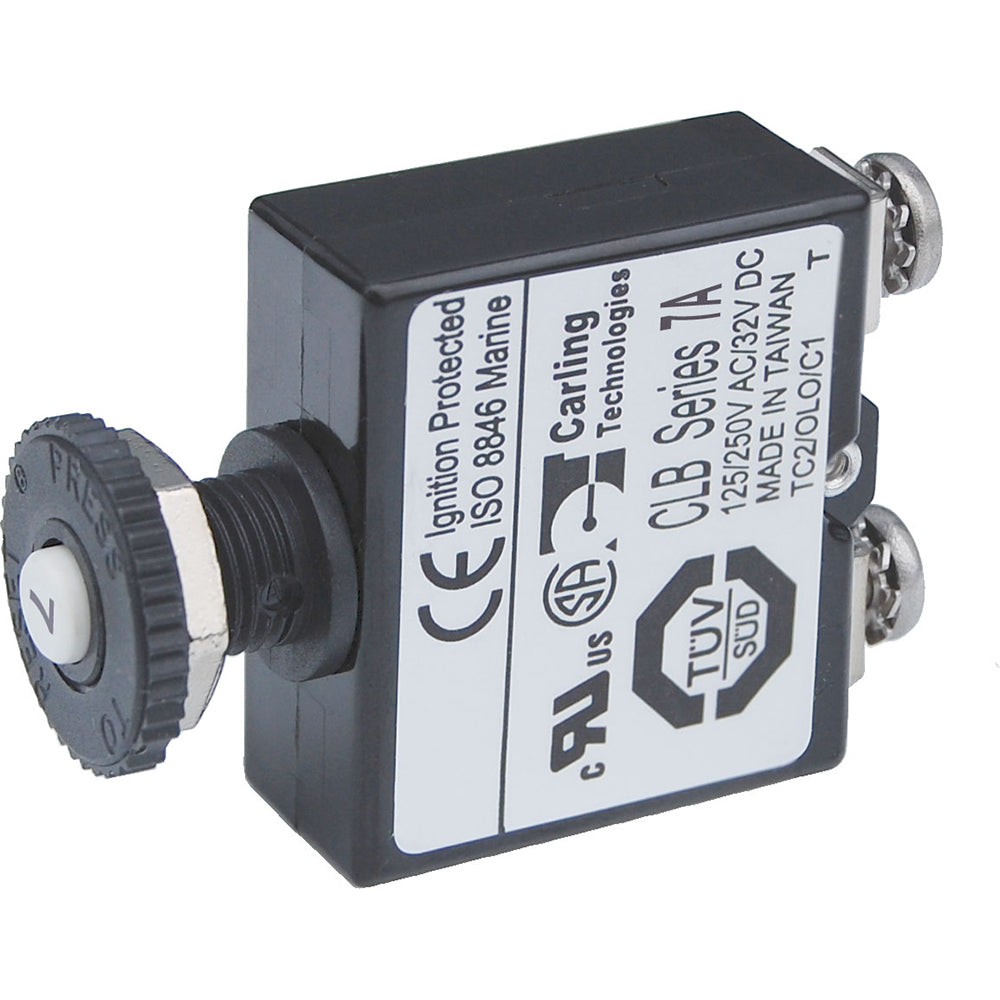

Blue Sea Push Button Reset Only Screw Terminal Circuit Breaker - 7 Amps [2131]

Description

Push Button Reset Only Screw Terminal Circuit Breaker - 7 Amps

Features:

  • Branch circuit breakers (can also be used for 24-hour circuit protection)
  • Quick connect terminal style circuit breakers are incorporated into Blue Sea Systems WeatherDeck Waterproof Circuit Breaker Panels, Dual Battery Bank Main Distribution Panels, and 360 Distribution Panels
  • Compact design enables high density circuit protection configurations
  • Push-to-reset operation
  • "Trip Free" design cannot be held "ON" during fault current condition
  • Ignition protected - Safe for installation aboard gasoline powered boats
  • Optional Push Button Waterproof Boot protects circuit breaker in wet environments, replaces dress nut mounting on circuit breakers and resists discoloration and cracking


Specifications:
  • Amperage: 7A
  • Maximum Voltage: 32V DC
  • Mounting: Panel Mount 3/8-27 UNS
  • Circuit Breaker Type: Thermal trip, manual push-button reset only
  • Terminal Type: #8 Screw
  • Interrupt Capacity: 3000A @ 14.7V / 2500A @ 28V
  • Minimum Operating Temperature: -10° C
  • Maximum Operating Temperature: t60° C
  • Screw Terminal Torque: 6 in-lb (0.68 Nm)
  • Weight: 0.09lb (0.04 kg)

    WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

    Specifications:

    • Amperage: 7a
    • Box Dimensions: 1"H x 3"W x 5"L WT: 0.1 lbs
    • UPC: 632085021313
Product form

Push Button Reset Only Screw Terminal Circuit Breaker - 7 AmpsFeatures: Branch circuit breakers (can also be used for 24-hour... Read more

SKU: CWR-63009
Barcode: 632085021313

$12.50

    • Price Match Guarantee
    • Free Shipping on orders over $200
    • Secure Checkout
    • Shipped today? Order within: Oct 05, 2025 15:00:00 -0400

    Description

    Push Button Reset Only Screw Terminal Circuit Breaker - 7 Amps

    Features:

    • Branch circuit breakers (can also be used for 24-hour circuit protection)
    • Quick connect terminal style circuit breakers are incorporated into Blue Sea Systems WeatherDeck Waterproof Circuit Breaker Panels, Dual Battery Bank Main Distribution Panels, and 360 Distribution Panels
    • Compact design enables high density circuit protection configurations
    • Push-to-reset operation
    • "Trip Free" design cannot be held "ON" during fault current condition
    • Ignition protected - Safe for installation aboard gasoline powered boats
    • Optional Push Button Waterproof Boot protects circuit breaker in wet environments, replaces dress nut mounting on circuit breakers and resists discoloration and cracking


    Specifications:
    • Amperage: 7A
    • Maximum Voltage: 32V DC
    • Mounting: Panel Mount 3/8-27 UNS
    • Circuit Breaker Type: Thermal trip, manual push-button reset only
    • Terminal Type: #8 Screw
    • Interrupt Capacity: 3000A @ 14.7V / 2500A @ 28V
    • Minimum Operating Temperature: -10° C
    • Maximum Operating Temperature: t60° C
    • Screw Terminal Torque: 6 in-lb (0.68 Nm)
    • Weight: 0.09lb (0.04 kg)

      WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

      Specifications:

      • Amperage: 7a
      • Box Dimensions: 1"H x 3"W x 5"L WT: 0.1 lbs
      • UPC: 632085021313
