Description

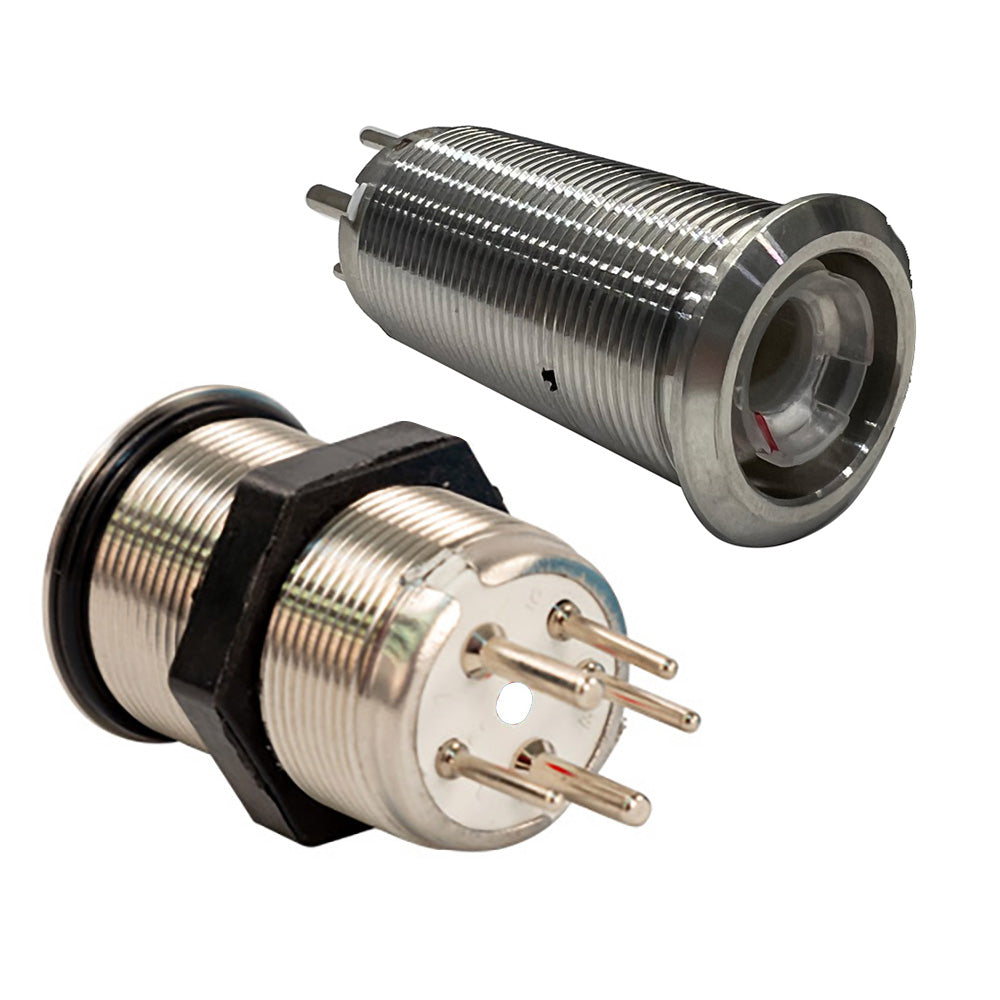

22mm Inrush Push Button Switch Nav/Anchor Off/On/On - Blue/Green/Red LED - Switch Body Only
The switch is the core of your control system. Built marine tough with inrush protection and waterproof sealing for reliable performance.
Upgrade your marine switch panel with the 9059 Series 22mm Inrush Protection Switch. Built for heavy-duty marine applications, this switch handles high surge currents with ease - perfect for pumps, motors, and other demanding onboard equipment.
Built for Harsh Marine Conditions:
- Encased in corrosion-resistant SS316 stainless steel
- Rated IP69K waterproof with Bluewater’s proprietary Deutsch-style connectors
- Resistant to salt spray, heat, vibration, and shock
Easy to See and Control:
- Blue LED backlighting for night visibility
- LED shifts to bright red when active—instant confirmation of pump or device status
- Fully detachable actuator for customization of style and function
Reliable Power Handling:
- Rated for 20 amps on a single channel
- Rated for 10 amps per channel in dual-channel use
- Impact-resistant and designed for long-lasting performance
Why Choose the 9059 Switch for Your Marine Switch Panel?
This inrush protection switch combines rugged durability with smart design. It installs easily, provides dependable control, and ensures your marine switch panel remains reliable in all conditions.
When you are on the water, trust the 9059 Series to keep your critical systems running smoothly and safely.
Specifications:
- Switch Rating: 20A/12-24VDC
- Switch Contacts: 1 NO, 1 NC | 2 NO, 2 NC
- Mechanical Life: 50,000 Cycles
- Electrical Life: 10,000 Cycles
- Dimensions: View Dimensional Drawings
- Material: Nickel Plated Brass/ Stainless Steel
- LED Color: Blue/Green/Red
Installation:
Drill a 22mm hole into any material up to 6mm thick. Connect the 3 contacts for the button (color coded for your safety and convenience). Lastly connect the 2 contacts for the LED.
Specifications:
- Action: ON-ON-OFF
- Color: Blue/Green/Red
- Box Dimensions: 1"H x 1"W x 3"L WT: 0.1 lbs
- UPC: 810196330900
Quick Guide (pdf)Brochure (pdf)
