Description

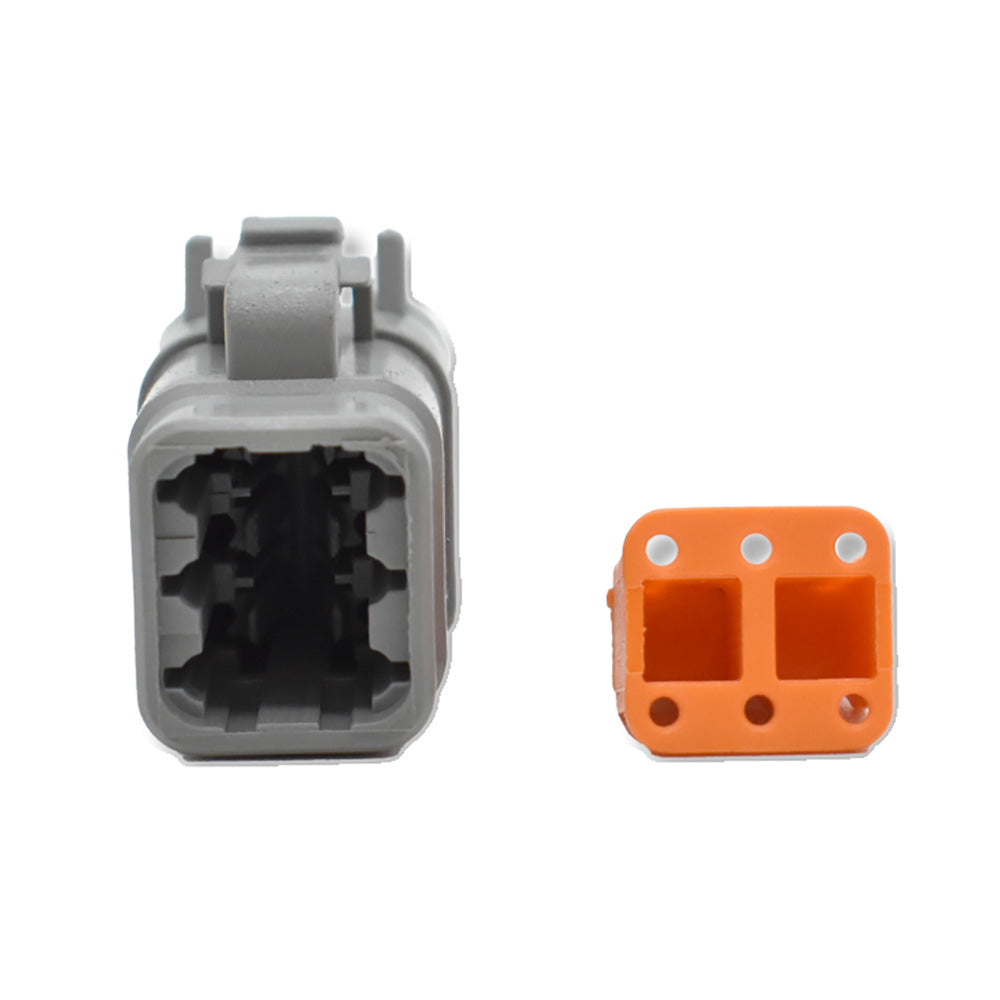

6 Position DTM Female Connector with Wedge Lock
The DTMO4-6P and DTMO6-6S connectors are part of the DTM series and form a complete 6-cavity connection. These Deutsch-compatible connectors are fully interchangeable with matching Deutsch parts.
Designed for reliability in harsh environments, the DTM series can deliver up to 7.5 amps continuously. This 6-pin DTM connector provides a secure, weather-resistant connection ideal for marine, automotive, and industrial wiring applications.
Each 6-pin DTM connector features corrosion-resistant contacts, a rugged housing, and a reliable locking mechanism, ensuring consistent performance and long-lasting electrical connections even in demanding and harsh conditions.
Features:
- Comes in bags of 100 with a separate bag of wedge locks included
- Male uses Solid DTM 16-20AWG Machined Terminal.
- Female uses DTM 16-18AWG Machined Terminal or DTM 18-20AWG Machined Terminal
Specifications:
- Heat Shrink: No
- Package Qty: 100
- Box Dimensions: 1"H x 4"W x 4"L WT: 0.15 lbs
- UPC: 810196333369
Brochure (pdf)
