Description

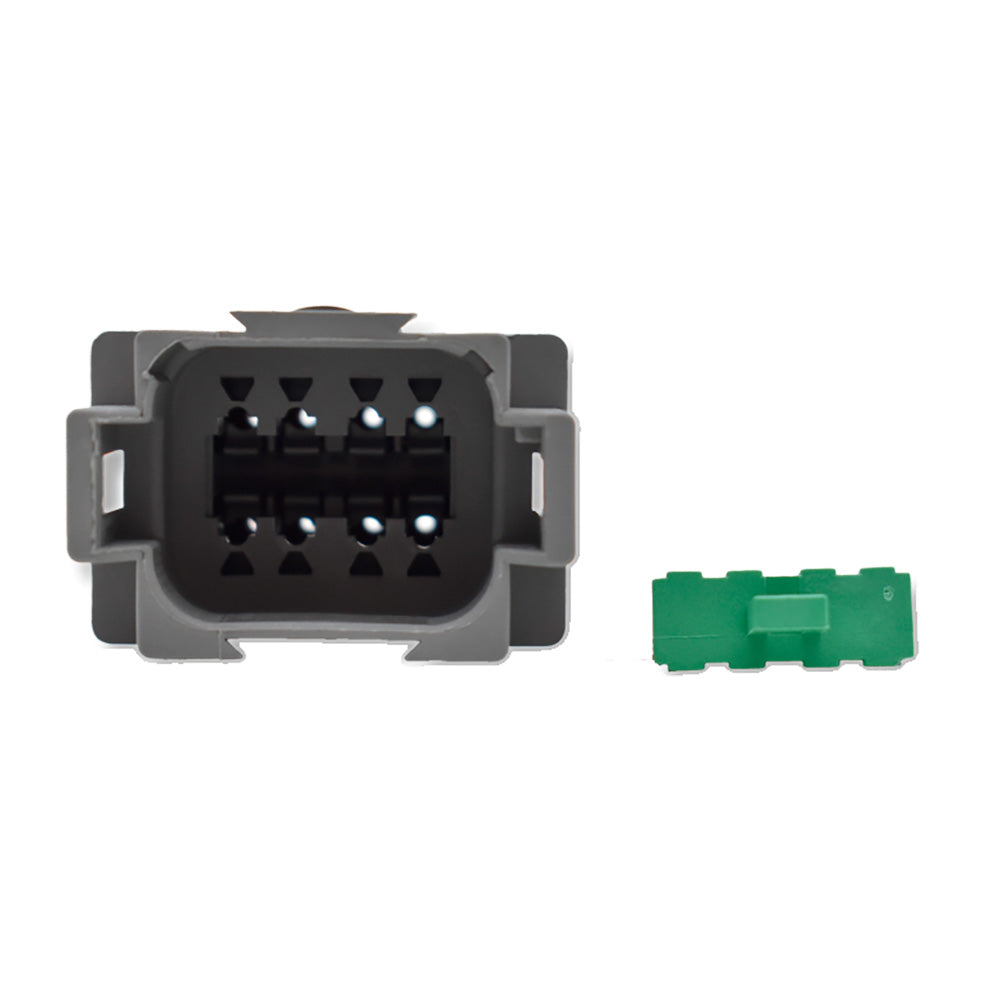

8 Position Male Deutsch Connector with Wedge Lock
The DTO4-8P and DTO6-08SA connectors are part of the DT series and form a complete 8-cavity connection. These Deutsch-compatible connectors are fully interchangeable with matching Deutsch parts. Designed for reliability in harsh environments, the DT series can deliver up to 13 amps continuously.
This 8-pin DT connector ensures secure, weather-resistant connections for marine, automotive, and industrial wiring applications. Each 8-pin DT connector features corrosion-resistant contacts, a rugged housing, and a positive locking mechanism to provide dependable performance and long-lasting reliability even in demanding conditions.
Features:
- Comes in bags of 100 with a separate bag of wedge locks included
- Male uses Solid 14AWG Machined Terminal or Stamped DT Crimp
- Female uses DT Machined 14-16AWG Machined Terminal or DT Crimp Stamped and Formed Terminal
Specifications:
- Heat Shrink: No
- Package Qty: 100
- Box Dimensions: 1"H x 4"W x 4"L WT: 0.15 lbs
- UPC: 810196333161
Brochure (pdf)
