Description

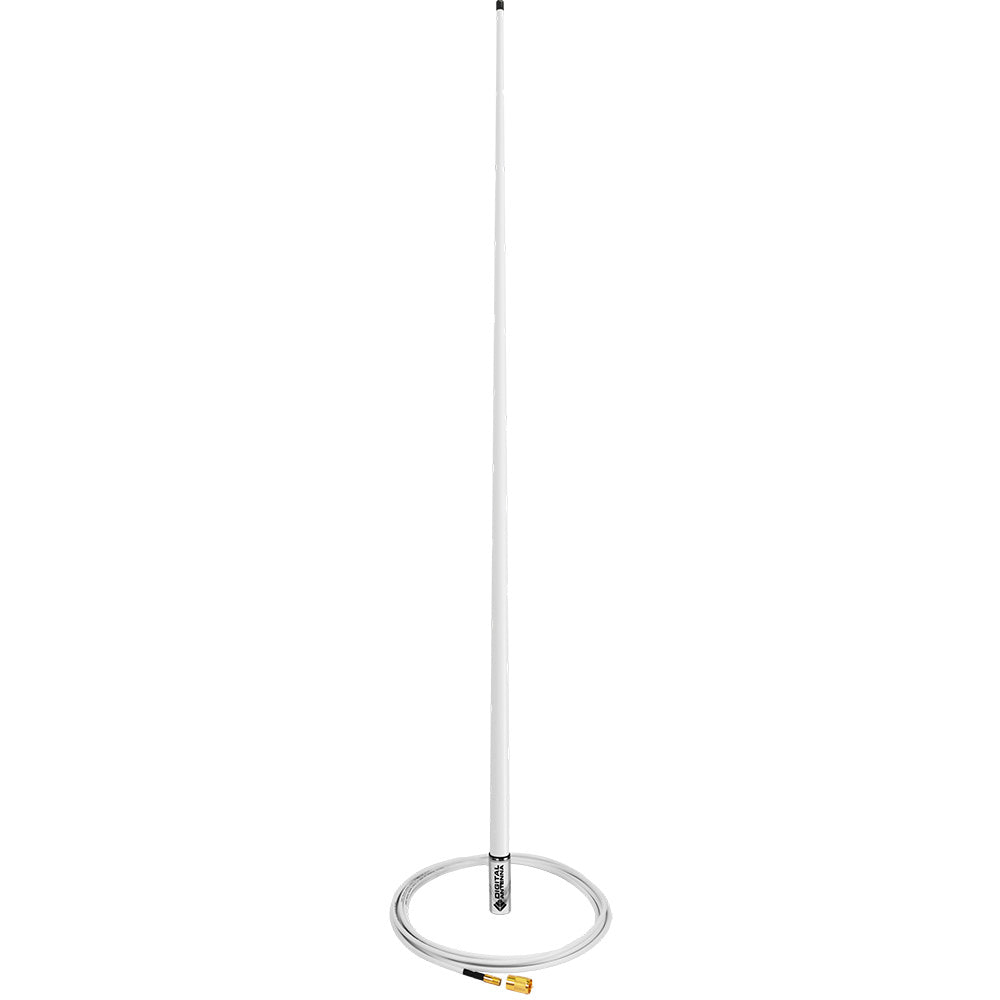

758-MW-S 8' 8' 6dBi Gain Advanced Multi-Band Marine Antenna
Digital Antenna's Model 758-MW-S is the first marine antenna designed for seamless multi-band communication, ensuring powerful signals across various frequency bands. Whether you're offshore, navigating busy harbors, or relying on emergency communication, this high-performance antenna delivers unmatched reliability.
Designed to withstand the rigors of offshore communication, the 758-MW-S sets a new standard in marine antenna technology, delivering unparalleled performance, longevity, and signal stability across critical frequency bands.
Features:
- Seamless multi-band operation on VHF, UHF, and 800/900 MHz frequencies
- 20' premium low-loss DA195 cable for maximum signal strength
- Factory-installed mini-UHF connector with PL259 adapter for quick and secure connection to the radio
- Marine-grade durability, featuring a 316 stainless steel ferrule for corrosion resistance
- UV-stable polyurethane-coated rod protects against harsh marine conditions
- 5-year manufacturer warranty, ensuring long-term reliability
Specifications:
- Radiation Pattern Omni-Directional: Gain 6dBi
- Frequencies: 134-176 MHz, 403-470 MHz, 450-512 MHz,851-870 MHz
- Cable: 20’ Digital Antenna, exclusive low-loss DA195
- Impedance: 50 ohms
- Max Input Power: 50 watts
- Exterior Finish: White polyurethane high gloss UV stable
- Dimensions: 8’ length x 1” OD taper
- Weight: 2.3 lbs.
- RF Connector: Mini-UHF female with included PL259 adapter
- Installation: 1”x14tpi female threaded base
- Elements: Copper - Hand soldered
- Polarization: Vertical
- Wind Rating: >160KPH
- Operating Temp: 30º F to +175º F
- Attaches to 1" x 14 threaded base (not included)
- Factory-installed mini-UHF Connector & PL259 adapter
- Use with all DMR radios using VHF, UHF Band 1, UHF Band 2, 800/900 MHZ
- Warranty: 5 Years
Applications:
- Commercial
- Recreational
- Government Vessels
Quick Guide (pdf)
