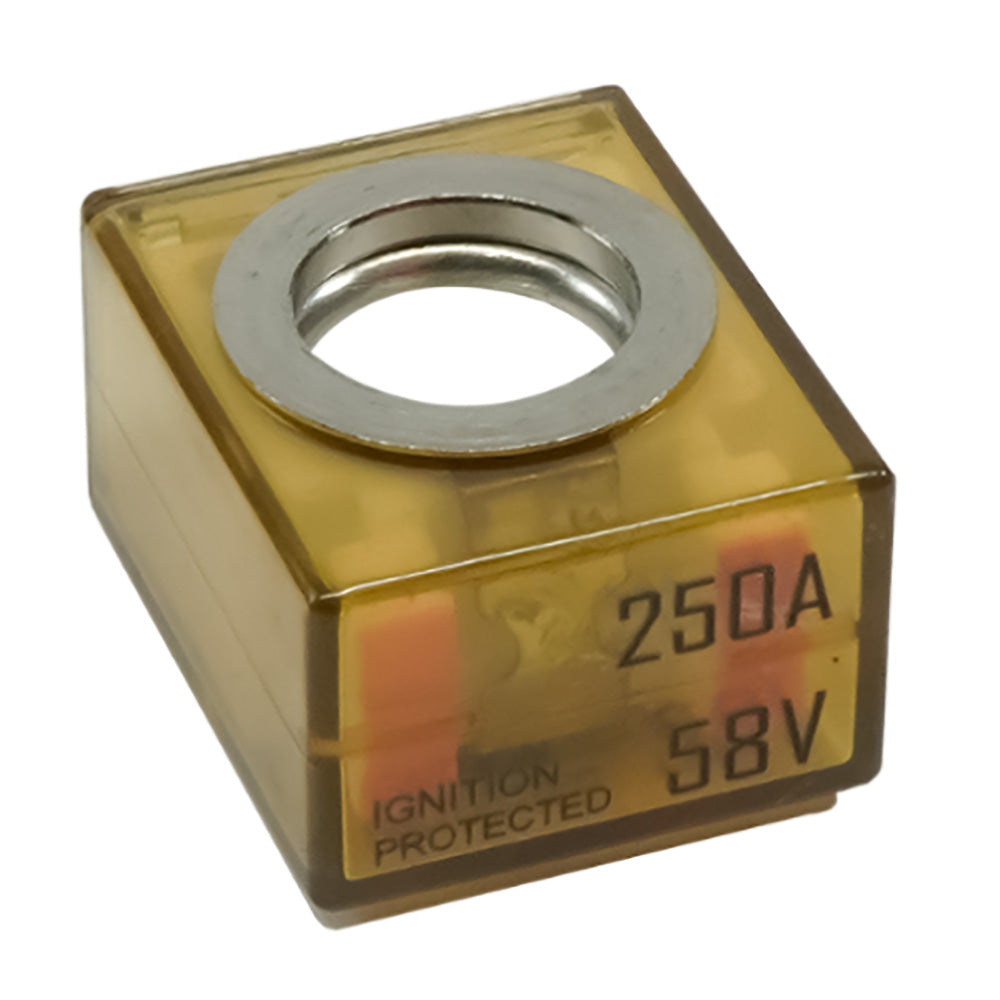

Egis MRBF Terminal Fuse - 250 Amp [3603-250]

Description

MRBF Terminal Fuse - 250 Amp

  • Transparent easy visual of fuse status
  • Ignition-protected SAE/J1171-ISO8846
  • High interrupt rating satisfies ABYC requirements for DC main circuit protection on larger battery banks
  • Color-coded for easy ID of amperage rating

Features:

  • Protects Electrical Circuits from short circuit events and over-current loads, preventing wire insulation overheating and subsequent destruction.
  • High Interrupt Current safely protects circuits connected to large paralleled battery banks with significant available power
  • Ignition Protected safe for installation in closed compartments with potentially explosive gases Harsh Environment design with shock and vibration resistance ideal for marine and vehicle electrical systems.
  • Sealed Against Dust & Water Intrusion to ensure reliable circuit protection for the life of the electrical system installation
  • 58 Vdc Rating: easily supports 12 to 48V nominal applications.
  • High Interrupt Current: safely protects circuits connected to large paralleled battery banks with significant available power
  • 4-Year Warranty: We stand behind our product's ability to meet your needs.

Specifications:

  • Continuous Current (Amps): 250
  • Max Voltage (VDC): 58
  • Interrupt Rating @ 14 VDC (Amps): 10,000
  • Interrupt Rating @ 48Vdc (Amps): 5,000
  • Interrupt Rating @ 58Vdc (Amps): 2,000
  • Ingress Protection: IP66

Specifications:

  • Amperage: 250
  • Fuse Type: Terminal
  • Type: Fuses
  • Box Dimensions: 1"H x 1"W x 6"L WT: 0.05 lbs
  • UPC: 850053879661
Product form

MRBF Terminal Fuse - 250 Amp Transparent easy visual of fuse status Ignition-protected SAE/J1171-ISO8846 High interrupt rating satisfies ABYC requirements... Read more

SKU: CWR-107421
Barcode: 850053879661

11 in stock

$15.50

    • Price Match Guarantee
    • Free Shipping on orders over $200
    • Secure Checkout

      Description

      MRBF Terminal Fuse - 250 Amp

      • Transparent easy visual of fuse status
      • Ignition-protected SAE/J1171-ISO8846
      • High interrupt rating satisfies ABYC requirements for DC main circuit protection on larger battery banks
      • Color-coded for easy ID of amperage rating

      Features:

      • Protects Electrical Circuits from short circuit events and over-current loads, preventing wire insulation overheating and subsequent destruction.
      • High Interrupt Current safely protects circuits connected to large paralleled battery banks with significant available power
      • Ignition Protected safe for installation in closed compartments with potentially explosive gases Harsh Environment design with shock and vibration resistance ideal for marine and vehicle electrical systems.
      • Sealed Against Dust & Water Intrusion to ensure reliable circuit protection for the life of the electrical system installation
      • 58 Vdc Rating: easily supports 12 to 48V nominal applications.
      • High Interrupt Current: safely protects circuits connected to large paralleled battery banks with significant available power
      • 4-Year Warranty: We stand behind our product's ability to meet your needs.

      Specifications:

      • Continuous Current (Amps): 250
      • Max Voltage (VDC): 58
      • Interrupt Rating @ 14 VDC (Amps): 10,000
      • Interrupt Rating @ 48Vdc (Amps): 5,000
      • Interrupt Rating @ 58Vdc (Amps): 2,000
      • Ingress Protection: IP66

      Specifications:

      • Amperage: 250
      • Fuse Type: Terminal
      • Type: Fuses
      • Box Dimensions: 1"H x 1"W x 6"L WT: 0.05 lbs
      • UPC: 850053879661
