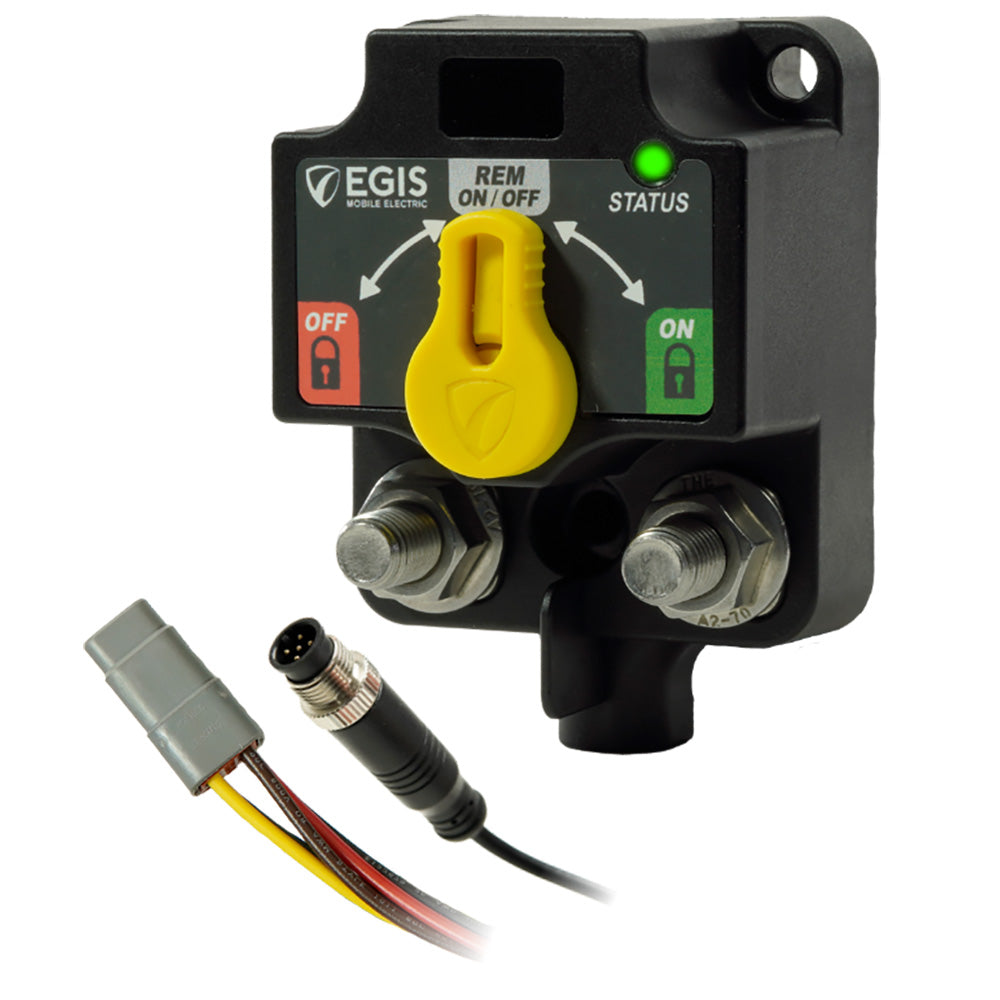

Egis Single XD - NMEA 2000 - Relay w/Knobs - 4 Position DT [9811-4500]

Description

Single XD - NMEA 2000 - Relay with Knobs - 4 Position DT

Features:

  • Bullet-proof Construction: Sealed to IP67/IP6K9K, high-temperature electronics and materials allow mounting anywhere. Stainless steel cable lug studs. Large mounting holes accept 1/4-20 / M6 attachment hardware.
  • 500A continuous / 1600A cranking (per switch) - supports all standard marine electrical systems.
  • Intuitive Manual Control option simplifies operation and awareness of the state of manual override and whether the device is being left in a locked off or locked on state (not available on competitive solutions)
  • Simple Programmability via simple dip switches allows each relay function significant flexibility for OEMs and installers.
  • 90-95% Less Off-State Current: Compared to competitive products and system solutions that require multiple devices for similar functionality

Applications:

  • Seamless NMEA 2000 Integration – Control switches, monitor switch status, and battery voltage.
  • Flexible Control Options – Operate via NMEA 2000 or discrete analog inputs for added versatility.
  • 35-75% Reduction in Mounting Space & Product Weight via advanced bi-stable solenoid design and multiple solenoid assemblies that replace common electrical system layouts.
  • Eliminates Dead Start Batteries by sharing charging on either of two batteries and isolating batteries when no charge sources are present.
  • Expandable with Link and Cross-Link Busbars to Additional Dual, Triple, or Single XD Relays: Supports 2 or 3 battery systems with standard busbar interconnect accessories.

Specifications:

  • Type: Electric
  • Box Dimensions: 3"H x 4"W x 8"L WT: 1.2 lbs
  • UPC: 850067590200
Product form

Single XD - NMEA 2000 - Relay with Knobs - 4 Position DTFeatures: Bullet-proof Construction: Sealed to IP67/IP6K9K, high-temperature electronics... Read more

SKU: CWR-108559
Barcode: 850067590200

7 in stock

$171.70$119.50

    • Price Match Guarantee
    • Free Shipping on orders over $200
    • Secure Checkout

      Description

      Single XD - NMEA 2000 - Relay with Knobs - 4 Position DT

      Features:

      • Bullet-proof Construction: Sealed to IP67/IP6K9K, high-temperature electronics and materials allow mounting anywhere. Stainless steel cable lug studs. Large mounting holes accept 1/4-20 / M6 attachment hardware.
      • 500A continuous / 1600A cranking (per switch) - supports all standard marine electrical systems.
      • Intuitive Manual Control option simplifies operation and awareness of the state of manual override and whether the device is being left in a locked off or locked on state (not available on competitive solutions)
      • Simple Programmability via simple dip switches allows each relay function significant flexibility for OEMs and installers.
      • 90-95% Less Off-State Current: Compared to competitive products and system solutions that require multiple devices for similar functionality

      Applications:

      • Seamless NMEA 2000 Integration – Control switches, monitor switch status, and battery voltage.
      • Flexible Control Options – Operate via NMEA 2000 or discrete analog inputs for added versatility.
      • 35-75% Reduction in Mounting Space & Product Weight via advanced bi-stable solenoid design and multiple solenoid assemblies that replace common electrical system layouts.
      • Eliminates Dead Start Batteries by sharing charging on either of two batteries and isolating batteries when no charge sources are present.
      • Expandable with Link and Cross-Link Busbars to Additional Dual, Triple, or Single XD Relays: Supports 2 or 3 battery systems with standard busbar interconnect accessories.

      Specifications:

      • Type: Electric
      • Box Dimensions: 3"H x 4"W x 8"L WT: 1.2 lbs
      • UPC: 850067590200
