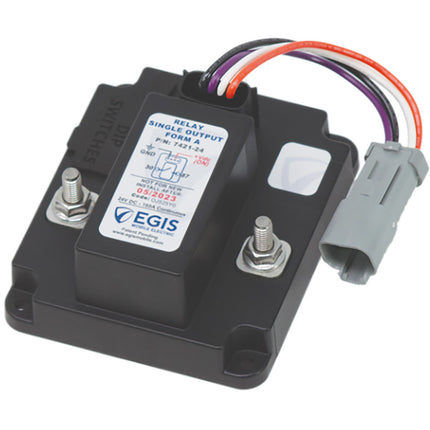

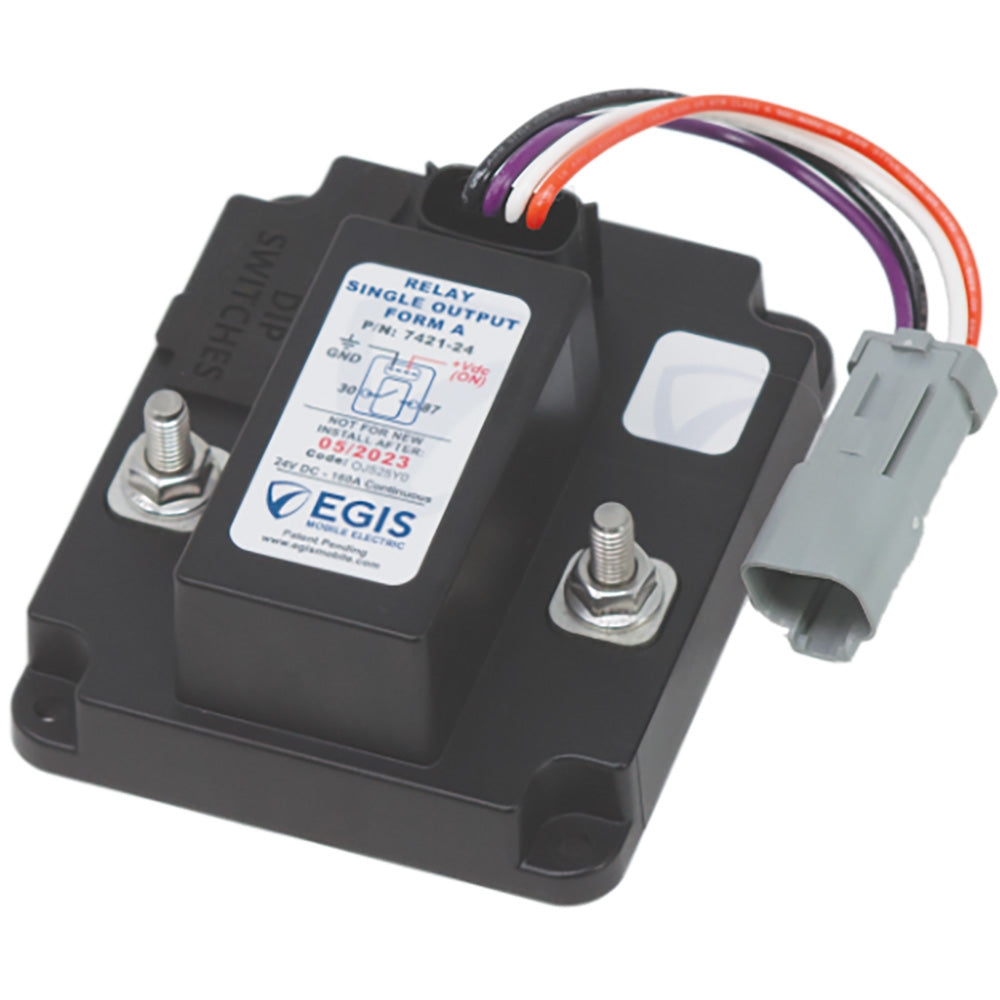

Egis TH3 Relay 160A - 24V [7421-24]

Description

TH3 Relay 160A - 24V

Features:

  • Replaces Manual Battery Switches: Reduces battery cable run lengths and resulting voltage drop
  • Connect to the Ignition Signal for simple battery charge management between two batteries or for simple auxiliary load disconnection.
  • Connect to TH Series Automatic Charging Relays or Time Delay Relays to provide an additional isolated/switched output or to extend current-carrying capability
  • Simple & Robust Installation: Sealed MX-150 plug/harness with 2ft control wires included. Reduces install time/costs. The optional output bus bar provides a simple, compact connection to the RT or CT fuse block product families.
  • Bullet-proof Construction: Sealed unit, high-temperature materials allow mounting anywhere on the vehicle. Stainless steel self-locking hardware
  • Single or Dual Split Output Options provide flexibility for different electrical system requirements
  • Integral Diode Suppression reduces voltage spikes on control lines during switching

Specifications:

  • Type: Electric
  • Box Dimensions: 3"H x 6"W x 7"L WT: 0.8 lbs
  • UPC: 850035199930

Brochure (pdf)
Product form

TH3 Relay 160A - 24VFeatures: Replaces Manual Battery Switches: Reduces battery cable run lengths and resulting voltage drop Connect to... Read more

SKU: CWR-114516
Barcode: 850035199930

4 in stock

$73.40$56.50

    • Price Match Guarantee
    • Free Shipping on orders over $200
    • Secure Checkout

      Description

      TH3 Relay 160A - 24V

      Features:

      • Replaces Manual Battery Switches: Reduces battery cable run lengths and resulting voltage drop
      • Connect to the Ignition Signal for simple battery charge management between two batteries or for simple auxiliary load disconnection.
      • Connect to TH Series Automatic Charging Relays or Time Delay Relays to provide an additional isolated/switched output or to extend current-carrying capability
      • Simple & Robust Installation: Sealed MX-150 plug/harness with 2ft control wires included. Reduces install time/costs. The optional output bus bar provides a simple, compact connection to the RT or CT fuse block product families.
      • Bullet-proof Construction: Sealed unit, high-temperature materials allow mounting anywhere on the vehicle. Stainless steel self-locking hardware
      • Single or Dual Split Output Options provide flexibility for different electrical system requirements
      • Integral Diode Suppression reduces voltage spikes on control lines during switching

      Specifications:

      • Type: Electric
      • Box Dimensions: 3"H x 6"W x 7"L WT: 0.8 lbs
      • UPC: 850035199930

      Brochure (pdf)
