Description

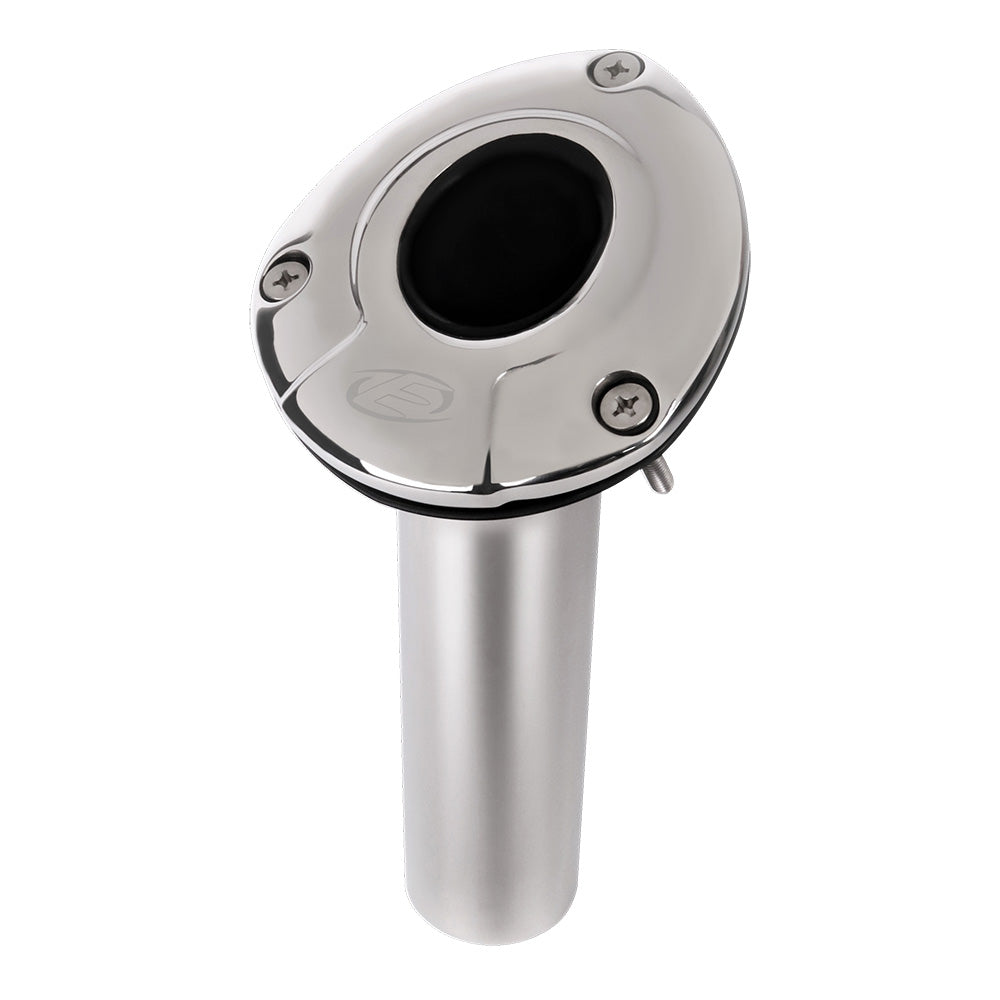

EVO-FX Fixed Rod Holder with 8.5" at 30 Degrees
Crafted with the highest quality materials to ensure a secure and reliable fishing experience. Its sturdy design and easy installation make it the top choice for professional anglers. Upgrade your fishing gear and trust in its durability and stability for a successful fishing trip.
Features:
- Rod Sleeve: Rolled and polished, seamless 316 stainless steel.
- Bearings: Injection molded ultra-high molecular weight polyethylene for ultra-high wear, chemical, compression, and shear resistance.
- Base Plate: Precision cast, stamped, machined, and polished 316 stainless steel.
- Top Cover: Precision cast, machined, and polished 316 stainless steel.
- Isolation Gasket: Resilient rubber blend, designed specifically to be very tough and wear-resistant, and to resist attack from chemicals and UV.
- Locking lever: Precision cast, machined, and polished 316 stainless steel.
- Locking lever cover: Resilient rubber blend, designed specifically to be very tough and wear-resistant, and to resist attack from chemicals and UV.
- M x 7.5mm 316 stainless steel Phillips drive, countersunk screw, nut, and washer.
- Sleeve Guide: Resilient rubber blend, designed specifically to be very tough and wear-resistant.
Specifications:
- Flange (W x L): 116mm x 143mm
- Overall Length: 212mm
- Shaft Length: 197mm
- Shaft O.D.: 51mm
- Mount Type: M6
- Sleeve Swing Ø : 0° – 0mm | 15° – 157mm | 30° – 253mm
- Rated to 60kg/135lbs Tackle
What's In The Box?
- 1x 316L Stainless Steel Rotating Rod Holder
- 3x Full Fastener set
- 1x Isolation Gasket
- 1x Installation Guide
- 1x Installation Swing Template
- 1x Care & Maintanence book
Specifications:
- Angle: 30 Degrees
- Construction: Stainless Steel
- Diameter (Inches): 2
- Finish: Polished
- Length (Inches): 8.3
- Mounting Style: Flush
- Box Dimensions: 5"H x 6"W x 13"L WT: 3.5 lbs
- UPC: 835719003710
