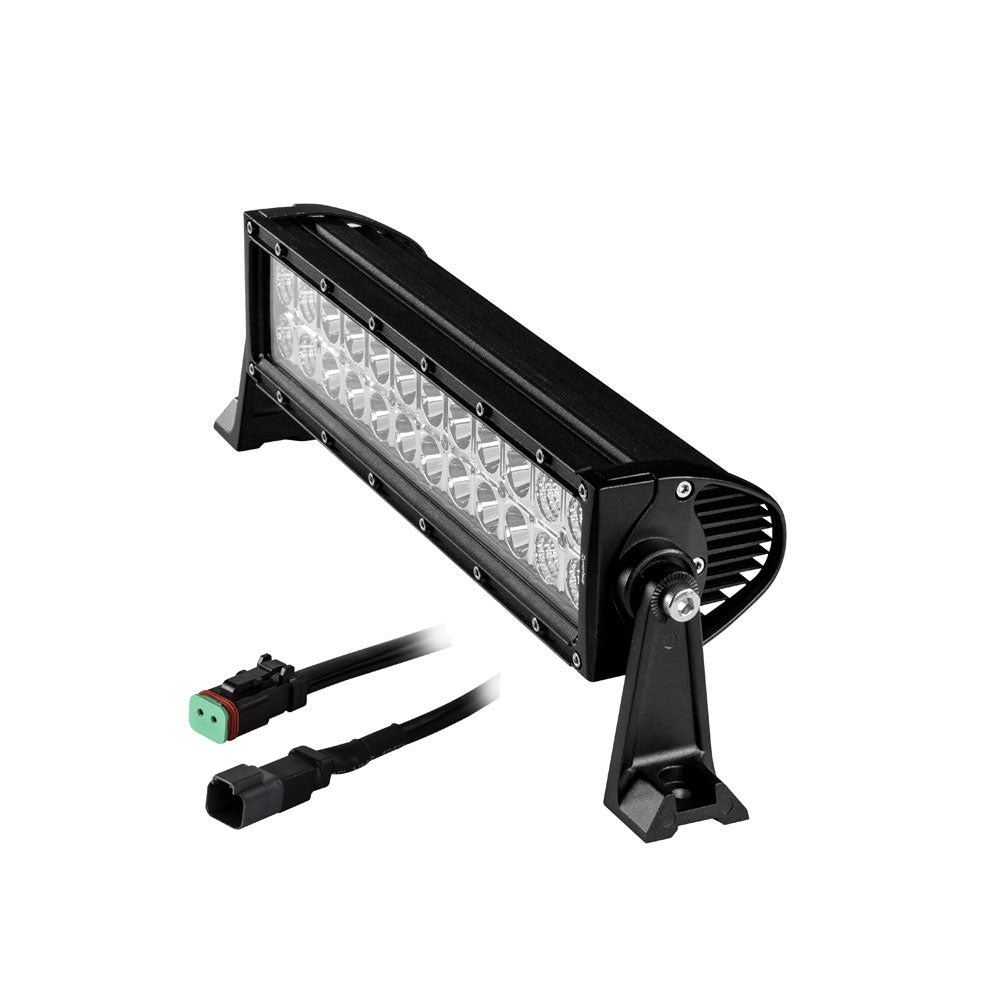

HEISE Dual Row LED Light Bar - 14" [HE-DR14]

Description

Dual Row LED Light Bar - 14"

SPECS

  • Input Voltage: 10-30V DC
  • Power Consumption: 72W
  • (24-3W CREE LEDs)
  • Raw Lumens: 5760
  • LUX @ 10M: 466
  • Color Temperature: 6000K
  • Beam Pattern: Combo/Flood(90°)/Spot(8°)

CONSTRUCTION

  • Housing Material: Die-cast Aluminum Housing
  • Housing Color: Black
  • Lens Material: PC
  • Mounting Bracket: Die-cast Aluminum
  • Length of Bar without Mounting Brackets: 14"
  • Hole Dimensions:
  • Brackets turned inward - 13.50"
  • Brackets turned outward - 14.75"
  • Mounting Bolt Drill - .25"
  • Height of Light Bar Itself: 3"
  • Depth of Light Bar Itself: 3.50"
  • Electronics: Integrated-Epoxy Encapsulated
  • Hardware: Stainless 316

OPERATION

  • Operating Temperature: -40°C to +60°C
  • Current Consumption: 3.7 amps @ 13.8 volts
  • IP Rating: IP68
  • Protections: Reverse Polarity

WarningWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

  • Beam Pattern: Spot-Flood Combo
  • Length (Inches): 14"
  • Housing: Black
  • Voltage - Input Range (Volts): 12/24v
  • Box Dimensions: 6"H x 7"W x 19"L WT: 5.4 lbs
  • UPC: 086429297955
Product form

Dual Row LED Light Bar - 14"SPECS Input Voltage: 10-30V DC Power Consumption: 72W (24-3W CREE LEDs) Raw Lumens: 5760... Read more

SKU: CWR-69714
Barcode: 086429297955

Out of stock

$342.99$307.99

    • Price Match Guarantee
    • Free Shipping on orders over $200
    • Secure Checkout

    Description

    Dual Row LED Light Bar - 14"

    SPECS

    • Input Voltage: 10-30V DC
    • Power Consumption: 72W
    • (24-3W CREE LEDs)
    • Raw Lumens: 5760
    • LUX @ 10M: 466
    • Color Temperature: 6000K
    • Beam Pattern: Combo/Flood(90°)/Spot(8°)

    CONSTRUCTION

    • Housing Material: Die-cast Aluminum Housing
    • Housing Color: Black
    • Lens Material: PC
    • Mounting Bracket: Die-cast Aluminum
    • Length of Bar without Mounting Brackets: 14"
    • Hole Dimensions:
    • Brackets turned inward - 13.50"
    • Brackets turned outward - 14.75"
    • Mounting Bolt Drill - .25"
    • Height of Light Bar Itself: 3"
    • Depth of Light Bar Itself: 3.50"
    • Electronics: Integrated-Epoxy Encapsulated
    • Hardware: Stainless 316

    OPERATION

    • Operating Temperature: -40°C to +60°C
    • Current Consumption: 3.7 amps @ 13.8 volts
    • IP Rating: IP68
    • Protections: Reverse Polarity

    WarningWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

    Specifications:

    • Beam Pattern: Spot-Flood Combo
    • Length (Inches): 14"
    • Housing: Black
    • Voltage - Input Range (Volts): 12/24v
    • Box Dimensions: 6"H x 7"W x 19"L WT: 5.4 lbs
    • UPC: 086429297955
