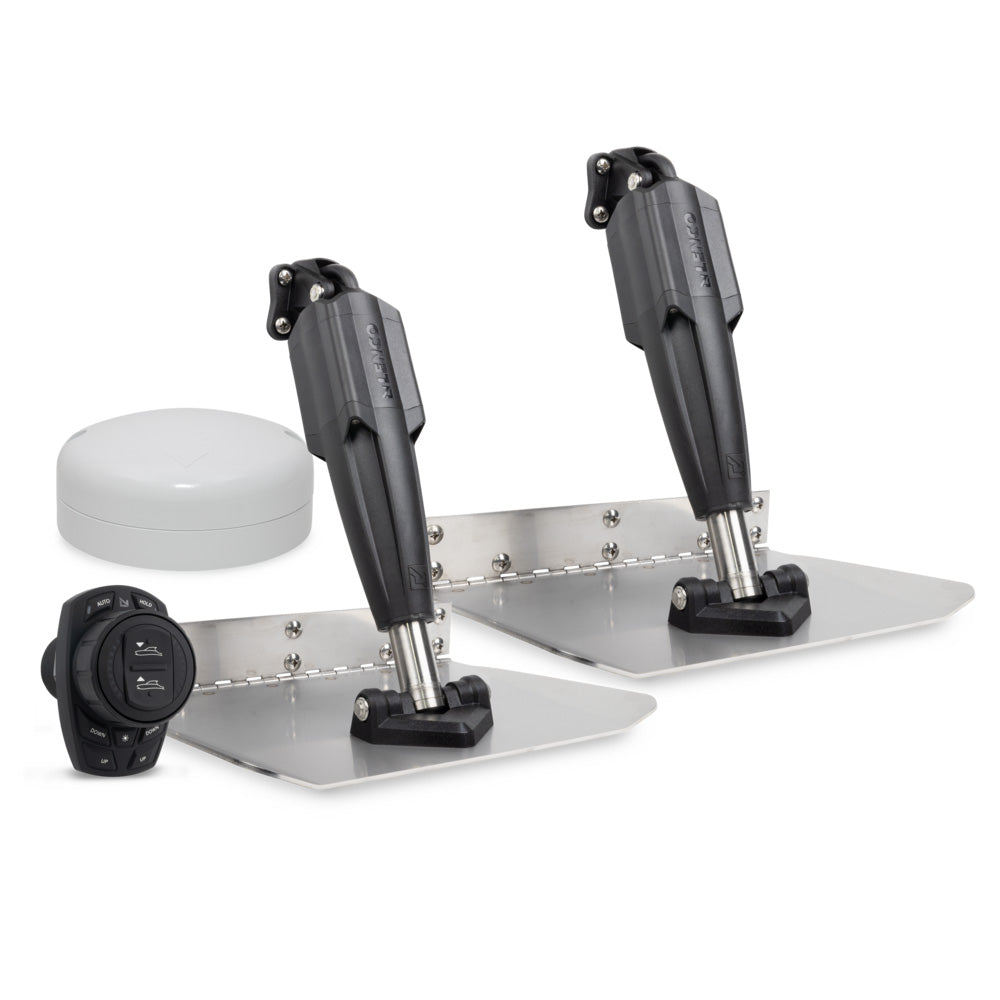

Lenco 12"x12" STD Trim Tab Kit w/Pro Control Auto [15184-107]

Description

12"x12" STD Trim Tab Kit with Pro Control™ Auto

Specifications:

  • Length x Width: 12"x12"
  • Boat Length: 17'-30'
  • Hinge Height: 2" (5.1cm)
  • Minimum Transom Height: 14" (35.6cm)
  • Keypad: Auto

Kit Includes:

  • (1) Pro Control Auto Keypad Kit (15174-107)
  • (1) Pro Control Auto IMU (15180-001)
  • (2) 12-gauge 304 (2.7 mm) stainless steel standard finish blades:
  • Standard blades - with a 5/8" (1.6 cm) flared trailing edge.
  • Edge Mount blades - with 1" (2.5 cm) turned-up edges a 5-degree taper on both sides to the trailing edge) and a 1/8" (3.2 mm) diameter hinge pin.
  • (2) 2.25” Stroke SD Pro Actuators, 11.5” pin to pin (15189-001)
  • (6) Micro C Tee Connector (30267-001DD)
  • Micro C Power Cable with Fuse and Ground (15197-101)
  • (2) 6’ (1.82 m) Micro C Drop cables (15199-101), (1) 15’ (4.57 m) (30269-001 and (1) 25’ (7.62 m) (30269-004) Micro C Drop cables
  • (2) 6 Pin Deutsch to Micro C Actuator Network Adapter Cable (30377-001)
  • (2) 3' (.91 m) Pro Control Actuator Power Pigtail (30378-001)
  • (1) Wake Signal Adapter for Non-Mercury Systems (15207-101)
  • (2) Corrosion proof Upper Mounting Brackets with gland seal (15193-101)
  • (2) Corrosion-proof Lower Mounting Brackets (15194-101)
Product form

12"x12" STD Trim Tab Kit with Pro Control™ AutoSpecifications: Length x Width: 12"x12" Boat Length: 17'-30' Hinge Height: 2" (5.1cm)... Read more

SKU: CWR-106724
Barcode: 874847009003

$2,781.99

    • Price Match Guarantee
    • Free Shipping on orders over $200
    • Secure Checkout

      Description

      12"x12" STD Trim Tab Kit with Pro Control™ Auto

      Specifications:

      • Length x Width: 12"x12"
      • Boat Length: 17'-30'
      • Hinge Height: 2" (5.1cm)
      • Minimum Transom Height: 14" (35.6cm)
      • Keypad: Auto

      Kit Includes:

      • (1) Pro Control Auto Keypad Kit (15174-107)
      • (1) Pro Control Auto IMU (15180-001)
      • (2) 12-gauge 304 (2.7 mm) stainless steel standard finish blades:
      • Standard blades - with a 5/8" (1.6 cm) flared trailing edge.
      • Edge Mount blades - with 1" (2.5 cm) turned-up edges a 5-degree taper on both sides to the trailing edge) and a 1/8" (3.2 mm) diameter hinge pin.
      • (2) 2.25” Stroke SD Pro Actuators, 11.5” pin to pin (15189-001)
      • (6) Micro C Tee Connector (30267-001DD)
      • Micro C Power Cable with Fuse and Ground (15197-101)
      • (2) 6’ (1.82 m) Micro C Drop cables (15199-101), (1) 15’ (4.57 m) (30269-001 and (1) 25’ (7.62 m) (30269-004) Micro C Drop cables
      • (2) 6 Pin Deutsch to Micro C Actuator Network Adapter Cable (30377-001)
      • (2) 3' (.91 m) Pro Control Actuator Power Pigtail (30378-001)
      • (1) Wake Signal Adapter for Non-Mercury Systems (15207-101)
      • (2) Corrosion proof Upper Mounting Brackets with gland seal (15193-101)
      • (2) Corrosion-proof Lower Mounting Brackets (15194-101)
