Description

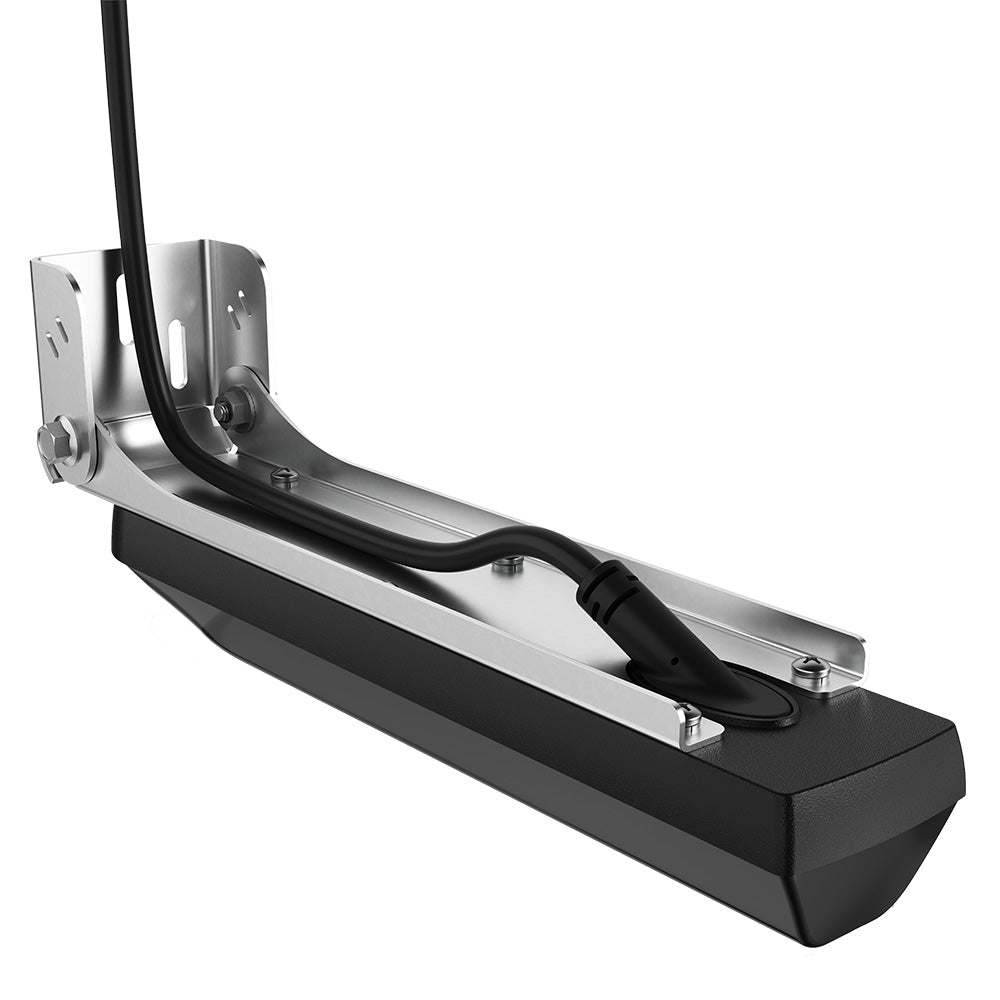

Active Imaging HD™ 3-in-1 Transducer
Step up to the ultimate fishfinding clarity with new, high-definition Active Imaging™ HD 3-in-1 sonar. Get the most precise images of fish and structure from Lowrance® CHIRP sonar, high-frequency (up to 1.2MHz) SideScan, and DownScan Imaging™, plus a FishReveal™ DownScan view that makes fish easier to identify below the boat.
Features:
- High definition (up to 1.2MHz) SideScan and DownScan Imaging™ deliver the clearest images of fish and structure
- Lowrance® CHIRP with superb clarity and target separation
- FishReveal™ DownScan view makes fish identification easy
- Supports Medium and High CHIRP (83/200kHz) + 455/800kHz and 455/1.2MHz frequencies
- Smart transducer design boosts signal clarity
- Compatible directly with Lowrance HDS PRO or with an S3100 module with HDS LIVE, HDS Carbon, and Elite FS
Specifications:
- Cable Length (Feet): 25'
- Chirp: Medium/High
- Imaging: Standard/Down/Side
- Mounting Style: Transom
- Pins: 9
- Speed Included: No
- Temperature: Yes
- Box Dimensions: 4"H x 10"W x 14"L WT: 4.4 lbs
- UPC: 9420064130368
