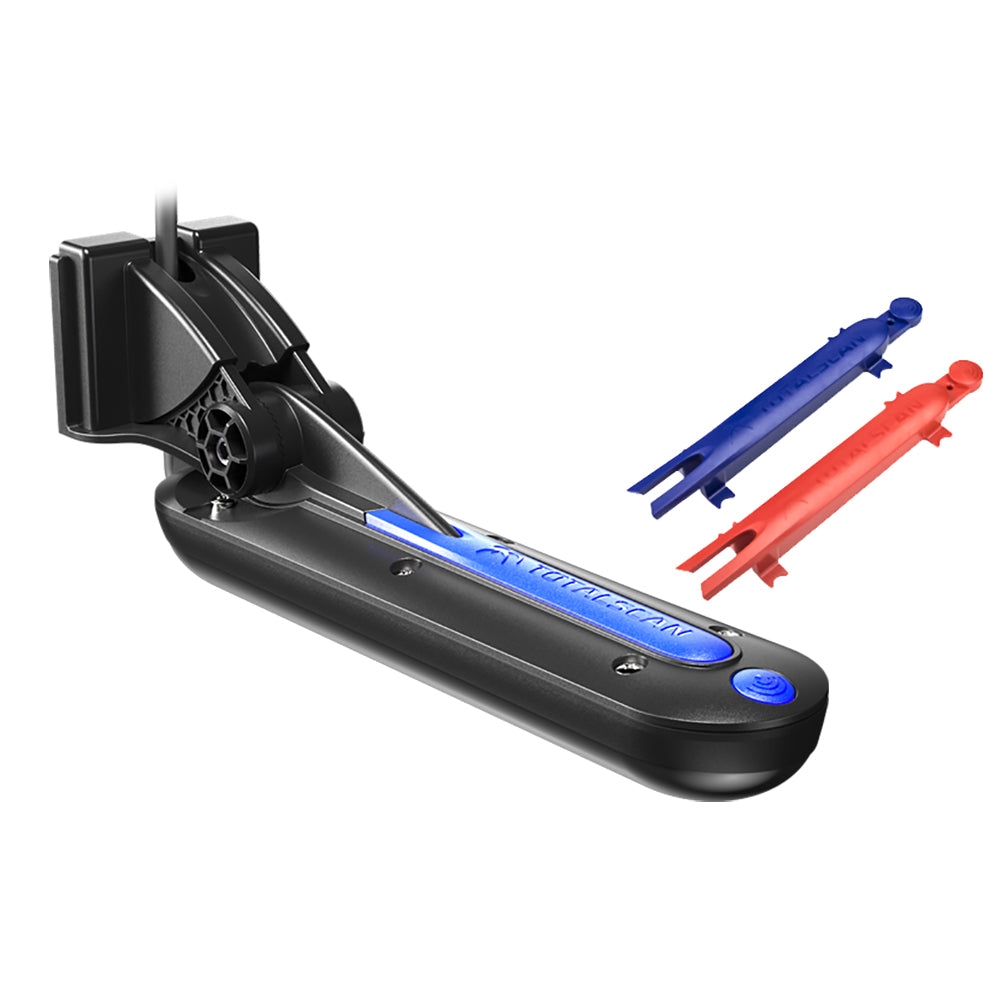

Lowrance TotalScan Skimmer Transom Mount Transducer [000-12568-001]

Description

TotalScan™ Transom Mount transducer

An all-in-one transducer that matches proven CHIRP sonar with StructureScan® HD and DownScan Imaging™ technology, making it possible to target fish and search for fish-holding structure with the same transducer.

The TotalScan transducer features multiple mounting options and is fully compatible with displays featuring integrated StructureScan HD, like Lowrance HDS Gen3, Elite-7 Ti, Elite-5 Ti, Simrad NSS evo2, and NSO evo2.

The TotalScan transducer is one of four new transducers that feature the new xSonic (9-pin black) 24ft cable.

An adapter cable will be available to connect xSonic (9-pin black) transducers to legacy displays that have a 7-pin blue connector.

Note: When a TotalScan transducer is connected to a legacy display with a 7-pin blue connector, the side-scanning feature will not function.

Features

  • All-in-one transducer featuring CHIRP Sonar, StructureScan HD and DownScan Imaging
  • Also supports 83/200kHz Broadband Sounder frequencies
  • Supports Medium and High CHIRP Sonar frequencies
  • Supports 455/800kHz StructureScan HD frequencies
  • Multiple mounting options
  • Fully compatible with Lowrance HDS Gen3, Elite-7Ti, Elite-5Ti, Simrad NSS evo2, and NSO evo2
  • Compatible with select legacy displays (Requires xSonic transducer adapter - side-scanning sonar not supported on legacy products)

Specifications:

  • Temperature: Yes
  • Speed Included: No
  • Pins: 9
  • Mounting Style: Transom
  • Imaging: Standard/Down/Side
  • Chirp: Medium/High
  • Cable Length (Feet): 24'
  • Box Dimensions: 3"H x 10"W x 13"L WT: 3.25 lbs
  • UPC: 9420024145265
