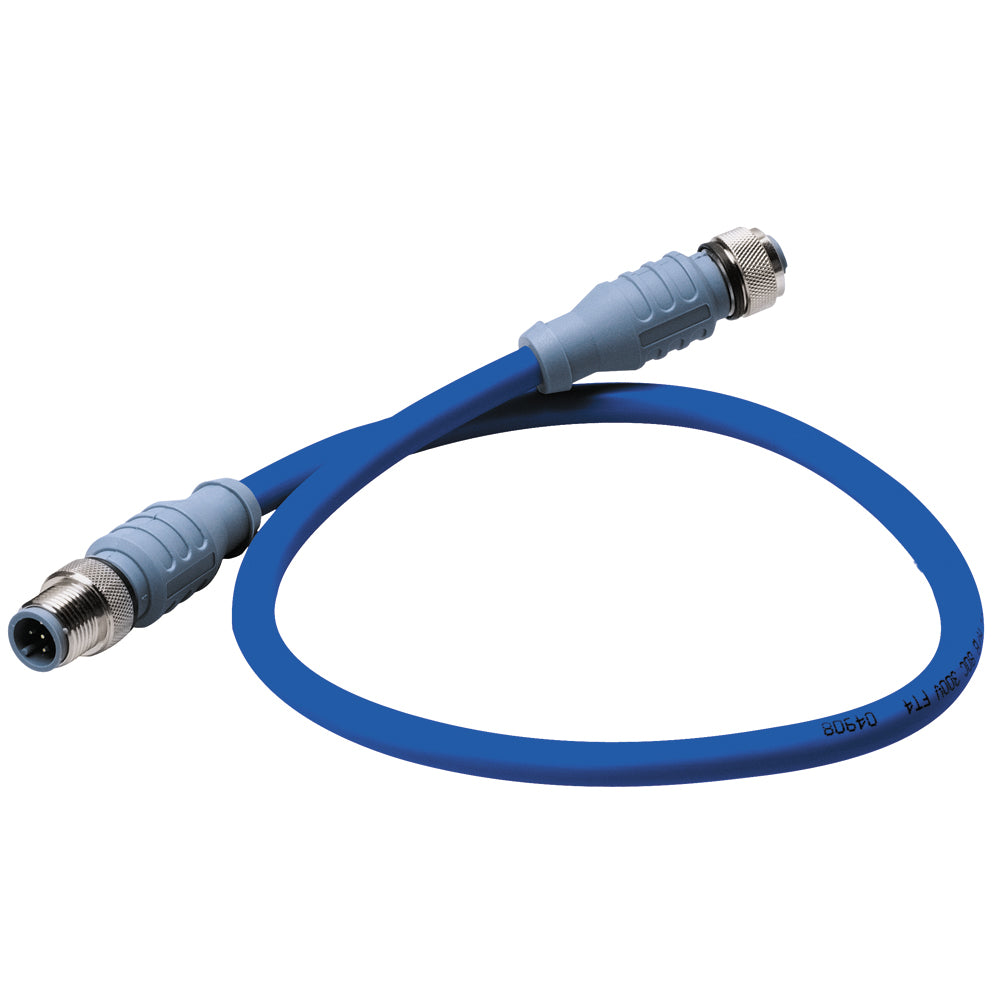

Maretron Mid Double-Ended Cordset - 6 Meter - Blue [DM-DB1-DF-06.0]

Description

Maretron Mid Double-Ended Cordset - 6 M Blue

Mechanical:

  • Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray
  • Molded Body Mat/Color: Thermoplastic PUR/Blue-Gray
  • Contact Mat/Plating: Brass/Gold
  • Coupling Nut Mat/Plating: Brass/Nickel
  • Connector Outside Diameter: 0.59"

    Electrical
  • Current Rating: 4.0 Amps
  • Voltage Rating: 250 V

    Cable

  • Outer Jacket Mat/Color: PVC/Gray
  • Conductor Insulation Material: PE (data pair), PVC (power pair)
  • Number of Conductors: 2x16 (1.29mm) AWG, Data 2x20 (0.81mm) AWG, 20 (0.81mm) AWG Drain Wire
  • Shielding (3 Levels): Foil (Overall), Foil (Power Pair), Foil (Data Pair)

    ENVIRONMENTAL
  • Protection Class: IEC IP68, NEMA 1,3,4,6P
  • Temperature Rating: -40 deg C to 80 deg C to (-40 deg F to 176 deg F)

    APPROVALS
  • (Cable) UL: PLTC 75 deg C Sunlight Resistant E90625, AWM 80 deg C 300V
  • (Cable) CSA: CMX-OUTDOOR-CMG LL54185 75 deg C, AWM I/II A/B 80 deg C 300V FT4
  • NMEA: NMEA 2000 Approved
  • IEC: IEC 61162-3

    Specifications:

    • Cable Length (Feet): 20'
    • Box Dimensions: 1"H x 6"W x 6"L WT: 1.4 lbs
    • UPC: 873804001951
    • Product form

    Maretron Mid Double-Ended Cordset - 6 M BlueMechanical:Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray Molded Body Mat/Color: Thermoplastic PUR/Blue-Gray Contact Mat/Plating: Brass/Gold... Read more

    SKU: CWR-47016
    Barcode: 873804001951

    $65.00$63.50

      • Price Match Guarantee
      • Free Shipping on orders over $200
      • Secure Checkout
      • Shipped today? Order within: Oct 05, 2025 15:00:00 -0400

      Description

      Maretron Mid Double-Ended Cordset - 6 M Blue

      Mechanical:

    • Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray
    • Molded Body Mat/Color: Thermoplastic PUR/Blue-Gray
    • Contact Mat/Plating: Brass/Gold
    • Coupling Nut Mat/Plating: Brass/Nickel
    • Connector Outside Diameter: 0.59"

      Electrical
    • Current Rating: 4.0 Amps
    • Voltage Rating: 250 V

      Cable

    • Outer Jacket Mat/Color: PVC/Gray
    • Conductor Insulation Material: PE (data pair), PVC (power pair)
    • Number of Conductors: 2x16 (1.29mm) AWG, Data 2x20 (0.81mm) AWG, 20 (0.81mm) AWG Drain Wire
    • Shielding (3 Levels): Foil (Overall), Foil (Power Pair), Foil (Data Pair)

      ENVIRONMENTAL
    • Protection Class: IEC IP68, NEMA 1,3,4,6P
    • Temperature Rating: -40 deg C to 80 deg C to (-40 deg F to 176 deg F)

      APPROVALS
    • (Cable) UL: PLTC 75 deg C Sunlight Resistant E90625, AWM 80 deg C 300V
    • (Cable) CSA: CMX-OUTDOOR-CMG LL54185 75 deg C, AWM I/II A/B 80 deg C 300V FT4
    • NMEA: NMEA 2000 Approved
    • IEC: IEC 61162-3

      Specifications:

      • Cable Length (Feet): 20'
      • Box Dimensions: 1"H x 6"W x 6"L WT: 1.4 lbs
      • UPC: 873804001951
