Description

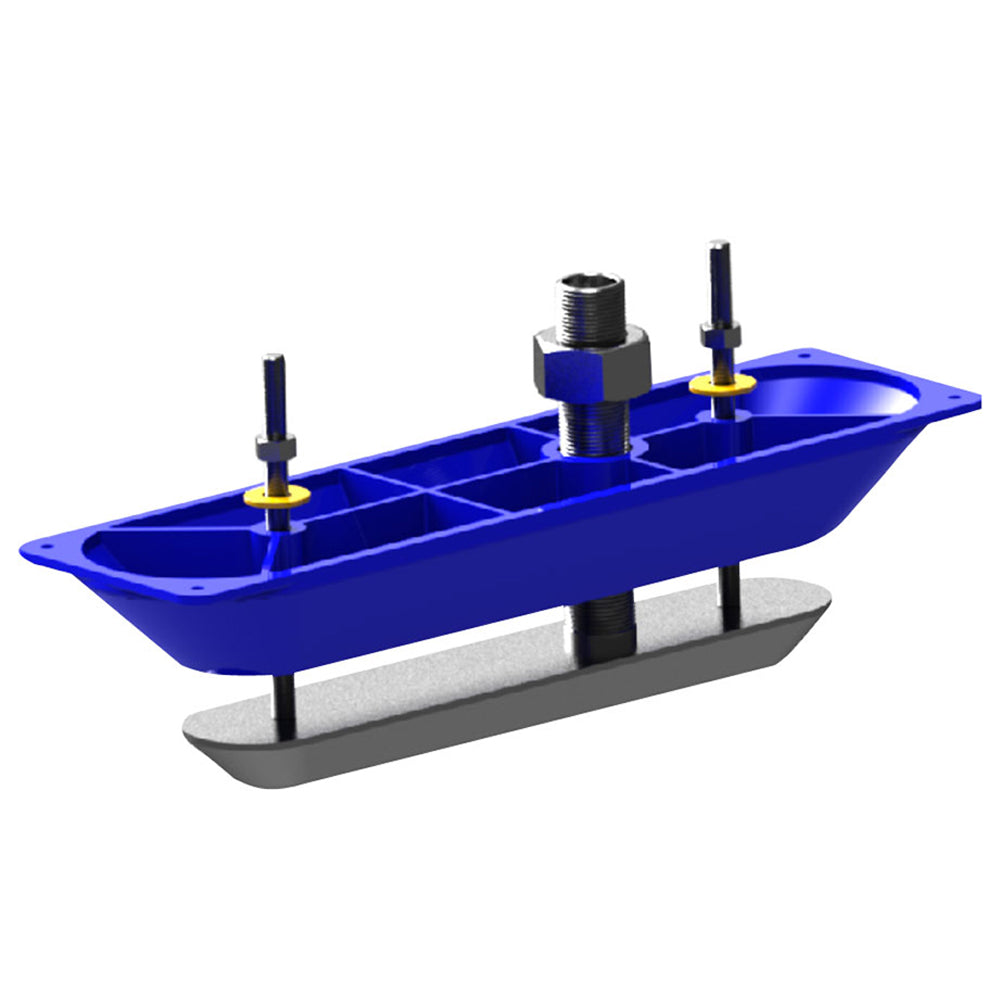

Navico StructureScanHD Sonar Stainless Steel Thru-Hull Transducer (Single)
LSS-2 Though Hull Transducers
Thru-hull, Stainless Steel LSS-2 StructureScan® HD transducers deliver extreme target detail, bottom discrimination and bait and game fish separation at depths to 300'/92M and a wider range of 600'/183M side-to-side coverage. All StructureScan® HD transducers are packed with an enhanced dual-frequency element array that operates at 455 kHz and 800 kHz.
These Stainless steel transducers from Airmar® are available only from Navico exclusively for StructureScan® HD and StructureScan® systems. These sturdy, bronze transducers are resistant to the electrical forces in the environment where it will be used. Each feature a low-profile design that minimizes drag; provide exclusive 3-channel beam, port and starboard SideScan plus DownScan Imaging technology; includes a high-performance fairing that will give you Structure performance at speeds up to 35 mph; and feature a 30'/9M transducer cable.
Specifications:
- Temperature: Yes
- Speed Included: No
- Pins: 9
- Mounting Style: Thru-Hull
- Imaging: Down/Side
- Chirp: No
- Cable Length (Feet): 25'
- Box Dimensions: 3"H x 12"W x 16"L WT: 5.35 lbs
- UPC: 9420024128695
