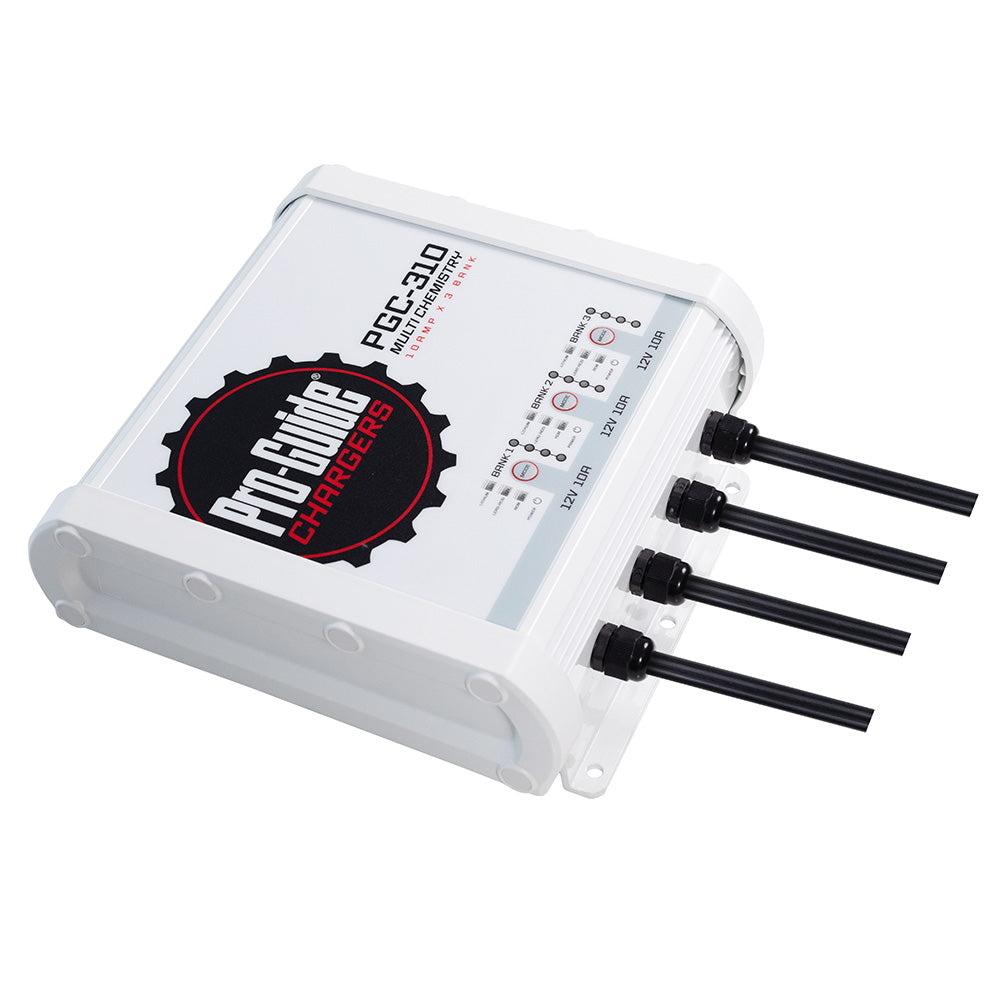

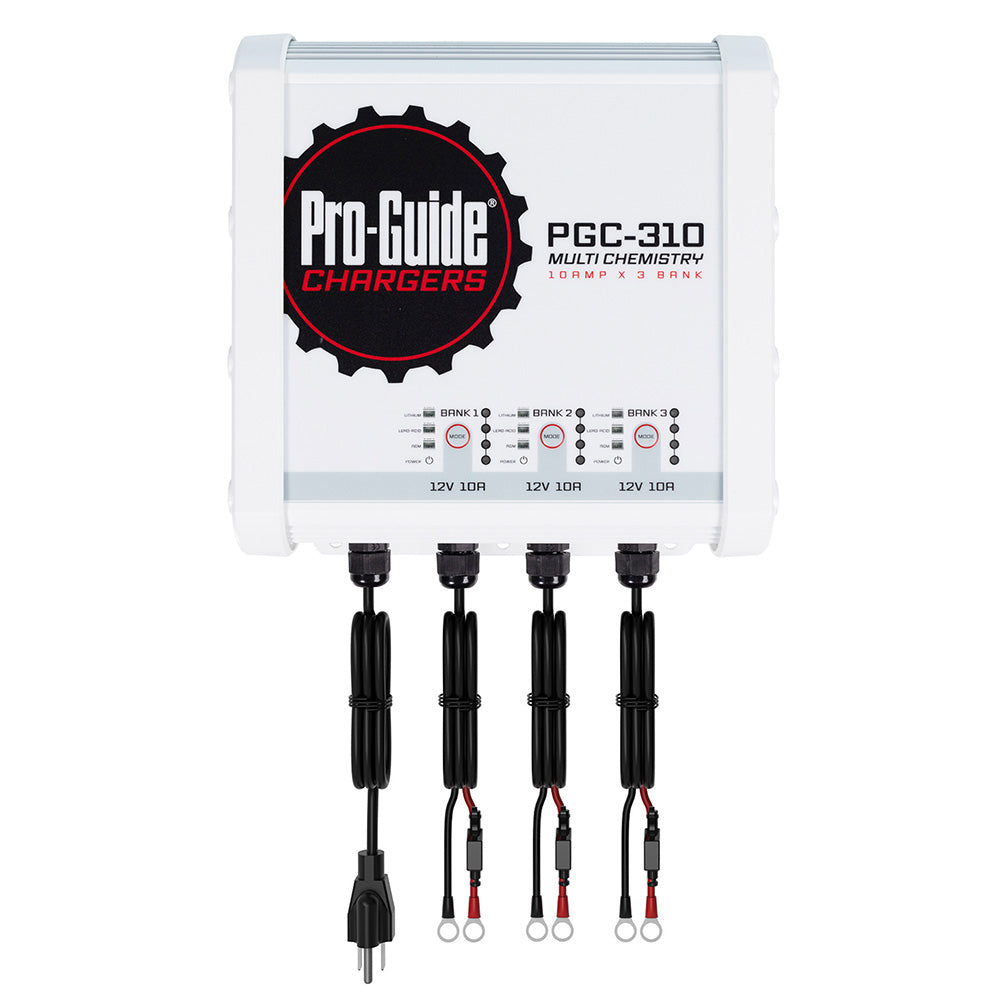

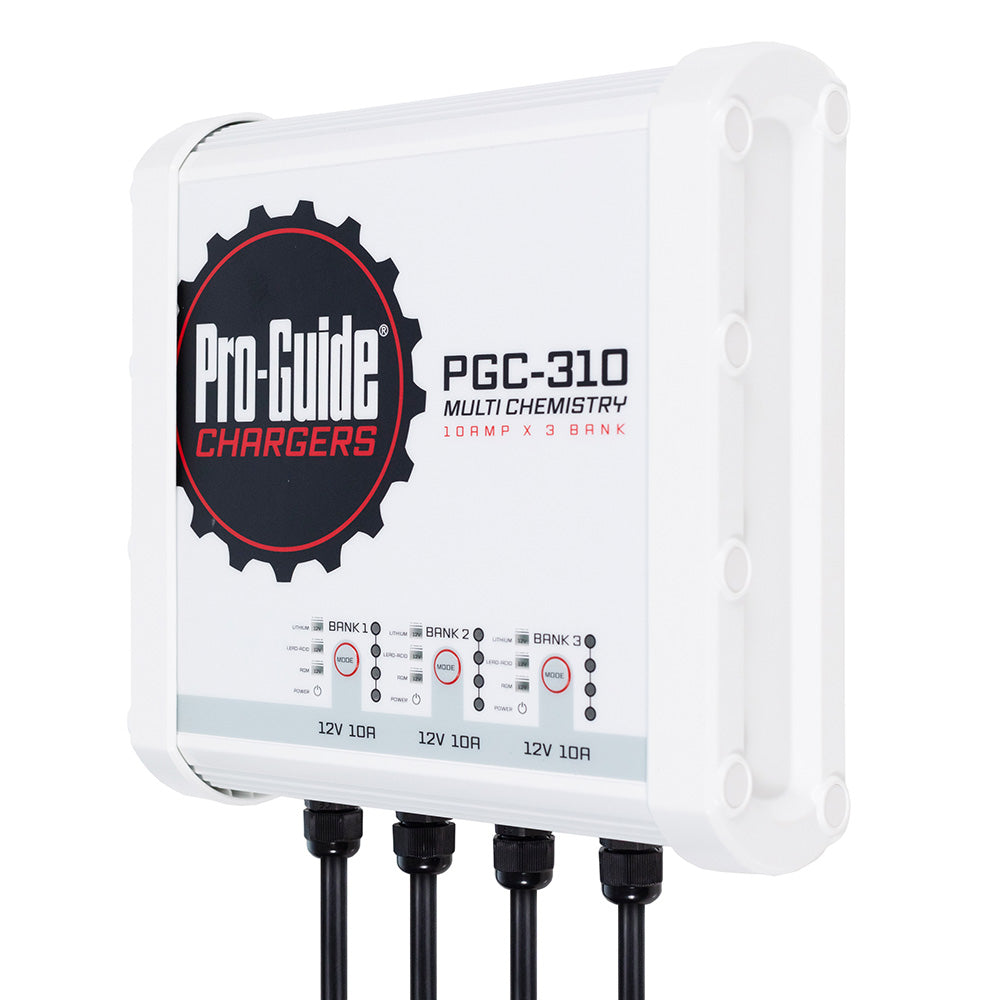

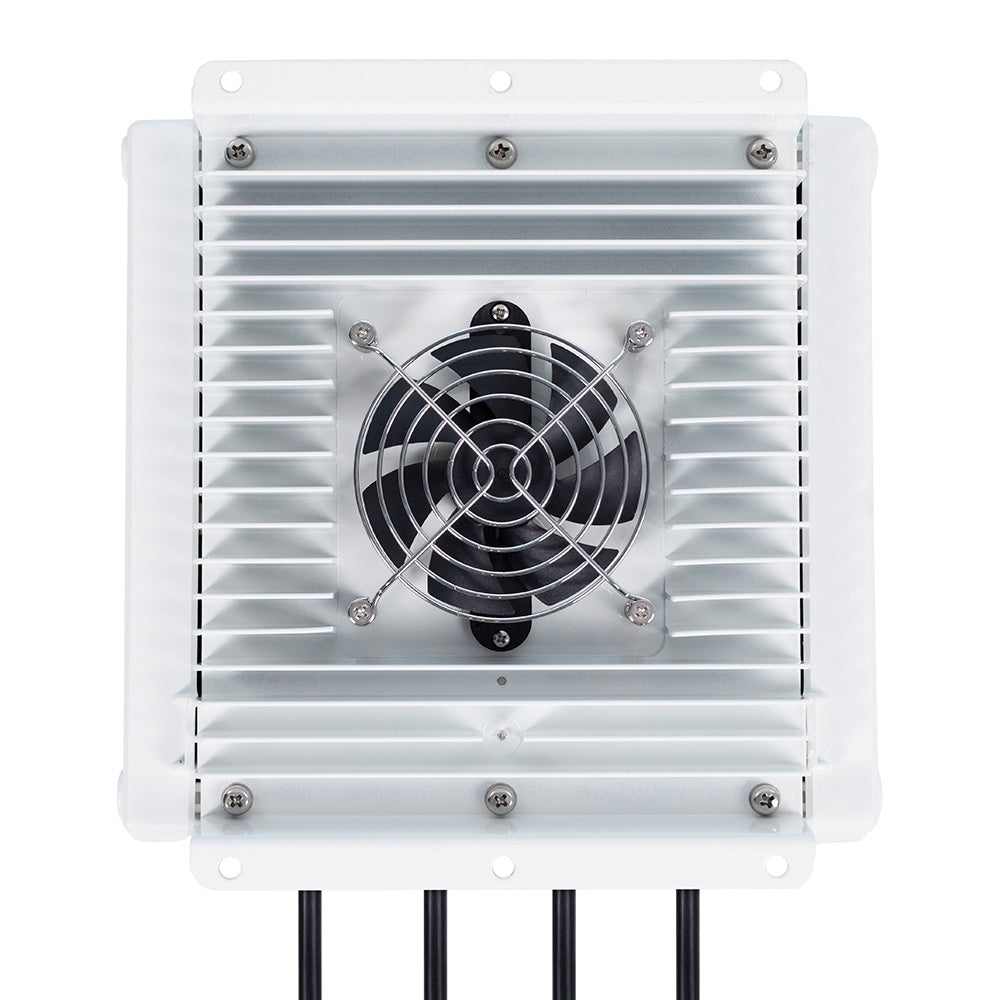

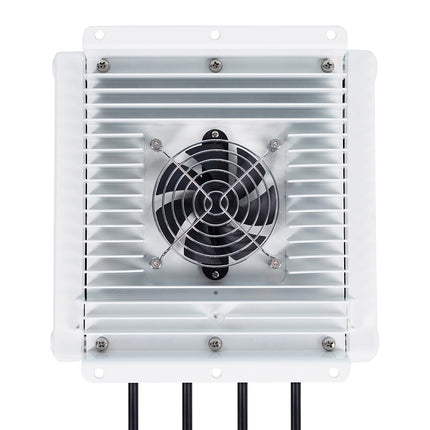

3 Bank On-Board Battery Charger - 12V - 30-Amp
The Pro-Guide PGC-310 is a 12V Lead Acid / AGM / Lithium on-board battery charger.
Each Bank can select one of three charge profiles, and allows the consumer to mix and match for their optimum setup.
Activation Mode supplies a short supply of voltage to wake any asleep Lithium Battery, or hold the button for (3-5) seconds to enter a manual Activation Mode.
The PGC Line is designed to stay plugged in year-round. With the Intelligent PGC Algorithm, each PGC Charger checks each battery's state of charge on a specific timeline, ensuring that you'll be fully charged for your next adventure.
With over 40 years of experience, Pro-Guide is proud to stand behind this charger with a 2 Year Free and 4 Year Total Warranty.
Protection:
- Output Over-Voltage
- Output Over Current
- Output Short Circuit
- Output Reverse Polarity
- Over Temperature
Input:
- Input Voltage: AC 110-120V
- Frequency: 60Hz
- Input Current: <6A
Specifications:
- Battery Type: Lead Acid/AGM/Lithium
- Output Voltage: DC 12V x 3
- Max Output Voltage: 14.1-14.3 for Lead Acid Battery, 14.3-14.7 for AGM Battery, & 14.4-14.7 for Lithium Battery
- Output Current: 10A x3
- Length: 9.06"
- Width: 9.96"
- Height: 3.86"
- Weight: 15.9 lbs
- IP Rating: 68
Specifications:
- Charger Input - Voltage: 120v
- Charger Output - Amps: 30a
- Charger Output Voltage: 12v
- Charging Banks: 3
- Portable: No
- Box Dimensions: 8"H x 12"W x 14"L WT: 17 lbs
- UPC: 810145910764
