Description

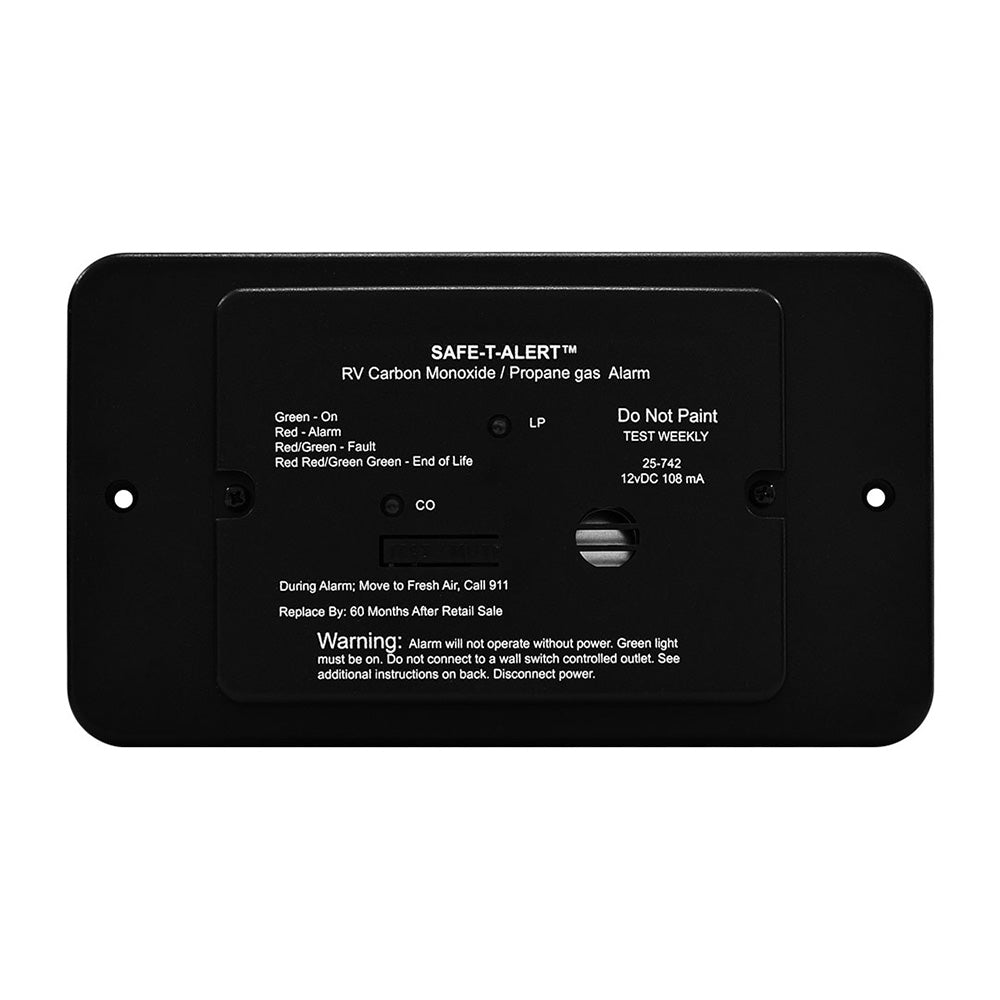

25 Series Flush Mount Dual Carbon Monoxide/Propane Alarm with Trim Ring - Black - 12V Hard Wire
The Safe-T-Alert 25 Series combination CO/Gas Alarm combines a powerful, compact system that detects both Carbon Monoxide (CO) and explosive Propane (LPG) gas. The 25 Series uses the latest microprocessor technology, combined with two electronic self-cleaning sensors that operate independently. The combined unit can detect both CO and explosive gases simultaneously.
This detector is listed as a CO and Propane gas detector for RV use. Other explosive gases, such as Acetone, Alcohol, Butane, and Gasoline, may cause false alarms.
To prevent false alarms from brief “puffs” of gas, the detector has a recheck cycle before alarming. If high levels of gas remain during the recheck cycle, the detector will alarm.
The electronic CO sensor in your SAFE-T-ALERT CO alarm is very sensitive to CO gas. It will not react to safe levels of most other gases.
Features:
- This unit comes with a trim ring to cover existing screw holes and fit newer units into previous installation cutouts.
- Patented Double-Duty Alarm. Upgrades single 12 Volt Propane Gas alarms to a dual alarm that detects both Propane Gas and CO.
- Space Saving. Compact design for RVs.
- Designed for the Rugged RV Environment. Ideal for Class A Motor homes, Class B Van Campers, Class C Mini-Motor Homes, Travel Trailers, Fifth Wheels, Truck & Folding Campers.
- Advanced Technology. The Alarm Mute button silences the alarm while the RV is ventilated. Rapid recovery sensor resets when silenced or reactivates the alarm if dangerous levels of Propane or CO remain.
- Reliable. 12 Volt power means no missing or dead batteries to replace.
- Approved. Meets RVIA/NFPA requirements.
- Conforms to UL STD 2034 RV /1484 RV.
Specifications:
- Conforms to UL STD 2034 RV /1484 RV
- Power Supply & Current Draw: 108 mA @ 12 VDC
- Operational Range: 12 Volts +/-15%
- Low-voltage power warning
- Operating Temperature: -40° F to +158° F
- Unit Size with Trim Ring: 7″W x 4″H x 1.25″D
- Cutout Size: 3.25″W x 2.5″H
Specifications:
- Blower Relay: No
- Fume Type: Carbon Monoxide
- Generator Shutdown: No
- Voltage - Input Range (Volts): 12
Owner's Manual (pdf)
