Description

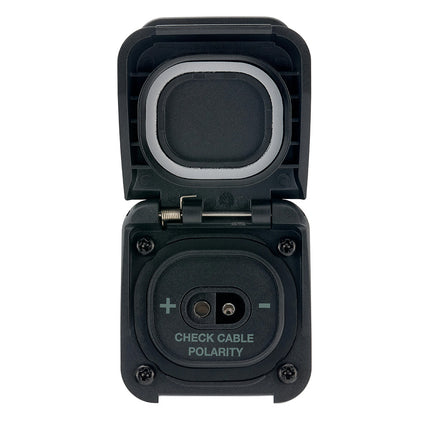

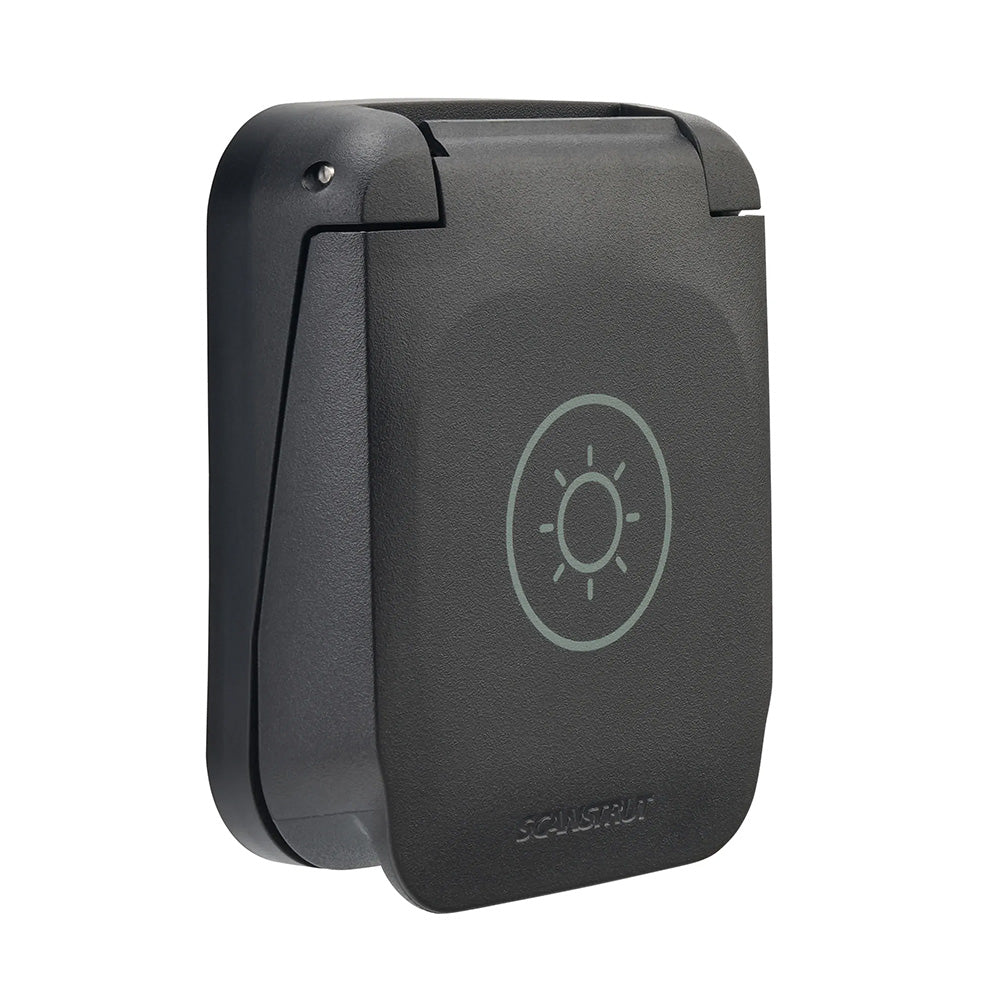

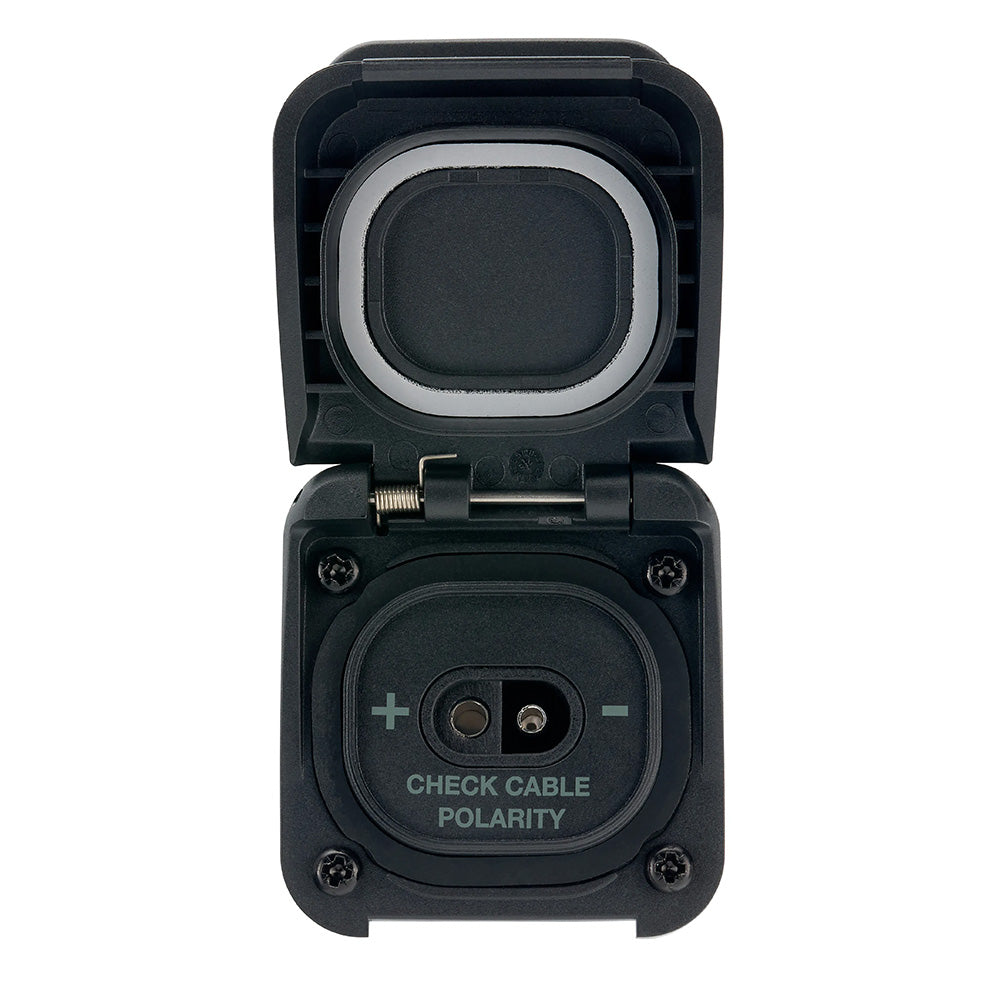

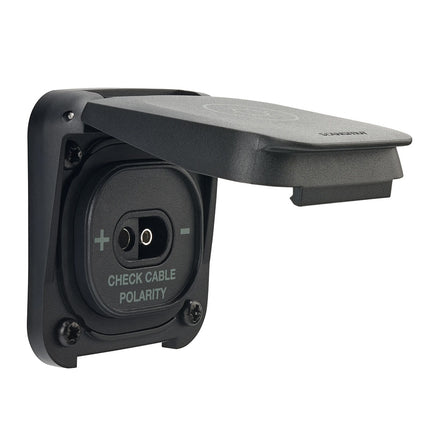

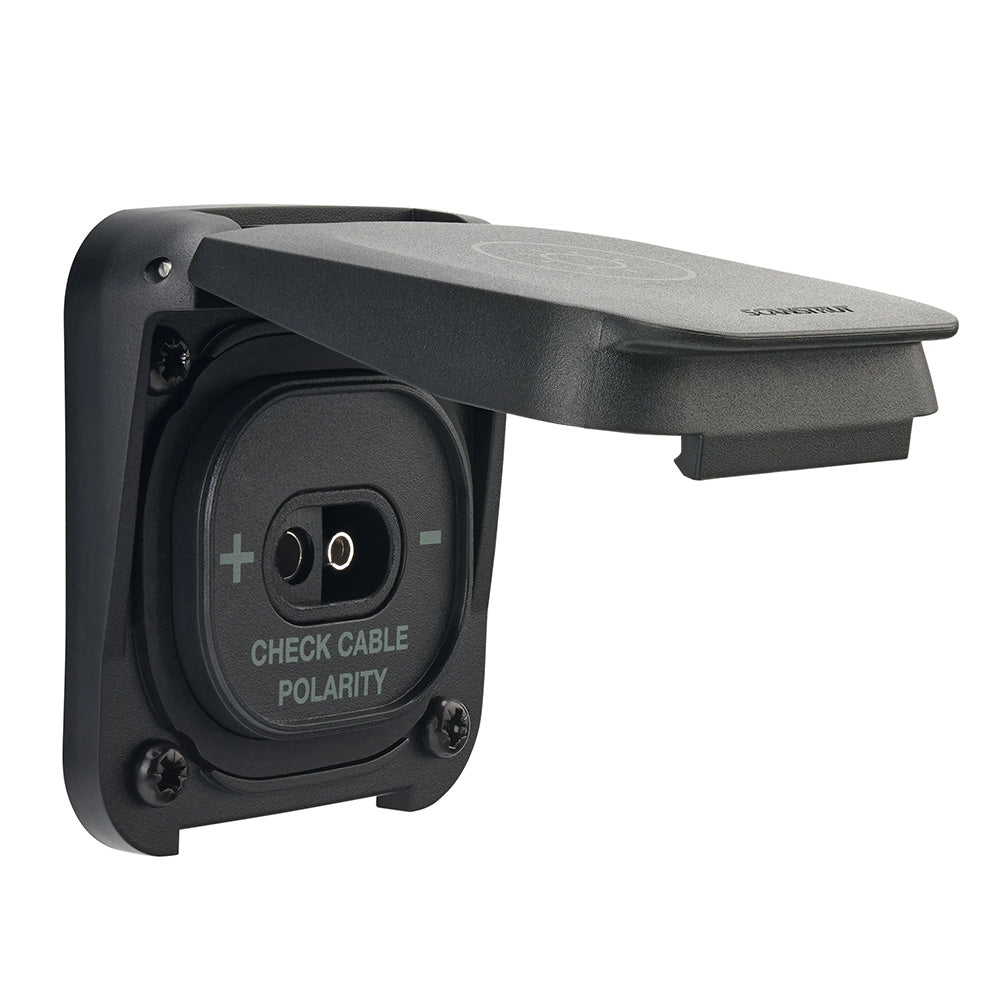

Ventura Series SAE Solar Connection
The Scanstrut Ventura Series SAE Solar Connection is made for those who live off the grid and chase the horizon. Whether you're topping up with solar power at a remote basecamp or running a battery maintainer. At the same time, your camper's parked in the wild, or charging gear from your overland trailer, Ventura delivers tough, reliable performance, no matter where you roam.
Working seamlessly with the rest of the Ventura Series, integrating power, water, solar, and more into a single, cohesive design language.
Do you need quick and dependable outdoor access to an SAE connection? From rocky trails to coastal escapes, it’s the ideal power partner for off-road adventures and outdoor living.
Built with Scanstrut's proven marine-grade innovation, each socket is UV-resistant, waterproof (IP68 and IP69K), and made from 316 stainless steel to thrive in rain, dust, and rugged terrain.
Developed through extensive R & D, the Ventura Series features a slim, unified design that blends perfectly with exterior sockets for gas, water, and solar, keeping your vehicle or rig looking sharp and fully equipped. Choose the Scanstrut Ventura Series for outdoor connectivity that’s dependable for your next adventure.
Features:
- IP68, IP69K Waterproof (with lid closed)
- Standard 25mm (1.00”) Holesaw Installation
- Built-in gasket for a watertight seal
- Easy install

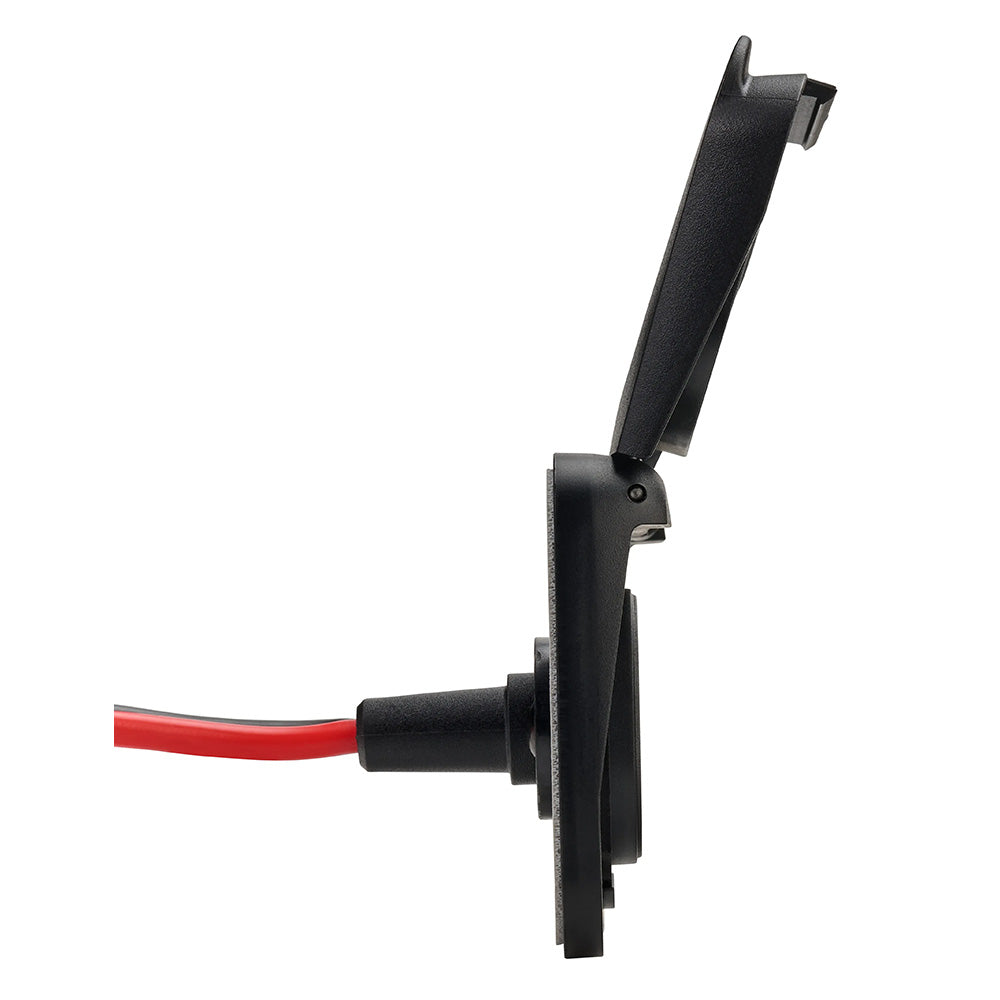

- Spring-loaded lid
- Marine-Grade 316 Stainless Steel Components
- 90° Holding Bump-Feature
Specifications:
- Connection Type: SAE
- Connector Max Current: 20A
- Connector Max Voltage: Rated 24V DC
- Max Power Delivery (12V Input): 240W
- Max Power Delivery (24V Input): 480W

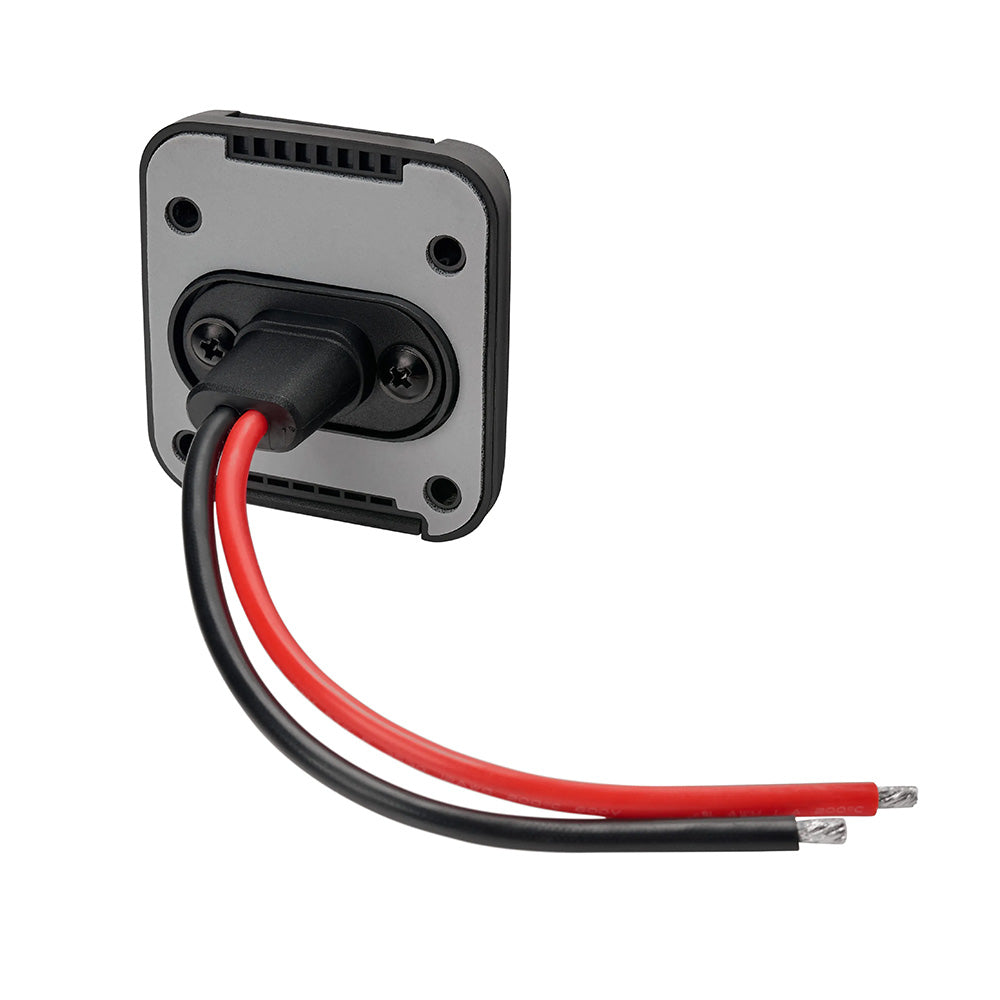

- Cable Size: 4mm² / 12AWG
- Cable Length: 150mm (6”) Tinned Copper Wire
- Cable Bend Radius (4xD): 18mm (0.71”)
- Waterproof Rating: IP68, IP69K Front only when lid closed
- Certification: CE, ROHS
Specifications:
- Type: Electric
- Box Dimensions: 3"H x 3"W x 5"L WT: 0.2 lbs
- UPC: 5060114799493
Quick Guide (pdf)Brochure (pdf)
