Schaefer Spring Loaded/Lined Slide/Aluminum f/1" T-Track [504-82]

Description

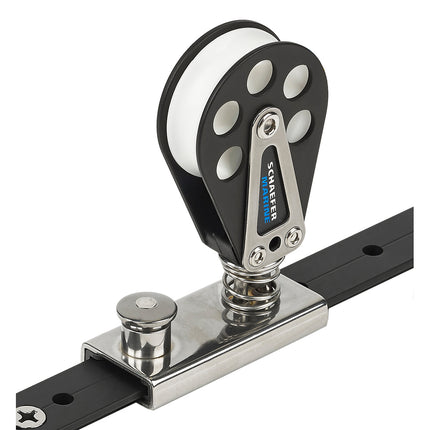

Spring Loaded/Lined Slide/Aluminum for 1" T-Track

Delrin™ sheave ensures smooth operation and high safe working load. Anodized aluminum cheeks and stainless steel slider ensure reliability. Polyethylene liner and pin stop allow for easy adjustment.

Specifications:

  • Track Size 1" x 1/8" (25 mm x 3 mm)
  • Max. Boat Length- 27' (8m)
  • Max. Boat Weight- 5000 lbs. (2270 kgs)
  • Sail Area- 315 sq. ft (29 m2)
  • Sheave Diameter 2" (51 mm)
  • Max Line 7/16" (11 mm)
  • Length 3" (76 mm)
  • Width 1-1/4" (31 mm)
  • Height 4-5/32" (105 mm)
  • Bearing Height 2-7/32" (56 mm)
  • SWL 1750 lbs. (795 kg)
  • Weight 7.0 oz. (198 g)
Product form

Spring Loaded/Lined Slide/Aluminum for 1" T-TrackDelrin™ sheave ensures smooth operation and high safe working load. Anodized aluminum cheeks and stainless... Read more

SKU: CWR-74718
Barcode: 740507020902

1 in stock

$271.45$185.50

    • Price Match Guarantee
    • Free Shipping on orders over $200
    • Secure Checkout

      Description

      Spring Loaded/Lined Slide/Aluminum for 1" T-Track

      Delrin™ sheave ensures smooth operation and high safe working load. Anodized aluminum cheeks and stainless steel slider ensure reliability. Polyethylene liner and pin stop allow for easy adjustment.

      Specifications:

      • Track Size 1" x 1/8" (25 mm x 3 mm)
      • Max. Boat Length- 27' (8m)
      • Max. Boat Weight- 5000 lbs. (2270 kgs)
      • Sail Area- 315 sq. ft (29 m2)
      • Sheave Diameter 2" (51 mm)
      • Max Line 7/16" (11 mm)
      • Length 3" (76 mm)
      • Width 1-1/4" (31 mm)
      • Height 4-5/32" (105 mm)
      • Bearing Height 2-7/32" (56 mm)
      • SWL 1750 lbs. (795 kg)
      • Weight 7.0 oz. (198 g)
