Description

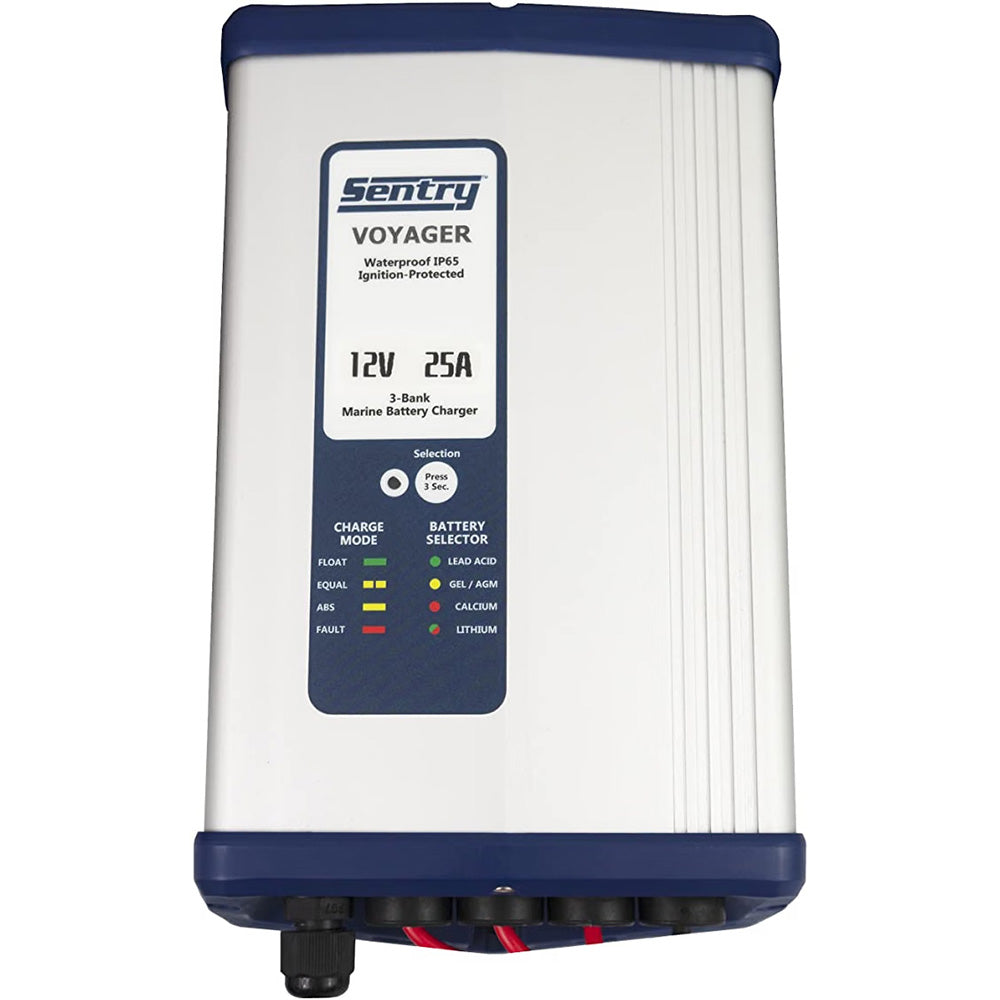

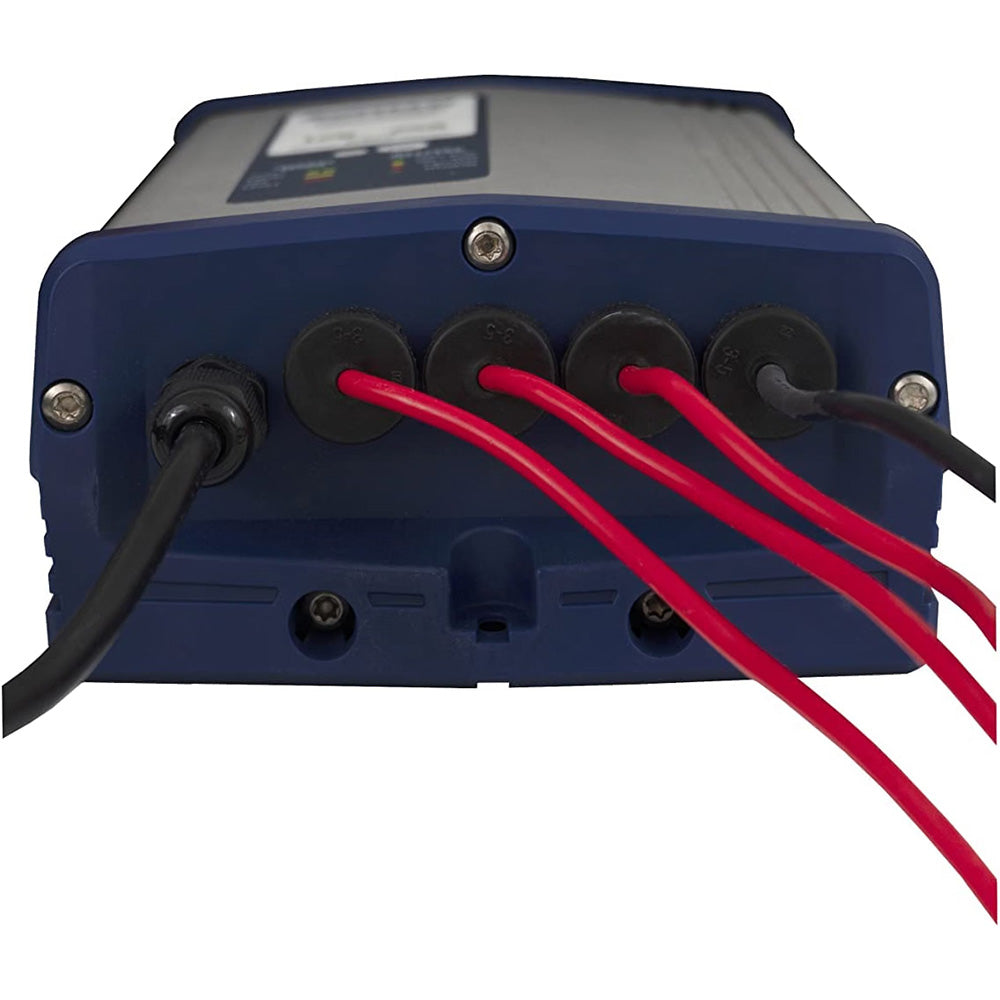

Voyager Battery Charger 12V - 25A - 115/230V Input - 3 Bank
Sentry Voyager marine battery chargers are lightweight, compact, and easy to install. The circuit board is conformal coated for added protection from the harsh marine environment.
Sentry Voyager battery chargers use DIP switches to select the correct battery charging curve. Battery charge selections are Lead-Acid, AGM, Gel, Lead Calcium, Spiralcell, or Lithium-ion (LiFeS04). Each charger will charge three independent and isolated battery banks.
The charger is designed to automatically switch to match 115vac or 230vac incoming power and 50Hz or 60Hz frequency.
Equipped with an LED indicator, Voyager chargers display the charging status of Boost, Equalization, and float modes. The LED indicator will also show fault status for high temperature fault, battery fuse fault, and output voltage fault.
Features:
- Select charging profile for Lead-Acid, AGM, Gel, Spiralcell, Lead Calcium, or Lithium-ion
- Direct replacement for Sentry “SM” series battery chargers
- Automatically switches to 115vac or 230vac and 50Hz or 60Hz power
- Three isolated bank charging outputs
- Lightweight and compact size
- "Night Mode" button for silent operation
- AC and DC fuse protection
- Automatic weekly equalization
- Conformal-coated PC Board for corrosion protection
- LED charge mode and fault status indicator
- Two-year parts warranty
Specifications:
- Charger Input - Voltage: 115/230
- Charger Output - Amps: 25
- Charger Output Voltage: 12
- Charging Banks: 3
- Portable: No
Brochure (pdf)
